We are manufacturing any type, any size, any  shape, any quantity of Droppin.

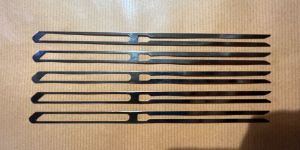

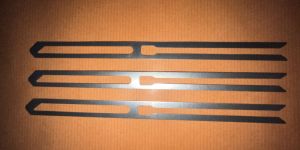

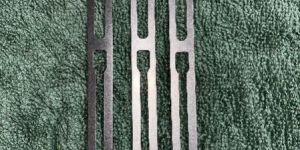

Drop Wires / Drop Pins Manufacturers In the process of Weaving Loom, our manufactured range of Drop wires play a vital role. It is a metal device through which a warp yarn is threaded. If in case of warp yarn breaks, that metal device falls and completes an electrical circuit, which stops the loom.   Usually, these drop wires are installed on the weaving loom to detect warp breakage. Offered array of Drop wires is also called a drop pin or dropper in many countries. It is a very crucial part of the shuttle less loom. Also, it shows warp breakage and gives an indication to warp stop motion to stop the weaving machine.   Drop Wires are manufactured in closed and open types for mechanical and electrical warp stop motion. These drop wires are made from hardened and tempered high carbon steel strips / stainless steel 420 J grade magnetic material. The drop wires are deburred to ensure smoothness and polished to minimize yarn frictions.   At our manufacturing unit, our highly qualified engineers manufacture these Drop wires by using top-notch quality of raw materials like Carbon Steel and Stainless Steel. In fact, our company procures these raw materials from reliable vendors so that our clients do not have any chance of complaining and the quality of the fabric can be enhanced without any loss.   Due to their best quality manufactured range of Drop Wires are highly demanded by our national and international clients. Precisely engineered in compliance with the industry set norms and regulations, offered array of drop wires are known for their sturdy construction, high tensile strength, and resistance to corrosion and longer functional life. In addition, our Drop Wires are widely used in imported and domestic rapier loom, air jet loom, and water jet loom. Some other features are also mentioned here: Corrosion-resistance Smooth, abrasion resistant surface of eyelet Hardness HV410~510 Longer functional life Accurately designed DROP WIRES Mechanical Wrap Stop Motion Electrical Warp Stop Motion EXECUTION Stainless Steel (420 J Magnetic) Electro Nickel Plating Zinc Plating (with Unichrome Blue Finish) Golden Yellow Finish Specification For DropWires MO= MECHANICAL OPEN || MC= MECHNICAL CLOSE EO= ELECTRICAL OPEN || EC= ELECTRICAL CLOSE

Material : Carbon Steel And Stainless Steel

Length : 80 mm to 268 mm

Width : 7 mm - 15 mm

Country of Origin : India

Type : Drop Wire

Thickness : 0.2 mm – 1.00 mm

Country of Origin : India

Type : Riderless Heald

Material : Stainless Steel

Application : Textile Industries, Weaving

Condition : New

Packaging Type : Box

We are manufacturing any type, any size, any  shape, any quantity of Droppin.

Material : Cr Steel / SS 420 j Grade

Narrow Fabric Heald Manufacturers Narrow fabric heald wire  is a main part of the Jacquard harness assembly. This is the component that interfaces with the yarn. All functional aspects of our offered range are strictly controlled by our well educated engineers. Narrow fabric healds are also manufactured from Stainless Steel and Carbon Steel material which is the best quality hardened and tempered strips with round edges.   Narrow fabric heald which is manufactured at our well organized manufacturing unit, ensures rumble free for smoothness to avoid breakage of yarn while passing from eyelet which also made polish by extra care with the help of special purpose machines.   AK industries offers Narrow Fabric Heald which has smooth and easy weaving feature which are widely used in textile jacquard machines. With their extensive experience of manufacturing and supplying our Narrow Fabric Heald, our company has made a reputed name for themselves in the both national and international market.   Provided range is manufactured using high quality hardened and tempered stainless steel (Inox) and high carbon steel strips which provides longer functional life to the machinery and performs at high levels. They are specially coated with tin that provides more durability of heald. These offered range of wire healds are available at an economical price with on-time delivery, and we can also customize non-standard wire healds as per valuable client’s requirements.   During the manufacturing process of this Narrow Fabric Heald, we adopt the highest standards of control in terms of quality in line with industry standards. It can be used for high speed jacquard weaving machines that also can meet the weaving need of customers settled in different parts of the world.   As a specialized wire heald manufacturer of Gujarat, AK Industries is equipped with a well-established manufacturing unit and infrastructure which includes advanced processing machines, manufacturing machines, and testing apparatus to keep a smooth and well-organized production process.

Length : 150 mm to 332 mm

Width : 4 mm to 8 mm

Plating : Nickel Plating

Moc : Stainless Steel, High Carbon Spring Steel

Eyelet : 3.5×2.5, 5.5×3.5, 3×2, 3×1.5, Square, Oval And Round

Type : Simplex And Duplex

Thickness : 0.2 mm to 0.8 mm

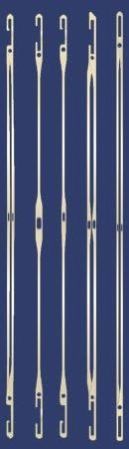

Heald Wire Manufacturers in India It is type of steel wire with an eye in the Centre or in another words, it is a similar device through which a warp yarn is threaded, which is used to lead the warp yarns to move in lifting motion. Generally, these heald wires are developed for wire weaving machines.   Our manufactured range of heald wire enables the yarn to be raised or lowered during weaving to create a shed. Our offered heald wire is well-manufactured by using of superior quality stainless steel. Our highly qualified and determined professionals made variety of heald wires with different sizes and types of loops, eye holes, strip width, thickness and plating.   At our manufacturing unit, offered range of heald wires are made in adherence that actually matches the international quality standards. Also, our all products are developed under the strict control and supervision of our industry experts. Apart from this, our team and infrastructure facilities enable us to execute the whole processing within the prescribed time frame.   Our company is striving hard to provide the top grade heard wires to their domestic and international clients that are sourced from genuine and trustworthy vendors of the industry. Additionally, our qualitative range of heald wires are widely demanded and appreciated for their smooth performance, sturdiness, durable finish, corrosion resistance, easier installation and reliability. Fully scientifically controlled in house electroplating is one of the best feature of our manufactured product that gives maximum rust protection life.

Length : 220 Mm To 382 Mm

Width : 5.5 Mm/ 6 Mm/ 6.64 Mm/ 7.2 Mm

Plating : Nickel, Zinc

Moc : Stainless Steel, High Carbon Spring Steel Strip

Eyelet Size : 5.5×1.2, 6.5×1.8, 6.5×2.5, 7.8×3.8, 8×3.8, 8×2.

Eyelet Position : In Centre, 5 Mm Above Centre

Country of Origin : India

Type : Heald Wire

Shape : Round

Thickness : 0.2 Mm To 1 Mm

Application : Textile Industry

Feature : Durable, Light Weight

Finishing : Polished
