Abrasion Testing Machine Dealers in Ahmedabad

• Brand Name: EIE

We are engaged in offering Los Angeles Abrasion Testing Machine to the clients. Our Los Angeles Abrasion Testing Machine is manufactured from quality components thus ensure high durability. Further, we offer Los Angeles Abrasion Testing Machine at most competitive prices. General Description & Specifications Consists of a hollow steel cylinder, closed at both ends, having an inside diameter of 700mm and inside length of 500mm. The cylinder mounted on a sturdy frame on ball bearings. The opening is closed dust tight with a removable bolted cover in place. A detachable shelf which extends through the drum catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated at a speed of 30-33 RPM by an electric motor through a heavy duty reduction gear. Fitted with revolution counter and push button starter. Supplied complete with a tray for collection of the material. Abrasive charge consists of set of 12 Nos. cast iron spheres or steel spheres (hardened steel balls) approximately 48mm diameter each weigh between 390-445 gram. Optional Accessories : The following accessories are not part of the standard supply and are supplied at an extra cost. Laboratory OvenTest Sieve 1.7mmElectronic Balance of 15 kg x 1 gmSpare Abrasive charge.

• Brand Name: KJ
• Voltage: 415 V
• Features: Efficient performance, Corrosion resistant, Tough construction
• Material: Mild Steel
• Phase: 3
• Frequency: 50 Hz

The tile sample is pressed under a specified load against a grinding path, strewen evenly with an abrasive powder, revolving at the rate of 30 ± 1 rpm. At the end of 100 revolutions of the disc, the second parallel side of the tile is subjected to wear an equal number of revolutions of the disc.The wear of the tile is measured using AIM48101 thickness measuring device (which is supplied at extra cost). The Abrasion Testing Machine consists of a replaceable grinding path, fitted on to a disc rotating about its vertical axis. The rotating disc and the grinding path are enclosed by a circular tray. A bracket holds the specimen. The loading is by a counterbalanced lever. A funnel is provided to facilitate charging the grinding path with abrasive powder.Supplied complete with automatic pre-set revolution counter and one 7.5 kg weight, but without abrasive powder and thickness measuring device. Suitable for operation on 415 V, 50 Hz, 3 phase, AC Supply.

• Weight: 10-50kg
• Voltage: 110V
• Driven Type: Electric
• Automation Grade: Automatic
• Application: Dorry Abrasion Testing
• Application: Metal Testing
• Power: 1-3kw

We have marked a distinct position in the market by providing Los Angles Abrasion Testing Machine. The provided testing machine is manufactured from high quality components & leading techniques in adherence with the set norms of industry. This testing machine is checked on numerous quality parameters in order to deliver defect free range. As well, this testing machine is appreciated in the market for its less maintenance.     Features:   Precisely engineered   Smooth functioning Noiseless operationGeneral Description & Specification:Consists of a hollow steel cylinder, closed at both ends, having an inside diameter of 700mm and inside length of 500mm. The cylinder mounted on a sturdy frame on ball bearings. The opening is closed dust tight with a removable bolted cover in place. A detachable shelf which extends through the drum catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated at a speed of 30-33 RPM by an electric motor through a heavy duty reduction gear. Fitted with revolution counter and push button starter. Supplied complete with a tray for collection of the material. Abrasive charge consists of set of 12 Nos. cast iron spheres or steel spheres (hardened steel balls) approximately 48mm diameter each weigh between 390-445 gram. Complete as above.

• Relavant standard: IS - 2386

For the determination of resistance of aggregate to wear by abrasion. Two hollow cylinders, closed at one end and provided with tightly fitting covers at the other end. The inside diameter of the cylinder 20 cms and 34 cms depth. The cylinders are mounted on a shaft at an angle of 30째 with the axis of rotation. The shaft rotates at 30-33 rpm through a reduction gear, coupled to a motor. Suitable for operation on 440 volts, three phase, 50 cycles, AC supply. Supplied complete with a counter and push button starter. With 12 nos cast iron spheres or steel spheres (steel balls) hardened, approx. 48 mm in diameter, each weighing 380-445 gm.

• Eccentricity of axis of rotation of the disc: 22.5 mm
• Speed of rotation of disc: 300 ± 10 rpm
• Max no of test specimens tested at a time: 4 no
• Inside dia of specimen holding ring: 83 mm
• Inside height of specimen holding ring: 25.5mm
• Dist of center of test area from cent of disc: 195 mm
• Electric Motor: 1/4 HP, Single-phase, 230 Volts, AC
• Electronic Counter: 4 digits pre-set type electronic counter with memory back up and key-lock reset.
• Features: Easy to use and with rugged construction,Electronically controlled RPM Indications,Mild steel structure body with powder coating paint

The machine is used for testing crushed slag, crushed and uncrushed gravel for resistance to abrasion. The aim of the test is to find the percentage wear due to the relative rubbing action between the aggregates and steel balls used as abrasive charge. The oven dried aggregates are weighed and rotated along with abrasive charge in the machine for the 500 or 1000 revolutions and percentage of wear so found out is reported as Los Angeles abrasion value. The machine consists of a hollow cylinder mounted horizontally on a sturdy frame on ball bearings. There is an opening which can be closed with adjust tight cover to facilitate charging and discharging the drum with the material under test. A detachable shelf which extends throughout the inside length of the drum which catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated by an electric motor through a heavy reduction gear at a speed of 30-33 R.P.M. A revolution counter is fitted to the frame. A tray is supplied for collection of the material at the end of the test. Complete with abrasive charge consisting of a set of twelve hardened steel balls, approximately 48mm dia, suitable for operation on 440V, 3 phase, 50 cycles, A.C. Supply.

The machine is used for testing crushed slag, crushed and uncrushed gravel for resistance to abrasion. The aim of the test is to find the percentage wear due to the relative rubbing action between the aggregates and steel balls as abrasive charge. The oven-dried arrangements are weighted and rotated along with abrasive charge in the machine for the 500 or 1000 revolutions and percentage of wear so found out its reported as Los angeles abrasion value. General Description & Specifications: Consists of a hollow steel cylinder, closed at both ends, having an inside diameter of 700mm and inside length of 500mm. The cylinder mounted on a sturdy frame on ball bearings. The opening is closed dust tight with a removable bolted cover in place. A detachable shelf which extends through the drum catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated at a speed of 30-33 RPM by an electric motor through a heavy duty reduction gear. Fitted with revolution counter and push button starter. Supplied complete with a tray for collection of the material. Abrasive charge consists of set of 12 Nos. cast iron spheres or steel spheres (hardened steel balls) approximately 48mm diameter each weigh between 390-445 gram. Complete as above. Optional Accesories: The following accessories are not part of the standard supply and are supplied at an extra cost. Laboratory Oven. Test Sieve 1.7mm Electronic Balance of 15 kg x 1 gm Spare Abrasive charge.

For the determination of resistance of aggregate to wear by abrasion. Two hollow cylinders, closed at one end and provided with tightly fitting covers at the other end. The inside diameter of the cylinder 20 cms and 34 cms depth. The cylinders are mounted on a shaft at an angle of 30째 with the axis of rotation.

• Power: Hydraulic
• Brand Name: EIE
• Port: Nava Sheva, Maharasta
• Model Number: Los Angeles Abrasion Testing Machine
• Packaging Details: Packaging of the instruments will be done in the wooden case. Extra charges for freight, forwarding and packaging
• Place of Origin: Gujarat, India

• Capacity: 200 kg.

Tile Flexural Testing Machine Capacity 200 kg. for cement concrete flooring tiles. The specifications are similar to the above machine, but for the bearing rollers of 25 mm dia and spans of 150, 200 and 250 mm. The load is applied at the rate of 200 kgminmeter. Without lead shots.

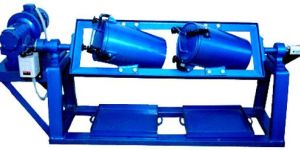

  Introduction For the determination of resistance of aggregate to wear by abrasion. Two hollow cylinders, closed at one end and provided with tightly fitting covers at the other end. The inside diameter of the cylinder 20 cms and 34 cms depth. The cylinders are mounted on a shaft at an angle of 30° with the axis of rotation. The shaft rotates at 30-33 rpm through a reduction gear, coupled to a motor. Suitable for operation on 440 volts, three phase, 50 cycles, AC supply. Supplied complete with a counter and push button starter. With 12 nos cast iron spheres or steel spheres (steel balls) hardened, approx. 48 mm in diameter, each weighing 380-445 gm.

We are counted amongst the foremost traders and suppliers of DEVAL ABRASION TESTING MACHINE

Los Angeles Abrasion Testing Machine, Mechanical Universal Testing Machine
