Ashirwad Enterprise SP Ring Road, Ahmedabad, Gujarat

Certification : ISo 9001 2008

Production Capacity : Filter Size

Warranty : 1 Year Manufacturer Warranty

Weight : 700 kgs.

Brand Name : Adinath

Automatic Grade : Automatic

Power : 0.5 H.P.

After-Sales Service Provided : Engineers available to service machinery overseas

Application : Pharmaceuticals

Certification : ISO 9001 2015

Condition : New

Type : Labeling Machine

Brand Name : Adinath

Material : Stainless Steel

Voltage : 440 volts

Type : Slat Conveyor

Condition : New

Certification : ISO 9001 2015

Voltage : 220V/380V

Driven Type : Electric

Weight : 200 Kgs. approx.

Condition : New

Type : Filling Machine

Application : Beverage, Chemical, Food, Medical

Power : 1 H.P.

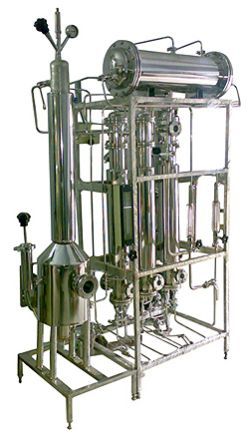

Adinath offers Water for Injection Plant built with AISI SS 316L materials which produces pyrogen free sterile water (Water For Injection) which meets the requirement of Indian, British & United States Pharmacopoeia. Water for Injection Plant is available in capacity from 80 liters/hour to 3000 liters/hour. The WFI produced by these plants is quite economical due to low maintenance and low operational cost.   Salient Features 100% pyrogen free distilled water conforming to U.S.P./B.P. specifications. High initial cost but low operational cost. Saving up to 70% of energy as compared to single column stills. Low on maintenance as no moving parts except feed pump. The unit can be operated at a higher steam pressure to get upto 50% higher output. Automatic dumping of sub-standard distillate. Low level controls for feed water. Conductivity meter to continuously monitor the quality of final distillate.

Brand Name : Adinath

Application : Liquid

  Viscous Liquid Filling Machine   Viscous Liquid Filling Machine is uses for the filling of shampoo bottles. Machine made by using high quality materials. We are also exporting it in various countries to our worldwide customers. We have filling machines like overflow filling machine, viscous filling machine, piston filling machine, rotary filling machine, auger filling machine, honey filling machine, juice filling machine, syrup filling machine etc.Viscous Liquid Filling Machine is uses for filling a medium viscosity products like shampoo, gel, hair oil, lotion, perfume, beverage, oil etc. It can fill all types of containers like bottles, jars, cans, pouches etc.   Salient Features   Compact design Fully pneumatic control Easy to operate, remove and clean Higher filling capacity and accuracy Fully stainless still finish

Application : Beverage, Chemical, Food, Medical

Brand Name : Adinath

Certification : ISO 9001 2015

Type : Filling Machine

Power : 1 H.P.

Driven Type : Electric

Salient Features Stainless steel GMP construction with S.S. 316 contact parts Fitted with Vibro Motor Provided lid for dust free operation Easy to clean and movable machine. Provided sieve with silicon sealing Low operating and maintenance cost. Long screen life. Easy for assembly & de-assembly for cleaning & change over of screens. Springs amplify the vibrations leading to reduced motor HP, maintenance & operational cost. Available in 20" dia, 30" dia, 48" dia., 60" dia size sieve model   Process Operation This vibrating energy screen is unit consisting of circular pre-tensioned screen mounted on the frame along with vibrating motor. The vibrating motor imparts three plane vibrations to the screen due to revolving eccentric weights. Total assembly is mounted on suitable springs so that it becomes a independent body which vibrates without parting any vibrations to the foundations.

Brand Name : Adinath

Voltage : 380V/220V

Weight : 200KG to 5000KG

Type : Fluid Bed Drying Equipment

Condition : New

Certification : ISO9001 2015

Type : Fluid Bed Drying Equipment

Certification : ISO9001 2015

Weight : 200KG to 5000KG

Warranty : 1 Year

Condition : New

Condition : New

Driven Type : Electric

Brand Name : Adinath

Power : 0.5 H.P.

Certification : ISO 9001 2015

Weight : 250 kgs. approx.

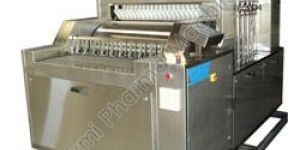

Vial washing machine complies as per GMP requirements. The machine is enclosed in Stainless Steel construction with flexibility to wash 1ml to 20ml ampoules and 2ml to 100ml glass vials with the help of suitable change parts. The standard unit is having mechanical motorized cam operated valve system for observing total six washing in one cycle. Alternatively, for demanding customer timer operated solenoid valve system or even a microprocessor controlled timer sequences can be in-corporate to enhance and derive the best out of simple unit.

Vial Filling & Rubber Stoppering Machine is compact model uses for the filling & rubber stoppering of injectable liquid vials. Adinath offers different models of Vial Filling & Rubber Stoppering Machine suitable for pharmaceutical industry. Our Automatic Six Head Vial Filling & Rubber Stoppering Machine provides output up to 9000 vialshour suitable for large batch production, Our Automatic Four Head Vial Filling & Rubber Stoppering Machine provides output up to 7200 vialshour suitable for medium batch production and Our Automatic Two Head Vial Filling & Rubber Stoppering Machine which provides output up to 3600 vialshour suitable for medium & small batch productions. No cross contamination. Suitable for the filling Volume of 2ml to 250ml. Piston pumpPeristaltic pump aseptic filling. Filling with accuracy of ±0.5-1%.

Certification : ISO 9001 2015

Driven Type : Electric

Weight : 350Kgs.

Condition : New

Power : 1 H.P.

Brand Name : Adinath

Automatic Grade : Automatic

Power : 1 H.P.

Voltage : 440 Volts

Condition : New

Type : Filling Machine

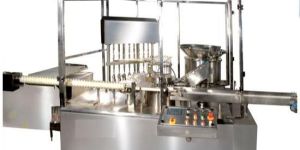

Automatic Vial Liquid Filling Machine is made in pleasing matt finished stainless steel materials. The basic unit consists of turntable, Stainless Steel Stat conveyor belt, unique eccentric pre-gassing, filling and post-gassing. Highly efficient and precision built Stainless Steel 316L Syringes, non- toxic synthetic rubber tubing and easy reach compact panel. The minimal distance between filling and stoppering units reduces the risk of contamination. The machines are designed for operation in a sterile area and for use under laminar flow protection. The un-scrambler itself has been redesigned to eliminate dead ends and difficult-to-clean spots.   Salient Features Suitable for the filling Volume of 2ml to 250ml. Piston pump/Peristaltic pump aseptic filling. Filling accuracy of ±0.5% to ±1%. No cross contamination Easy to validate filling system for small/large batch production. All Contact Parts Made from Stainless Steel 316L & framework by Stainless Steel 304. Variable A.C. frequency drive for speed adjustment. Digital Vial Counter for counting production output. In-feed Turn Table/ Unscrambler for automatic feeding of objects. On-line Mechanism. No Vial - No Filling” System. No Vial - Machine Stop” System. IQ/OQ documentation can be provided. PLC system with Graphical User Interface. (Optional)   Process Operation   The incoming dry vial (sterilized & siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of Stainless Steel 316L construction and both, glass as well as Stainless Steel syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ''No Vial-No Filling'' operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be either increased or decreased by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid will reach to filling nozzles through silicon transparent pipe. Nozzle will be having Up and Down movement with help of cam mechanism and it will come down when vial will be hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers six vials together on conveyor for rubber stoppering operation. Stoppering unit consist of Starwheel, Vibrator unit and Bowl. The sterilized and siliconised rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to starwheel and move in rotary direction along with starwheel, during movement it will pick up the rubber stopper from the exit end of the chute and rubber stopper will be pressed by fix single pressing roller, which is spring loaded. Then vial further move on conveyor and collected on out feed starwheel for next sealing operation.

Power : 0.5 H.P.

Application : Pharmaceuticals

Voltage : 220 volts

Condition : New

Weight : 250 kgs. approx.

Type : Quick Details

Power : 0.5 H.P.

Application : Pharmaceuticals

Voltage : 220 volts

Condition : New

Weight : 250 kgs. approx.

Type : Labeling Machine

Power : 0.5 H.P.

Application : Chemical, Medical, Pharmaceuticals

Voltage : 220 volts

Condition : New

Weight : 250 kgs.

Type : Labeling Machine

Voltage : 440 volts

Condition : New

Warranty : 1 Year Manufacturer's Warranty

Automatic Vial Filling Stoppering & Capping Machine is made in pleasing matt finished stainless steel materials suitable for filling, rubber stoppering and cap sealing of glass vials. The basic unit consists of turntable, Stainless Steel Stat conveyor belt, unique eccentric pre-gassing, filling and post-gassing. Highly efficient and precision built Stainless Steel 316L Syringes, non- toxic synthetic rubber tubing and easy reach compact panel. The minimal distance between filling and stoppering units reduces the risk of contamination. The machines are designed for operation in a sterile area and for use under laminar flow protection. The un-scrambler itself has been redesigned to eliminate dead ends and difficult-to-clean spots.   Salient Features Suitable for the filling Volume of 2ml to 100ml. Piston pump/Peristaltic pump aseptic filling. Filling accuracy of ±0.5% to ±1%. Time, Cost & Labor saving as all three operations (Filling, Bunging & Cap Sealing) on single platform. No cross contamination. Easy to validate filling system for small/large batch production. All Contact Parts Made from Stainless Steel 316L & framework by Stainless Steel 304. Variable A.C. frequency drive for speed adjustment. Digital Vial Counter for counting production output. In-feed Turn Table/ Unscrambler for automatic feeding of objects. On-line Mechanism. No Vial - No Filling” System. No Vial - Machine Stop” System. IQ/OQ documentation can be provided. PLC system with Graphical User Interface. (Optional)   Process Operation The incoming dry vial (sterilized and siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of Stainless Steel 316L construction and both, glass as well as Stainless Steel syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ''No Vial-No Filling'' operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be either increased or decreased by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid will reach to filling nozzles through silicon transparent pipe. Nozzle will be having Up and Down movement with help of cam mechanism and it will come down when vial will be hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers six vials together on conveyor for rubber stoppering operation. Stoppering unit consist of Starwheel, Vibrator unit and Bowl. The sterilized and siliconised rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to starwheel and move in rotary direction along with starwheel, during movement it will pick up the rubber stopper from the exit end of the chute and rubber stopper will be pressed by fix single pressing roller, which is spring loaded. Then vial further move on sealing station. Aluminium caps kept in vibratory bowl automatically orient caps in right direction before entering the delivery chute. Vial during its rotation movement with infeed starwheel picks up aluminum seal from the retaining finger of delivery chute and correctly position on the vial before entering sealing turret. Vial now moves on the spring loaded sealing platform, where free spinning sealing rollers moves gradually inside to complete the sealing operation during rotational movement of sealing platform turret. Now sealed vials are transferred to exit starwheel pocket and further moves out on to the flat conveyor belt. Duly sealed vials are collected on out-feed collection tray

Filling Range : 2ml to 250ml

Power : 1 H.P.

Type : Filling Equipment

Certification : ISO 9001 2008

Voltage : 440 volts

Brand Name : Adinath

After-Sales Service Provided : Engineers available to service machinery overseas

Condition : New

Warranty : 1 year manufacturing warranty
