Air Lock Valve Dealers in Ahmedabad

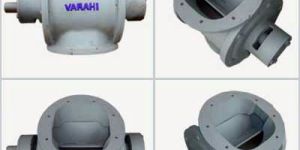

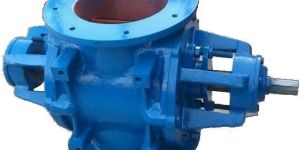

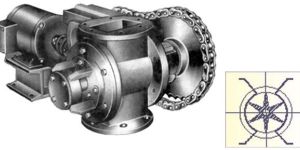

Premium pulman engineers design and manufacture assorted range of rotary valves. These valves are applicable for powder or granule type handling machines for uniform feeding and material discharging from the equipment. The main purpose of these valves is to control the flow of materials from one chamber to another without contaminating the materials. We, at premium pulman, are one of the dedicated rotary valve manufacturers who supply comprehensive designs to various industries. We manufacture standard valves, which are precision machined for minimal quirkiness and close tolerance. Salient features uniform flow regulated output s.s. Construction four six eight vanes standard construction heavy duty construction rota feeder type rotary feeder large fabricated special type size rotary airlock valves round square flange

• Material: Cast Iron
• Application: INDUSTRIAL
• Country of Origin: Made in India
• Warranty: 1 YEAR
• Brand Name: Air blow
• I Deal In: New Only

• Material: MS,SS,CI,CS
• Application: Industrial
• Country of Origin: Made in India
• Warranty: 1-2 Year
• Diameter: 800 mm
• I Deal In: New Only
• Design Type: Rotary, Rectangular, Square

We are the renowned Manufacturer, Exporter and Supplier of Rotary Airlock Valves. Along with the advanced designing, our Rotary Airlock Valves go through tests on different parameters before their delivery. This equipment is ideal for all types of powders and course material which needs air locking on output area; and it is also used as a dust preventive. Features : Highly preventive against dustAdvanced designingLong-lastingSteady construction

• Brand Name: MAHAVIR
• Material: SS AND MS
• Application: PNEUMATIC CONVEYING, GRAVITY CONVEYING, GRAVITY DISCHARGING, MATERIALS, DUST COLLECTION SYSTEM
• Color: SS STYLE
• Voltage: 440v. 50 Hz.
• Model Number: MRV
• RAV: 80000

The prime function of a rotary air valve is to regulate the flow from one chamber to another while maintaining good airlock condition. The product is mainly in dry powder or granular form. In the dust filtration field a good airlock is essential on cyclone and bag filter applications in order that the manufacturers quoted high dust collection efficiencies can be maintained. Air lock valve are also important in the pneumatic conveying industry, where product is regulated into a pressure or vacuum conveying line while minimising air leakage. With Mahavir there are no double standards, all our standard valves and rotary valve are precision machined for close tolerances and minimal eccentricities.

Rotary valves are useful as one important integral part in material handling system. Rotary airlock valves have a wide application in industry wherever dry free-flowing powders are used. They separate air out of material and transfer the material to equipment in its sequence. Mostly materials are cement, minerals, grains, dust, fly ash, powders, and pharmaceuticals.

• Brand Name: Shriraj
• Material: Mild Steel
• Color: Blue
• Pressure: Low
• Application: Industrial
• Voltage: 440v
• Type: Rotary Airlock Valve
• Structure: Double Half Shaft
• Country of Origin: India
• Temperature Of Media: Ambient

we offer rotary air lock valve. available size : 4" to 20". rotary air lock valve is suited for low and medium differential air pressure systems, gravity, or volumetric feeder discharge equipments. this will allow free flowing solids to pass from one to another valves space with a different air pressure. rotary airlock is useful as one component in a bulk or specialty material handling system.

We are instrumental in manufacturing and supplying Rotary Airlock Valve, which is used for pneumatic conveying of pellets and powders in machines for processing of substances in pharmaceutical, chemical and food processing industries. The offered instrument is compact in size, resistant to corrosion, robust in built and is ideal for heavy duty as well. Our product range is wide and comprehensive. Specification: Rotor diameter: 100mm to 450mm Discharge volume 0.5 m3hr to 100 m3hr

• Type: Rotary
• Material: Mild Steel
• Color: Grey
• Power: Hydraulic
• Structure: Pinless
• Port Size: 2cm-50cm
• Temperature Of Media: Low Temperature
• Warranty: 1 Year

• Material: SS/MS
• Color: SILVER
• Voltage: 440V
• Size: 6/8/10 INCH

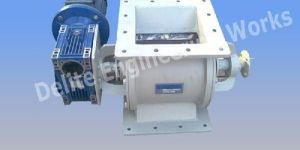

• Brand Name: Delite Make
• Color: Sky Blue
• Condition: New
• Application: Coal Boilers
• Type: Coal Feeders
• Warranty: 1yrs
• Country of Origin: India

keeping in mind the ever-evolving requirements of our valuable clients; our firm is instrumental in providing an extensive assortment of rotary feeder air lock valve thermax. the given feeders are available with us in varied sizes and specifications. these are reckoned in the market for its high functionality, corrosion resistance, sturdy design, and low maintenance. we test the product on various predefined parameters before delivery. furthermore, clients can get these at market leading price. features: high strength superlative performance precisely designed

Side Entry feeders are used on applications involving relatively large particles that can not be reduced by shearing between the rotor blades on the housing at the inlet. Side entry feeders are also used where fine products by this shearing action might cause damage to the system or create hazard. The inlet and outlet flanges are offset. Material entering from the side settles into the pocket of the rotor and particles do not get trapped between the blade and the housing. This type of feeders operates at fix speed and about 40% of the pocket capacity.

• Material: Mild Steel
• Country of Origin: Made in India
• Application: To Convey Material
• Brand: Aquatech
• Lifting Capacity: 2 Ton/h
• Automation Grade: Semi Automatic
• Motor Power: 1 hp
• Features: Smooth Drive, Air Lock Type, Long Service Time

The Blow Thru Rotary Airlock Valve is used in pneumatic conveying applications only, both positive pressure and vacuum. Instead of a typical outlet, blow thru rotary airlocks include two ports on the sides of the valve near the bottom. The conveying line pipe connects directly to the valve, with the air stream flowing through the rotor pockets. This design is very efficient, and works well on materials that tend to hang up in the rotor pockets. However, this valve is not recommended on abrasive products as the vanes will quickly wear. This unit is also very helpful in applications that have height limitations. Convey line adapters are provided to suit the application. Sizes: 6, 8, 10, 12 and 16 inch.

• Voltage: 220-440 V
• Brand: Primetech
• Frequency: 50-60 Hz
• Surface Finishing: Color Coated
• Power Source: Electric
• Usage/Application: Industrial

We Ultra Febtech - An ISO 9001:2008 Certified Company Engaged in Manufucturing of Rotary Air Lock Valve to Material Handling the Material. Available size : 4" to 20". Rotary Air lock valve is suited for low and medium differential air pressure systems, gravity, or volumetric feeder discharge equipments. This will allow free flowing solids to pass from one to another valves space with a different air pressure. Rotary airlock is useful as one component in a bulk or specialty material handling system.

Air Lock Rotary Valves available in various sizes and manufactured in Aluminium body or S.S. with necessary drive options.

Our clients can avail from us excellent quality Rotary Air Lock Valve. Offered product is utilized in various industries for mixing purpose. This product is precisely manufactured using premium quality raw material and with the assistance of latest technology. Also, this is precisely designed by the experts using the best quality raw material and latest technology. To meet various needs of clients’, we offer this product in various specifications.Features: Robust design Rust resistance High quality

We Ultra Febtech - An ISO 9001:2008 Certified Company Engaged in Manufacturing of Rotary Air Lock Valve for material handling .Available size : 4" to 20". Rotary Air lock valve is suited for low and medium differential air pressure systems, gravity, or volumetric feeder discharge equipments. This will allow free flowing solids to pass from one to another valves space with a different air pressure. Rotary airlock is useful as one component in a bulk or specialty material handling system.

We are manufacturer of Rotary Airlock Valve which is also referred as Rotary Air Feeder; which is widely used for various industrial applications like cyclone discharge, silo discharge, feed hopper discharge, material feeding, dust collector,etc.

• MODELS AVAILABLE: EEPALV 5 TO EEPALV 12
• H.P.: 1/2 HP. TO 2 HP (THREE PHASE)
• DRIVEN THROUGH: Belt pulley
• FEEDING SYSTEM: No needs of feeding it will comes automatically through cyclone
• MOUNTING: On cyclone and as applicable

IDEAL FOR FOLLOWING MATERIALS : For all types of powders and course material which needs air locking on output area or use for dust preventive

Our company is renowned as one of the prominent Bag Filter Rotary Airlock Valve Exporters from India. The Rotary Airlock Valve is used as a dust discharging component where vacuum is maintained in the bag filter during rotating. The rotor inside the Industrial Rotary Airlock Valve is rotated by geared drive and is precisely machined to maintain close tolerance for clearance. The Rotary Airlock Valve, offered by us, also complies with the universally accepted quality norms.

Our company is widely acclaimed in the manufacture and supply of Air Lock. These are used to remove or reduce dust from Cyclone Collectors. These are manufactured by high talented experts who have much knowledge in this type of domain. In addition to this these are tested under various challenging parameters and are using superb quality material. These Air Lock are available at reasonable price.

• Material: SS 304
• Country of Origin: Made in India
• Power: 3 Phase
• Voltage: 440V
• Model Name/Number: RTV 250
• Brand: Make Divya Engineering works
• Motor Power: 2 hp
• Design Type: Chain Drive
• Capacity: 500 kg/hr to 25000 kg/hr
• Motor Speed: 1440 RPM

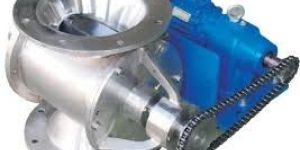

Rotary Air Lock Valve design: Rotary Air Lock Valve consists flange mounting type housing, rotor and rotor shaft. Rotor is fitted inside housing. Rotor rotates in bush bearings. Stuffing box with gland packing is provided both sides to prevent material leakage. Rotor is driven by geared motor and chain sprocket.Different design and construction of material for vanes and housing are offer for different application.

We offer highly effectual Rotary Airlock Valves. Our Rotary Airlock Valves are manufactured using fine quality raw mateiral procured from the trusted vendors. The Rotary Airlock Valves are used to discharge Granules, Free Flowing Material particles from Cyclomax hopper/ bagfilter. Our Rotary Airlock Valves are provided in diverse sizes and specifications to match up with the expectations of the clients. Use Used to maintain Uniform Rated Discharge
