Ashwathi Controls Pvt. Ltd. Kathwada, Ahmedabad, Gujarat

Swing Check/Non-Return Valves are designed and manufactured as per BS1868. Check Valves are widely essential in the Piping System of every field. Check Valves prevent reverse flow of fluid during the failure or abrupt shut-down of Piping System. Hence Check Valves should have very good Sealing efficiency. Swing Check Valves have a precisely guided Swinging Disc through a Hinge. The Hinge and swivel Disc are linked to maintain adequate flexibility so that the sealing is smooth and efficient. Swing Check Valves are available with Metal-to-Metal sealing to handle High Temperature and Pressure and Soft Sealing to take care of Pneumatic and Vacuum

Pressure Rating : ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#

The designing and manufacturing of FLOEC Check Valves Single Disc Spring Loaded Check Valves are done as per DIN 3230. The Valve is designed so as to mount between the Flanges of different standards and in whichever direction as needed. It is very perfect for instrumentation especially for Pneumatic and Vacuum applications as it is offered in both Metal-to-Metal and Soft Sealing alternatives.

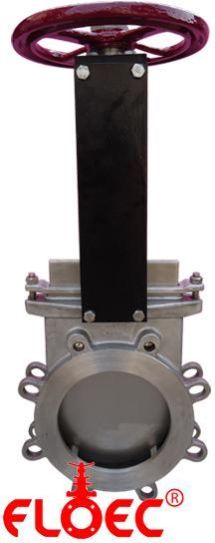

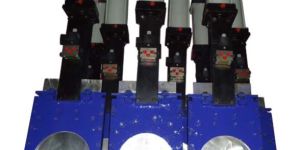

Knife Gate Valves are exclusively designed and manufactured as per MSS SP-81 to tackle the tough working conditions in Pulp & Paper, Mining & Steel, Power and Chemical Industries to deal with Semi-Solids, Fly Ash, Chips, Iron Ore, Tea and Coffee powders, Food Products like chips and mixtures, Sugar and Sugarcane Juice, Fiber content Pulps and similar media. The Knife Gate Valves are offered in an extensive range of Material where as its Knife edged Plate is made of from Stainless Steel Plates of different grades irrespective of the Body material, Hard Faced Plates to suit the application. During shutting operation of the Knife Gate Valve the Knife edged Plate cuts off the solids and allows the plate to seal properly.

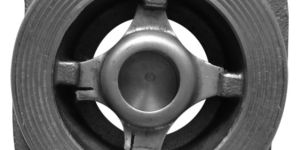

The designing and manufacturing of Single Disc Spring Loaded Check Valves are done as per DIN 3230. The Valve is designed so as to mount between the Flanges of different standards and in whichever direction as needed. It is very perfect for instrumentation especially for Pneumatic and Vacuum applications as it is offered in both Metal-to-Metal and Soft Sealing alternatives. It is offered in wide-ranging materials like Cast Iron, S.G. Iron, Cast Carbon Steel, and Stainless Steel of every Grades, High Alloys like Alloy-20, CD4MCu, Duplex & Super Duplex and Hastelloy etc. Size ranges from 15NB to 150NB and the Pressure Ratings range from ASME 150# through 2500#.

Pressure Rating : ASME - 150#, 300#, 600#, 900#, 1500#, & 2500#

End Connection : Sandwich

Knife Gate Valves are exclusively designed and manufactured as per MSS SP-81 to tackle the tough working conditions in Pulp & Paper, Mining & Steel, Power and Chemical Industries to deal with Semi-Solids, Fly Ash, Chips, Iron Ore, Tea and Coffee powders, Food Products like chips and mixtures, Sugar and Sugarcane Juice, Fiber content Pulps and similar media. The Knife Gate Valves are offered in an extensive range of Material where as its Knife edged Plate is made of from Stainless Steel Plates of different grades irrespective of the Body material, Hard Faced Plates to suit the application. During shutting operation of the Knife Gate Valve the Knife edged Plate cuts off the solids and allows the plate to seal properly.

Knife Gate Valves are exclusively designed and manufactured as per MSS SP-81 to tackle the tough working conditions in Pulp & Paper, Mining & Steel, Power and Chemical Industries to deal with Semi-Solids, Fly Ash, Chips, Iron Ore, Tea and Coffee powders, Food Products like chips and mixtures, Sugar and Sugarcane Juice,  Fiber content Pulps and similar media. The Knife Gate Valves are offered in an extensive range of Material where as its Knife edged Plate is made of from Stainless Steel Plates of different grades irrespective of the Body material, Hard Faced Plates to suit the application. During shutting operation of the Knife Gate Valve the Knife edged Plate cuts off the solids and allows the plate to seal properly. Diversity Of Application Knife Gate Valve is so designed for variant applications as stated above. In addition to the above information Knife Gate Valves are serving for where the space is a limitation, cost is a limitation, maintenance time and money are a limitation. We have the solution. In case the Valve is to be used on Vacuum pipeline, we have a solution. In case the Valve is to be used for utility services, we have a solution. In case you want to use in your affluent treatment plant we have a solution. We have solutions for each and every application and do feel free to contact us. Our technical team will be at your disposal.   Knife Gate Valves are offered with Soft Sealing and Metal to Metal sealing options to suit different working conditions.   Knife Gate Valves are also offered with varied operational options like Hand Wheel, Pneumatic Cylinder/Hydraulic Cylinder/Electrical Actuator. Knife Gate Valves are offered in different materials like Cast Iron, S.G. Iron, Cast Carbon Steel, Cast Stainless Steel of all Grades, Alloy-20, CD4MCu, Duplex & Super Duplex etc.; Size ranges from 50NB through 900 NB and Pressure Rating in MSS SP-81

Type : OS & Y TYPE

End Connection : Wafer / Lugged / Flanged

Knife Gate Valves are exclusively designed and manufactured as per MSS SP-81 to tackle the tough working conditions in Pulp & Paper, Mining & Steel, Power and Chemical Industries to deal with Semi-Solids, Fly Ash, Chips, Iron Ore, Tea and Coffee powders, Food Products like chips and mixtures, Sugar and Sugarcane Juice,  Fiber content Pulps and similar media. The Knife Gate Valves are offered in an extensive range of Material where as its Knife edged Plate is made of from Stainless Steel Plates of different grades irrespective of the Body material, Hard Faced Plates to suit the application. During shutting operation of the Knife Gate Valve the Knife edged Plate cuts off the solids and allows the plate to seal properly. Diversity Of Application Knife Gate Valve is so designed for variant applications as stated above. In addition to the above information Knife Gate Valves are serving for where the space is a limitation, cost is a limitation, maintenance time and money are a limitation. We have the solution. In case the Valve is to be used on Vacuum pipeline, we have a solution. In case the Valve is to be used for utility services, we have a solution. In case you want to use in your affluent treatment plant we have a solution. We have solutions for each and every application and do feel free to contact us. Our technical team will be at your disposal. Knife Gate Valves are offered with Soft Sealing and Metal to Metal sealing options to suit different working conditions. Knife Gate Valves are also offered with varied operational options like Hand Wheel, Pneumatic Cylinder/Hydraulic Cylinder/Electrical Actuator. Knife Gate Valves are offered in different materials like Cast Iron, S.G. Iron, Cast Carbon Steel, Cast Stainless Steel of all Grades, Alloy-20, CD4MCu, Duplex & Super Duplex etc.; Size ranges from 50NB through 900 NB and Pressure Rating in MSS SP-81 150#.

Type : OS & Y TYPE

End Connection : Wafer / Lugged / Flanged

Our range of high pressure valves varied with its field of usages. High pressure valves are used to protect the pipes and equipments. Our high pressure valves are available for different temperature range. We offer 2 ways, 3 ways, 4 ways and 5 way types’ valve. We have also developed fire safety design as per API 607. Locking device can be provided on demand.

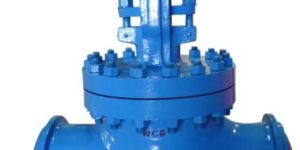

We make all varieties of Globe Valves like On-Off Disc, Control Disc and Parabolic Disc under the brand name FLOEC. Hastelloy Globe Valves Globe Valves are produced with materials like C.I, SG IRON, WCB, LCB, WC-1, WC-6, WC-9, CF-8, CF-8M, CF-3, CF-3M, CN-7M, CD4-Cu., Hastelloy etc. The Product range commences from 06 NB to 400 NB and pressure rating from BSASME 150# through 2500# and from PN-10 through PN-250. StelliteHard faced trim are offered in all Valves of 600# and higher ratings as a unique standard of Forged Steel Globe Valves Valves, where as for lower ratings it is offered when demanded.

We produce all types of Gate Valves under our brand “” covering all types like bolted bonnet, Pressure Seal Bonnet, Seal welded Bonnet, Union Bonnet etc. Gate Valves in Solid Wedge, Flexible Wedge and Dual Disc Designs are made as per API-600 and API 6D. Pressure rating from 150# through 2500# in Forged and Cast Carbon Steel, Alloy Steel, Stainless Steel of all Grades and Super Alloy Steel like Alloy-20, Hastelloy-C, Duplex and Super Duplex Steels. Gate Valves are offered with smooth machined full bore and full opening of Wedge to make certain that there is an eradication of additional pressure drop across the Valve. Screwed-in or Seal Welded Seat Rings guarantee perfect tightness for a longer period of service. In high temperature and high  pressure Valves, Seat Rings are either integral with body or seal welded as per standard practice and process for highest perfection and safety. Gate Valves are offered with precisely machined and lapped backseat to guarantee re-packing under pressure while the Valve is in full open condition. Availability of Solid Wedge, Flexible Wedge, Dual Disc Wedge and Parallel Wedge designs put forward maximum choice to clients for appropriate selection. Gaskets and Gland packing material are chosen considering service conditions like temperature, corrosion, erosion, pressure, vacuum and other uses. Gate Valves make sure about smooth operation, tight shutoff, consistency, high safety and durability.

Pressure Rating : ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#

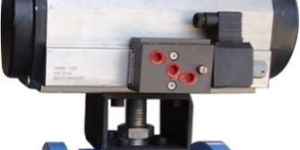

Pnumetic Operated Ball Valves India Metal seated Ball Valves are a latest edition and have manufactured to leakage class IV and V according to customer’s requirements. We could achieve this due to continuous R & D in our design and production. In addition, we have in-house fire safe test facility and the actual fire test was witnessed by internationally reputed TPI agency Bureau Veritas successfully.

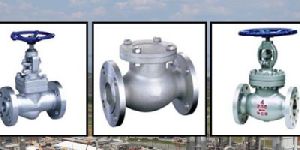

We are marked as the leading manufacturer and exporter of the finest quality of industrial valves. we have designed and developed the great range of hastelloy valves, to cater different industrial applications. With well established infrastructure, we are able to provide high quality hastelloy valves. We own advance level of fabrication facilities and dedicated man power to put forward the qualitative range of hastelloy valves.

We make all varieties of Globe Valves like On-Off Disc, Control Disc and Parabolic Disc under the brand name . Globe Valves are produced with materials like C.I, SG IRON, WCB, LCB, WC-1, WC-6, WC-9, CF-8, CF-8M, CF-3, CF-3M, CN-7M, CD4-Cu., Hastelloy etc. The Product range commences from 06 NB to 400 NB and pressure rating from BS/ASME 150# through 2500# and from PN-10 through PN-250. Stellite/Hard faced trim are offered in all Valves of 600# and higher ratings as a unique standard of Valves, where as for lower ratings it is offered when demanded. Globe Valves are precisely designed to guarantee 100% smooth flow area to decrease pressure drop across the Valve. Specifically designed Seat and Packing material are offered for superheated steam and high temperature oils and fluids to make certain that it is easy to service and also durable. It is accurately machined and has a lapped backseat which aids in replacing Gland Packing when the Valve is in full stream. The standard production limits up to 400 NB, but it is also customized in larger sizes, higher pressure ratings, with special material of construction. Globe Valves are checked and certified by our Q. C. Department and also by the Clients or any Third Party Inspection by an internationally reputed agency.

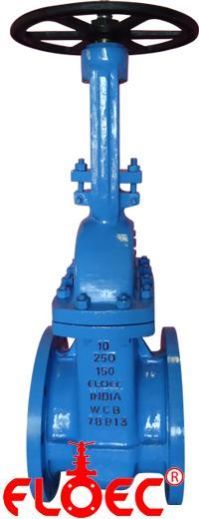

We produce all types of Gate Valves under our brand “” covering all types like bolted bonnet, Pressure Seal Bonnet, Seal welded Bonnet, Union Bonnet etc. Gate Valves in Solid Wedge, Flexible Wedge and Dual Disc Designs are made as per API-600 and API 6D. Pressure rating from 150# through 2500# in Forged and Cast Carbon Steel, Alloy Steel, Stainless Steel of all Grades and Super Alloy Steel like Alloy-20, Hastelloy-C, Duplex and Super Duplex Steels. Gate Valves are offered with smooth machined full bore and full opening of Wedge to make certain that there is an eradication of additional pressure drop across the Valve. Screwed-in or Seal Welded Seat Rings guarantee perfect tightness for a longer period of service. In high temperature and high  pressure Valves, Seat Rings are either integral with body or seal welded as per standard practice and process for highest perfection and safety. Gate Valves are offered with precisely machined and lapped backseat to guarantee re-packing under pressure while the Valve is in full open condition. Availability of Solid Wedge, Flexible Wedge, Dual Disc Wedge and Parallel Wedge designs put forward maximum choice to clients for appropriate selection. Gaskets and Gland packing material are chosen considering service conditions like temperature, corrosion, erosion, pressure, vacuum and other uses. Gate Valves make sure about smooth operation, tight shutoff, consistency, high safety and durability.

Size Range : 50 NB through 900 NB

Pressure Rating : ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#

Type : OS & Y, Bolted / Pressure Seal Bonnet / Seal Welded Bonnet etc.

End Connection : Flanged / RTJ / Butt Weld

Operation : Hand Wheel/ Manual Gear / Electric Motor Actuator

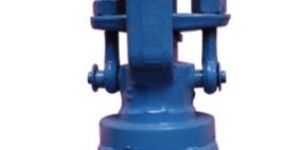

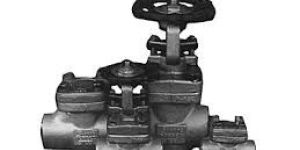

Forged Steel Valves Forged Steel GateGlobeNon-Return Valves are for high pressure applications have compact design and are manufactured as per API 602 and are perfect for small Pipelines up to 50NB. They come with a choice of Threaded or Socket Weld ends. The Hard Faced Trim material guarantees faultless Sealing and durability. They are perfectly machined and are provided with a Lapped Back Seat in case of Gate and Globe types so that the Gland Packing in stream can be replaced andor repacked; when the Valve is in full open position so that it is highly safe, and cost-effective.

Forged Stainless Steel Valves compact design GateGlobeNon-Return Valves are manufactured in a wide-ranging materials like Forged Carbon Steel in compliance to A105, Forged Alloy Steel like LF2, F11, F22; F51 and Forged Stainless Steel like F304, F304L, F316 and F-316L. The sizes available are from 10NB through 50NB and pressure rating from ASME 800# through 2500#.

Forged Steel Gate/Globe/Non-Return Valves are for high pressure applications have compact design and are manufactured as per API 602 and are perfect for small Pipelines up to 50NB. They come with a choice of Threaded or Socket Weld ends. The Hard Faced Trim material guarantees faultless Sealing and durability. They are perfectly machined and are provided with a Lapped Back Seat in case of Gate and Globe types so that the Gland Packing in stream can be replaced and/or repacked; when the Valve is in full open position so that it is highly safe, and cost-effective.   compact design Gate/Globe/Non-Return Valves are manufactured  in a wide-ranging materials like Forged Carbon Steel in compliance to A105, Forged Alloy Steel like LF2, F11, F22; F51 and Forged Stainless Steel like F304, F304L, F316 and F-316L. The sizes available are from 10NB through 50NB and pressure rating from ASME 800# through 2500#.   Floec range of Forged Steel Valves contains Forged Steel Globe Valves, Forged Steel Non Return Valves and Forged Steel Gate Valves Forged Steel Gate/Globe/NRV Valve - Technical Specification

Type : Bolted Bonnet / Seal Welded Bonnet OS & Y

End Connection : Screwed / Socket Weld

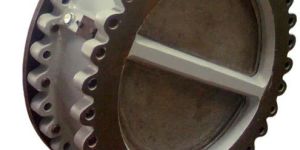

Dual Disc Check Valves are designed and manufactured as per API 594 and is supplied in an extensive range sealing like Metal to Metal, Soft, completely lined Valves with diverse lining material like Rubber of different variety, PTFE/PFE etc. Dual Disc design makes it certain that the pressure drop is minimized across the Valve. Spring loaded Disc guarantees the mounting of the Valve in horizontal or vertical directions. Very minimum Space is needed for installing this Valve as compared to Swing Check Valves in addition to its low weight and economical in price. Dual Disc Check Valves are offered in different material like Cast Iron, S.G. Iron, Cast Carbon Steel, and Cast Stainless Steel of all Grades, High Alloy Steels like Alloy-20, CD4MCu, Duplex & Super Duplex Steels and Hastelloy etc. The Size ranges from 50NB to 900NB and Pressure Ratings range from ASME 150# to 600#.

Pressure Rating : ASME- 150#, 300#, 600#

End Connection : Sandwich/ Flanged

Dual Disc design makes it certain that the pressure drop is minimized across the Valve. Spring loaded Disc guarantees the mounting of the Valve in horizontal or vertical directions. Very minimum Space is needed for installing this Valve as compared to Swing Check Valves in addition to its low weight and economical in price.

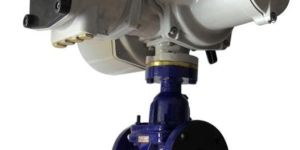

Diaphragm Valves are designed and manufactured as per BS 5156. They are widely utilized in water treatment plants, fertilizer & petrochemical industries, pharmaceutical units, chemical process units, refineries and power plants. They are most appropriate for positive pressure and high vacuum conditions. An extensive range of materials are available to handle almost all operations within its pressure-temperature limitations. Total wet area and working parts are kept from coming in contact with the working media by appropriate lining with different qualities of Rubber; PTFE/PFE etc. to make it certain that it handles extremely corrosive fluids efficiently and safely. Maintenance of these Valves is extremely simple. By dismantle the Bonnet from the Body, the whole Trim Assembly can be taken out for maintenance while the Body will remain in the Pipeline. Hence the design allows online maintenance to save time and energy. Its linear flow characteristics, makes it perfect for throttling or modulating operations. On/off and control automation is supplied with Pneumatic Actuators or Cylinders. Diaphragm Valves are supplied in a wide-ranging material like Cast Iron, S.G. Iron, Cast Carbon Steel, and Stainless Steel of all grades, High Alloy Steels like Ally-20, CD4MCu, and Hastelloy etc. Size range starts from 15NB to 250NB and pressure rating range from ASME 125# / 150# / PN.

Size Range : 15 NB through 250 NB

Type : Screw Down - Fully Rubber Lined / Unlined Body

End Connection : Flanged and Threaded

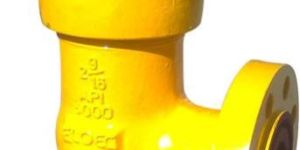

‘’ Choke Valves are specifically designed to meet the worst working conditions in Oil and Gas Exploration Projects. ‘’ Choke Valves are with adjustable Choke with indicating mechanism. The opening areas of orifices are marked with 1/64th of an inch in different positions. Body, Bonnet, Disc etc are made out of Corrosion and Abrasion resistant Alloy Steels and the Disc and Seat are Hard Faced with selected additional deposition. Long life and Erosion free is ensured in ‘’ Choke Valves. ‘’ Choke Valves are being manufactured in API 2000, 3000, 5000 and 10000 pressure ratings.     ‘’ is our registered brand name for Valves being manufactured by us in India.

‘Industrial Valves Manufactures’ Choke Valves are specifically designed to meet the worst working conditions in Oil and Gas Exploration Projects. ‘Choke Valves Exporters’ Choke Valves are with adjustable Choke with indicating mechanism. The opening areas of orifices are marked with 164th of an inch in different positions. Body, Bonnet, Disc etc are made out of Corrosion and Abrasion resistant Alloy Steels and the Disc and Seat are Hard Faced with selected additional deposition. Long life and Erosion free is ensured in ‘Valves for Vacuum Application’ Choke Valves. ‘API 6D Valves Gujarat’ Choke Valves are being manufactured in API 2000, 3000, 5000 and 10000 pressure ratings.

Butterfly Valves, wafer type are designed with integrally moulded elastomer body sleeve especially for longer durability and easy performance. Integrally moulded sleeve ensures minimum resistance between the disc and the sleeve. UNIQUE FEATURES Integrally moulded elastomer liner prevents the dislocation of seat which enhances durability. An ideal sealing between body, disc and stem is created by Flat surface on the disc and the liner at the top and bottom. Elastomer body liner extends deep from the top to the bottom of disc shaft passages with integral 'O' ring to make sure that the working media does not contact the body material, thus the durability of the body is improved. A primary seal provided at the top end of the body checks any foreign particles from entering the Valve, thus the life of the Stem is increased and its operation becomes smooth. The Valve disc design makes it sure that there is a smooth straight flow, which minimizes pressure drop across the Valve. Close tolerance maintained between the liner, the disc and the stem minimizes operation torque and causes smooth and easy operation.     Integrally moulded liner holds integral gasket with it at both ends of the Valve hence no Valve mounting gaskets are needed. Designed and manufactured as per BS 5155/API 609/AWWA C504 Appropriate to mount between flanges of ASME B16.5 [150#] or BS-10 Table D/E Pneumatic and Electrical actuated Valves can be customized. Top platform of the Valve is perfect to mount actuator or manual gearbox directly. Flow Control Lever allows excellent control of the flow.

Ball Valves are designed and manufactured in accordance with latest international standards like API 6D and BS 5351 to provide highest safety, efficiency and durability. Three Piece and Two Piece design Ball Valves ensure efficiency, reliability and economy. Three Piece Ball Valves are maintenance friendly and suitable for on-line maintenance. Ball Valves have blow-out proof stem and specially designed stem seal guarantees Zero passing through the gland for a long period. Metal seated Ball Valves are a latest edition and have manufactured to leakage class IV and V according to customer’s requirements. We could achieve this due to continuous R & D in our design and production. In addition, we have in-house fire safe test facility and the actual fire test was witnessed by internationally reputed TPI agency Bureau Veritas successfully.
