Belmark Industries Maninagar, Ahmedabad, Gujarat

Cord-aligner is centralizing device specially meant for tire-cord machines like liner re-winder, Calendars. Dipping plant, let-off and wind-up stations. The unit consists of two numbers jointed axle bowed Rolls light duty  or heavy duty as per application/fabric tension. Both side fabric edges are sensed sensor and take correction as required by jointed axle bow rolls which works independently both sides by the sensing given by each side sensor available with hexagonal shaft 1-1/4” square bar for roll diameter 110mm or with 75mm shaft diameter and Roll diameter 160mm for heavy duty applications.

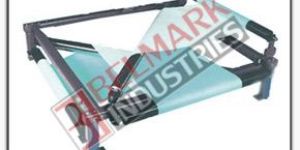

Air Turner Bar Systems are designed and manufactured to suit customers' particular application. There are six sizes for 90° entry or 180° turnover, with web widths ranging from 100mm to 3 meters, for horizontal or vertical mounting. The units are built as freestanding or bolt-on modules, complete with leveling braces and bolting down holes. They are designed to suit existing machine and site conditions. The framework is rectangular hollow section with specialized corner bracing incorporating the fine adjustment mechanism and mounting for the Turner Bars. Bars are tubular steel with bell mouth air holes, ground, polished and hard chrome plated. Air blow creates an air film assist to the bar. By choosing appropriate mounting positions, a variety of configurations can be obtained to enable a choice of entry and exit requirements. Path rollers are normally aluminum, statically or dynamically balanced. Air for flotation requires 5 CFM per 100mm web width at 10ins to 18ins W.G. depending on web tensions. Fans direct mounted on each Turner Bar can be supplied at the time of manufacture (option). For narrow web widths and special applications air flotation holes can be reduced for using compressed air or arranged as required.

we are identified as one of the celebrated unwinding equipment manufacturers in india. The array includes winding as well as unwinding equipments to meet the specific requirements of different industrial applications. The use of optimum quality materials in the manufacturing of the winding equipment ensures high durability, tensile strength and resistivity to adverse conditions. The unmatched quality and unsurpassable performance has also made the paper winding equipment ideal for various industrial applications. Additionally, the winding equipments are loaded with all the advanced configurations that assist in easy operation and low maintenance cost.two roll surface winders are used for winding cloth, hdpe woven sacks, jute, paper, plastic web materials. Two roll surface roll diameter is decided considering the winding roll diameter.

Manufactured using latest technology and graded stainless steel, our range of Stainless Steel Rollers are used in various applications such as converting, processing and others. Fabricated in accordance with set industrial standards, these are known for their features such as superior strength, fine finish, and durable performance. Our Stainless Steel Cladded Roll is available in hot dipped galvanized form to prevent any corrosion attack. We are among the leading Hot Dipped Galvanized Steel Roll Manufacturers in India.

Slat Expander Rolls are available in wooden slat with felt covering and With aluminum slats available in 6” diameter 8”diameter  & 12” diameter in any working width. Particularly suitable for slow speed machines like coating cloth coating machines, Flat Bed Printing machine, artificial leather cloth before Batching machine etc. The Roll is fitted with cam mechanism fitted with on bearings with left & Right slats from center. For longer width three slats are fitted and middle slats are fixed to avoid V shaped wrinkle-removing action. Available with foot mounting pedestals.

safety chucks are square bar holding device.  it can hold square bar 1”, 1-1/4” , 1-1/2”, 2” or  3”. Safety chucks are also manufactured in mm sizes 25mm, 32mm, 38mm, 40mm, 45mm, 50mm, 75mm as per specific requirement of weight to be handled.  replaceable inserts are the main advance of sliding type safety chucks and it is having more square bar holding area than tilting type safety chucks. For fixing tension control brake safety chucks comes with extended shaft on one side.  square bar size are decided  consider the load & application. as the safety chucks are used for different industrial applications, these are available in various sizes like 25mm, 32mm, 38mm, 40mm, 45mm, and 50mm, as per specific requirement of weight to be handled.

Many type of rubber grooved rolls are available as per specific requirement like diamond grooved rolls, helical grooved rolls, straight grooved rolls etc. For winder diamond grooved rubber roll required, helical and spiral grooved rubber rolls can be supplied as per application requirements.

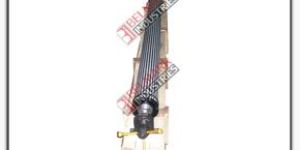

For some web materials Bow Rubber expander Roll, Slat Expander Rolls or scroll rolls, Bow Rolls not work for removing wrinkles, where Polyband Expander are used. This Roll comes in diameter 140mm and working if the web width is more than 1000mm. If web tension is not sufficient to drive the roll extra drive like sprocket or pulley be given as per requirements. Special elastic cord fitted on cam mechanism can be adjustable for more expanding action. It is very important to install the Roll in proper warp angle to get maximum results. Maximum working width of Poly Band Expander is 2500mm in normal cases. Aluminum Poly Band Expander can be obtained at reasonable prices. We are considered as one of the topmost Polyband Expander Roller Manufacturers in India

Air operated Cloth Guiders are lowest maintenance free cloth guiders considering other type of cloth guiders like Mechanical, Electrical or Electronic.  Pneumatic cloth guider requires only normal compressed air without any maintenance cost.  Can be used on chemicals, wet conditions, no chance of electrical shock and only 2.5 kgs. compressor air pressure is required for operating the cloth guiders. This type of cloth is suitable for fabric width up to  24” to 84”.Cloth Guiders always comes left & Right and it should  mounted on Adjusting frame and the width increase or decrease one can adjust the cloth guiders  manually  by the help of hand wheels provided on both side the adjusting frame.  Two mounting brackets are fitted on adjusting from to fix the cloth Guiders. Cloth Guiders are used most of the Textile processing machines and Cloth type fabrics. Basically there is three type of Cloth Guiders (1) Mechanical cloth Guiders Pneumatic Cloth Guiders Electrical Cloth Guiders.  Electrical cloth Guiders are available for double folding machines also. The cheapest cloth Guiders is mechanical cloth guider, which is having many moving parts and require frequent service & replacement. Electrical cloth Guiders are working on 55/65 volts D.C supplied to its solenoid. Pneumatic cloth Guiders is having the lower running cost, which require normal compressor Air that is supplied through Air filter-Regulator-Lubricator. Light Duty models to Heavy models are available according to width of fabrics.  Cloth Guiders are very import in cloth processing, printing, Dyeing, Bleaching, Printing inspection, Batching, winding and rewinding

We are recognized as one of the eminent Industrial Guider Equipment Manufacturers in India. The Guider Equipment, offered by us, is manufactured using hi-grade raw materials that ensure high durability, tensile strength and resistivity to adverse conditions. Features like easy operation and low maintenance cost have also made the Guider Equipments ideal for various industrial applications. Additionally, we provide Heavy Duty Pneumatic Cloth Guiders that comply with the international standards.

Bow Roll is known as Spreader Roll, bowed Roll, Curve bar Expander, Banana Roll, Wrinkle removing Rolls, Bow rolls are available in hard chrome surface, rubber surface and also Teflon covering for non-sticking applications.   Hard chrome surface bow Rolls are used where speed is more than 300 meters minutes. If the speed is more the bigger diameter is used to reduce the rpm of the roll. Bow roll works only when there is proper lead-in and lead-out distance and kept the roll in proper warp angle with web material.  To do such warp angle adjusting all rolls are supplied with bow angle adjusting worm-worm wheel gearbox with hand wheel and counter pedestal bearing block, by use of this it is possible to adjust the bow angle at 360 degree warp angle.  When the Roll get maximum wrinkle removing stop the bow angle adjusting and put the roll on bow locked position,  so not do any change in the bow setting. On Roll shaft bow position indication with arrow showing the bowed position of the Roll. For some  web materials like PP/LD/LDPE  Bow Rubber expander roll, Slat Expander Rolls or scroll rolls will not work or removing wrinkles. This Roll comes in diameter 140mm  and working if the web width is more than 1000mm.  If web tension is not sufficient to drive the roll extra drive like sprocket or pulley be given as per requirements. Rubber sleeve covered.  Metal expander with hard chrome plated surface for high speed application.  Teflon sleeve for non-sticking application.

Ink circulating Pump is available for Rotogravure and Flexo printing machines with stainless steel tank capacity from  35 liters.  The pump fan inside the tank  stirrer the ink while working maintain the ink viscosity uniformly. The motor used in the ink circulating pump is flame proof to avoid fire in the highly flammable solvent based Ink.  Our Ink pump is best suitable for High raise circulating of  ink up to upper color stages of Flexo printing machine. We are named as one of the topmost Electrical Ink Circulating Pump Manufacturers based in India.

Brand Name : Belmark

Color : Black

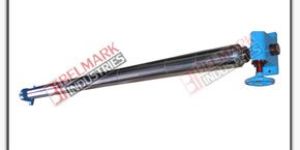

Rubber Curve bar expander roll is used for removing wrinkles from Textile Processing machines like Calendars, Dyeing, Bleaching machines, Ranges, Stenters, Bow weft straightener. Curve bar expander used on textile machines having more bow than other Industries like Paper, plastic. For abrasion resistance, chemical resistance, high temperature resistance, Nitril, Hypolan, rubber sleeves are used.  Special sealings are provided for wet working condition and avoid resting of ball bearings inside the roll.

Pneumatic Conveyor Edge Trackers are coming in pair for left & Right mounting on width adjusting frame. It is important to know the speed of the Conveyor Tracker and also thickness of the conveyor. Edge sensed by sensor is used to work the other side edge pneumatic Tracking Unit. Conveyor Tracking Systems can be obtained at reasonable prices. Apart from acquiring distinguished position as the trusted Conveyor Belt Trackers Manufacturer, we are also named as one of the leading Belt Conveyor Tracking Systems Exporters from India.Air pressure is required to operate unit.

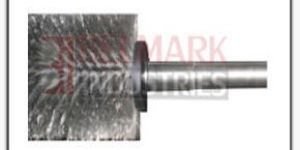

Normally Brush Roll is made after doing ebonite coating on Roll to avoid resting on steel surface. Different type of brushes are available as per specific requirements like Nylon brushes, synthetic brushes, animal hair brushes, for different applications which include brushing and cleaning of blankets.

Bow Roll is known as Spreader Rolls, Bowed Rolls, Curve bar Expanders, Banana Rolls, Camber Rolls, and Wrinkle removing Rolls. Bow Rolls are available in rubber surface, hard chrome surface and also Teflon covering for non-sticking applications. Hard chrome surface Bowed Roller is used where speed is more than 300 meters minutes. If the speed is more, the bigger diameter is used to reduce the rpm of the roll. Bow roll works only when there is proper lead-in and lead-out distance and kept the roll in proper warp angle with web material. To do such warp angle adjusting all rolls are supplied with bow angle adjusting worm-worm wheel gearbox with hand wheel and counter pedestal bearing block. By use of this it is possible to adjust the bow angle at 360 degree warp angle. When the Roll get maximum wrinkle removing, stop the bow angle adjusting and put the roll on bow locked position. Do not do any change in the bow setting bow warp angle with web materials is set. On shaft bow position indicated an arrow showing the bowed position of the Roll. Metal expander with hard chrome plated surface is used for high speed application. Teflon sleeve is used for non-sticking application. Bow Rolls are known as useful for removing of wrinkles, slack edges, spreading and slit separation. Most of the Bow Expander Rolls are driven by web tension itself without any extra drive. Used in Textile processing machines, Plastic converting machines, Paper Industries, in manufacturing, processing, printing, laminating, coating, batching, winding and re-winding. Bow Roll is available foot mounting type & flange mounting type. We are rated among the topmost Bowed Roller Manufacturer in India. Bow angle adjusting worm-worm wheel gear box with hand wheel Metal is used for before high-speed Paper slitter re-winders for wrinkle removing and after slitting to separate slits. Big diameter Roll having heavy weights and paper tension itself not sufficient to drive the Roll so extra pulley is provided to drive the metal bowed Roll. Teflon Expander is particularly used before size press where wet working and extra drive is required for to get roll rotate. Teflon rubber bow roll having application where sticking of substance on roll is problem. We have positioned ourselves as one of the major Bow Rubber Expander Roll Exporters in India.

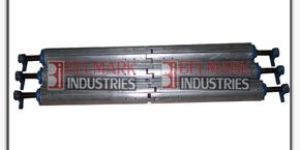

We manufacture Aluminum Slat Expanders that are used for wrinkle removing on coating machines which is available in any length and standard diameter 6”. Bigger diameter can be made in Extruded Aluminum Slat Expander as per specific requirements. Normally plain surface is provided but some applications serration is required on surface for gripping. Ordering should provide the application temperature, web material, plain or serration required on surface, maximum speed of web material to meet all your requirements. For soundless working the rolls are also available with ball bearing type cam mechanism also. Normal expansion is 25mm. We are one of the most reliable Aluminum Slat Roll Expander Exporters based in India.

for fast change over of un-winder/winder roll air expanding shafts are required for core holding. Through its air valve air can fill and the air shaft will hold the core by expanding the rubber bladder.  core gets released after removing the air by thump press.  most commonly used cores are 3 inch id core but bigger cores are also used where heavy weight of the unwind/re-wind rolls. Air expanding shaft is core-holding device suitable for 3ã¢â‚¬â core inside diameter & 70mm core diameter. Lugs type air expanding shaft is most commonly used for  paper or pvc  core holding. Square end airshaft can be used with safety chucks for winding & winding. The shaft can take load of 30kgs to 500kgs. Cantilever type airshaft is available with one side shaft for mounting.
