Blister Forming Cutting & Packaging Machines Dealers in Vatva, Ahmedabad

• Maximum Pack Lenth –: 115mm
• Maximum Pack Width –: 150mm
• Forming Depth –: 25mm
• Maximum Out Put –: 40-50 Strokes/Minute (Size and No. of pack Depend On Selection Of Cheng Parts

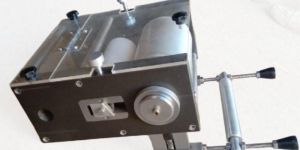

• Universal Type Batch –: Code Printing Unit.

We offer PharmatechINJ1000 Blister Packing Machine for higher rated production. We fabricate them using high quality materials, like galvanized steel to ensure their rust proof and tamper proof body for longer life of durability and excellent working. These blister packaging machines are also customized as per the requirement of the clients suiting their industrial preferences.   Features :- Simple to use Quick change over High cost efficiency Suitable for small batch production Suitable For Pakging Of Tablets, Capshul, Dragees Etc. Salient Features :- Suitable For Pakging Of Tablets, Capshul, Dragees Etc. Infrared Photo Controller For Feedar Unit.

Technical data • product pack : tablet, capsules , soft gelatine capsules • material uses: nontoxic thermo formable transparent or opaque pvc. Pvc with pepvdc coating. • lidding materials: hard aluminium foil with heat seal able inquire or pvdc coating. • additional advantage: suitable for surgical product, disposable needles, syringes, scalp vein, iv cannula set, vial, ampoules etc. Advantage • fully automatic blister pack machine. • contact heating system. • customisation of machine on special request for cell, any special product • no air compressor required. • optional pneumatic sealing system. • specially designed mechanical sealing system salient features • simple and convenient operation. • ease of maintenance. • delivery as per committed services • prompt & immediate efficient after sales services. • optional equipment as per requirement. • infinitely variable speed. • special forming and sealing system with mechanical drive. • no need air compressor. • save power consumption and cost of air compressor. • inbuilt chilling plant

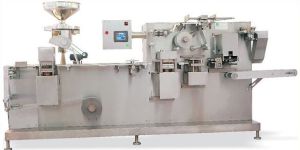

Being a leading firm in this industry, we are deeply engaged in offering a high-quality range of Alu Alu Blister Packing Machine. Features: Hassle free performance Long operational life Sturdy design Production Capacity: 35 Strip/Minute

• Country of Origin: India
• Type: Blister Packing Machine
• Certification: ISO 9001:2008
• Application: Blister Packaging
• Weight: 1000-2000kg
• Condition: New
• Power: 3-6kw
• Compressed Air: 8 CFM
• Model Name/Number: PMS-240
• Cooling Water Consumption: 46- 60 Ltr/hr
• Connected Load: 8KW
• Max Machine Speed for thermoform: Maximum output of 240 blister / min
• Max forming area: 110 x 210 mm
• Min Pack Size: 26 x 58 mm
• Optimum Forming Depth: 12 mm
• Max Reel Diameter Base foil: 440
• Max Base foil width: 218 mm
• Max lidding foil width: 214 mm
• Max Cone Diameter: 70-76 mm
• Average Power Consumption: 3K
• Approx 3 Phase power supply: 4 wire + Protective
• Earthings: 415V + 10%
• Net Weight Approx: 1400 Kg

• Brand Name: Ravi Engineering Works
• Driven Type: Electric
• Automatic Grade: Automatic
• Voltage: 440V
• Phase: 3 Phase
• Packing Capacity: Up to 300 Strips per minute
• Maximum Forming Depth: 12 mm
• Maximum Packing Length: 217 mm

• Type: Pvc Blister Packing Machine, Blister Packaging
• Certification: ISO 9001:2008
• Weight: 100-1000kg
• Color: Metal Finish
• Voltage: 440V
• Condition: New
• Function: Packing
• Automatic Grade: Automatic
• Driven Type: Electric
• Warranty: 1year
• Certification: ISO 9001:2008
• Automatic Grade: Automatic
• Country of Origin: India

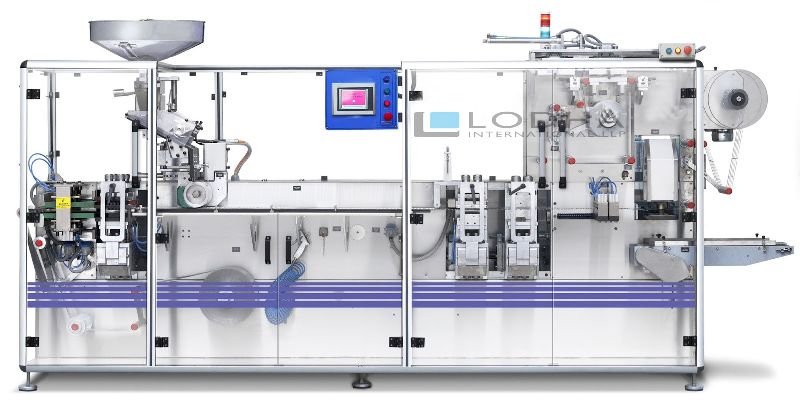

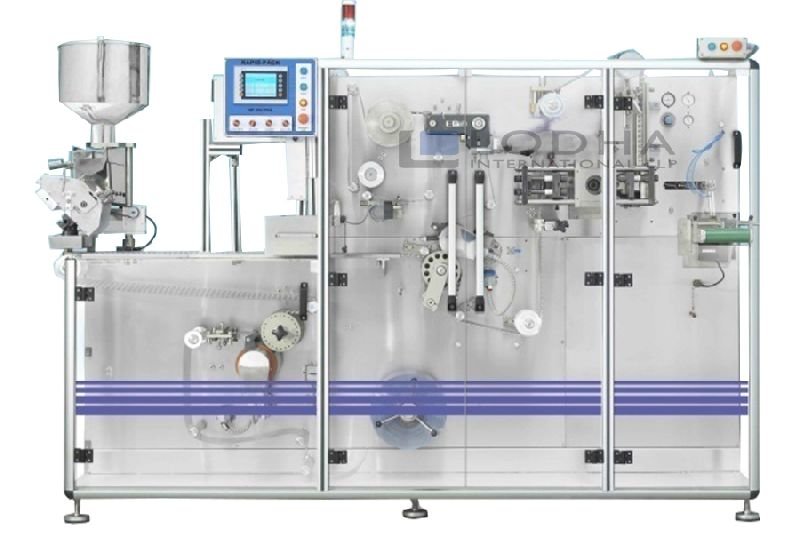

• Brand Name: LODHA
• Application: Medicine Packaging

• Width: 128
• Thickness: 0.2 to 0.3
• Pack Length (mm): 120

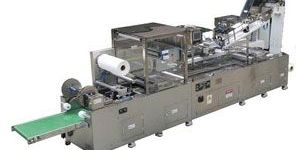

Automatic Blister Packing Machines are ideal tools for the pharmaceutical industry for the packing of Oral tablets, capsules, hard and soft gelatin and ampoules. AII machines are manufactured under stringent quality control process to ensure years of trouble free production. Special design of machine ensures total synchronization of timings between sealing of Aluminum foil and PVC base web. The machine works on the flat forming & rotary sealing principle for delivering higher outputs.Completely fully automatic operations and designed as per cGMP - Current Good Manufacturing Practices compliance, Capacity Max. 100 stroke per minute for round Shape & Average 70 stroke per minute for Oblong shape.

• Net Weight (Approx.): 1800 Kg.
• Overall Dimensions (Approx.) mm: L 4100 x W 1600 x H 1900 mm
• Cycle Speed/Output: 35 Cycles/Min.

PRISM has wide range of high precision automatic Blister Packing Machines. AII machines are manufactured under stringent quality control process to ensure years of trouble free production. Special design of machine ensures total synchronization of timings between sealing of ALU -ALU & ALU- PVC base web. Salient Features : Packing Speed : 40 Cyclemin for Thermo-Forming, 35 Cyclemin for Cold-Forming, Feeding System : Auto feeding system by PLC Logic with pneumatic Combination. Servo Drive Indexing : Servo web indexing by rigid PLC Logic. Operator Interface : User friendly MMI touch screen (Man machine interface), Pneumatic Operations : Festo make for fast response, oil free, minimum wear and tear, easy maintenance and universal Availability of bought outs.

• Brand Name: ACME PACK
• Driven Type: Electric
• Packaging Material: Pouch
• Power Consumption: 2.5 KW
• Capacity: 100 Piece / Hour
• Phase: 1 phase
• Voltage: 230V
• Automation Grade: Automatic

Blister Packing Machine - Alu / PVC Application & Process : Automatic Blister Packing Machines are ideal tools for the pharmaceutical industry for the packing of Oral tablets, capsules, hard and soft gelatin and ampoules. AII machines are manufactured under stringent quality control process to ensure years of trouble free production. Special design of machine ensures total synchronization of timings between sealing of Aluminum foil and PVC base web. The machine works on the flat forming & rotary sealing principle for delivering higher outputs. PVC base film web is drawn off from a reel and fed into the blister forming unit where blisters are continuously formed. The web is then led to the sealing unit over a guide track. Over the guide track, the product is filled into the blisters by suitable automatic filling unit before the web enters the sealing unit Aluminum foil is drawn off from a separate reel and is fed to the sealing unit where it is sealed with the base web, thus enclosing the product hermetically. The filled and sealed web is then fed by an indexing mechanism into the pack punch unit where the packs are separated from the web. The web trim is sheared off to allow collection. The blister pack may either be collected in bins or may be conveyed over a belt for further handling. The machine could be linked to a cartoner. Salient Features : Completely fully automatic operations and designed as per cGMP - Current Good Manufacturing Practices compliance All contact parts AISI 316 & non contact parts AISI 304. Fully automatic cold forming blister pack machine. Capacity Max. 100 stroke per minute for round Shape & Average 70 stroke per minute for Oblong shape. Micro Adjustment-Feeding System Mounting Assembly Universal Batch Code Printing unit One Set Of Change Parts inclusive Of Blister Forming Roller. Counter Sealing Roller ,Inclined Feeding channel Guide Track Punching Tool With main Change Gears & BCP Gears Universal Non fill Detection Unit The operating cycle will be 30 Cycles/min for Cold Forming of this machine and its completely automatic and the use of continuous motion principle permits high speed and efficient packaging production The blister forming die is cooled by an integral water cooling unit (Chilled water unit) for the machine and is maintained at a correct operating temperature Auto feeding system by PLC Logic with pneumatic combination (For critical products). Servo web indexing by rigid PLC Logic. Optional Features :   Inspection system of missing tablets could be incorporated to eliminate manual labor. Batch code embossing. Printing registration control unit. Organic Acrylic Guard

• Features: Optimum performance,Less maintenance,Low power consumption

• Condition: New
• Packaging Type: As Per Client Requirement
• Brand Name: NU PHARMA
• Application: For Packaging

Features : High operational fluency Smooth operation Robust construction Less power consumption

• Automatic Grade: Automatic
• Warranty: 2years

• Brand Name: MARCK
• Driven Type: AUTO START BUTTON
• Capacity: CONSTANT 8 HOUR
• Power Consumption: 10-12 UNIT PER 8 HOUR
• Packaging Material: PAPER AND BLISTER
• Machine Type: Automatic
• Production Capacity: 200-240 PACKING PER HOUR
• Automation Grade: FULLY AUTOMATIC
• Electric: SCHNEIDER
• Filling Speed: DEPENDING UPON OPERATOR

• Power: Electric
• Material: Aluminium
• Features: Best quality , Very efficient to use ,Trouble free operation ,Cost efficient
• Plug Plate Size: 271x173x16(mm)3
• Injector Plate Size: 280x183x47.5(mm)
• Frequency: 50 -60 Hz
• Mode: Automatic
• Usage/Application: Industrial

• Features: Excellent combination of price and quality , Easy to install ,High efficiency.
• Uses: Blister packing machine suitable for tablets, capsules, dragees.
