Capper Machine Dealers in Ahmedabad

• Features: Structure frame of MS cladding platform and housings of SS 304,Bottle in-feed using high pressure air conveyor with air filter on suction side.

The 3 in 1 Trio-block (Rinsing, Filling & Capping) System consists of main structure, air conveyor, bottle rinsing unit, bottle filling unit, bottle capping unit, cap unscrambling bowl with transfer system, star plate, product transmission belt with adjustable guide, Safety acrylic cover, storage tank, AC drive, motor with gear box, electrical panel, PLC & HMI.

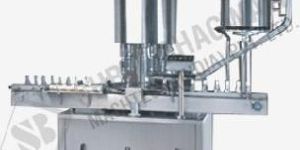

The Automatic Single Head Bottle ROPP Capping Machine Model BACS-60, is suitable for Round Bottles with maximum speed of 40 Bottles per minute. The machine is specially constructed in Stainless Steel finish including machine M.S. frame structure with Stainless Steel CladdingEnclosures. The Machine is equipped with Orientation type Cap Feeder for continues feeding of Cap for online operation on any liquid or powder filling line. The machine is suitable for various sizes of Bottles as well as ROPP Cap with the help of change parts. Capping Machine is suitable for application in Pharmaceutical, Food, Pesticides, Chemical, and Beverages.

• Model: SBSCM - 100
• Output / Hour: 3600 to 6000 bottles
• Direction of Movement: Left to Right
• No. of sealing head: 4 Nos,6 Nos,8 Nos.
• Main Motor: 1.0 HP / 415 Volts / 50 Hz
• Machine Dimensions: 2135mm(L) x 1120mm(W) x2250 (H) Approx

Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The screw capper machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of screw capper machine.

Description: The carbonated filling Tri-bloc is used to bottle carbonated beverage such as Coca cola, Pepsi, Sprite, soda water and so on. This machine is integrated with washing, filling and capping in one machine. It takes bottle handling technology, which makes changing different size bottle more easily. It can do the bottles from size 200ml to 2000ml. And little spares are need when changing bottles. We suggest users to take same specification bottles, especially the same bottle neck. Our Tri-bloc uses high quality stainless steel 304, which makes sure the quality of the products. The washing we take reversing bottle methods. It has so many washing heads which will spray the inside of the bottle after the bottle is reversed. After washing there will approximate 2 seconds dropping water. The filling technology is named “Counter pressure filling”, it means when bottle enter into the filler, the filling tank will firstly inputting enough pressure to the bottle. Just after the pressure in tank is same as the bottle, filling begins. Capping we use magnetic capper. And capping power can be adjusted. We equip the machine with “No-bottle, No-Cap” system. If there is no bottle, the caps feeding will be stopped. The capper feeder is stand beside the mono-bloc, which is parallel to the machine. Above all our mono-bloc is high quality and is just the machine you are looking for! It adopts neck holding type conveying-bottle structure to make changing bottle model more convenient, faster and more est. The main machine adopts advanced PLC control technology.

We are offering our esteemed clients a wide range of Foot Operated Capper from Ahmedabad. It is used for capping the bottle, jars, tubes and container. It is also known as Foot Operated Capping Machine. This capping machine consists of the foot operated paddle. The bottle is to be placed on the stand. By pressing the paddle of the capping machine, the stand consisting of the paddle rises and reaches the head of the capping machine. As the bottle rises, the capping head of this machine is consisting of the die or tightened the bottle. This simple operation is possible due to the pneumatic clamping and tightening of caps to the bottle mouth. Placing the caps on bottles is done manually and these machines also perfect tightening of caps.     Our Foot Operated Capper offered is made available by us under varied model. All our products are developed using quality tested raw material with latest machines and tools. Our offered Foot operated Capping Machine is manufactured using high grade raw material and contemporary technology. We assure our clients that our range is quality checked on predefined parameters, in order to meet international standards. Apart from this our prestigious clients can avail this machine, as per their needs, at highly competitive price.
