Cartridge Housing Dealers in Ahmedabad

• Color: Silver
• Material: SS
• Warranty: 2 Years
• Size/Dimension: 25inch
• Automation Grade: Automatic
• Diameter: 5cm

• Pressure: 4 Kg/Cm2
• Country of Origin: Made in India

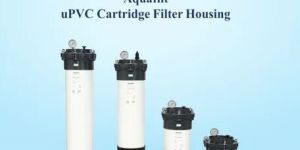

• Material: UPVC
• Application: Pharmaceuticals, Paints and Inks,  Dyes and Intermediates, Petroleum Derivatives, Food and beverages
• Packaging Type: Box
• Brand: Aquafilt
• Size/Dimension: 10, 20, 30 and 40 Inches

• Application: Water Filtration
• Country of Origin: Made in India
• Size: 800 mm
• Moc: SS304, SS316, SS304L, SS316L
• Flow Rate: 2000 m3/hr
• Maximum Operating Pressure: 0.7 MPa (7.0 bar, 101.5 PSI)
• Model Name/Number: CFH
• Automation Grade: Automatic

• Country of Origin: India
• Material: Stainless Steel
• Application: Filteration Use
• Color: Grey
• Finishing: Polished
• Pressure: High Pressure
• STAINLESS STEEL: 304/316

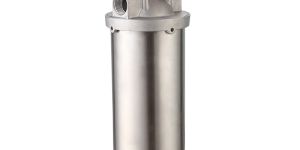

Stainless steel cartridge filter housing is a device used in industrial filtration systems to house and support filter cartridges. It is made of high-quality stainless steel and designed to provide durability, longevity, and resistance to corrosion, high temperatures, and pressure.The stainless steel cartridge filter housing consists of a cylindrical vessel with inlet and outlet ports, a lid or closure mechanism, and a cartridge retention mechanism. The housing can be designed to accommodate single or multiple cartridges depending on the filtration requirements.

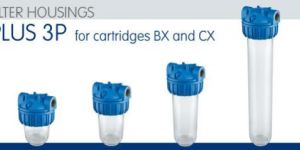

We are offering atlas filtri filter housing plus 3p and 2p for cartridges sx. Plus sx is a full range of housings designed to fit to standard sx (doe) cartridges with height from 4'' to 20''. The housings are made in 2 main versions: - 3p housings for cartridge height at 5'', 7'', 10'', 20''. - 2p housings for cartridge height at 4'', 7'', 10''. All 3p and 2p housings are available as single, duplex and triplex models. With female inout configurations at 12'', 34'' and 1'', with bsp or npt threads, with or without brass inserts, and with male inout configurations at 12'', 34'' and 1'' with bsp threads, plus sx housings are suitable for every point-of-entry (poe) application, as single or multi-stage on-line filters. Plus sx housings are manufactured with the finest and most advanced materials under constant focus on innovative processing technologies and ceaseless modernization to ensure the absolute quality of our products. The housings are certified under the most stringent certification procedures and standards: dm 25 (italy), acs (france), nsfansi (usa), gost (russia). All models are available with clear and opaque blue bowls. Custom combinations of colors are available upon minimum quantity. A full set of accessories is available on demand to complete the housings kit: wall brackets, opening spanner, diffuser tubes and brass or plastic nipples with o-ring.

• Country of Origin: Made in India
• Usage/Application: Water Filter
• Size: Customize
• MOC: Stainless Steel
• Flow Rate: Customize
• Maximum Operating Pressure: 10 Bar
• Brand Name: JPSONS
• Custom Designed: Customized
• Max Pressure: 10 Bar
• Surface Treatment: Mirror Polish
• Filtration Rating: 5 Micron
• Housing Layout: Customize
• Working Pressure: 7 Bar
• Working Temperature: 80 Degree

• Filter Cartridges of Length: 5”, 10”, 20”, 30” etc.
• Available For: Single Cartridge & Multi Cartridge
• Design pressure: Full Vacuum to 250 bar Max.
• Temperature: 10 Deg C to 300 Deg C & for Gas Temp. upto 1000 Deg C
• O-ring Sealing: Standard Silicon, Viton, PTFE, EPDM

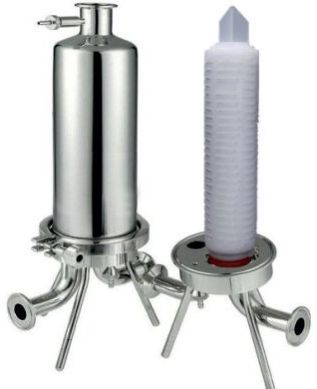

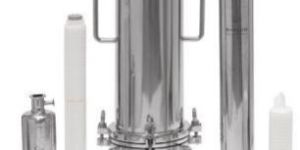

Single Cartridge Filter Housings are fabricated from SS304, SS316 and SS316L etc. varied material of construction. Housings are suitable to accommodate customised connection filter cartridges i.e. Both End Open Type, BSP/NPT threaded type and Code-VII adaptor type. Such housings are closed using TC clamp Closure or Eye Bolt Closure depending upon design pressure.   Multi-cartridge housings are different than single housings. They hold more than one cartridge at the same time in the same chamber, allowing for higher flow rates and higher filter surface area. Multi cartridge filter housings are designed as per ASME SEC VII DIV-1 code as per pressure vessel calculations. We carry ASME code stamped and non-code stamped models as well as other special options to suit your filtration application.   Features & Benefits Single Cartridge filter housing is Compact designed. Single round Housing Requires minimum floor space and can be dismantled quickly cleaning or replacement of Cartridges. Sanitary design filter housings are available with quick opening tri-clover clamps or ASA flanged nozzles. Drain, sampling, and vent connections are provided. T-style and inline configurations allow flexible piping options. Filter housings are suitable for filter cartridges of length 5”, 10”, 20”, 30” etc. Electro polished surface is provided on request. Multi Cartridge filter housings are suitable to installed a large nos. of filter cartridges for high flow capacities. Filter housing can be fully drained provided with swing bolts for quick opening & davit arm with wheel for ease of Lifting top covers. Externally mechanically polished, buffed or pickled. Various instrument configurations possible. Multi cartridge filter housings are suitable for cartridges with end-cap configuration of Both End Open, BSP/NPT threaded end, CODE-VII and customised   Standard Specifications Design pressure : Full Vacuum to 250 bar Max. Design temperature : -10 Deg C to 300 Deg C & for Gas Temp. Upto 1000 Deg C All parts with fluid contact are SS 304, SS 316L, Hastelloy, Monel, Duplex Steel, Alloy 20 etc. Housings are available with Eye Bolt & Swing Nut Closure, Lifting Lugs, Holding LUG or Support legs. Internally & Externally polished Upto Ra < 0.8μm, On-request internally can be polished upto Ra < 0.4μm and/or electro polishing also possible. O-ring sealing: standard Silicon, Viton, PTFE, EPDM.   Customized Specifications We understand that our customers are facing complex processes and environmental requirements. There where standard filter housing could not be sufficient, our engineers are able to design a custom made filtration solution.

Product: PVC Cartridge Filter Housing Backed by team of industry experts, "Filter-Concept" manufactures the high-quality PVC Cartridge Filter Housing as per the industry standards. Features:  High Filter Quality  Contaminant Holding Capacities Technical Specifications:  Silicon O-Ring  PVC Filter Housing  SUS 316 L Bolt & Nut Area of Application: Pharmaceuticals, Petroleum Derivatives, Water Treatment, Coolants, Paints & Inks, Food & beverages, Bore Well water, Dairy, Dyes & Intermediates    RO Pre filtration, Processing Chemicals & Many More.

• Type: Cartridge Filter
• Material: Stainless Steel
• Shape: Vertical
• Condition: New
• Finishing: Polished
• Certification: ISO 9001:2008

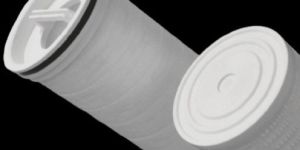

The best way to handle large flow rates ÷ Horizontal orientation eliminates the need for large vertical space ÷ Eliminates the need for platforms or ladders for change-out ÷ Individual o-ring seal for each cartridge eliminates bypass ÷ Convenient, economical installations for medium to high flow rates ÷ For cartridge lengths of 40” and 60” 3 ÷ Up to 75 m /hr per single elements

• Type: Stainless Steel Filter Cartridge
• Brand Name: Aquanza
• Material: Stainless Steel
• Shape: Round
• Application: Filter Use
• Length: 10inch, 20inch, 30inch, 40inch, 50inch, 60inch
• Weight: Depend On Size & Specification
• Outside Diameter: Depend On Size & Specification
• Inside Diameter: Depend On Size & Specification
• Certification: ASME Section VIII Division-1, GEP (Good Engineering Practice)
• Condition: New
• After-Sales Service Provided: Available
• Filter Rating: Micron
• Flow Rate: Depend On Requirement
• Housing Material: SS 304, SS 316, SS 316L, Duplex SS 2205, Duplex SS 2507, CS, MS, CSRL, MSRL
• Clamp Material: SS304, SS316
• O-ring: Silicon, FKM, EPDM, PTFE, Other on request
• Design Code: ASME Section VIII Division-1, GEP (Good Engineering Practice)
• Interior/exterior: Matt finish, Mirror finish, Electro Polish (Optional)
• Maximum Operating Pressure: 0.7 MPa (7.0 bar, 101.5 PSI)
• Maximum Operating Temperature: 65°C (149°F)
• Cartridge Configuration: DOE, SOE ( Fin/222, Fin/226, Flat/222, Flat/226)
• Cartridge Length/diameter: 10”, 20“, 30” or 40” / 60 mm (2.75” ) to 112 mm (4.5”)
• Inlet/outlet Connection: BSP, NPT, DIN Flange, ASA 150# Flange, BS-10 Table `D’ / `E’ / `F’ Flange , Tri-clover (1⁄2”, 3⁄4”, 1” , 11⁄2” , 2” , 21⁄2”, 3” up to 12"), SMS
• Vent Connection: NPT (1⁄2”,3⁄4”,1”), BSP(1⁄2”,3⁄4”,1”) , Tri-clover (1⁄2”, 1”)
• Drain Connection: NPT (1⁄2”,3⁄4”,1”), BSP(1⁄2”,3⁄4”,1”) , Tri-clover (1⁄2”, 1”)

We are offering cartridge filter housings. moc ss316l/ss316/ss304/ms/msrl/pp/san type single cartridge filter housings, multi cartridge filter housings, single bag filter housings, multi bags filter housings, single basket filter filter housings, multi basket filters filter housings, vent filter housings, code - 7 filter housings, on line filter housings, off line filter housings connection 1/4" to 20" delivery as per customer requirement design customized.

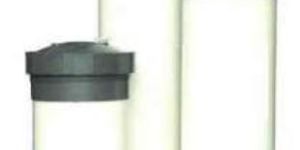

      PVC Cartridge Filter Housings have a very simple design with high filtering quality.PVC Cartridge Filters are normally used in acidic applications because of its material compatibility. They are normally used as polishing filter in almost all process industries. The PVC Cartridge Filter Housing system provides an economical alternative to stainless steel. It is made of durable, corrosion resistant PVC and suitable for low pressure applications.  TECHNICAL SPECIFICATIONS:- Material of Construction: - PVC Inlet and outlet: - 1.5” BSP Closure type: - Union closure and Nut-Bolt type No. of Cartridges: - 05 Nos. and 09 Nos. Pressure withstanding capacity: - 60 psi (Maximum); Continuous: - 45 psi APPLICATIONS Acidic Applications Water Treatment Paints Inks Chemicals Food and Beverages

• Features: Fine finish,Corrosion resistance, Durable standards,Perfect design

We have gained expertise in offering a supreme quality SS Bag Filter Housing to the esteemed customers. These housings are manufactured using high-grade raw material procured from some of the reliable vendors of the industry, with the help of our procuring agents. Our range is offered to the clients at industry leading prices.

10" & 20" STANDARD HOUSING Accept all standard 2 ½" diameter filter cartridges ¾"  & 1"FNPT Inlet and Outlet Operating Pressure - 100 psi Operating Temperature - 50oC "O" Ring bowl to head seal All FDA Grade Material Bowl wrench available. 10" & 20" LD (LARGE DIAMETER, BIG BLUE) HOUSING Accept all standard 4" diameter filter cartridges 1"  & 1½" FNPT Inlet and Outlet Operating Pressure – 100 psi Operating Temperature – 50oC "O" Ring bowl to head seal All FDA Grade Material Bowl wrench available.

Manufacturer & Exporter of Cartridge Housing. Our product range also comprises of Filter Cartridge, Bag Filter Assembly and Fab Media.

• Brand Name: Filter Concept
• Supply Ability: As Per Requirement
• Place of Origin: Gujarat, India
• Port: Any Port In India

Filter concept pvc filter housings combine design simplicity with high filtering quality. Pvc filter housings offers wide range of flow capacities & contaminant holding capacities.

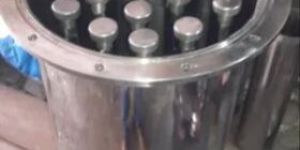

Cartridge filter housing offers wide range of flow capacities & contaminant holding capacities. filter housing diameters can accommodate around 1 to 500 cartridges. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

• Color: Silver
• Usage/Application: Industrial , Water Filtration
• Brand: India Filters
• Flow Rate: 2000 M3/Hr
• Size: 10, 20, 30, 40, 50 Inch

• Material: SS
• Country of Origin: Made in India
• Usage/Application: Filter
• Capacity: 10L/min
• Temperature: 45 Degree C
• Flow Rate: 1000 m3/hr
• Material Grade: SS304
• Internal Diameter: 30mm
• Outer Diameter: 70mm
