Separation of solids from solids, liquids from solids and gradation of materials in accordance with their sizes have always presented problems, especially when large quantity of material is to be processed through finer screens. In recent times the most important development that look place it – the replacement of the conventional reciprocating motion by the gyratory motion in sieving and straining operations. Even if a particle is small it would pass through a screen only if its configuration relating to the opening is favorable.

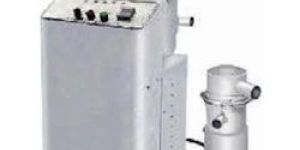

Vacuum tablet press loading systems are furnished as complete, ready-to-operate systems for mounting on customers’ presses. Available for single or dual hopper tablet presses The loader eliminates manual scooping of product and messy dumping or mishandling. Draw material directly from drums, boxes, storage containers, process vessels.Thus Vacuum Loading reduces the manual labor intensity,to eliminate the dust pollution to ensure the production line with GMP.

Brief Description: Vacuum tablet press loading systems are furnished as complete, ready-to-operate systems for mounting on customers’ presses. Available for single or dual hopper tablet presses The loader eliminates manual scooping of product and messy dumping or mishandling. Draw material directly from drums, boxes, storage containers, process vessels.Thus Vacuum Loading reduces the manual labor intensity,to eliminate the dust pollution to ensure the production line with GMP.Easy to clean. Four quick-acting heavy duty clamps facilitate disassembly for cleaning and service. No tools required!Complete package includes: receiver, power unit, vacuum pump, hose****, conveying wand****, and control panel.

Material : Punch -S7 Steel, OHNS,HCHC Dies – HCHC

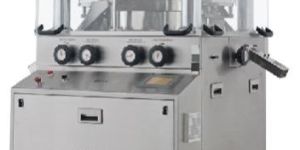

This sturdy GMP square model double rotary tablet press is designed for the production of medium batches with the features like high tonnage, rigid gunmetal feed frame, variable speed pulley drive, overload pressure release arrangement etc. This machine is available in the turret size of 27 stations “D” & “B” tooling, 35 stations “B” tooling & 45 stations “BB” tooling.

This central driven double rotary tablet press stands out because of its new aesthetic and ergonomically improved design that is benefited with higher turret speed, powerful pre compression force upto 5 Ton. And main compression force upto 10 Ton. Reliable and easy to operate Blitz is fitted with Hydro-Pneumatic power pack for overload pressure release system to prevent damage to tooling and numerous alluring features like auto lubrication for centralized lubrication, central driven and easy to access front controls.

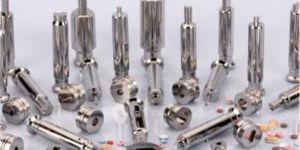

Punch -S7 Steel, OHNS,HCHC Dies – HCHC Shape: Round, Oblong, Oval, Special Shape- Heart Shape,Triangle Shape, Bear Shape Etc. Individual engravings : Flat, Convex, Bevelled, Bisects, Logos etc. Extra on Top of it: Tapered Dies and various application specific coating on punches.

Standard : TSMIPTEURO, Material : Punch -S7 Steel, OHNS,HCHC Dies – HCHC,Shape: Round, Oblong, Oval, Special Shape- Heart Shape,Triangle Shape, Bear Shape Etc., Individual engravings : Flat, Convex, Bevelled, Bisects, Logos etc.Extra on Top of it: Tapered Dies and various application specific coating on punches.

This central driven double rotary tablet press stands out because of its new aesthetic and ergonomically improved design that is benefited with higher turret speed, powerful pre compression force upto 5 Ton. And main compression force upto 10 Ton. Reliable and easy to operate Blitz is fitted with Hydro-Pneumatic power pack for overload pressure release system to prevent damage to tooling and numerous alluring features like auto lubrication for centralized lubrication, central driven and easy to access front controls.

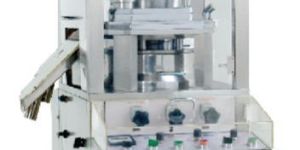

This GMP square model single rotary tablet press is an entry level machine and is designed for the production of small batches. This proven machine is suitable for a variety of applications in pharmaceutical and other industries like food, chemical, naphthalene, confectionery etc.

Pharma Metal Detector metaltrap03 is an eddy current based Digital Metal Detection system designed for Pharmaceutical industry for detecting metal containment in tablets capsules, preferably installed after Deduster. It can also be used in confectionery industry for detecting metal contamination in candies. The system is designed and manufactured to meet the stringent requirement and hygienic standards of pharmaceutical industry.

Chamunda Oceanic Ci 6008 is a Double Rotary High Speed Tableting Machine suitable for high volume production requirements. Provided with advance features like Pre-Compression, Upper Punch Penetration, Force Feeding System, Auto Lubrication, The Main compression force is provided through an advance and highly efficient Hydro-Pneumatic Power Pack specially designed and imported to meet the requirements of a tablet press.

This central driven double rotary tablet press stands out because of its new aesthetic and ergonomically improved design that is benefited with higher turret speed, powerful pre compression force upto 5 Ton. And main compression force upto 10 Ton.Reliable and easy to operate Blitz is fitted with Hydro-Pneumatic power pack for overload pressure release system to prevent damage to tooling and numerous alluring features like auto lubrication for centralized lubrication, central driven and easy to access front controls.

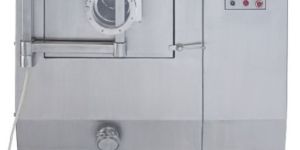

orking Capacity* – kg 2-4 Pan Diameter – mm 375 Pan mouth Diameter – mm 170 Pan Speed – RPM 2-18 Main Drive Motor HP 1 Inlet Fan Air Volume (CFM ± 10 %) 240 Outlet Fan Air Volume (CFM ± 10 %) 300 Electric Heater – kW 9 Compressed Air Pressure (bar) 6

The Single sided rotary tableting machine has been designed to use for tablet making of product ofPharmaceuticals and any other similar process industries. FEATURES In compliance with cGMP guidelines Out put upto 19,200 Tablets/hour. Combination Tooling ‘B’ & ‘D’ available to suit the R & D requirements Force Feeding System AC variable frequency drive for Main Motor and Force Feeder Motor Main compression of 40 kN/4 Ton Pre-compression of 10 kN/1Ton Adjustable upper punch penetration Upper guard interlocking Lower cam for two different filling depth Available in dial-less model also Monitoring of individual Punch Force Data with graphical representation (optional) Audit trails and summary reports (optional) Batch data reporting and printing (optional)

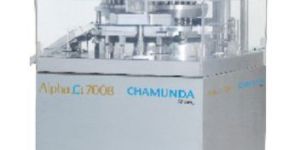

Chamunda Alpha Ci 7008 is a part of New Chamunda Intelligent Series Machines and is a High Speed Single Rotary Tableting Machine. The machine is fully automated and is equipped with advance features required for the purpose of quality pharmaceutical production. Built on the principle of latest tablet technology Alpha Ci 7008 is a versatile and is suitable for the medium batch size production. The machine confirms to all the required regulatory requirements of cGMP Norms/Schedule M Requirements/US FDA Regulations in case of Automated Machines. The machine can be connected online to devices like Tablet De-dusters and Metal Detectors, it is also provided with the single point connection for the Dust Extraction system. Available with choice of turret having 30,37 and 47 stations, corresponding to the various tooling requirements. Features In compliance with cGMP guidelines Higher output up to 197,400 Tab/hr. (max)* Main motor and force feeder motor driven through ACVFD Force feeder drive from bottom Pre-compression upto 5 tons Upper Punch Penetration Hydraulic Power Pack Auto Lubrication Front controls Safety interlocking for upper guards User friendly operations PLC system (optional) Hydro-Pneumatic system (optional) Available in dial-less model also

This GMP square model single rotary tablet press is an entry level machine and is designed for the production of small batches. This proven machine is suitable for a variety of applications in pharmaceutical and other industries like food, chemical, naphthalene, confectionery etc. The suitable model can be selected based on the tooling and output requirement from the 16, 20 & 23 stations with the “D”, “D” & “B/D” tooling respectively. A 12 station model is also available with special tooling and tunnel type can track having max lab Dia-of 40 mm & max depth of fill of 30 mm. Optional Features Force Feeder PLC system

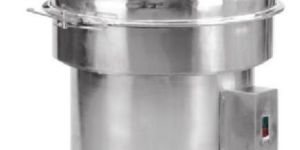

Separation of solids from solids, liquids from solids and gradation of materials in accordance with their sizes have always presented problems, especially when large quantity of material is to be processed through finer screens. In recent times the most important development that look place it – the replacement of the conventional reciprocating motion by the gyratory motion in sieving and straining operations. Even if a particle is small it would pass through a screen only if its configuration relating to the opening is favorable. For a non-isometric particle, the axis must be correctly aligned with respect to the place of the screen. And the center of gravity of the particle must be above the aperture at any instant. Further, the amount of material on the screen should be such that passage of small particles is not obstructed by larger particles. It is therefore necessary to impart horizontal rotary motion to the particle by rotary motion to the particle by suitable means. Care also has to be taken to ensure that such motions, particularly during dry sieving of grading operation, should not be vigorous so as to cause size reduction of particles themselves or damage to the screen. CLIT Sieving Grading and Straining Machines was specially developed with above design features to provide gyratory vibration. The amplitude of vibration is adjustable to suit processing needs.

Country of Origin : India

Type : Sieving Machine

Certification : CE Certified

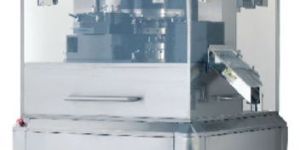

Apt operation from laboratory applications to high value small scale production, square shaped rugged designed Lumina aims to deliver lowest cost of ownership by maximizing yield, flexibility, productivity and reliability. Immaculate Lumina with an exceptional output capacity for a single sided tablet press, is equipped with interchangeable turret facility that allows tool free operation and dramatically reduced product change over. Besides powerful pre and main compression upto to 10 ton, pneumatic system for pressure controls, paint free production zone and many other utilitarian features as mentioned below. Features Single rotary tablet press, suitable for laboratory as well as precious small scale production In compliance with cGMP guidelines Front control for easy operation Interchangeable turret with changeover time of upto 45 mins.(optional) Pressure loading and overloading pressure release mechanism through Pneumatic system Powerful Pre Compression and Main Compression force upto 10 tons Separate control panel Autolubrication Main motor and force feeder motor driven through ACVFD Available in dial-less model also MODELS LUMINA Tooling “D” “B” “BB” No. of Stations 20 25 30 Max. Output (Tab/hr)* 72,000 90,000 108,000 Max. Pressure 10 Ton 6.5 Ton 6.5 Ton Per-Compression 10 Ton 6.5 Ton 6.5 Ton Max. Tablet Dia 25 mm 16 mm 11 mm Max. Depth Of Fill 20 mm 17 mm 17 mm Upper Punch Penetration-Main 3 to 6 mm 3 to 6 mm 3 to 6 mm Main Motor 5 HP 5 HP 5 HP Feeder Motor 0.5 HP 0.5 HP 0.5 HP Total Power** 5.5 HP 5.5 HPP 5.5 HP Compressed Air requirement 15 CFM at 8 Bar

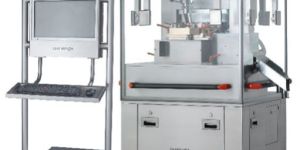

ISSAC Ci 10008 is a part of the new Chamunda Intelligent Series Machines. It is a High Speed Single Rotary Tableting Machine with interchangeable Turret. This highly sophisticated and intelligent machine is fully automated and is provided with Supervisory Control and Data Acquisition System (SCADA). The machine is equipped with advance features required for the purpose of high quality pharmaceutical production. Built on the principle of latest tablet technology, Isaac Ci 10008 is a highly versatile and ideally suitable for medium to large batch size productions. Virtually a tool less design ensures rapid removal and immediate access to the various components in the Tablet Zone. Feeding system, Hooper, Discharge Chutes can be removed in no time for cleaning. This results in achieving optimum change over time. The advance feature of interchangeable turret enables it to incorporate all three type of turrets on a single machine. Swing type pre and main compression rolls, equal main and pre-compression forces and all the tablet parameters can be controlled through a touch screen as the machine is provided with Servo Drives for all the tablet controls. This is available with choice of turret having 37, 45 and 61 stations, corresponding to the various tooling requirements. Features Single rotary high speed tableting machine Output up to 366,000 Tablets / hour* Interchangeable Turret with change over time under 60 Minutes. Swing type equal sized pressure rolls with equal Pre and Main Compression Force up to 10 tons Fully Automatic Controls – Supervisory Control & Data Acquisition System (SCADA) Main motor and Force Feeder motor driven through ACVFD. Dial-less machine provided with drive motors for tablet parameter setting. Audit trails and summary reports. Batch data reporting and printing. Adjustable Upper Punch penetration through drive motor. Safety Interlocking for Upper and Lower Guards.
