Chamunda Pharma Machinery Pvt Ltd Vatva, Ahmedabad, Gujarat

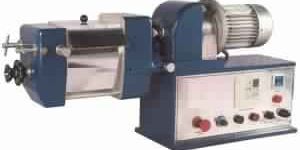

This machine is equipped with an oscillating rotor suitable to manufacture wet granulates of various granule sizes. Sieves are easily interchangeable. Rotor, sieve and all parts coming into contact with the materials are constructed of stainless steel. Each apparatus is supplied with one sieve each of 1.0 and 1.6 mm mesh size.The following mesh sizes are available for the wet granulator type WGS on request. 0.315, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, and 3.15 mm. The capacity of the machine depends on the material and the mesh sizes of the sieve and is maximum 20-25 Kg*. per hour. The wet granulator is suitable for screwing on main Motor drive. The output depends on the material and the mesh size of the screen.

The vertical drive unit, completely maintenance free, is equipped with 1 HP, 0.75 KW, 230/415 V motor. The motor is controlled with DC thyristor drive for speed adjustable from 10 to 400 rpm in case DC, displayed on electronic rpm meter. The process time is auto controlled through timer relays. The various attachments can be quickly attached & interchanged to the main drive unit. A separate power supply socket is also provided for the attachments requiring heating.

The Universal Gear is required for adjusting the operating angle & for the speed reduction of various attachments. The gear allows infinitely variable adjustment of angle of operation from (0 to 60) degrees. The Gear is common to the following attachments (it is not necessary to purchase an individual gear for each attachment, they are interchangeable).- Miniature Ball Mill.– Coating Pan.– Cube Mixer.– Polishing Drum.– Double Cone Mixer.

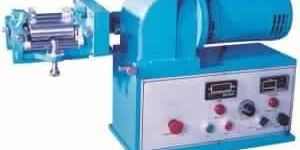

This machine is used in the preparation of ointments, salves, pastes, doughs and similar products. The hourly production is from 2 Kg. To 12 Kg. depends upon the consistency of the material. The rolling action is produced by three hard stainless steel rollers, which are 110 mm long, and 50 mm diameter. The two outer rollers are spring supported to eliminate the possibility of damage to the rollers or to the operating mechanism. Space between rollers is regulated by turning one thumbscrew. The roller mill is suitable for screwing on main drive

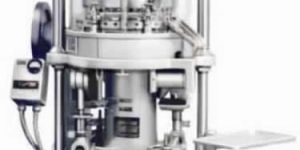

Features Standard version of the above machine is also available with the following features: Output up to 41,400 tab/hr. (max) Main Compression pressure up to 100 kN. Turret speed up to 30 RPM Single piece turret made of S G Iron Worm made of Phosphor Bronze Variable speed pulley drive Overload pressure release arrangement Gravitational feed frame of Gun Metal

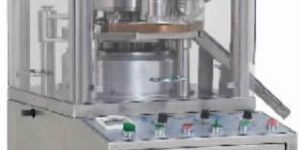

This GMP square model single rotary tablet press is an entry level machine and is designed for the production of small batches. This proven machine is suitable for a variety of applications in pharmaceutical and other industries like food, chemical, naphthalene, confectionery etc. The suitable model can be selected based on the tooling and output requirement from the 16, 20 & 23 stations with the “D”, “D” & “B/D” tooling respectively. A 12 station model is also available with special tooling and tunnel type can track having max lab Dia-of 40 mm & max depth of fill of 30 mm. Optional Features Force Feeder PLC system

Separation of solids from solids, liquids from solids and gradation of materials in accordance with their sizes have always presented problems, especially when large quantity of material is to be processed through finer screens. In recent times the most important development that look place it – the replacement of the conventional reciprocating motion by the gyratory motion in sieving and straining operations. Even if a particle is small it would pass through a screen only if its configuration relating to the opening is favorable. For a non-isometric particle, the axis must be correctly aligned with respect to the place of the screen. And the center of gravity of the particle must be above the aperture at any instant. Further, the amount of material on the screen should be such that passage of small particles is not obstructed by larger particles. It is therefore necessary to impart horizontal rotary motion to the particle by rotary motion to the particle by suitable means. Care also has to be taken to ensure that such motions, particularly during dry sieving of grading operation, should not be vigorous so as to cause size reduction of particles themselves or damage to the screen. CLIT Sieving Grading and Straining Machines was specially developed with above design features to provide gyratory vibration. The amplitude of vibration is adjustable to suit processing needs.

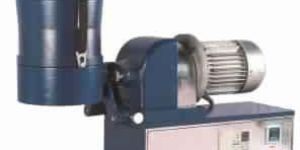

The MSS operates on the rotating cam principal. The intensity of the vibration can be adjusted by changing the speed of the drive unit. The shaker can be fitted with various stainless steel sieve sets according to the customer’s requirement. Sieve Shaker is suitable for screwing on main Motor Drive

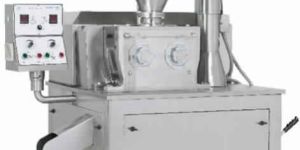

FEATURES In compliance with cGMP guidelines Contact parts are made of S.S. 316 except rollers All covers are designed to obtain dust-free operation Feed screw is steplessly driven through variable frequency drive. Hard chome plated & mirror finished compacting rolls made of tools steel Pre-compaction chamber guides the product to rolls without any slippage or leakage. Electrical interlocking beetween main roll drive and feed screw drive Water Jacketing arrangement (optional) Hydraulic Power Pack system (optional) ACVF Drive for rolls (optional) PLC system as per 21 CFR part 11 (optional)

The Powder Mixer having horizontal half round bowl open on upper-side with acrylic cover and specially designed mixing blade having two stages both right and left hand, ribbon type mixing blades. The left and right hand spiral with upper and lower blade is rotated to circulate the material to be mixed. The half round bowl and spiral mixing blade made out of stainless steel. Within few minutes, it can be empty by tilting. Top cover provided with electro-magnetic interlock, which stops the motor of the Drive Unit automatically. The power mixer is suitable for all main drive units.

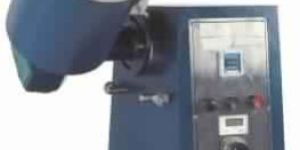

The felt-lined drum is designed for polishing coated tablets. The covers, which locks quickly into places with three snap closures, as well as the bottom of the drums are lined with felt. All felt parts are easily exchangeable. The cover is fitted with acrylic sheet window, which permits the observation of the polishing process. The polishing drum is suitable for screwing on all main motor drive units through Universal gearing (UD).

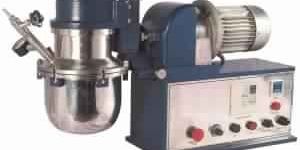

An ideal mixer for creams, ointments, pastes, and liquids, but also for wetted powders. The sturdily constructed planetary gear can be equipped with various mixing and kneading attachments, made of stainless steel. Depending upon type of the material to be processed, a dough arm, a mixing paddle. Any material, which sticks to the walls of the kettle, is scraped continuously by the Teflon scrapper, which is shaped to fit exactly the kettle wall. Therefore, homogeneous mixing results in the shortest time. The Vacuum planetary mixer is suitable for screwing on main motor drive

An ideal mixer for creams, ointments, pastes, liquids, and wetted powders. The sturdily constructed planetary gear can be equipped with various mixing and kneading attachments, made of stainless steel each of which is easily interchangeable. Depending upon type of the material to be processed, a dough arm, a mixing paddle or a wire whip can be supplied at an extra cost. Any material, which sticks to the walls of the kettle, is scraped continuously by the Teflon scrapper, which is shaped to fit exactly the kettle wall. Therefore, homogeneous mixing results in the shortest time can be achieved.The planetary mixer is suitable for screwing on all main motor drives.

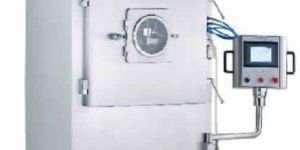

Pearlcoat Ci auto coating systems are intelligently innovated for consistency, simplicity and flexibility in coating. It is a system that operates for any kind of coating automatically by process integrated control system. Ci – Auto coating system stands testimony to the fact that a precisely controlled process is best achieved with matched system components in keeping with the desired coating objectives. A highly efficient pan design, solution spray system and process control provides accurate batch consistency with high production efficiency. System also provides all the professional disciplines necessary to design, test, manufacturer and install a tailor-made system to suit your need. cGMP legislations are the minimum acceptable standards in manufacturing. FEATURES In compliance with cGMP guidelines Modular Design Accurate batch consistency with high production efficiency & effective spraying with special design anti bearding type guns Accurate temperature control within ± 2° C In-built WIP system Quick accessibility for maintenance & cleaning Quick release of Plenums for cleaning of Pan and Plenums. Effective sealing of doors. Fully Automatic Operation through Programmable Logic Controller Sugar Coating System (optional) Interchangeable Pans upto ci 900 model (optional) Flameproof Construction (optional)

Features  In compliance with cGMP guidelines Effective blending with help of mixing baffles. Quick Dismantling of mixing baffles for easy to clean bins and baffles. Fully Automatic Operation through Programmable Logic Controller (optional) Flameproof Construction (optional) ACVFD as an optional feature Pneumatic loading system (optional)

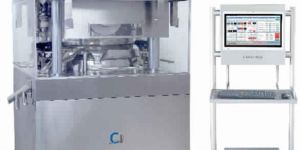

Chamunda Oceanic Ci 6008 is a Double Rotary High Speed Tableting Machine suitable for high volume production requirements. Provided with advance features like Pre-Compression, Upper Punch Penetration, Force Feeding System, Auto Lubrication, The Main compression force is provided through an advance and highly efficient Hydro-Pneumatic Power Pack specially designed and imported to meet the requirements of a tablet press. The machine is provided with a feature like Fully Automatic Controls Supervisory Control & Data Acquisition System (SCADA) with computer interface. As an option the machine can also be provided as PLC controlled with limited features. The machine confirms to all the required regulatory requirements of cGMP Norms/Schedule M Requirements/US FDA Regulations in case of Automated Machines. The Oceanic Ci 6008 is available with a choice of turrets having 51, 61, 75 and 81 stations corresponding to various tooling requirements and higher output.   Features Double rotary high speed tableting machine Output up to 583,200 Tablets / hour* Fully Automatic Controls – Supervisory Control & Data Acquisition System (SCADA) with computer interface. Main motor and Force Feeder motor driven through ACVFD. Dial-less machine provided with drive motors for tablet parameter setting. Audit trails and summary reports. Batch data reporting and printing. Adjustable Upper Punch Penetration. Safety Interlocking for Upper and Lower Guards. All contact parts made of SS 316 and non contact parts made of SS 304. Three Piece Turret with SS 316 Die Table. User-friendly operations with utmost care for operator safety.

Multi Mill is widely used for wet and dry granulation, pulverization etc., in Pharmaceuticals, Chemicals, Cosmetics, colors, Dyestuff, Food product etc. it also finds application in Pesticides, Spices, Detergents, Insecticides, Plastic and Resins Industries.

Rotor Speed : 750/1500/2300/3000 RPM

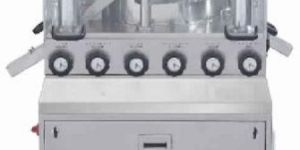

Chamunda Multi layer press is designed to produce tablets with up to three separate layers singlerotary tableting machine. Built on the principles of latest tablet technology, The machine confirms toall the required regulatory requirements of cGMP Norms. The machine can be connected online todevices like Tablet De dusters and Metal detectors. It is also provided with the single point connectionfor the Dust Extraction system. Features In Compliance with cGMP guidelines Designed to produce tablets with three layers Central drive system Hydraulic power pack ACVFD Auto-Lubrication Front Controls PLC system (Optional) Separate Control Panel (Optional)

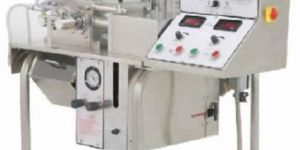

CM Mini Roll Compactor is totally based on method of Dry Granulation. The powder charged in the feed hopper is predensified and fed between two counter rotating rolls. As the volume decreases through the region of maximum pressure, the material is formed into a solid compacted sheet. The densified sheets can then be granulated to any desired mesh size with use of CM Granulator or CM Communiting Mill. CM Mini Roll Compactor is designed to the same principle and mode of operation as that of production size CM Roll Compactor.

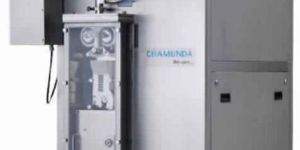

Cantilever type Roll Compactor with cake Crusher & Two Stage Oscillating Granulator This high end model operates in completely enclosed manner to comply with highest standard of cGMP guidelines by optimum utilization and at minimal operating cost and wastage. FEATURES Cantilever rolls design In line roll compactor with cake crusher & 2 stage granulator Comply with cGMP requirements WIP Provision Water jacketed Contact parts S.S.316 without roll Machine mobility PLC system 21 CFR part 11 compliance. (Optional)

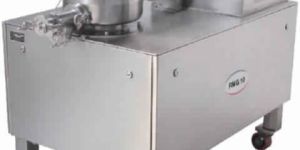

FEATURES In compliance with cGMP guidelines Modular Design Mixing of substances uniformly and homogeneously with special design Mixer & Chopper blades. Electro-Pneumatic Operated Discharge Quick Interchangeable Pots (2 Ltr, 5 Ltr, 10 Ltr, 15 Ltr.) Easy to clean machine Fully Automatic Operation through Programmable Logic Controller – PLC (Optional) Binder addition system (Optional) Flameproof Construction (Optional)
