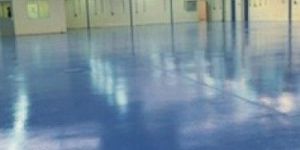

his is a proprietary “water-based” 2 component, epoxy coating system that outperforms and outlasts most solvent based sealer systems without the associated odors, flammability, or VOC’s. Water base epoxy coating is available in clear and selected colors.

This is Silicate type, two-part chemical setting mortar. It is recommended against permanently acidic condition, and can withstand much higher temperature compared to other resin type & sulfur type mortar. K-silicate is principally used with acid resisting bricks and tiles for acid resisting masonry construction,because of its very low cost. It is highly recommended to protect chimneys, incinerators and other high temperature equipment.

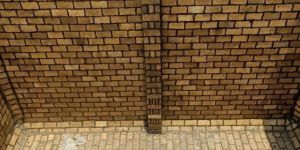

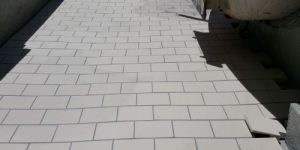

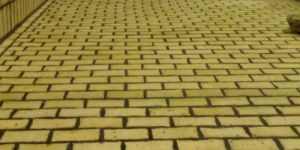

Concrete and ordinary redbrick masonry with cement plastered surface are basic methods for construction of floors, foundations, tanks, sumps manholes etc. These can be attacked by corrosive environment, spillage’s of acids and alkalis and other chemicals handled in modern chemical industries. To protect civil structure of plants and buildings from corrosive attack, acid resisting brick lining is most communally used method. Mastic compond is used as an inter-liner with acid resisting brick lining. It can also applied as open mastic flooring for heavy-duty flooring.

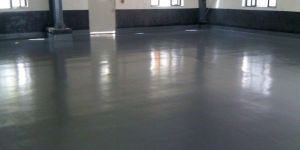

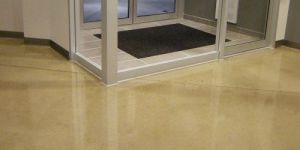

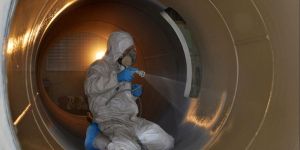

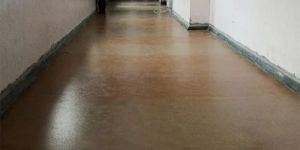

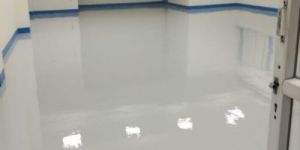

Mipro Glass-101 series of lining & coating, which are reinforced with property graded, micron thick, highly chemical resistant glass flakes, that overlap in multiple layers creating a barrier to permeation and extending the service life of the coating & lining system. Available in Isophthalic polyester, Bisphenol polyester, Vinyl Ester, Superior Vinyl Ester, Epoxy, Hybrid Epoxy resin system.These systems consist of a toweled applied base coat over a primer coat and followed by glass flake filled top coats to achieve excellent chemical resistance, exceptionally low permeation and high physical properties for over all performance of lining & coating. Available in Isophthalic polyester, Bisphenol polyester, Vinyl Ester, Superior Vinyl Ester, Epoxy, Hybrid Epoxy resin system.

FURANE is a two-part chemical setting Furan base mortar used for bonding acid resistant bricks and tiles. It is impermeable in texture and resistant to a very wide range of chemicals, including strong acids alkalis, oils, solvents and unaffected by temperature upto 170 C. FURANE"C" a 100 % carbon filled mortar is available where resistant to Hydrofluoric acid, fluoride salts and strong hot alkalis are required.

Epoxy coating (hyb) is a two part high solids solvent free epoxy phenolic resin based coating system designed for hard wearing, smooth surface finish for floors, walls and on steel structures. Nonskid surface finish can be achieved on floor, if required.stir well before mixing part a and part b and mix in the prescribed ratio.furane is a two-part chemical setting furan base mortar used for bonding acid resistant bricks and tiles. It is impermeable in texture and resistant to a very wide range of chemicals, including strong acids alkalis, oils, solvents and unaffected by temperature upto 170 c. Furane"c" a 100 % carbon filled mortar is available where resistant to hydrofluoric acid, fluoride salts and strong hot alkalis are required.

EPOXY COATING (HYB) is a two part high solids solvent free epoxy phenolic resin based coating system designed for hard wearing, smooth surface finish for floors, walls and on steel structures. Nonskid surface finish can be achieved on floor, EPOXY COATING (HYB) should be applied on the surface by brush or roller within 24 hrs. After application of primer coat it should be allowed to air dry for min. 4 hrs. Preferable in a dust free atmosphere.

FURANE is a two-part chemical setting Furan base mortar used for bonding acid resistant bricks and tiles. It is impermeable in texture and resistant to a very wide range of chemicals, including strong acids alkalis, oils, solvents and unaffected by temperature upto 170 C. FURANE"C" a 100 % carbon filled mortar is available where resistant to Hydrofluoric acid, fluoride salts and strong hot alkalis are required.FURANE is recommended to use against very wide range of acids, alkalis, solvents, salts, oils and fats. However FURNAE is not recommended to use against HF, fluoride salts, and strong hot alkalis. For these, conditions, FURANE"C" 100 % carbon filled mortar is available. Also it is not recommended against strong oxidizing acids like chromic acid, Nitric acid and other oxidizing agents.

FURANE is prepared by mixing solution & powder to form a workable mortar. The recommended ratio of mixing is 1 part solution to 3 parts powder by wt. The ratio will vary depending upon ambient temperature and working conditions. Use clean, dry mixing pan. Place appropriate quantity of solution in mix pan, and add powder slowly, mixing thoroughly until completely dispersed. Do not mix more material, then can be used within 20-30 minutes.

FURANE is a two-part chemical setting Furan base mortar used for bonding acid resistant bricks and tiles. It is impermeable in texture and resistant to a very wide range of chemicals, including strong acids alkalis, oils, solvents and unaffected by temperature upto 170 C. FURANE"C" a 100 % carbon filled mortar is available where resistant to Hydrofluoric acid, fluoride salts and strong hot alkalis are required.

FURANE is prepared by mixing solution & powder to form a workable mortar. The recommended ratio of mixing is 1 part solution to 3 parts powder by wt. The ratio will vary depending upon ambient temperature and working conditions. Use clean, dry mixing pan. Place appropriate quantity of solution in mix pan, and add powder slowly, mixing thoroughly until completely dispersed. Do not mix more material, then can be used within 20-30 minutes. joint. During and after completion of the application, the area must be kept dry and free from any other materials, which can affect setting and curing of FURANE.

FURANE is a two-part chemical setting Furan base mortar used for bonding acid resistant bricks and tiles. It is impermeable in texture and resistant to a very wide range of chemicals, including strong acids alkalis, oils, solvents and unaffected by temperature upto 170 C. FURANE"C" a 100 % carbon filled mortar is available where resistant to Hydrofluoric acid, fluoride salts and strong hot alkalis are required.

FURANE is a two-part chemical setting Furan base mortar used for bonding acid resistant bricks and tiles. It is impermeable in texture and resistant to a very wide range of chemicals, including strong acids alkalis, oils, solvents and unaffected by temperature upto 170 C. FURANE"C" a 100 % carbon filled mortar is available where resistant to Hydrofluoric acid, fluoride salts and strong hot alkalis are required.

FURANE is used for acid resistant bricks and tiles lining where maximum chemical resistance is required e.g. dyestuff, rayon, steel, thermal power stations, fertilizers, petro-chemicals, food-pharmaceuticals industries on locations like floors, drains, tanks, reaction & storage vessels, effluent treatment plants etc.
