Chintan Rubber Industries Bapunagar, Ahmedabad, Gujarat

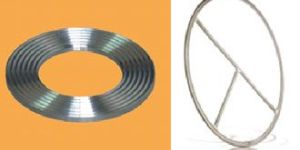

The Spiral Wound Gaskets are composed of a metallic continuous stripe with a special shaped profile, coupled with a continuous filing stripe (Asbestos, PTFE, Grafoil, Ceramic etc) evenly wound in concentric spiral under constant stress. The Spiral Wound Gaskets are reinforced on the inner and outer diameter by winding of several electrically welded spiral metal only. The normal shape is circular but it is possible to make oval shape, oblong shape. They can also be combined with jacketed gaskets to tightening heat exchangers internal shapes.

Flanges. These are suitable for large tongue and groove joints, large male and female joints. Recommended for valves high pressure pumps. Highly suitable for use where limited gasket sealing width is available

Used As Centering Device And Compression Stop – This is a standard Spiral Wound Gasket consisting of a sealing element and a solid metal outer ring. The outer ring performs the following important functions. (A) Centers the gasket in the joints (B) Furnishes extra radial strength to help prevent gasket blow out (C) Resist Atmospheric conditions (D) Provides a gauge reference point for detemining compression during bolt pull up. This kind of gasket are used in (1) Raised Face And Raise d face Slip –on joints (2) Plain or Flat Face Joints (3) Van Stone Joints (4) Lapped Joints (5) Welding neck Flanged joints

We are the main supplier of this product.

Size : 2inch, 4inch, 6inch, 8inch

Type : Graphited Ptfe Packing

Material : PTFE

Shape : Round

Thickness : 10-20mm, 20-30mm, 30-40mm, 40-50mm

Color : Black

Condition : New, Used

Feature : Accurate Dimension, Easy To Install, Fine Finish, Good Quality, Heat Resistant, Robust Construction, Unbreakable

We are the main supplier of this product.

Type : Plate Heat Exchanger Gaskets

Material : Aluminum

Weight : 100-1000kg, 1000-2000kg, 2000-3000kg, 3000-4000kg

Color : Shiny SIlver, Silver

Condition : New, Used

Warranty : 1 Year, 2 Years

Automation Grade : Automatic, Fully Automatic, Manual, Semi Automatic

 Heat Exchanger Metal Jacket Corrugated Rings  Solid Metal Gaskets  Camprofile Gaskets

We are the main supplier of this product.

Size : 10-20inch, 20-30inch, 30-40inch

Type : Graphite Reinforced Gasket

Material : Graphite Steel

Shape : Round

Thickness : 10-20mm, 20-30mm, 30-40mm

Color : Brown, Grey, Silver, White

Condition : New, Used

Finishing : Non Polished, Polished

We are the main supplier of this product.

Type : Copper Washers

Material : Copper

Diameter : 0-10mm, 10-20mm, 20-30mm

Shape : Round

Thickness : 0-5mm, 5-10mm, 10-15mm

Application : Automobiles, Automotive Industry, Fittings

Color : Light Red

Finishing : Polished, Power Coated

Feature : Accuracy Durable, Auto Reverse

Technics : Black Oxide, Hot Dip Galvanized, White Zinc Plated, Yellow Zinc Plated

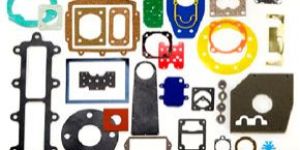

CAFNon Asbestos Gaskets are die cut or circle cut from compressed asbestos fibrenon asbestos jointings which are manufactured from carefully selected chrysolite fibre intimately blended with suitable heat resistant binders etc. and vulcanised into sheets of homogenous compositions and uniform thickness. CAFNon Asbestos cut gasket seal is effected by yielding or flow of material into the imperfections of joint contact faces. In this way gasket provides an unbroken barrier of homogenous structure through which no pathway exist for escape of confined media.

CAF/Non Asbestos Gaskets are die cut or circle cut from compressed asbestos fibre/non asbestos jointings which are manufactured from carefully selected chrysolite fibre intimately blended with suitable heat resistant binders etc. and vulcanised into sheets of homogenous compositions and uniform thickness. CAF/Non Asbestos cut gasket seal is effected by yielding or flow of material into the imperfections of joint contact faces. In this way gasket provides an unbroken barrier of homogenous structure through which no pathway exist for escape of confined media.AsbestosMade of high quality's long asbestos fiber, rubber and heat-resisting packing material, compressing it to thick paper. Density: 1. 90g/cm3 Flexibility: No-break Compossibility: 4% Reovery: 40. 00% Tensile Strength: 12. 00Mpa Lgnition Loss: 28. 00% Stress Relaxation Rate: 37. 40% Non-Asbestos Jointing Sheets are made of special non-asbestos heat-resisting fiber, heat-resisting packing material, and special rubber compound heating and compression molding it. Density: 1. 95g/cm3 Flexibility: No-break Compossibility: 17. 98% Reovery: 40. 00% Tensile Strength: 15. 00Mpa Lgnition Loss: 28. 67% Stress Relaxation Rate: 27. 40%Uses: Used in the high temperature and high pressure. For the equipment in saturated vapor, super hot vapor, gas, air, gas, ammonia alkali, and inert gases and other mediums etc. And used as sealing material in the joints of pipeline.

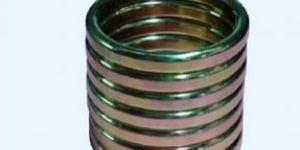

 Soft Iron Oval or Octagonal  Stainless Steel 316 304 321  F5  Low Carbon Steel
