CNC Machine Dealers in Vastral, Ahmedabad

• Type: CNC
• Condition: NEW
• Model Number: AMBAR-1000
• Brand Name: AMBAR
• Place of Origin: INDIA
• CNC or Not: CNC SPM
• White: Green

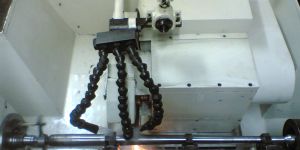

We are offering cnc mandrel grinding machine for special ss seamless tube manufacture company. ambar 1000 : cnc cylindrical grinding machine technical specifications model : ambar 1000 general center height mm 200 admit between centers mm 1000 max. Grinding length mm 1000 max. Weight of job between centers kg 70 table (z axis) rapid feed mmmin 5000 min. Incremental feed mm 0.001 feed motor torque nm 11 with absolute encoders max. Swivel of table deg -2 +5 ball screw (diameter x pitch) mm 50 x 10 grinding wheel head wheel size (dxwxb) mm 450x40x127 wheel speed rpm 1800 wheel surface speed msec 45 grinding wheel configuration straight infeed slide (x axis) infeed stroke mm 200 rapid feed rate mmmin 5000 min. Incremental infeed mm 0.001 feed motor torque nm 6 with absolute encoders ball screw (diameter x pitch) mm 32 x 5 work head type non rotating, dead centre mode only speed range (stepless) rpm 20-250 spindle nose taper mt 4 tail stock center mt 4 quill travel mm 25 cnc system siemens 802d sl motor power wheel head hp 7.5 work head hp 1 coolant pump hp 0.15

• Condition: New
• Color: White & Grey
• Dimension: 25AMP. 50AMP. 100 AMP

Haas Factory Outlet is defined not only by the high-quality Haas products it carries, but also by the outstanding service and applications support it provides. Because we are a factory-direct distributor, we have an extensive inventory of replacement parts available for immediate delivery, and field a fleet of fully stocked service vehicles to provide installation and ongoing service. Our Applications Engineers have the experience to help you select the best Haas product for your application, and provide technical support and training.

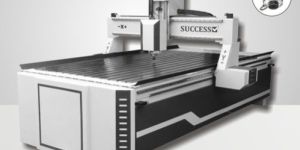

• Brand Name: Success
• Voltage: 220 to 440
• Automatic Grade: Automatic
• Motor Power: Up to 30 kW
• Body Material: MS
• Model No.: ST-2125 2Z

• Feature: Other
• Design: Customized
• Type: Cnc Patterns
• Function: Cnc
• Material: Mdf,Thermocol,Wood

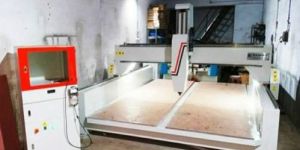

Cnc Pattern making machine Wooden pattern, aluminum pattern Tharmocoal Pattern Fully Automatic Made in INDIA Manufacturering in Ahmedabad Hitesh Patel Mo : 9898315215

• Brand Name: Bhavya Machine Tools
• Service: 24/7 Technical Support
• Packaging Details: Depending on Customer's Requirements.
• Max. Swing Diameter: As Per Models
• Operating Type: Automatic
• Customization: Yes
• Voltage Rating: As per Model
• After-sales Service Provided: Engineers available to service machinery overseas
• Type: As Per Requirements, CNC
• Port: India
• Model Number: Lathe Machine And Milling Machine
• Dimension(L*W*H): 1790x1520x1450mm to 5410x2000x1800mm
• CNC or Not: CNC
• Business Type: Manufacturer

• 86kg/750W: Stapper/Servo Motor & Drive
• Weihong: Nk-105/NK-280
• 25mm: Rack & Pinion, L M Guide way-Taiwan
• 25mm: Ball Screw-Taiwan
• -: Pci Card
• -: 2.2,3,5.5Kw,Water Cooling,24000RPM,
• -: Standard
• -: AC380V/3Ph,AC220V/1Ph/50Hz
• -: G Code
• mm/min: 20000
• mm: 0.025
• mm: 1300X2500X200
• mm/min: 15000
• mm: ER20,25
• mm: 1750X3000X1700
• Kgs: 1500

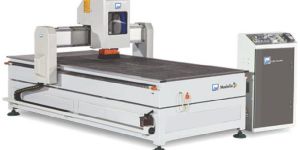

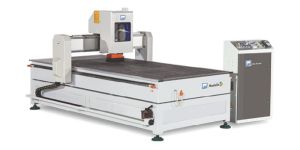

  CNC Router with Linear Auto Tool Changer & Vacuum Table   Salient Features :-   The bed is made of square steel, analyzed and designed with heavy duty structure, relieving stress, so the working table is more stable Transmitting system parts with long years work, it can guarantee high precision and less machinery gap. Working table is vacuum table.7.5Kw vacuum pump is Air Type. Double linear bearing to drive the Y shaft, which improve speed and more stable, it can cut repeatedly. High speed and efficiency, empty speed is up to 50000/min, for engraving wave plank, the speed can reach 20000mm/min. Auto lubrication makes maintenance much easier. Compatible Software: Compatible various CAD/CAM software like; Art Cam/ Type3 Self made mold, Heavy Duty and stable casted steel supporting bar.Whole structure processed with heat treatment for long run, error free accuracy. Stronger and larger helical rack/ pinion and linear rail.   The Rails are specially protected by hairbrush that installed in the blocks, When the machine in running, the clean rails working all the time. This will keep the rails with long time work without being abrasion and last the life of blocks and bearings in the blocks. 9 kw (HSD) Italian Air Cooled Spindle A convenient, separate control panel box allows flexibility and efficiency in machine operating. High quality & accurate Syntec system from Taiwan.   Precision Vacuum Table:For vacuumed fixing and sure clamping of the workpiece, to ensure steadiness during the entire routing operations   Additional Vacuum pads 8 pcs for special through cutting work.   Machining Samples       Linear type 6 auto tool changer with HSK tool holder, which reducing the unproductive time.

• Weight: 2000 kg
• Size: 1300 x 2500 300
• Layout: Horizontal
• Brand/Make: Smart
• Model: sem 1325
• Voltage: 415
• Power: 3 phase
• Resolution: max 0.2 Resolution
• Number Of Spindle: 1
• Speed: 14000
• Dictate Format: G code
• Engraving Tool: 5 nos
• Automatic Grade: Automatic
• Working Precision: 0.2

• Brand Name: Ace Designers
• Power Source: 20
• Spindle Size: 52
• Model: SJE10LM
• Driven Type: Mechanical
• Color: Light White
• Condition: New
• Power: 9-12kw
• Application: Metalworking
• Type: Cnc Turning Machine

• Drive Motors: Servo Motor & Drive (750W) INVT
• Controls: DSP Weihong NK105G2
• X-Y Movement: Rack & Pinion, Gear Drive,25 M.M. with planetry gear box
• Z Movement: 25mm,Ball Screw Drive,
• Spindle: 6 KW, Air Cooling, 18000 RPM, (HSD/Hitecho)
• Oil Lubrication Systom: Standard
• Working Voltage: AC 380V
• X-Y-Z Axis Working Area: 1300 x 2500 x 200 mm
• Collet Type & Size: ER 32
• Approx. Weight: 1200 kgs

• Power Consumption: 7.5 KW per hour (Approx.)
• Maximum Swing Over Bed: Up to 480 mm
• Maximum Swing Over Solid: Up to 260 mm
• Maximum Machining Length Chuck: Up to 390 mm
• Spindle Taper Hole: Up to 61 mm
• Maximum Bar Diameter with Manual Chuck: Up to 58 mm

• Certification: ISO 9001 2008 Certified Company
• Weight: 800kg to 6100 Kg
• Packaging Details: Depending on Customer's Requirements.
• After-sales Service Provided: Engineers available to service machinery overseas
• Voltage: As per Model
• Automatic Grade: Automatic
• Dimension(L*W*H): 1790x1520x1450mm to 5410x2000x1800mm
• Max. Swing Diameter: As Per Models
• Machine Type: Lathe Machine And Milling Machine
• Service: 24/7 Technical Support
• Supply Ability: 1 Unit/Units per Week
• Condition: New
• Customization: Yes
• Port: India

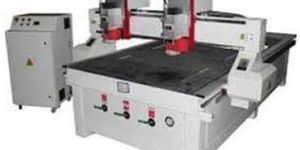

To meet variegated demands of our esteemed clients, we are engaged in manufacturing and supplying an exclusive range of Double Head CNC Router Machine. Application: Widely used in wood, plastic, furniture and engineering industries Features: Robust construction Optimum finish

• White: Blue
• White: Dark

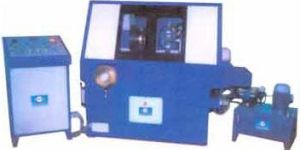

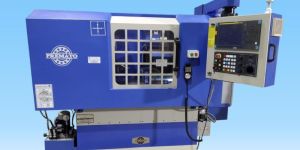

We are offering cnc cylindrical grinding machine. Technical specifications of premato cnc cylindrical grinding machine general centre height : mm 150 / 175 / 200 max. Grinding length :- mm 300 / 600 / 800 / 1000 / 1200 cnc system :siemens or reputed table (z axis) rapid feed rate :- 5000 mm / min min. Incremental feed :- 0.001mm max. Swivel of table :- deg -3 to + 6 infeed slide (x axis) rapid feed rate : 5000 mm / min min. Incremental feed :- 0.001 mm feed servo motor torque : 6 / 8 nm grinding wheel head grinding wheel size :- 400 x 40 x 127 (d x w x b ) mm wheel surface speed :- 35 / 45 m/sec motor power :- 5 or 7.5 hp work head spindle speed (inf. Variable) rpm 25 - 400 spindle nose taper mt 3 or 4 swivel deg +90 tailstock tailstock centre :- mt 3 or 4 ram traverse :- 25 mm.

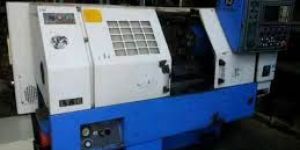

We are a popular machine supplier in India and we supply the most important and highly required machining devices. We are specialized in designing variety of slant bed CNC lathe machines.

• Voltage: 3 phase
• Model: HYDRAULIC FLUTED ROLLER TRUING
• Pressure: up to 40 kg
• Automatic Grade: Semi-Automatic
• Condition: New
• Layout: Horizontal
• Color: Blue and White
• Max Number Of Tool Pockets: 1 SET

• Brand Name: Raghav Technologies
• Material: Mild Steel
• Voltage: 420 V
• Warranty: 1 Year
• Frequency: 50 Hz
• Model Name/Number: RT-1325s
• Spindle Power: 6 kW Air Cooling HSD
• Automation Grade: Automatic
• Spindle Speed: 18000 RPM
• Operating System: Nc studio / NK 105 G3
• Phase: Three Phase
• Outer Dimension: 2090 x 3395 x 1750 mm
• Working Area ( X,Y,Z ): 1300 x 2500 x 300 mm
• Distance Between To Gantry: 320 mm
• Maximum Travelling Speed: 30 m/m
• Cutting Tool Diameter: 2 to 20 mm
• Repeated Location: 0.010 mm
• Driving System: Servo / Stepper Motor

• Weight: 1300

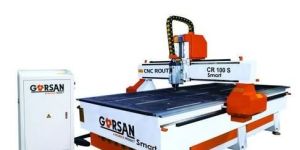

• Brand Name: GORSAN
• Country of Origin: Made in India
• Model Name/Number: CR-100S SMART
• Phase: 3 PHASE
• Automation Grade: Automatic
• Bed Size: 4*8
• Lathe Machine Type: DESIGN MACHINE
• Spindle Motor: SERVO MOTOR
• Spindle Nose: 1
• Travels X Axis: 1300MM
• Traverse Rates X Axis: 2500MM
• Traverse Rates Z Axis: 300MM
• Warranty: 1
• I Deal In: New Only

• Voltage: 415-440 V
• Brand Name: Pacemaker Solutions
• Model Name/Number: PMF 250
• Automation Type: Automatic
• Power Source: Electric
• Frequency: 50-60 Hz
• Positioning Accuracy: 0.01 mm
• Spindle Motor Power: 75 kW
• Weight: 1700 kg

• Control System: DSP Control System
• Spindle Type: 3KW Air Cooling
• Spindle Speed: 24000rmp/min ER25
• Working Area: 1300*2500*300mm
• Working Table: Aluminum T Slot and PVC
• Driving System: Stepper motor
• XY Axis Structure: Helical Rack and Pinion drive
• Z Axis Structure: Z Axis Ball Screw Germany TBI 25mm
• XYZ Axis Square rails: Orbit TBI Square Orbit 20mm
• Working Accuracy: +/- 0.5mm
• Dust Collector: Double bag System
• Oil Lubrication: Hand Control with Aluminum Oil Pipe

• size: 10,4’

CNC shearing machine Swing beam hydraulic shear. Heavy duty, rigid all welded steel frame. Material Hold-down pressure adjustment proportionally to cutting pressure. Colour Touch Screen 10,4’’. Programmed cutting length. More hold downs near the squaring arm for better holding & cutting of small parts. Automatic programmable high speed CNC back gauge with AC servomotor. Precise Illumination of the cutting line. Front guard with 1 swivelling part and safety switch. Rear fence equipped with photoelectric guards. 2 X front sheet supports 1m each with linear scale.

• Automatic Grade: Automatic
• Power Source: Hydraulic
• Bending Speed: 130-180 mm/s

We are offering cnc router. Salient features : > german ball screw with high accuracy > cast steel structure makes our routers more stable

The bed is made of square steel, analyzed and designed with heavy duty structure, relieving stress, so the working table is more stable Transmitting system parts with long years work, it can guarantee high precision and less machinery gap. Working table is vacuum table.7.5Kw vacuum pump is Air Type. Double linear bearing to drive the Y shaft, which improve speed and more stable, it can cut repeatedly. High speed and efficiency, empty speed is up to 50000/min, for engraving wave plank, the speed can reach 20000mm/min. Auto lubrication makes maintenance much easier. Compatible Software: Compatible various CAD/CAM software like; Art Cam/ Type3

• Brand Name: Mayur
• Material: Cast Iron
• Usage/Application: Textile Spinning Mill
• Model Name/Number: MBFRT
• Automation Grade: Manual
• Weight: 175 kg (approx)
• Finish: Paint Coated
