Coating PAN Dealers in Ahmedabad

• Type: Sauce Pans
• Material: Steel
• Diameter: 100-150
• Certification: ISI Certified
• Application: Cooking, INDUSTRIAL USE
• Color: Silver
• Feature: Attractive Design
• Handle Material: FOOD MATERIAL
• Handle Length: 7inch
• Fnishing: Coated
• Brand Name: MICRON INDIA
• Country of Origin: India
• Metal Type: SS
• Pans Type: SS

• Material: Metal
• Certification: ISI Certified
• Finishing: Coated
• Warranty: 1 year
• Feature: Non Stickable, Perfect Griping, Rust Proof

• Capacity: 45 LTR , 75 LTR
• Material Grade: SS 304
• Automation Grade: Automatic
• Model Name/Number: PCM-30, PCM-36

• Speed: Maximum 420 RPM.
• Dimensions: 16.5' x 7" x 10.5" inch
• Net Weight: 5.5 Kgs.
• Gross Weight: 12 Kgs.
• Packing: 17" x 8" x 12" inch

The universal gear is a basic requirement for our different attachment like the coating pan, polishing drum, pelletizer, cube mixer, mini ball mill etc. The universal gear required when the operating angles for the above attachments have to be changed. The unit offers an adjustment of the angle of operation from 0 to 60 degrees. This attachment is suitable to attached in our both main drive.

We offer tablet coating pan. tablet coating pan 12" dia stainless steel, the machine is worked by oil immersed gear box with f.h.p. Motor drive. Air blower is operated independently and air is thermostatically controlled to give temperature 30 to 100 oc. Switches for motor, blower, heater and thermostat are fixed on a panel with neon indicators. Also mains lead with 15 amp plug provided.

• Material: Metal
• Condition: New
• Warranty: 1 year
• Capacity: 300 L
• Use: Industrial
• Diameter: 36 inch

We maintain a high level of transparency when it comes to payment. Our methods are simple, as per your convenience, and practical. We ensure to agree upon a method during undertaking. The check on quality has been kept by our experts who ensure that the inputs we source are free from any sort of impurities. Thus, we ensure quality products at buyer's end.

• Material: Stainless Steel
• Surface Finishing: Matt
• Brand Name: Innovative
• Capacity: 5 to 100 KG
• Grade: Pharmaceutical
• Design Type: Standard, Customized
• Machine Body Material: SS 316 / 304
• Automation Grade: Automatic
• Frequency: 50 HZ
• Power Source: Electtrical

• Country of Origin: India
• Brand Name: Rudra
• Certification: ISO 9001:2008 Certified
• Color: White
• Voltage: 220V
• Condition: New
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1 Year
• Shape: Round
• Operating Type: Automatic
• Corrosion Resistance: No
• Machine Structure: Vertical
• Phase: Single Phase
• Material: Stainless Steel
• Usage: Steel Industry
• Finishing: Chrome Finish, Powder Coated
• Dimension (LxWxH): 440x260x295mm, 560x360x485mm
• Specialities: Easy To Use, Excellent Functionality, Less Maintenance
• Packaging Type: Wooden Box
• Machine Weight: 100-1000kg
• Pressure: Medium Pressure
• Capacity: 50 kg
• After-Sales Service Provided: Yes

We are main supplier of this product.

• Weight: 100-200kg
• Color: Silver
• Voltage: 220V
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric

• Net Weight: 28 Kgs.
• Dimension: 375 (L) x700 (D) x675 (H) (in mm)

Pan SS 316 semi ellipsoidal size pan with a circular mouth for charging & discharging of tablets Pan mounted at an inclination of 45 degrees to the horizontal.Drive Assembly: Consists of a suitable 1 HP 3 Phase, 440 V, and 1440-RPM TEFC motor with suitable worm reduction gearbox and cone pulley arrangement to give three-speed output. Hot Air Blower: The unit is provided with a hot air blower consisting of suitable HP 3 Phase 440 V, 2880-RPM TEFC electric motor & centrifugal blower with damper delivering required CFM. The air is heated by means of suitable electric heater to give air at 30 to 90 degrees Heater with thermostat control and flexible hose pipe.Control Panel: Unit provided with suitable control panel with starters and push button to actuate the drive and for blower The circuits consists of MCCBs, relays and contractors in series Ample overload protection is provided by the MCCB and the relay Wires coming out of the connections are numbered for easy recognition Mounting: The motor and gearbox is mounted inside sturdy MS frame and the pan mounted on the Gearing housing fitted in the stand. Blower mounted by the side of the stand or placed in remote location if required.Finish: All joints argon Arc welded and all SS Parts polished to suitable finished required of pharmaceutical equipment MS parts painted to smooth finish.

• Warranty: 1 Year
• Brand: Venus Machinery
• Model Name/Number: VTCM
• Power Consumption: 5HP
• Temperature Range: 35 to 180
• Usage/Application: Used for Sugar & Film Coating in Pharma & Confectionery Industries.
• No Load Speed: 30
• Air Pressure: 600 CFM
• Cup Capacity: 2 to 80 kg
• Dimension: L- 1520 X W-1150X H- 1755 In mm.
• Heat Up Time: 10 to 30 Mins

The machine fitted with gear box 1/2 H.P. electric Motorto work by Oil immersed gear box. Air blower is operated independently. An energy regulator is provided to control temperature from 5 deg.C above room temperature to 70 deg. C approx. Punch having switch for motor blower heat with neon indicator to work on 220 Volts. Size HP Pan HP Blower12" dia. 0.5 0.25

• Loading Capacity: 15 Kg.

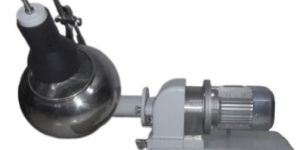

The Coating Pan can be mounted on Motor Drive unit via Universal Gear (UG), which permits Coating pan to be held at any angle up to 45° with reduction in speed. For drying attachment with adjustable height is provided. The maximum operational capacity is 30 % of coating pan volume. The coating pan is suitable for screwing on all main drives.

• Loading Capacity in Kg.: 05
• Heater Capacity in Kw.: 1.0

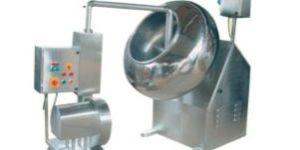

In compliance with cGMP guidelines. Also available with Standard Painted Model & for small scale laboratory purpose. Conventional Coating Pan with very sturdy M.S structure made of angles & channels which are covered from all the sides by covers & doors. The Coating Pan drive is through standard make heavy duty worm reduction gear box & electrical motor by means of belt and pulley drive fitted on a rigid structure. Coating Pan Speed can be changed through variable speed pulley mounted on the shaft of electric motor (AC Variable Frequency Drive – Optional with extra cost). Coating Pan made of SS 304 SS 316 or SS 316L material and mirror polished from inside & outside. Baffels either welded or detachable (welded are the standard supply if not specified) provided inside the pan considering production requirements. Easy mounting arrangement considering changeover of coating polishing pan.

Description of Batch Type Flavor Mixing Machine (coating Pan)Our range of flavor mixing machine is extensively used for apply seasoning to fried product in uniform manner. The unit comprises of ellipsoidal shaped pan fabricated using stainless steel sheet and mounted on the heavy duty reduction gear box shaft, which is driven by an electric motor. These flavor mixing machine are available in stainless steel 304 or 316 contacting parts. Exterior drum surfaces are available with satin finish or polished to near mirror finish to provide ease in cleaning of the unit.This batch type flavor mixing machine is useful for potato chips, banana chips, fried or roasted nuts, bangle grams or pulses, pellet / kurkure (cheese puffs, cheese curls, cheese balls, cheesy puffs, corn curls, corn cheese) nik naks( extruded corn snack). Construction of coating pan Stainless steel 304 semi ellipsoidal size pan with a circular mouth for charging and discharging of fried food products pan mounted at an inclination of 45 degrees to the horizontal. Suitable TEFC motor with suitable worm reduction gear box and pulley arrangement for rotating coating pan. The motor and gear box is mounted inside sturdy mild steel frame and the pan mounted on the gearing housing fitted in the stand. All joints argon arc welded and all stainless steel parts polished to suitable finished required of food processing equipment mild steel parts automotive painted to smooth finish.

• Loading Capacity in Kg: 1Kg 3 kg. 5 Kg. 8 Kg. 10 Kg.

The Laboratory scale conventional costing machine is ideal for film and sugar coating. The machine is available with 12”, 14”,16”, 18” and 20” size of stainless steel coating pan. The machine is designed with fabricated structure fitted with SS enclosure and drive unit of motor and reduction gear box. Machine has variable speed drive to achieve 5 to 15 RPM by variable speed pulley. The machine is mounted on anti vibration pads which avoids foundation and vibration.

• Gross Capacity: 9.5 ltr
• Working Capacity: 2.5 – 3 ltr. Both coating pans are made of SS 304 /316.
• Accessories: Infra red radiator 150w.
• Dimension: Ø 310 OD x250 H
• Net Weight: 5 Kg.
• Gross Weight: 15 Kg.
• Packing: 840 x 480 x 400 mm

Coating Pan can be mounted on Motor Drive unit via Universal gearing type – UD, which permits Coating pan to be held at any angle up to 45o with reduction in speed. For drying the coated-tablets an infrared drying attachment with adjustable height is provided. The maximum operational capacity is 30% of coating pan volume. The coating pan is suitable for screwing on all main drives.

    Introduction: The machine fitted with gear box 1/2 H.P. electric Motorto work by Oil immersed gear box. Air blower is operated independently. An energy regulator is provided to control temperature from 5 deg.C above room temperature to 70 deg. C approx. Punch having switch for motor blower heat with neon indicator to work on 220 Volts. Size HP Pan HP Blower12" dia. 0.5 0.25

Our product range includes a wide range of masala coating pan. Masala Coating Pan Our excellent team of professionals had helped us manufacture, trade and supply an array of Coating Pan in the domain. The offered pan is manufactured using stainless steel 304 gauge. The robust construction is the sign of high durability that clients get during the production years. This pan is used in snacks manufacturing companies for producing taste mixtures. In addition with it, the process also helps in keeping mixtures and snacks fresh for longer period of time. In addition with it, clients can get the machine manufacturer according to their provided specifications.   Features: Heavy gauge Better heat circulation Low maintenance Highly durable Spacious pan

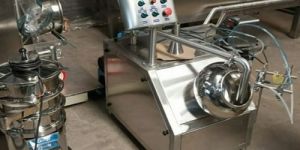

The prism compact NewLABOcoata- Lab Automatic tablet coating is high efficiency and intelligent automated film & sugar coating advance technology is mainly used in pharmaceutical and food industries. Featuring mechatronis and confirming to the requirement of cGMP. It is a high efficiency, energy saving, safe and clean equipment for film & sugar coating of tablets, Pills and candies with film - organic solvent and aqueous coating.

• Material: Stainless Steel
• Surface Finishing: Matt
• Capacity: 1 Kg To 100 Kg
• Grade: Food
• Design Type: Standard
• Machine Body Material: SS304
• Frequency: 50
• Material Grade: SS304
• Power Source: 3 Phase

• Volumetric Cap.: 45 Ltr
• Coating Pan Size: 30” Dia

Tablet coating pan Coating pan is mounted directly on Gear box shaft, having convenient mounting angle of 300.Coating Pan is designed to give quality coating of Tablets.The machine is having study structure of square SS square pipes. Base plate is of MS having SS cladding. It is very much easy for cleaning.

We are offering coating pan. The coating pan is used to produce uniform coating on tablets with the help of baffles inside of pan. This can be mounting on the universal gearing and as a result different tilting angle can be set up to 45 degree.

DESCRIPTIONIn the process of coating tablets and confectionaries, the personal skills of the coater needs to be supplemented by a correctly designed, versatile coating pan. CHITRA Coating Pan have very heavy & sturdy structure , made from angles & channels. Complete structure covered from all sides. Two nos. of covers with hinges provided on two sides( left & right ) of the structure. Three nos. of covers are fixed with bolts. Variable speed pulley system made out of cast iron, with motor slides are provide up to 48" size for speed variation. Motor & worm reduction gear are used of any reputed make, as per customer requirement. ( A.C. frequency drive for variable speed of coating pan will be also provided on demand ) Coating pan made from 10 SWG, SS304 or SS316 or SS316 L material and polished to the mirror finished from inside & outside. CHITRA Coating Pans have been designed after a careful study of the needs of expert coaters such as Rotational Speed, Angle of inclination of Pan, Inside finishing of the pan , Total Volume and Temperature of the hot air. DESCRIPTIONThe standard pan is elliptical in shape, mounted at 30? angle. RPM of the pan is variable. with help of the variable speed pulley.( A.C. Drive provided optionally ) Inbuilt hot air blower system as a standard supply up to 48 size ( Excluding 60 & 72 size ) & high capacity mobile hot air blower system also provided ( as a optional ) with temperature controller to control the temperature of air at selected temperatures between 30?C to 75?C is provided with air delivery pipe to deliver required quantity of air in the pan. MODEL AVAILABLE12'', 24'', 30'', 36'', 42'', 48'', 60'' & 72'' SPECIAL FEATURESPan fabricated from 3 mm thick, SS Sheet of SS 304 / SS 316 quality with adequate mouth opening and depth. Temperature controller provided for temp. controlling. Anti vibrating unit provided for proper leveling, hence no requirement of foundation. Compact hot air blower with inlet air damping arrangement. General structure made out of M.S. in Standard Model & same will be covered with SS304 in GMP Model. Easy mounting arrangement for change over from Coating Pan to Polishing Pan. OPTIONALGMP models . Contact parts ( Pan ) made out of SS 316 material. Flameproof motor with flameproof starter for Coating Pan drive. Steam heated hot air blower system with flameproof blower. Polishing pan size 24', 36", 42", 48", 60" & 72" , made out of mild steel or SS304 / SS316. Buffels ( welded or detachable type ) provided inside the pan, if required.

•  :
• Gross Capacity: 9.5 ltr
• Working Capacity: 2.5 – 3 ltr. Both coating pans are made of SS 304 /316.
• Accessories: Infra red radiator 150w.
• Dimension: Ø 310 OD x250 H
• Net Weight: 5 Kg.
• Gross Weight: 15 Kg.
• Packing: 840 x 480 x 400 mm

Coating Pan can be mounted on Motor Drive unit via Universal gearing type – UD, which permits Coating pan to be held at any angle up to 45o with reduction in speed. For drying the coated-tablets an infrared drying attachment with adjustable height is provided. The maximum operational capacity is 30% of coating pan volume. The coating pan is suitable for screwing on all main drives.

We have gained expertise in offering excellent Coating Pan to the esteemed customers. Coating pan capacity is 5 kg to 50 kg, Coating pan with hot air systems.These pans are ideal to be used in the process of coating tablets and confectionery items in an efficient manner. Moreover, these coating pans are checked on certain quality parameters to gauge their flawlessness. We offer wide collection of coating pan that is ideally suited for tablet coating purpose. It is useful for monitoring, controlling and optimizing the complex coating process, which ensures uniform surface coating. The coating pan is semi-ellipsoidal shape with a circular opening at top that is designed with M.S. fabricated structure

• Material: Stainless Steel
• Brand Name: Aditya Pharma
• Frequency: 50 Hz
• Voltage (V): 220-440V
• Finish: Polished
