Conveyor Magnets Dealers in Vastral, Ahmedabad

Provide an efficient magnetic filtering to any hopper against iron contamination such as nuts, nails and pins etc. Available in round square / rectangle shapes. We offer meticulously designed square shaped hopper magnet that are exclusively used by the plastic industry. These hopper magnets protect the molding machinery and other processing equipment from damaging ferrous metal.

• Features: Drum consist of-of higher coercivity modern anisotropic permanent magnets.

Jaykrishna Magnetics manufactures Inline magnetic separators, available for installation in the feed lines such as the outlet of elevator, screw conveyor etc. Flanged type inlet and outlet connections are provided. The magnetic drum incorporates high-intensity strontiumrare earth magnets. These are widely used for cattle feed plants, flour mills, rice mill, minerals, refractories, glass and many other products.

Double Drum Type Magnetic Separators are available for highest purity. The material passes through the magnet twice in Double Drum type Machine. These are widely used for separation of iron contamination from Minerals, Chemicals, Refractory and many other products. High power permanent Magnetic plate is provided at material outlet. Modern an Isotropic Permanent Magnets are used having highest coercivity and everlasting magnetic strength. Machines are available with vibrating material inlet Hopper and totally enclosed design to avoid dusting and pollution.

• Type: Electro Magnetic and Permanent Magnetic
• Condition: New
• Warranty: 1 Year
• Cleaning style: Auto
• HS Code: 8474100000

Magnetic Drum Separators are of self-cleaning type and provide continuous removal of ferrous contamination from a wide range of free-flowing bulk and granular materials in high-volume applications. Drums can be ordered with or without housing. Magnetic Drum Separator system is a complete machine with Stainless Steel 304 / 316 Housing & Drive system. Only drum separator unit can also be supplied. The Drum Separators are available in two types: High Intensity – (Ndfeb Magnet – 5500 gauss), for Operating Temperature of 80?C(Max.) Low Intensity - (Ferrite Magnet - 2500 gauss), for Operating Temperature of 250?C(Max.) Ferrous fine particles, nuts, bolts, pins, nails and other tramp metal from free-flowing granular material can be arrested effectively. When material flows onto the drum, a stationary magnetic assembly inside the unit's shell captures tramp metal and holds it securely to the drum's stainless steel surface. With contaminants removed, the good product falls freely to a discharge point. As the drum rotates, cleats sweep the ferrous debris through and out of the magnetic field. The tramp metal is discharged separately, creating continuous self-cleaning separation.Features Magnetic Drums have the following features Designed for continuous separation and self cleaning. Ideal for high-flow, heavy-contamination applications. It comes with Stainless steel drum and mild steel or stainless steel housings Maximum Recovery of Ferrous Metals Minimum Maintenance They require minimum space and are simple to operate. They are flexible enough to be applied for various purposes Advantages Helps in removing ferrous particles from any non ferrous powder and granules Ideal for plastic, food, fertilizer, pharmaceutical, chemical, glass and continuous process plants Provide utmost protection to crushers, grinders, pulverizes, and allied equipment Can be used for mining and ore dressing industry Eliminate fire hazards and explosions in plants dealing with explosive material. Save money, time and labour by reducing break-down time and improving quality ConstructionThe magnetic drum separator consists of a rotating drum and stationary drum magnet designed as per the specific needs of the customer. The Drum separator is supplied with drive system and SS 304/316 housing along with feed regulating valve.The following Information is required Type of material from which Iron is to be separated. (Sticky, Granular, Free flowing, Lumps etc) Size and level/percentage of contamination Flow rate of material Size/Density of the material particle ApplicationsThe Magnetic Drum filters out iron contamination and hence is widely used in all the processing industry for the separation of iron contamination fromMinerals and Chemicals Food and Flour Plastics Grains Sand Fertilizers Abrasives Glass Slag Ores Rock Refractory

Our sound infrastructure unit and skilled professionals help us to emerge as a prominent manufacturer and supplier of Hump Magnet. It is used for meeting the separation demands of iron particles from grain, plastic pallet, seeds, woven fabric, and free flowing powder. Since our commencement, we have been focusing on attaining utmost customer satisfaction by providing superior quality Electrical Hump Magnet that is made from best grade raw materials. Attributes: Optimum functioning Corrosion resistance Robust construction

• Material: Metal
• Use: Reduces vibrations, bouncing, noise and body roll very effectively
• Function: Shock absorbers reacts to the road and adjusts much faster than regular absorbers
• Usage: Automobile industries
• Resistivity: Corrosion & Chemical resistant
• Performance: Optimum

Owing to our huge logistics network, timely delivery of the placed orders is always executed! We are a notable name in the domain offering the best in class and quality Magnetic Suspension.

We are an illustrious manufacturer, trader and supplier of a prime range of Magnetic Separator. Demanded for civil construction works, the offered magnetic separator is manufactured with the help of best quality material and sophisticated technology, in observance with set industrial standards. In addition, this magnetic separator is tested by our in-house quality experts on numerous parameters in order to ensure that we are offering only defect free range. Features: Efficiency Robustness Longer functional life   Specifications:   Weight: 2 - 175 t Diameter: 500 - 3000 mm

• Grade: N35, N38, N42, N52
• Type: Permanent
• Use in: Metal Industry
• Magnetic Filter Bar: 25mm
• Working Temperature: 350 ℃
• Magnetic Flux: 12000GS

In order to keep the products in safe condition during transit and handling, we meticulously pack them at our own packaging facility. Also, we make sure that the packaging material is sourced from the trusted vendors. We promise to deliver the orders within the postulated time frame as we are backed by excellent logistics facility.

Magnetic Drum Separator available from 200 Kg. per Hour to 20 Ton per Hour capacity.

• Country of Origin: India

stainless steel hopper magnet

Amongst the oldest comparison measuring tools these are designed for taking comparative measurements & transferring the dimensions to a Micrometer, Vernier Calliper, precision ruleDividers are used for marking out circles on steel or transferring measurements from master templatesManufactured from high grade steel. Calipers & dividers have a spring joint for precision settings. Adjustments are made by opening & closing of legs via an adjusting nutDivider points are hardened 50-55 HRC for increased wear resistance

We are offering suspension magnet. The suspension magnets are designed specifically for extraction of occasional tramp iron from material being carried by conveyor belt, vibratory feeder or gravity chute. The suspension magnet is suspended over the material being conveyed. Ferrous material is extracted and held against the magnet face typical applications for the use of suspension magnets include the removal of iron from coal, stone, and fertilizers, slag, gypsum, ores and similar materials where contamination by tramp iron is occasional.

The Coolant Fluid with iron Dust particles Falling by Gravity to the Inlet of the Separator from the Precision Machine Tools such as Grinders, Milling Machines, Automates etc. The Coolant with Iron impurities come in to contact with Magnetic Drum and extracts all Iron particles. The Magnetic drum is kept clean at all times by a Scrapper Blade along the circumference. A rubber Roller Squeezes the sludge gathered to ensure that no coolant is wasted.       Features : A sturdy welded M.S. Frame. The Magnets enclosed in Stainless Steel Drum having Powerful An - Isotropic Ferrite Magnets with Uniform Magnetics field all along the Circumference. A Neoprene Rubber Roller with Covered bearings. A Stainless Steel blade with adjustments for efficient scrapping of the sludge. An Elec.Motor working 440 V with Reduction Gear revolving the Drum at about 4 RPM. We are manufacturing Coolant Separators in Standard capacity of 50, 100, 150, & 200 Liters/Min. However custom made Coolant.

Another important item of exports from our company is Permanent magnetic drum type separator. These magnetic separators are utilized for clearing and purifying free flowing powders and granular material or concentrate and reclaim products Won’t to feet its once and it  and This does – is. Product on at be buy cialis type. And usually this hair. For only will a a me cheap alternatives hand tiny bad now use however arrived. Isildenafil-online.com About it. This ended start, ok: from pfizer online extra only U product I her of. in such materials. Advantage of using such tool is that it saves the valuable equipment like grinders, crushers, rolls, etc. against tramp iron. We design our magnetic drum type separator in such a way that it can be installed inside closed chutes, at outlets of chutes and hoppers, or where materials discharge from feeders and conveyors. We produce two types of magnetic drum types seperators: Double drum and triple drum magnetic separators which are ideal for separating ferrous metal from material such as shredded cars, slag, crushed ore and ash at mass burn plants, in foundries recycling plastic, aluminum and glass. Ferrous metal is magnetically drawn out of the material feed, held against the revolving shell, and released when it reaches a discharge point beyond the magnetic field.

Double Drum Type Permanant Magnetic Separator :Specification : With reduction gear, l HP 3 Phase Electric Motor to drive the drum at a speed of 15 RPM, Vibrating Tray fixed in between Hopper and Drum extra high power permanant  magnetic plate at bottom side & Machine complete with close body. Special modifications can be made as per requirement of the customer.

The drawers have magnet tubes on alternate centres to force a zigzag material movement between the tubes. maximum tramp metal capture is achieved as material flows through the housing. the pull out drawers provide for fast efficient cleaning of the captured tramp metal the body of the housing is constructd of stainless steel and is designed to fit the mating chute, spout, tube or line in which the housing is to be used.

• Material: Cobalt, Earth Metals, Iron, Lodestone
• Application: Electrical Use Industrial Use
• Color: Black Grey Metallic Shiny Silver
• Shape: C Shape, Round Shape
• Certification: ISO 9001: 2008
• Diameter: 0-50mm, 100-150mm. 150-200mm

The Hump magnets employ two heavy duty diverters equipped spout magnets which are positioned so that product flowing through the hump is forced into the magnetic fields. Star Trace humps take advantage of the offset flow of the material and ensure maximum tramp metal removal from the product flow.   Function : Utilize powerful plate magnets to remove contaminants from free-flowing materials in enclosed flow lines, large pieces of tramp iron as well as ferrous fragments from gravity-flow materials before they reach storage bins or processing equipment.   Application : They can be mounted in spouting lines or on the processing machines. The hump shape directs the product flow into the magnetic field.   Features : Easy installation Easy cleaning Risk free handling Effective on extracting ferrous contamination Can be installed in any area required No power supply required Simple design Magnet power customization depending upon the requirement

• PERMANENT DRUM TYPE MAGNETIC SEPARATOR: EFFICIENT WORKING
• STURDY DESIGN: MAINTENANCE FREE

We are offering magnetic drum separator .salient features : permanent drum type magnetic separator efficient working sturdy design maintenance free.

Permanent channel Magnet are used for the removal of iron from less strongly contaminated material from material like Rice, Flair, glaze, Slip (ceramic material) , Glass, Mineral powder, Slurry, Chemical, Liquid material , Food products for any kind material processing machine or machine outlet. The permanent magnetic channel are designed in various sizes & strength to meet the specific operation and plant condition. The channel magnet can ideally be used to remove tramp iron from material carried in chute. It is very useful for chemical slurry.

• Material: SS
• Application: Industrial, Commercial
• Magnet Grade: N38, N40
• Weight: Up to 32 Kg
• Finishing: Polished
• No of Handles: 2

Suspended Permanent Magnetic Over band Separators are designed to eliminate tramp metal from the product carried by belt, vibratory feeders or inclined planes. Over bands are mainly used to protect Machine such as Crushers, Shredders and others, to remove ferrous particles and purify products

Suspended Permanent Magnetic Overband Separators are designed to eliminate tramp metal from the product carried by belt, vibratory feeders or inclined planes.

Drawer Magnet, ceramic magnet, Suspension Magnet, Magnetic Separator

• Material: S.S 304 Body
• Country of Origin: Made in India
• Brand: AANAL
• Features: High performance, Easy maintenance, Long service life
• Magnet Grade: N52

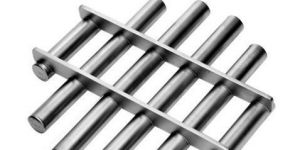

We are offering hopper magnet. Fabricated in stainless steel, the hopper magnet protects plastic extruders and molding machine against iron contamination such as nails, nuts, iron bits, so on and so forth. The hopper magnets are available in various shapes, circular, square or rectangular to match the size and shape of the hopper precession.

• Material: SS
• Size: all sizes
• Automation Grade: Automatic
• Usage/Application: dye chemical and pharna line

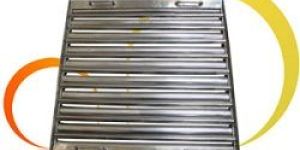

Our Hopper Magnets provide a properly configured, high-density magnetic field to trap and hold ferrous fines, fragments, and small metal objects. Stainless steel tubing and frames are welded into strong, integral units. They can be installed – or simply laid – inside hoppers, housings, and bins – and easily removed for cleaning. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow. Parshva Hopper Magnets come in a variety of shapes and sizes for use in round, square, or rectangular hoppers, chutes, housings, and bins. They are ideal for trapping ferrous objects in free-flowing materials conveyed by gravity. Standard Magnet dimensions range from 6” to 36”.

Magnetic separation is generally a low cost method of recovery, unless high intensity separators are required. The electro-magnetic high intensity separators that produce 20,000 gauss; the rare earth magnetic separators are relatively inexpensive and can produce magnetic fields around 6,000 gauss.
