Corrugating Plant Dealers in Ahmedabad

This heavy-duty Corrugation machine with four times capacity in production than the ordinary corrugation. The machine is provided with steam shower and three pre-heaters for liner paper as well as fluted paper. The first flute roll is provided with springs on both end to have the fine adjustment. The gum tray is provided with geared motor on the gum roll, which will continuously rotate the gum to keep the gum with proper viscosity. The gum tray is also provided with water flow to keep the gum cool. The Reel Stand is provided with self-loading arrangement with twin unwinding shafts and is capable of taking the reel of 48" diameter. The machine is provided with overhead bridge with guide way, which will have the time of setting of single facer and will be going directly in rotary sheet cutter to cut into required size. This will be without damaging the flutes.

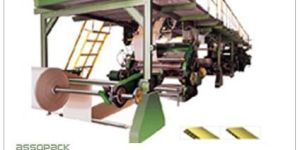

3/5 Ply Fully Automatic Corrugation Plant For corrugators, who want superior quality boards and higher production, on line 3/5 ply corrugated board making plants is the only solution. On line corrugated board making plants are ideal solution for achieving higher production capacity and superior board quality. Reduces production cost manifold. Assopack Machines offer ultra modern on line 3/5 ply paper corrugated board making plant. Assured quality with unmatched service back up. SPECIFICATIONS 5 ply corrugated box making plant High speed bearing mounted corrugation Machine with variable speed drive- 2 nos. Drum type heaters - 4 nos. Self loading reel stand- 5 nos. Triplex heating unit before gluing On line duplex pasting unit Heating cooling and drying chamber (consist of fourteen hot plates) Heavy duty pull unit On line creasing and slitting unit Heavy duty cut off unit 3 ply corrugated box making plant High speed bearing mounted corrugation Machine with variable speed drive Drum type heaters - 2 nos. Self loading reel stand- 3 nos. Duplex heating unit before gluing On line simplex pasting unit Heating cooling and drying chamber (consist of nine hot plates) Heavy duty pull unit On line creasing and slitting unit Heavy duty cut off unit The plants above include complete fabrication and synchronization of all machines together. Overhead bridge and conveyor take up belts. Motorized web adjustment unit, Gangway and stairs. Automatic 3 Ply Paper Corrugated Board Making Plant

Complete plant machinery to manufacture corrugated box . Consisting 52" 1 no, and 42" 2 nos. corrugation machine of micro make, combine rotary slotter machine, printex make 3 nos. punching machines, four roller pasting machines 4 nos. rotary printing machine, stiching machines, roll to sheet paper cutting machine, box compressure testing machine, bursting test machine for paper and board. Complete plant for sale in excellent working condition. For more details please contact us
