Cylindrical Roller Bearings Dealers in Ahmedabad

• Material: Stainless Steel
• Max. Bore Size: 80 mm
• Min. Thickness: 8 mm
• Min. Outside Diameter: 6 mm
• Max. Thickness: 30 mm
• Max. Outside Diameter: 200 mm
• Min. Bore Size: 10 mm

• Country of Origin: India
• Material: Stainless Steel
• Application: Industrial
• Color: Grey
• Warranty: 1 Year
• Surface: Polished

Since many years Brush India’s Manufacture Cylindrical Brush roller for many Industries and supplied with success into Various industries.. The brush process is an economical and technique in improving certain surface properties and it is mostly used on-line. The Brush is manufactured as per Customer Drawings and Specification due to various OEM Machine SpecificationOur Company is Following a Cost leadership Strategy. Providing a high quality together with a low price. Hence, we are sure that our brushes will reduce client costs enhancing their competitiveness. However, we are maintaining a high quality using the best Filament within the market. Because our company has the manufacturing capabilities to make large dynamically balanced high speed brushes (5000 rpm) .Cylindrical Brush roller used for Various Application such as Cleaning, Finishing, Polishing, Sueding, Applying and many more.The Brush Roller is manufactured on High- Tech European Machine.

Our packages are designed to provide maximum protection to the product from mechanical damage and logistical jostling. Additionally, the package is labeled to provide important details. Serialization is done before the final packaging and storing of the products in our capacious warehouse. We keep the products separated to ensure rapid delivery in the committed time span. Series : NU - NU2xx, NU3xx, NU22xx, NU52, NU10xx NJ - NJ2xx, NJ3xx, NJ22xx NUP - NUP2xx, NUP3xx, NUP22xx NCF - NCF18xx,NCF29xx, NCF30xx Tolerance - P0, P6, P5 class Variant cage - E, EM, MB, MA, MA6, MPA, Application : Metallurgical industry Energetic industry Oil and gas industry Mining industry

• Type: Roller Bearing
• Material: Stainless Steel
• Thickness: 17 mm
• Number of Row: Double Row
• Structure: Cylindrical
• Finish: Polished

The clients can rest assured for their payment, as our payment procedures are safe, easy to use and make hassle free transactions. Our products are tested on various parameters during the production process to ensure their adherence to the industrial quality standards.

• Material: Stainless Steel
• Packaging Type: Box
• Number of Row: Double
• Inside Diameter: 80 mm
• Outside Diameter: 125 mm
• Thickness: 34 mm
• Usage/Application: Industrial
• Grade: SS316

• Weight: 0.122- 0.242 kg
• Material: High Grade Steel
• Bore Size: 14- 21 mm
• Corrosion Resistance: Yes
• Type of Bearing: N,NU,NJ,NUP
• Brand: KYK
• Model Name/Number: 204- 2320
• Number Of Rows: Single Row
• Outer Diameter: 47- 52 mm
• Inner Diameter: 20 mm
• Dynamic Load: 25.7- 42 kN
• Static Load: 22.6- 39 kN

• Material: Mild Steel
• Condition: New
• Country of Origin: Made in India
• Number Of Rows: Double Row
• I Deal In: New Only
• Finish: Chrome Finish

Suitable for Carry heavy radial load at high-speed application Compact space Carry axial displacement Non-bearing location installation Types of Cylindrical Roller Bearings: NU Design - Outer ring has two integral flanges, while inner ring had no flange. N Design - Inner ring has two integral flanges while outer ring has no flange. NJ Design - Outer ring has two integral flanges and inner ring has one integral flange. NUP Design - Outer ring has two integral flanges and inner ring had one integral flange & loose flange ring for both side axial locations ZNL Offering: N2XX, NF2XX, NJ2XX, NJ22XX, NU2XX, NU10XX, NUP2XX, NUP22XX,NU22XX N3XX, NF3XX, NJ3XX, NJ23XX, NU3XX, NUP3XX, NUP23XX N4XX, NF4XX, NJ4XX, NU4XX, NU23XX, NUP4XX INCH SERIES: CRL, CRM, CFL, CFM Available in steel, brass, and polyamide cages

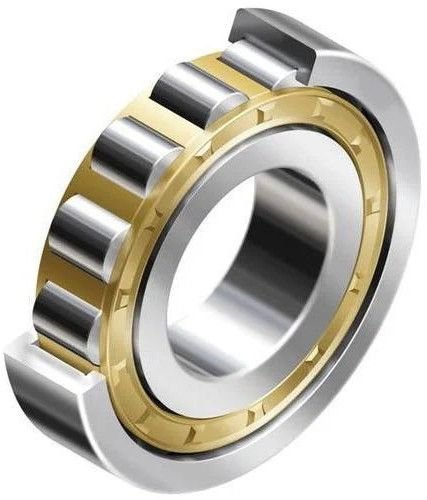

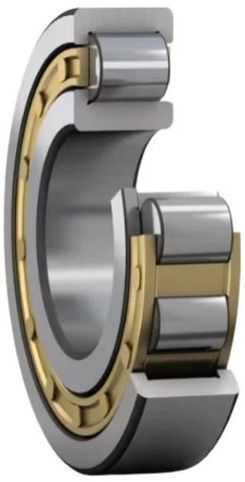

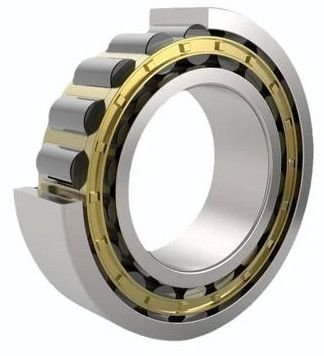

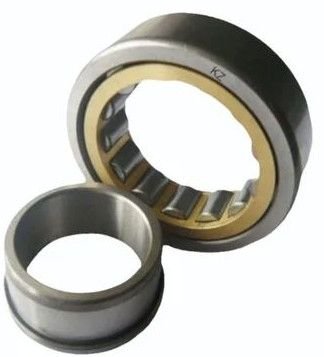

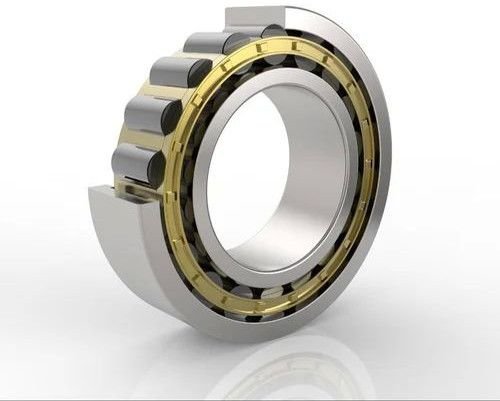

We are offering cylindrical roller bearings have rollers that provide a modified line contact with the cylindrical inner and outer ring raceways, while the rollers are guided by ground ribs on either the inner or outer ring. The cylindrical shape allows the inner ring to have axial movement relative to the outer ring. This is especially important when accommodating thermal expansion, where both rings must be press-fitted.

J. K. Bearing store stocks many types and sizes of cylindrical roller bearings, the majority being single row bearings with cage & also with a full complement of rollers. The J. K. Bearing also provides precision single and double row cylindrical roller bearings for machine tool applications and double cylindrical roller bearings for rolling mill and other heavy engineering applications as per the customer requirements.   All J. K. Bearing cylindrical roller bearings represent the latest state of the art Bearings. The contact geometry between roller and raceway has been much improved by the introduction of the "logarithmic" profile, which provides for optimum stress distribution in the bearing. Optimized surface finishes favors lubricant film formation and the correct rolling motion of the cylindrical rollers. These improvements have considerably increased the performance of Bearings.   The rollers of single row cylindrical roller bearings with cage are guided between integral flanges on one the bearing rings. The bearing rings with integral flanges and the roller and cage assembly can be withdrawn from the other ring. This facilitates mounting and dismounting particularly where both rings have to have interference fits because of the load conditions.

• Shape: Round
• Material: Bearing Steel
• Brand Name: RAS
• Packing Type: Box
• Grade: SAE52100
• Finish: Polished

Cylindrical Roller Bearings are the ones that come with larger radial load capacity and low friction between rollers and flanges make it more suitable for high speed applications. High load capacity and bearing design offers durability as compared to larger rollers. Apart from this the low temperature and quiet operations are additional benefits of these bearings. Polyamide retainer works effectively to minimize temperature surges and ensures noiseless operations even at more than normal operating speeds.   Application   Pressure rolls Axle blocks Large electrical motors Rolling mill cylinders or rolls and many more

Certified with ISO standards, we manufacture, distribute and trade a wide range of Miniature Bearings. The offered bearing is used in various industrial operations. Machines, automobiles, cranes and even a vehicle at your home have bearing installed in it. This bearing is fabricated using avant-garde techniques and optimum quality metals and components. Furthermore, the provided bearing can be fabricated according to the clients’ specifications at budgetary prices. Features: Dimensional accuracy Perfect finish Rigid design

Cylindrical roller and raceway are the line contact bearings.With great load capacity,mainly bear radial load.Rolling body and ring wall have small friction,suitable for high speed rotation.According to whether rib or not,can be devided into NU、NJ、NUP、N、NF single row bearings etc. And NNU,NN double-row bearings etc. The bearing structure is of inner ring and outer ring can be separated. Inner ring or outer ring without rib of cylindrical roller bearings,inner ring and outer ring can do relative movement in axial direction,so it can be used as free end bearing.On the one side of inner ring and outer ring with double ribs,on the other side of ring with single rib of cylindrical roller bearings,Can be withstand certain degree and one direction axial load.General use steel stamping cage,or copper alloy cage.But some of use polyamide shaped cage .

The staple set Cylindrical Brush / Roller Brush is a versatile rotary brush that is suitable for many applications. This style is used as a car cleaning bush, conveyor cleaning brush and industrial cleaning brush, to name just a few applications. We offer a complete line of cylinder brush/roller brush options, including a full line of conveyor cleaning brushes to fit nearly any machine, foreign or domestic. Our extensive line of cleaning brushes is manufactured to fit foreign and domestic cleaning machines. If you need a Roller Brush, you will find something to meet your exact specification in our inventory. Our Cylindrical Brush / Roller Brush products are made with unvarying density to allow for uniform contact with the glass. This ensures better results, increased productivity and fewer rejects. For brushes used in the food processing industry, we offer superior cleanliness in our brush construction. Our construction process exceeds the strict standards in place. Quality and compliance with regulations is ensured when you choose us for your fruit processing brush and other conveyor brush needs.

Common roller bearings use cylinders of slightly greater length than diameter. Roller bearings typically have higher load capacity than ball bearings, but a lower capacity and higher friction under loads perpendicular to the primary supported direction. If the inner and outer races are misaligned, the bearing capacity often drops quickly compared to either a ball bearing or a spherical roller bearing

• Type: Roller Bearing
• Material: Chrome Steel
• Brand: NTN
• Application: Industrial
• Number Of Rows: Double Row
• Inter Diameter: 300mm

Available with us are separable Cylindrical Roller Bearings. Known for their high loading carrying capacity, these products are used broadly for rolling elements. Inner and outer rings of the bearings are able to transmit thrust loads in addition to radial loads. These durable products have excellent tensile strength. FeaturesDimensionally accurate Rust proofExcellent finish

• Material: Stainless Steel
• Packaging Type: Box
• Brand: Reliable Suppliers
• Cage Material: Stainless Steel
• Surface Finish: Polished
• Usage/Application: Industrial, Automobile,etc
