Delta Electricals Vatva, Ahmedabad, Gujarat

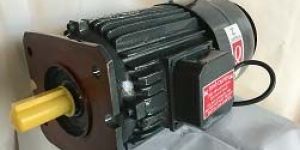

We are the Manufacturer, Exporter & Supplier of Windmill Lift Motor from Gujarat, India. These Motors are used in safety equipments and acquirable in standard as well as tailored specifications. For ensuring zero-defect quality, all the aluminum components are radiography tested for making sure that no component is having crakes, pin holes etc. With us, buyers are free to place orders and can expect timely deliveries of the same. More about Windmill Lift Motor'Delta' lift duty motor is specially developed for wind mill lift. This motor is of 1.87 KW/2.5 HP, 1410 RPM, with insulation class `F’, IP-55, offered in frame size 90L in aluminum construction with special type of mounting flange suitable to fit with lift gearbox. This motor is supplied with either AC fail-safe brake or DC fail-safe brake. The motor conforms to IS 325 - for three-phase induction motor, IS 4722 for rotating electrical machines and `CE’ certification. The entire motor is powder coated so that it can with stand the high humidity conditions and Corrosion.

Type : Class `F' Insulation

Brand Name : DELTA

Rated Voltage : 230

Rated Power : 1.85 KW,2.5 HP

Power Supply : A.C.

Manufactured in compliance with the set industrial standards, these Three Phase Squirrel Cage Motors are acclaimed for their hassle-free performances, long-life and ease-of-maintenance. Also, these Three Phase Squirrel Cage Motors are appreciated for their sturdy make and long-life. These Three Phase Squirrel Cage Motors eat less power. Standard Electrical and Mechanical features & Range : Motors with standard rating and duty cycles, 3 phase squirrel cage 0.18kw/0.25hp to 30kw/40hp with standard speed and various type of construction are available from frame size 63 to 200. Standards : Performance conforms to IS: 325 and dimensions according to IS: 1231 and IS: 2223. Ratings : Motors are rated for continuous duty at an ambient of 40o C and site altitudes of up to 1000 m above sea level Voltage and Frequency : Motors are designed for 415±6% Volts,3 phase 50 Hz ±3% supply. Motors with different voltage (110,220,380,400,525 etc)and frequency (60 Hz) are available on request. Enclosure : Motors have IP 55 degree of protection as a standard feature This degree of protection conforms to IS : 4691. Motor Frame : Motors are supplied in robust and rugged cast iron frame with integral feet from 63 to 200. However, motors can be supplied in die cast aluminum body with integral feet from frame size 63, 71, 80, 90, 100, 112. Insulation : Motors are provided with class 'B/F' insulation as standard feature. This degree of protection conforms to IS: 4691. Winding Protection : Embedded of PTC thermistors in the stator winding is feasible on request. Paint : Standard paint is Suitable for tropical conditions. However, special paint is available on request. Types Of Construction : Standard motors with single shaft extension are for horizontal foot mounting (B3 as per IS: 1231). Other types of construction like double shaft extension, flange mounting (B5 as per IS: 2223), face mounting (B14 as per IS: 2253) available on request. Cooling and Ventilation : Type of cooling is as per IS: 6362. All TEFC motors are having an external centrifugal fan, mounted on non-driving end shaft. Noise : Motors are designed and produced for low noise levels. Our stator stacking system eliminates electromagnetic noise caused by loose stamping. All rotors are balanced on electronic dynamic balancing machine. Driving shaft & bearing seats are ground finished to close limits resulting in vibration free running. Terminal Box : Standard location of the terminal box is on the left side of the housing: looking from the driving end. (Except in frame size 200L, Where terminal box is located on the top of the housing) Terminal box can be given on the right side of the housing if required. Terminal box is on the top in aluminum die cast housing in frame size 63, 71, 80, 90, 100, 112. Bearings & Lubricants : All the motors are supplied with C3 clearance ball bearings with lithium base grease at the time of assembly. However, motors can be supplied with pre lubricated sealed bearings, if required. Earthing : All motors are provided with minimum 2 earthing terminals. Note : The Indian Standard (IS) mention above is for reference only. The motors can be manufactured and supplied according to following standards also. International Standards IEC 34-1 : Recommendations for rotating electrical machines. IEC 72-1 : Recommendations dimensions & output ratings of electrical machines - Foot mounting. IEC 72-2 : Recommendations dimensions & output ratings of electrical machines - Flange mounting. British Standards BS 3979 : Dimensions of electric motors. BS 4999 : Specifications for general requirement for rotating electrical machines. BS 5000 : Specification for rotating electrical machines. Applications PumpsHoists Chemical Plants Blowers CranesMachine Tools Compressors Cold storage Plastic Molding Machinery Lifts Cement Plants Food Processing Machinery Flour Mills Paper Mills Refrigeration & Air-conditioning Fans Industries Download Dimensions and Performance of Three Phase motors

Voltage : 220V

Power : 1-3kw

Pressure : High Pressure

Certifications : CE Certified

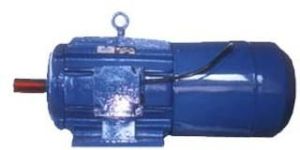

Suitable to be used in Cotton, Synthetic Fiber, Silk Power Looms and Textile Mills, this Textile Machine Motor has high torque, hassle-free acceleration and noise-free performances. We supply these Textile Machine Motors in TEFC or TESC design. Also, for high-speed looms, we can supply these Textile Machine Motors with 24/190 Volts D.C. Disc Brake. This Disk Brake is mounted on the non-driving end: it works underneath the non-driving end. Operation : Under no power conditions to the motor the brake armature coil mounted on non-driving-end endshield get energized with separate 24/190 Volts D.C. Supply, supplied through NO/NC contact of a contractor, hence the armature attracts the disc mounted on rotor shaft prevents rotor shaft rotation. As soon as the supply to the motor is switched on the supply to the armature disc is disconnected. This action results in releasing of the armature disc allowing the rotor to rotate freely. When breakage of thread takes place during weaving, in a high speed loom, the supply to the motor is immediately disconnected. As soon as the power to the motor is disconnected the armature coil get energized which instantly attracts armature disc overcoming the spring force resulting almost instantaneous stopping of rotor thus fail safe condition is ensured. Features Being simple and rugged-in construction these motors need very little maintenance. In the rare event of failure, repair is simple and easy.Special brake liner is used, which ensures that, the braking torque value remains quite stable throughout the use. Compensation for liner wear is easily done by decreasing the distance between the armatures by removing the spacers provided on rotor shaft. The design of loom brake motor facilitates a very easy replacement of armature disc and brake liner assembly. Applications Textile MachineryPower LoomsProcess House

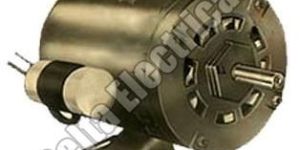

Confirming to varied industrial standards, the Single Phase Squirrel Cage Motor, which we offer, is manufactured, using the cutting-edge technology. These Single Phase Squirrel Cage Motors are acclaimed for their sturdy make, ease-of-maintenance and high power-efficiency. Moreover, the materials and components of these Single Phase Squirrel Cage Motors are procured from reliable Vendors in the domain. Coming with an Electronic Starting Switch, these Single Phase Squirrel Cage Motors are acclaimed for their long-life. Standard of Manufacture BS 2048 Part I : For dimensions of 0.25 hp to I hp motors IS 996 & IS 1231 : For dimensions above 1 hp to 3 hp motors BS 5000 Part 11 & IS 996 : For performance Voltage & Frequency : Motors are designed for std. 230±6% Volts, 50 Hz±3% supply. Motors with different voltage (110 Volts) and 60 Hz frequency are available on request. Motor Frame : 0.25 hp to 1 hp motors are normally supplied in M.S. sheet metal fabricated body (Frame size B56) with screen protected end shields. However, the above motors can be supplied in Totally Enclosed Fan Cooled (TEFC) body, if required. Above 1 hp to 3 hp the motors are generally supplied in TEFC C.I. body of IS 100,112,132 frame. However, where weight is the main criteria full range of motors can be supplied in M.S. sheet metal fabricated body or in Aluminum body also. Mountings : Foot mounted, Flange mounted or combination of both. Bearings & Lubrication : All the motors are supplied with C3 clearance ball bearings. Bearing housings are so designed that grease is retained in housing and are adequately protected against penetration of dust, dirt and damp. All bearings are fully charged with lithium base grease at the time of assembly and no further lubrication is required for two years normal running. However, motors are also available with pre lubricated sealed bearings. Electronic Starting Switch : The specially designed terminal plate molded with electronic starting switch is incorporated in all our single phase motors. This electronic starting switch constantly monitors voltage, current and speed of the motor. It also monitors load condition. Winding Protection : Embedded of PTC thermistors in the stator windings is feasible on request. Running : The careful construction and special design ensure quiet running of the motor. Applications Domestic Floor Mills Domestic pumps Surgical / Vacuum pumps Machine Tools Diamond Polishers Air Compressors

Weight : 10-20kg

Voltage : 220V

Power : 1-3kw

Pressure : High Pressure

Certifications : CE Certified

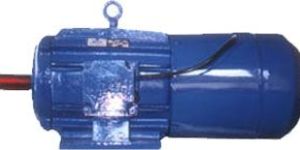

'Delta' textile motors are suitable for use in Silk, Cotton and Synthetic Fiber textile mills and power looms. It has got smooth acceleration, high torque and noiseless performance. They are either supplied in TESC or TEFC design. For high speed looms these motors can be supplied with 24190 Volts D.C. disc brake. The brake is mounted on non-driving end and it works as under.

Type : Loom Motors

Application : Increasing Weaving Speed

Color : Blue

Condition : New

Power : 1-3kw

Driven Type : Electric

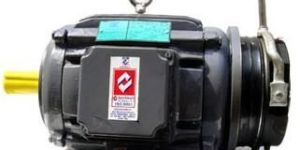

Hoist Brake Motor, which we offer, complies with various industrial standards for quality. We offer these Hoist Brake Motors at economical rates to the customers. Also, these Hoist Brake Motors are manufactured using premium materials. Moreover, these Hoist Brake Motors are easy to install and simpler to maintain. Note : Motors with other voltage & frequency and higher ambient temperatures (> 400 C) and suited for wider power supply variations can also be given. Construction : A Brake Motor is an integral combination of an A.C. induction motor and a disc type, fail safe, electromagnetic brake unit. These motors are foot, flange or face mounted or combination of any two. Dimensions are of squirrel cage types are as per IS: 1231 (for foot mounting), IS: 2223 (for flange mounting), IS: 2253 (For Face Mounting) and enclosure is either totally enclosed fan cooled (TEFC) or Totally enclosed surface cool (TESC) with degree of protection IP54, IP55 as per IS: 4691. It consists of the following A.C. High Starting Torque Sq. Cage Induction MotorA.C. or D.C. fail safe brake mounted on the non-driving end shield Operation : Under no power condition Brake springs keep the Brake liner which is made out of cork material, pressed against stationery disc of the Brake. This brake liners are mounted on a disc engaged with a square block or a geared pinion, mounted on the shaft, thereby prevents rotor shaft rotation. When power is switched on, the brake coil gets energized. It instantly attracts armature disc by overcoming the spring force. This action results in releasing of the brake allowing the rotor to rotate freely. Special Features Being simple and rugged-in construction, these motors need very little maintenance. In the rare event of failure, repair is simple and easy.No separate supply is necessary for brake coil energisation; because the brake coil/s is/are working on A.C. or on D.C. and their supply leads are directly connected to the motor terminals. In case of D.C. Fail safe brake armature coil is energized through rectifier unit which converts A.C. supply in to require D.C. supply.Special brake liner is used, which ensures that, the braking torque Value remains quite stable throughout the use. Compensation for liner wear is easily done by increasing the spring tension and adjusting the air gap. The design of brake motor facilitates a very easy replacement of armature disc and brake liner assembly.For crane and hoist duty applications Brake Motors are offered with special rotors. These rotors are especially suited for S3 and S4 duty normally encountered in hoist and crane applications. Inquiry Details When placing an enquiry kindly furnish the following information: Application detailsMotor Output and speedDuty Cycle (CDF) with number of starts/stops per hour.Ambient temperature and special environmental factors likely to affect the motor, if anyMethod of MountingLoad GD2 referred to motor shaft.Braking torque required.Maximum permissible stopping timeAny other special features required Applications Textile MachineryMachine ToolsPrinting MachinesCranes and hoistsMaterial Handling EquipmentLeather Processing MachinesCable Reeling DrumsLifts & Rolling MillsPaper IndustrySluices & Valve Operation

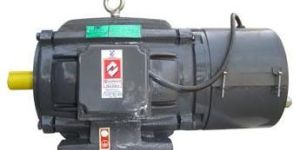

Foot Mounted Brake Motor, which we offer, is acclaimed for its ease-of-maintenance, sturdy make, low power efficiency and hassle-free performances. This Foot Mounted Brake Motor can be purchased from us at the best rates. The clients can purchase the Foot Mounted Brake Motor from us at the market leading rates. Why Our Foot Mounted Brake Motor? Easy to installSturdy makeLong-lifeEconomically priced

''Delta' brake motors are offered for various applications, requiring almost instantaneous stopping of the driven load. These motors are offered in frame sizes 63 to 200. Their operation is of 'fail safe' type i.e. The brake is applied, when, power to the motor is switched off or power failure occurs.They conform to IS: 325 - for three phase induction motor and IS: 4722 for rotating electrical machines. The size of motor is governed by the number of start/stops per hours.

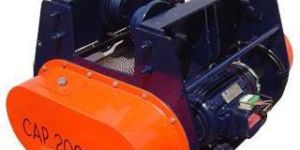

Delta Electricals is manufacturing Electric Motors for material handling equipments since 1979, has now expanded their manufacturing activity and entered in to the field of manufacturing material handling equipments such as EOT Cranes, HOT Cranes, Wire Rope Electrical Hoist, Goods Lift, Single Girder Crane, Double Girder Cranes etc. We also manufacture and supply the Crane and Hoist as per customer specifications.

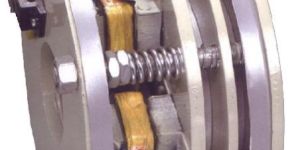

Type : Spring Loaded Fail Safe Brakes

Material : Mild Steel

Application : Automotive Industry

Color : Metallic

Feature : Easy To Fit

Condition : New

Driven Type : Electric

Delta Electricals is manufacturing Electric Motors for material handling equipments since 1979, has now expanded their manufacturing activity and entered in to the field of manufacturing material handling equipments such as EOT Cranes, HOT Cranes, Wire Rope Electrical Hoist, Goods Lift, Single Girder Crane, Double Girder Cranes etc. We also manufacture and supply the Crane and Hoist as per customer specifications.

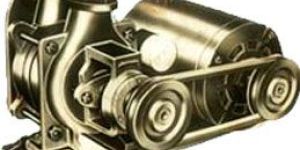

Domestic pumps are self-priming regenerative type of highly efficient hydraulic and mechanical design, equipped with close-grained cast iron casting, bronze impeller, steel shaft and heavy duty ball bearings. They are either 'V' belt driven or Coupled with 0.37 kw / 0.5 hp to 1.1 kw /1.5 hp, 220 / 230 Volts, 50 Hz capacitor start-Induction Run SPDP / TEFC motor with synchronous speed of 1500 RPM OR 380 / 415 Volts, 50 Hz, Squirrel Cage, 3 Phase, TEFC motor with synchronous speed of 1500 RPM. Pumps are supplied with either 25 m.m. Ø or 32 m.m Ø suction and delivery with sturdy cast iron bedplate and companion flanges. For motors construction details & standards please refer webpage of1-Ø Squirrel Cage Induction Motors OR webpage of 3 - f Squirrel Cage Induction Motors.

Type : Domestic Pumps

Application : Domestic Use

Theory : Electromagnetic Pump

Automatic Grade : Automatic

Pressure : High Pressure

Structure : Multistage Pump

Crane Brake Motor are offered for various applications, requiring almost instantaneous stopping of the driven load. These motors are offered in frame sizes 63 to 200. Their operation is of 'fail safe' type i.e. The brake is applied, when, power to the motor is switched off or power failure occurs. They conform to IS: 325 - for three phase induction motor and IS: 4722 for rotating electrical machines. The size of motor is governed by the number of start/stops per hours. Range Hp : 0.25hp / 0.18kw To 40 hp / 30 kwFrame : 63 To 200RPM : 1500, 1000, 750 Applications Textile MachineryMachine ToolsPrinting MachinesCranes and hoistsMaterial Handling EquipmentsLeather Processing MachinesCable Reeling DrumsLifts & Rolling MillsPaper IndustrySluices & Valve Operation

Delta Electricals is a well-known Manufacturer, Exporter and Supplier of vast gamut of Dual Speed Electric Motors at competitive price rates we have been satisfying the ever increasing demands of our clients. These are in compliance with various industrial standards and possess following specifications Range : Hp / Kw : 0.4 hp/ 0.3 kw to 31hp / 23 kw.Frame : 71 to 200Combination of R.P.M. : 3000 / 1500, 1500 / 1000, 1500 / 750Insulation Class : B, E, FDuty : S1Enclosure : TEFCProtection : IP55, IP54Offered in 2/4, 4/6, 4/8 polesSingle stator winding in Dahlander connection - delta / double star in pole ratio 1:2 (4/8, 4/2 Pole etc.)Number of terminals : 6Two separate winding giving two different speeds : (4/6, 8/6 Pole etc.)Number of terminals : 6
