Diamond Magnetics Odhav, Ahmedabad, Gujarat

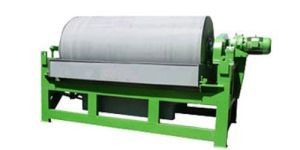

Product Description : The Wet drum separator NTS is used to remove very fine magnetisable components from low concentration, low-viscosity liquids. The NTS is intended for use in the metal processing industry and for the treatment of preconcentrates extracted from the high gradient magnetic filter HGF.   General Principle : The liquid flows through a semicircular separating chamber beneath a stainless steel drum to which the magnet sable particles are attracted. The strong, high-gradient magnetic field is created by a cylinder consisting of permanent magnetic discs positioned within the drum. These special permanent magnets generate particularly high field gradients which are necessary for successful separation, as is the need with all magnetic separators. For recovering magnetic / ferrosilicon in dense media plants and iron ores wet drum separators are primarily used. They remove contaminants from the product stream, increasing product purity and plant productivity. In the applications where the product purity is most essential the wet drum separators can use powerful rare earth magnets which can remove very fine and weak contaminants even from dense materials.   How it Works : The liquid flows through a semicircular separating chamber beneath a stainless steel drum gather is a semicircular separating chamber through which the liquid flows. The cylinder consisting of permanent magnetic discs are positioned within the drum to which the magnetizable particles are attracted. By rotating the drum, the filter cake is lifted out of the slurry and the magnetic field.   Features : Wet drum magnets have high magnetic recovery and discharge. The feed slurries recover the magnetics. Available in single or multiple drum applications. Recover magnetic solids in as clean a magnetic concentrate as possible. Permanent magnet assembly eliminates coil burn-outs. The magnet / pole elements are bolted to a mild steel shaft. The drum is made from thick stainless steel for long service life. Wet drum separators are available in different configuration like single drum, double drum and multiple drum. In double drum two separators are arranged back to back with a common feedback.   Applications : Glass industry Chemical industry Plastic industry Mining industry Food industry Pharmaceuticals industry Foundry industry Buyers Advantage   Wet drum separator has following advantages for the buyers : The separator provides minimum wear on the cylinder. The materials are return to the feed point automatically. It has the high magnetic solid discharge. It can also handle heavy magnetic load. Wet drum separator has wide industrial usage.

We design & engineer International Standard Eccentric Vibrating Screen. The body is fabricated from mild steel sheets, having different desk & every desk has one different way.   Specifications : The body is fitted with four legs with ball bearing. The legs are titled with M.S. Channel structure. It has one C.I. Eccentric Wheel with main shaft fitted with eccentric wheel, balancing pulleys & pedestals with ball bearings. The driving is provided with suitable electric motor & vee belt with vee pulleys.   Vibrating Feeders : Series motor vibrating feeder is feeding apparatus which have advanced economic and technical norms. It is widely used in mining, metallegury, coal, construction material, chemical industry, electric power, etc. and feed the massive material, granule materials, powder materials from the hopper or bin evenly and quantification into the equipment which receive the material.     Features : Reliable operation Long using life Simple structure Reliable running Easy maintenance

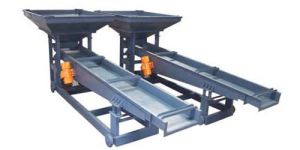

Vibrating Furnace Charges are effective solutions to problems such as high labour cost, hazards to furnace operators faced in foundries, melting shops etc. Such a kind of automation allows foundry men to work at a safe distance thus preventing injures arising out of molten metal splash. It also facilitates in rapid and quick charging of the furnace thereby allowing maximum utilization of the furnace. In addition to this, the damage to furnace lining is avoided which normally occurs in manual charging of the furnaces. The required amount of scrap metal is loaded into the storage hoper at the loading point. The trolley the carries the vibrating feeder along with the storage hopper to the furnace charging point. Here, the vibrating feeder is energized and the material is effectively discharged into the furnace as per the required capacity. As the metal is melted down, fresh batch of metal can be fed into the furnace thereby keeping the furnace full. The capacity of the vibrating feeder can be varied by varying the amplitude of variations. The amplitude of vibrations can be varied by adjusting the position of centrifugal weights or by using a variable frequency drive (optional). A control panel specially designed to suit individual client requirement depending on the sequence of operations required is provided.   Specifications : Output Size: 120-200mesh Power: 1.1kw Trademark: JXSC Origin: Jiangxi, China Type: Crushing Equipment Loading Weight:

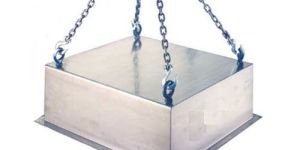

The Suspension magnets are designed specifically for extraction of occasional tramp iron from material being carried by conveyor belt, vibratory feeder or gravity chute. The Suspension Magnet is suspended over the material being conveyed. Ferrous material is extracted and held against the magnet face Typical applications for the use of Suspension Magnets include the removal of iron from Coal, Stone, and Fertilizers, slag, gypsum, ores and similar materials where contamination by tramp iron is occasional. We offer precision engineered suspension magnets that are used for separation of ferrous materials from ores, food grains, refractory material, dyes and many more. The separation is carried from a distance of 25mm to 300mm air gap. Our suspension magnets are customized as per the requirements of our clients and are available in varied sizes.   Features : Robust industrial design. Manufactured to customer specification. Powerful performance due to deep magnetic field. Easily installed. No power required.   Applications : Standard operating height from 100mm to 300mm Width as per customers requirement

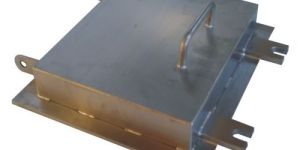

Permanent Magnetic Plates are designed in various sizes & strengths to meet with specific operation & plant conditions. Magnetic Plates are widely used for removing Tramp iron such as Bolts, Nuts, Bits of Wire, Nails and other casual contamination from free flowing materials to protect against occasional damage to the plant caused by bits of iron. Plate Magnets can ideally be used to remove tramp iron from the moving material carried in chutes ducts, spouts or on conveyor belts, screens and feed trays. Whether the material is plastic or paper pulp, food or fertilizer, Oil seeds or gains the result is sure protection of processing machinery and iron free final products.   Salient Features : Plate Magnet consists of high corocivity modern anisotropic permanent magnet like Ferrite / Rare Earth Magnet. Strong & Rugged Construction with M.S OR S.S 304/316   Specifications : Magnet Grade – N35, N38, N40, N42, N52 Size – As per Customer Requirement Applications – Industrial

Product Description : Permanent lifting magnet incorporate permanent magnets in conjunction with steel parts. The permanent lifting magnet provide the power for an indefinite period of time. For practical use the magnetic power of a permanent lifting magnet has to be turned ON and OFF. This is done mechanically. An external power source is not required which means that permanent lifting magnet can be used virtually anywhere. They are so-called “self contained” devices.   Features : Provide smooth operation Used for various lifting and positioning applications No electricity needed No batteries replacement required Safety Guarantees Complete magnetic power Available with ‘V’ face pipes rounds and hard to handle shapes

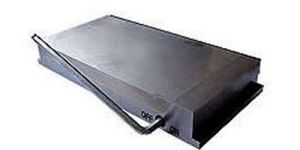

For effective rapid holding of ferrous work pieces, permanent magnetics chuck is reliable, permanent and an inexpensive source. Since they require no electrical supply, consiquently no running costs and no installation charges are involved. Best quality magnets are used in these chucks. Pole spacing is carefully selected to cover the widest range of workpieces on the upper plate. All like poles are connected to ensure the most effective hold on single work pieces or on partial load.The sturdy construction of magnetic chucks is based on the solid assembly of components. The top plate is made of solid mild steel to ensure greater strength and rigidity. Rectangular magnetic chucks are supplied with in-built ON OFF handles whereas circular chucks are supplied with spare handle to magnetize or de-magnetize the chuck. They are supplied with both standard poles and close poles spacing.   Specifications : The High powered ceramic magnets used for making standard pole permanent magnetic chucks. The magnetic and non magnetic stainless steel is furnace brazed, making a solid, one piece construction. It is between the poles or anywhere in the top that drilling or machining is done. At the top plates there are no magnets. This permanent magnetic chuck guarantees outstanding performance and reliability. The rigid assembly of these chucks results in accurate grinding and milling.     Features : Optimum strength Anti-corrosive Easy to install Quality high Perfect in finish Easy to use Reliability Finest quality Economic rates

Safely and automatically remove tramp iron from heavy product flows. O.B.M.S. are used for resource recovery, reclaiming steel for resale and separating ferrous contaminants from other recyclabel material such as aluminium, glass, plastic, tires, crushed concrete and wood. Many facilities use O.B.M.S. to protect machinery, such as crushers at quarries, cement plants, and mines. At power plants, they keep tramp metal out of coal pulverizers, Pulp & Paper mills use them on wood chips. In Foundries, they remove chills, spruces and gaggers from sand.     Features : Permanent Magnet- No power required Easy installation and maintained Four rigid lift lugs for easy suspension Installation across the conveyor belt or over the discharge head pulley Most effective for removal of tramp iron from Materials carried over conveyors. Robust industrial design Manufactured to Customer specification No Electrical Maintenance On Magnet Dust and rain protection

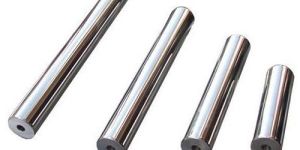

Magnetic tube are a simple low cost form of magnetic separation used in a variety of industries from food or plastics processing to chemical and powder processing. According to the environment of your product, these magnetic filter bars can be made with Alnico, Ceramic or Rare Earth magnet material. They can be easily installed into machinery or assembled according to the wishes of the customers. Encased in either 304 or 316 stainless steel tubes 25.4mm diameter. We offer them with either standard ferrite magnets or high intensity rare earth magnets (up to 5000, 10,000 gauss). We manufacture them specifically to the length requested by the customer. The sealed stainless steel ends are drilled and tapped for fixing purposes.   Features : OEM specifications Robust construction High durability with abrasion resistance Long life Best grade materials Reliability and Durability Easy installation Perfect finish Ruggedness No power required Light in weight Easy handling

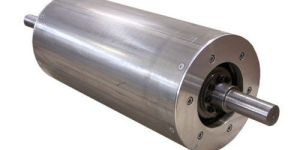

Head Pulley Magnets provide continuous self cleaning on products conveyed by belt. As product is conveyed along the belt it reaches the head pulley and enters the magnetic field where metal contaminants are attracted and held tightly to the belt surface. As the belt is conveyed around the magnetic pulley, metal contaminants are held in place until they pass through the magnetic field where they are safely discarded separate from the clean product. A diverter is typically installed below the pulley to direct the metal contaminants away from the cleaned product.   Construction : 304 stainless steel face Bored and keyed hubs Permanent ceramic magnet material All welded rugged construction Keyed shafts Axial or radial pole magnetic circuit.   Features : Available with or without shaft Several hub styles Lagged face Crowned face Taper lock hubs Stainless steel shafts High energy rare earth magnet material Custom sizes available Polarity options.

Product Description : Magnetic Floor Sweeper is widely used in collection of scraps from the shop floor, foundries & machine shop. The foot lever is provided to remove the scraps. The sweeper is mounted on wheels with handle and available in three sizes.   Application : Magnetic Sweepers are widely used in industries, warehouses and airports. Works perfectly in cleaning factory aisle, shop aisles, construction sites, walkways, loading docks, parking area, etc.   Features : Lightweight design is easy to operate and maintain. Extra-wide sweep head for quick clean up Effective and consistent performance due to high flux density. Works on hard surfaces and low carpets One-pull release quickly clears debris from sweeper Different Sizes available as per application.

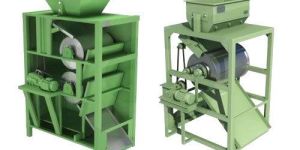

Product Description : Single Drum Magnetic Separator : Single Drum Magnetic Separator is most useful for separating tramp iron from non magnetic material processed in bulk quantity, for the purity of end products, recovery of metal having commercial value and protection of processing plant and machinery. These are widely used in all the processing industry for separation of iron contamination from Minerals, Chemicals, Food, Flour, Plastics, Grains, Sand, Cement, Fertilizers, Abrasives, Glass, Slag, Ores, Rock, Refractory and many other products. Double Drum Magnetic Separator : Double Drum Magnetic Separators are available for highest purity. The material passes through the magnet twice in Double Drum type Machine. These are widely used for separation of iron contamination from Minerals, Chemicals, Refractory and many other products.   Size Range : The Permanent Drum Separators are available in standard drum diameters of 300 mm. 400 mm, 450 mm, 500 mm, 600 mm, 800 mm Drum width range from 300 mm to 1500 mm. Other sizes can be made as special to your requirement. The larger the diameter and width of the drum the greater is the volume of material which can be handled.   Magnetic Materials : Magnetic separators are offered with two different type of magnets.   Ferrite Magnet : The magnetic separator with ceramic magnet are useful for the application where free and larger iron particles are to be separated. The average magnetic intensity on the magnetic drum surface will be 1500-2000 Gauss.   Rare Earth Magnet : The magnetic separator with high intensity Rare Earth Nd-Fe-B (Neodymium- Iron- Boron) magnets are useful for removing magnetic contamination with low magnetic properties and fine iron particles are to be separated. The average magnetic intensity on the drum surface will be 3500 – 5500 Gauss. The permanent Magnetic Drum consists of stationery permanent Magnetic assembly having uniform and everlasting Magnetic field across the entire width of the drum, which is effective over approximately half the drum circumferences as shown in fig. Drum shell made of non magnetic stainless steel revolves around the magnetic filed. As the material fed evenly from the chute falls over the drum, powerful magnetic, field attract & holds ferrous particles to the revolving shell. As the revolving shell carries the iron particles through the stationery magnetic field, the non magnetic material falls freely from the shell while ferrous particles are firmly held until carried beyond divider and out of magnetic field. The strength of the permanent magnetic drum is guaranteed to be greater than corresponding electromagnetic Drum. The permanent magnets used are everlasting magnets and its strength does not diminish during normal use and can be used through out the life of the installation.   Salient Features : Drum consists of High Powered Anisotropic Permanent Magnet. Strong & Rugged Construction. Automatic separation of ferrous material. Completely Enclosed design to avoid Dusting and Pollution.

Product Description : High Intensity, High gradient, Permanent Magnetic Destoner & Magnetic Roller Separators with the indigenous technology. This has been used successfully in Industrial Minerals applications. The Machine incorporates high energy rare Earth Neodymium Permanent Magnetic Roll Assembly, which is manufactured and assembled under strict quality control and specification to Generate unsurpassed Magnetic Field Gradients. Under this High Intensity Magnetic Field, weekly Magnetic Contamination can be easily removed efficiently. Our Magnetic Destoners are efficient, high-intensity, high-gradient and durable machine used for a wide variety of applications for separations including coffee, beans, seeds, wheat, cereal, maize, rice, soya bean, seed, sunflower seed, legume, barley, oat, malt, nut, millet, kamut, green lentils, black jasmine rice, quinoa, barley groats, buckwheat groats, sushi rice, basmati rice, corn kernels, couscous, pearled couscous, cowpea, green peas, red lentils, mung bean, chickpeas, puy lentils, green split peas, aduki beans, dalia, mixed beans, black eyed peas, iodized salt, kidney beans, yellow split peas, Flageolet beans, pinto beans, marrow fat beans, black turtle beans and others. It also used to remove impurities from spices like red chillies, kebab masala, tikka masala, mild madras curry, ginger, turmeric, red colouring food, garlic and coriander seasoning, lamb seasoning mix, black pepper, red paprika, saffron, sage, rosemary, parsley, thyme, cumin and many other spices can be separate using our high quality magnetic destoner.   Features : Magnetic Rolls available in 4,6,8inch in diameter. A 0.5 HP, variable speed DC/AC geared motor drive adjustable from 0 to 280 RPM drives the roll. Vibratory feeder provided with high quality unbalanced vibratory motors. Abrasion resistant endless conveyor Belts with a thickness of 1mm is provided for the Machine.   Salient Features : High efficiency of iron separation system. Can be remove Very fine iron particle. Suitable for offline / batch wise production system. Vibratory Feeder with controls provided for Feeding. Multi-stage system up to 4 stages is available. Different Magnetic Strengths are available 8,000 Gauss 10,000 to 11,000 Gauss   Used Industries: Rice Cleaning Wheat Cleaning Corn Cleaning Pulses Cleaning Spices Cleaning Seed Cleaning Semolina Cleaning Chilli Flakes Sesame Cleaning Cumin Cleaning Fennel Seed Cleaning

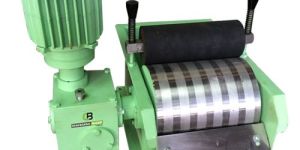

The Coolant fluid with iron dust particles falling by gravity to the inlet of the seperator from the precision machine tools such as Grinders, Milling Machines, Automats etc. The coolant with iron impurities come into contact with Magnetic Drum and extracts all iron particles. The Magnetic drum is kept clean at all times by a spring steel blade scrapping along the circumference. A Rubber roller squeezes the sludges gathered to ensure that no coolant is wasted.   Specifications : A sturdy welded Stainless Steel/M.S Frame A Magnetic drum enclosed in stainless steel Drum having extra powerful Magnets with uniform Magnetic field all along the circumference A neoprene rubber roller with covered bearings A spring steel blade with adjustments for efficient scrapping of the sludge An electric motor working 440 Volts with a reduction gear revolving the drum at about 10 RPM

Magnetic Liquid Traps are designed for heavy duty, large volume liquid and semi-liquid line flow systems. They provide magnetic protection for liquid lines and processing equipments. They preserve product purity by removing small contaminants. So such separators are ideal for liquid purification. Magnetic Bars containing high intensity rare earth neodymium iron boron magnets are housed within a 304 stainless steel vessel. Magnetic configuration ensures maximum exposure of contamination to the high intensity tubes without impeding liquid flow. With its flange or quick release clamp top access design, the Trap is easy to be cleaned. Simply remove the top, lift out the magnet cage, wipe clean and reinstall.   Specifications : Easily installed; Cleaned simply and efficiently Manufactured in 304 or 316 stainless steel to food industry standards Highly effective performance due to powerful rare earth magnets – 12,000 gauss Specially manufactured to your dimension It can be fastened by screw nuts; it also can be fastened by Tri Clover clamp Easy-clean type can be provided on request All of magnetic bars are waterproof Finish: Well polished   Useful in : Reducing Contamination Preventing equipment damage Reducing tramp metal hazards Reclaiming Ferrous Material

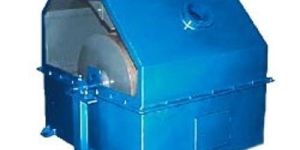

Product Description : B.M. & Sons Magnetic Inline Separator is self-cleaning type of Magnetic Separation with Drive System and housing with feeding hopper. It is generally used in continuous process line where magnetic particles are separated and collected continuously in collecting chute meant for it. Non-contaminated material is passed through for further processing. This system has internal stationary magnet and outside S.S.316 |Shell that is driven at constant speed.   Salient Features : Self Cleaning Iron separation System Low maintenance & high separation efficiency. Can be Install online production line. Improve quality of product. Available in different magnetic strength. Low strength : 2000 to 3000 Gauss. Medium Strength : 4000 to 6000 Gauss. High strength : 1000 to 11000 Gauss. Application : The Magnetic Drum incorporates High intensity strontium / Rare Earth magnets.These are widely used for: Tea Industries Food Industries Cattle Feed Plants Flour Mills Rice Mills Minerals Refractoriness

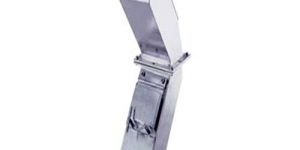

The Hump magnets employ two heavy duty diverters equipped spout magnets which are positioned so that product flowing through the hump is forced into the magnetic fields. Star Trace humps take advantage of the offset flow of the material and ensure maximum tramp metal removal from the product flow.   Function : Utilize powerful plate magnets to remove contaminants from free-flowing materials in enclosed flow lines, large pieces of tramp iron as well as ferrous fragments from gravity-flow materials before they reach storage bins or processing equipment.   Application : They can be mounted in spouting lines or on the processing machines. The hump shape directs the product flow into the magnetic field.   Features : Easy installation Easy cleaning Risk free handling Effective on extracting ferrous contamination Can be installed in any area required No power supply required Simple design Magnet power customization depending upon the requirement

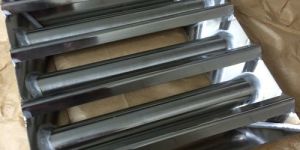

Hopper Magnet provide an efficient magnetic filtering to any hopper fed injection moulding, blow moulding, extruders, cattle feed plants, flourmills rice mills etc. Made up of high coercivity, permanent magnets sealed in non magnetic tubes they provide better magnetic filtering due to their high magnetic flux density. This is a unique device to protect Plastic Extrudes/Maudling Machines against iron contamination such as Nuts, Nails, Iron Bits etc. and ensure the trouble free and smooth operation of the machine. Four standard sizes both in Round and square are available and can be selected on the basis of the size and shape of Hoppers. High power Magnetic Rods are provided which prevents any iron material to enter in to the Machine. Special size Hopper Magnets are also supplied. Most useful for Plastic, rice Mill, Flour Mills, Cattle feed & Guar Gum industries. Available in S.S. 304/316 construction also for Dyes & Chemical Industries.   Features : Durability Sturdy construction Easy installation Trouble free performance Effective separation property

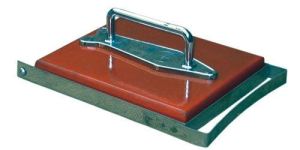

Our organization is counted among the most trustworthy names involved in providing a wide range of Lifting Magnet. These magnets are made using sophisticated machines and technologies, ensuring that we maintain the set industrial norms. Lifting Magnets with cover is the most handy, efficient and economical device to separate iron contamination from foundry scarp sand & plastic granules. Made from high connectivity permanent magnets most useful for foundry plastic industries & scarp dealers. Type J566-LM/WC is the most Handy, efficient and Economical device to separate iron Contamination from Foundry scrap sand & Plastic granules. Made from High Coercively permanent magnets. Most useful for foundry, Plastic Industry & Scrap dealers. Size of the magnetic plate is 140mm (W) X 170 mm (L) X 25 mm height. Non magnetic stainless steel bumping plate facilitates to remove iron from the magnet which is collected from scrap or any other material.   Features : Easy to operate Durability Smooth functioning High efficiency Superior functionality Robust construction

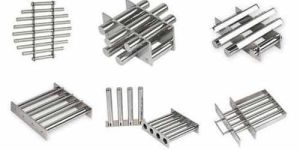

Grill magnets are constructed from magnetic filter bar, stainless steel and have a satin finish, then fixed onto a framework. The magnetic filter bar is made of permanent magnets and stainless tubes with special magnetic circuit. When liquor containing iron/steel substances passes through the framework, the iron/steel substances will be attached onto the surface of the filter bars. These units are used for separating iron/steel substances in liquor and apply in various fields such as chemical industry, medicines, sanitation, textile, smelting, machinery and foodstuffs etc. So that your equipment and facilities will be in a good state and products will be safe. Round Grate : Model No.Dia (inch)Quantity of barPart No.Dia(inch)Quantity of bar BM-004 4 2 BM-020 20 10 BM-008 8 4 BM-024 24 12 BM-012 12 6 BM-028 28 14 BM-016 16 8 BM-032 32 16 Square Grate : Model No.Square A=B(inch)Quantity of barPart No.Square A=B(inch)Quantity of bar BM-004 4 2 BM-020 20 10 BM-008 8 4 BM-024 24 12 BM-012 12 6 BM-028 28 14 BM-016 16 8 BM-032 32 16   Types : Round Grill Magnets Rectangular Grill Magnets Square Grill Magnets Self Cleaning Grill Magnets Tramp Iron Separator Iron Separator   Features : Easy to clean Suitable to be used in high temperature Resistance to demagnetization Robustness Dimensionally accurate Easy handling

Drawer Magnets are ideal for removal of fine iron and paramagnetic contamination from a range of dry free flowing products such as sugar, grain, tea etc. They are totally constructed in 304 stainless steels. Consisted of a row or most commonly rows of round magnetic tubes that are assembled into drawers. The magnetic bars emit high magnetic field across the gaps between them. As material flows into the top of the housing, it is forced to cascade in a zig-zag pattern from row to row over the magnetic tubes, this ensures maximum tramp metal capture since the product comes in direct and repeated contact with a magnet as it travels through the housing. Housings are available for both square chutes and round pipelines and are flanged to suit each customer requirement for ease of installation.   Features : Drawer magnets are fitted simply in the outlet or existing pipeline of various equipment such as blenders among others Normally each unit includes permanent magnetic grids that are mounted one over the other There are systems having multiple grids for special applications The grids can be removed easily for cleaning Certain types of drawer magnet handles diverse varieties of separation task in the gravity conveying system Effortless pull out drawers facilitates efficient and fast cleaning Availability of the system with manifold grids

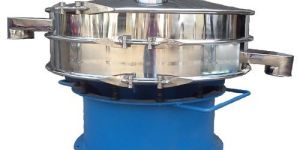

Bhagwandas Vibraing Equipments is specialized in the manufacturing and supplying of high end Gyro Screen in the international market. The Vibrating Gyro Screen made available by the company is the most suitable vibrating screen for wet and dry screening. Gyratory Screen is available in various models with us providing wide options for the clients to choose from. The working part of our Gyro screen is made of high quality materials that make them endurable and long lasting. Our Gyro Screens are easy to operate as well. In addition to this, we are counted as a major Gyro Screen Manufacturer and Exporter. Gyro screens are equipped to handle up to five different screens one on the top other with feed trays in between to give six precise sized fraction in single screening operation.   Specifications : Greater capacity & more accurate screening Longer Screen Life Minimum Blinding Takes less space No Transmitted Vibration

Channel Magnet are used for the removal of iron from less strongly contaminated material from material like Rice, Flair, glaze, Slip (ceramic material), Glass, Mineral powder, Slurry, Chemical, Liquid material, Food products for any kind material processing machine or machine outlet. The permanent magnetic channels are designed in various sizes & strength to meet the specific operation and plant condition. The channel magnet can ideally be used to remove tramp iron from material carried in chute. It is very useful for chemical slurry. We offer our clients with highly efficient and exclusive Channel Magnets. These are used to remove iron from relatively less strong contaminated material from various products such as rice, mineral power, liquid material, chemical slurry, chemicals, glaze, flair and slip glass. In addition, these magnets are extensively used to remove tramp iron from chute. We offer these channel magnets in varies strengths and sizes to our customers.   Salient Features : Channel Magnet consists of high coercivity modern anisotropic permanent magnet Like Ferrite/Rare Earth Magnet Strong & Rugged construction with M.s or S.S 304/316 construction   Features : Easy installation Tough structure Anti-corrosive nature Greater pull strength Rugged construction Durable Low maintenance Reliable functioning Unmatched quality Precisely designed Dimensional accuracy Stringently tested
