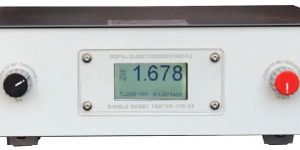

IRON LOSS TESTER DW 22
50,000 - 60,000 Per NOS
1 Piece (MOQ)
0.0
View Profile

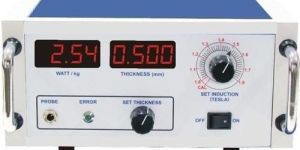

Digital Iron Loss Tester
Get Price Quote
We are offering digital iron loss tester. Dw-21 is applicable for wall loss testing of crgo, crno, crngo and semi process electrical steel sheet. Standard size of 30 x 305 mm single strip specimen required to test, and more accuracy required more sample to average. Big size of sample might be used for comparisons with known sample. It is also used to find rolling direction of crgo sheet by using user mode function. This handy tool is very useful for manufacturer of electrical items like transformer, motor, stamping, lamination and core. Features 3 years carry in warranty better accuracy then ever microcontroller base design pure sinusoidal source and measure long terms stability and accuracy maintain password protected calibration 24 feather touch keys for easy operation digital setting for all data (hz,b,th,dn etc.) direct key to enter three usual induction 20 x 4 character lcd display direct readings of wkg & wlb connector type low loss probe three mode for easy & accurate operation last setting save in nonvolatile memory standard & big size of sample possible to test self demagnetizing process user-friendly operation & portable size
0.0
View Profile
Best Deals from Digital Iron Loss Tester

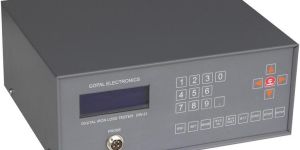

Digital Iron Loss Tester
Get Price Quote
We are offering digital iron loss tester. Dw-21 is very easy and very accurate single sheet iron loss tester. It has given two way measurement capabilities. One is by weight method and other is by thickness method. All parameters are digitally programmable using keypad. Separate setting keys are given for three standard induction input. User can test the specimen from 35hz to 125hz. All parameter of source and measure are controlled by micro controller so it gives best in class accuracy of wattkg measurement. Dw-21 can be expressed as economic alternate of epstein tester. It is based on single strip testing method so it's measurement accuracy is near to standard epstein test method. key features better accuracy than ever microcontroller based design pure sinusoidal source and measure long terms stability and accuracy maintain password protected calibration 24 feather touch keys for easy operation digital setting for all data (hz,b,th,dn etc.) direct key to enter three usual induction 20 x 4 character lcd display direct readings of wkg & wlb connector type low loss probe three mode for easy & accurate operation last setting save in nonvolatile memory standard & big size of sample possible to test self demagnetizing process user-friendly operation & portable size
0.0
View Profile

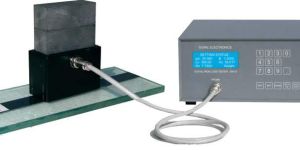

Digital Iron Loss Tester
Get Price Quote
0.0
View Profile

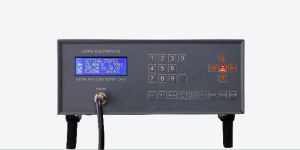

Digital Iron Loss Tester
Get Price Quote
Digital Iron Loss Tester Model: DW�21 is very accurate single sheet iron loss tester. You can evaluate very accurate watt loss of any electrical steel sheet by feeding it's accurate weight or thickness in the instrument. You can test the sample from 0.2 Tesla to 1.8 Tesla at frequency range from 35Hz to 125Hz. All parameters are digitally programmable using keypad. Separate setting keys are given for three standard induction input. All parameter of source and measure are controlled by micro controller so it gives best in class accuracy of Wattkg measurement. You have to take sample strip of standard dimension 30mm wide and 305mm long to get better accuracy in measurement. And you can test the sample of any dimension for comparison purpose. Standard sample provided with instrument to ensure the calibration. DW21 is having better than 0.1% accuracy in internal measurement parameters like voltage, current and frequency.
0.0
