Drilling Equipment Dealers in Ahmedabad

Overview We offer a quality centric range of Manual PCB Drilling Machine. Specialy developed for PCB Manufacturing industry.This machine offer Very low noise with ease of opration and low drill breakage.long lasting flat belts. Illumination for inside the machine and maintenance free service life. We are the leading organizations engaged in manufacturing and supplying to our clients excellent quality PCB Drilling Machine.   Features:   Sturdy construction Precisely engineered Long service life

The drilling machine is one of the most vital tools. It has transformed a lot of complex manufacturing processes into very simple tasks. It is an important tool that is used in several industrial and commercial operations; such as construction, woodworking, metalworking etc. It is also commonly known as a drill press. It is basically used for drilling holes of various sizes as per required depths on any surface area. Moreover it is utilized for tapping, reaming, counter boring, countersinking, spot facing etc. There are several categories of it such as the upright, radial and special purpose drilling tools. Even though all these are execute the fundamental drilling task; there are certain specific objectives and additional features that can be done more precisely and easily.

• Power Consumption: 2 KW per hour (Approx.)
• Boring Capacity: Up to 150 mm
• Boring Head Travel: Up to 550 mm
• Spindle Speed: Up to 350 RPM
• Spindle Feed per Revolution: Up to 0.15 mm
• Working Table Length: Up to 1170 mm
• Working Table Width: Up to 450 mm
• Power Supply: 440 Volts,50 Hz,A.C.,Three phase ( can also be designed as per specific requirement )
• Working Temperature: -10 DegreeC to 40 DegreeC (14 DegreeF to 104 DegreeF )
• Machine Dimensions: 1200 x 800 x 1500 mm ( Lx W x H,Approx. )
• Machine Weight: Up to 1200 kg (Approx.)

• Country of Origin: India
• Type: Magnetic Core Drill Machine
• Certification: ISO 9001:2008
• Weight: 28KGS
• Color: RED
• Voltage: 220V
• Condition: New
• Automatic Grade: Semi Automatic
• Power: 5-7kw
• Driven Type: Electric
• Warrenty: 6 MONTHS FOR ARMATURE AND FIELD COIL
• Brand Name: HIGH LIFE
• Application: USAGE OF FABRICATION,CONSTRUCTION
• Voltage: 220V
• Frequency: TWO HIGH FREQUENCY
• Warranty: 6 MONTHS FOR ARMATURE AND FIELD COIL
• After-Sales Service Provided: AHMEDABAD EX FACTORY DELIVERY BASIS
• Color: RED
• Usage: FABRICATION,CONSTRUCTION
• Product Name: MAGNETIC CORE DRILL MACHINE

  Most preferred machinery for the knock-down modular furniture industry   J-2100.in (Single Head) Multi Boring is also available Salient Features :   Heavy duty frame to hold boring heads with Quick change spindles chucks. Pneumatic cylinder for head tilting of the tiltable head assembly from 0-90 degree. Elegantly designed, electro-pneumatic control panel.

• Brand Name: Nihar
• Model: NR 153 2R
• Maximum Thickness: 70mm
• Maximum Size of Job: 2000mm X 640mm
• Number of Spindle Head: 2 Nos
• Number of Spindles in One Head: 21 Nos
• Total Spindles: 42 Nos (21 +21)
• Center Distance Between Each Spindle: 32mm
• Center Distance Between First & Last Spindle: 640mm
• Minimum Centre Distance Between Two Vertical Head: 405mm
• Maximum Centre Distance Between Two Vertical Head: 500mm
• Shank diameter of drill: 10mm
• Spindle Rotation Speed: 2800RPM
• Maximum Drilling Diameter: 32mm
• Onlling Depth: 0-50min
• Compressed Air Requirement: 6-8 kg/cm2
• Total Power: 1.5 KW / 415 V / 50 Hz

• Brand Name: Divine

Being a well established-organization, we are engaged in providing a distinguished range of Hydraulic Drill Machine. Size Available - 38mmFeatures: Low maintenance Excellent performance Easy to use Rugged Design Easy Maintenance Specification and uses: Used for drilling Speed: High Available in various model

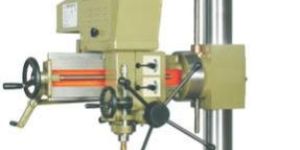

• Type: Radial Drilling Machines
• Automatic Grade: Automatic, Semi Automatic
• Material: Cast Iron
• Hole Diameter: 20 - 70mm
• Power Consumption: 5.99 Amp
• Drilling Diameter: 10-70mm
• No Load Speed: 1440 RPM

• Swing Diameter: 300 415
• Max chuck size: 250 350

Machine is with Internal Grinding spindle suitable for Bore & Face grinding application. Stiff Linear Roller guide-ways for maximum rigidity. Most efficient & cost effective lubrication system with CNC interlocking. Convenient approach to diamond touchSwivel work head available as optional. Lifetime protection of spindle and slides against coolant and fumes with non-wear parts. Machine also offered with TWIN Spindle Hard Turning station as optional.

Bridge type double column with moving arm designed for drilling, tapping, milling, rough boring.Large working area.Linear motion antifriction guideways for table slide (X).Hardened and ground guideways coated with turcite for Y & Z-axes.Preloaded precision ballscrews for X, Y, & Z axes. X, Y, & Z axes powered by AC servomotors.Power tool clamping.Spindle supported on set of precision angular contact ball bearings.

The spindle gear box has 8 mechanical speeds from 90 to 885 RPM. The gears are made from steel. The totally enclosed 2 H.P. Motor is direct coupled with gear box. The levers for changing the speed are avoided by means of providing special gear system. The speed can be changed in the running.

• Type: Bench Drilling Machines
• Weight: 80-100kg
• Color: Light Green
• Voltage: 220V, 440V
• Condition: New
• Automatic Grade: Manual
• Driven Type: Mechanical
• Warranty: 1year

The Column Pillar Drilling Machine manufactured and exported by us are widely used in different industries worldwide. These bear motors of 1 HP capacity and a column diameter of 75 mm. Efficient in drilling In M.S. and C.I. of 20 mm and 22 mm capacity respectively, these machines are of 480 x 330 x 1300 mm size and can also be customized adhering to the designs and specifications of our esteemed clients. Features: Machine base is reinforced by ribs, for extra rigidity & stability Pillar bracket is made in octagonal shape which acts like rib giving more rigidity Spindle in all the machines have six spline and supported through taper roller bearings to withstand thrust load Drive to the spindle is through six splined sleeve inside in all machines Rigid machine structure for vibration free machining The RAM is made from special alloy steel pipe of more thickness. Easily & readily available spare parts

• Power: 33 W
• Automatic Grade: Automatic
• Type: Hydraulic
• Number Of Shaft: 4
• Drill Depth: 20-40m
• Drill Diameter: 76-165mm

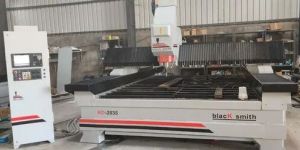

• Type: Cnc Drilling Machines
• Color: Grey
• Condition: New
• Rated Power: 9-12kw
• Brand Name: Black Smith
• Weight: 10000 kg
• Automatic Grade: Fully Automatic
• Warrenty: 1 Year

cnc plate drilling machine - used for cnc heavy plate drilling of ms and ss features:  heavy structure frame and gantry supports are made from graded casting to sustain loads and vibrations during operating condition. mechanism is made from en-31 material and coated to reduce wear and tear  ø heat treatment process will be done on whole body to remove stress and strain. whole body will be one piece fabricated and machined on plano miller, sand blasted and powder coated. machine will be fabricated in india all well-known international brands’ spare parts used to achieve long life stability, high accuracy and best performance xyz axis stands on linear ball bearing profile rails. ss water bed will be provided. made from ss-316 quality

25MM Heavy Duty Type Bench Drilling Machaine Hight 4.5 fit Center between piller to spindle is 9.5 inches SG iron gear ,Solid spindle ,Digree table,Total 8 speed machine Brand name K.R.PANCHAL & CO

Simultaneous control of 2 axes and 1 spindle (work head) through CNC High powered Grinding wheel head with option of Belt driven or Hi-frequency Intenal grinding spindle Swivelling type Work head with precision Anti friction bearings to give high accuracy

• Material: High Grade Raw Material
• Product Name: Used Drill Pipes
• Condition: Good
• Place Of Origin: Ahmedabad
• Min. Order Quantity: As Per Client Requirement

Due to our unequaled and effectual method of delivery, we have ascended as talented supplier in the marketplaces of ahmedabad(india) for settling down the financial transaction with our clients through transfer of money, we make available different payment options including online and offline payment procedures.

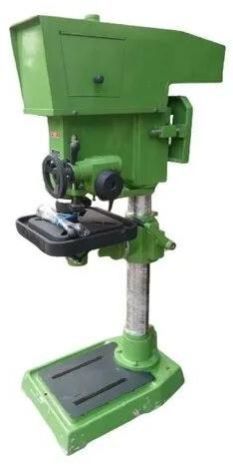

• Drilling Capacity: 32 mm
• Range of Spindle Speed: 3200 RPM Maxi.
• Distance from Spindle Nose to Pillar Surface: 650 mm
• Type of Drilling Machine: Pillar
• Spindle Travel: 130 mm
• Material: Mild Steel
