Ductility Testing Machines Dealers in Ahmedabad

General Descripation & Specifications The Machine consist of the following : Stainless steel bath Temperature controller (ThermostaticDigital) Immersion electric heater Constant speed Pump cum stirrer Carriage holding up to three standard briquette moulds Electric motor with gear mechanism Stainless steel scale and pointer Control Panel

Water proofing test apparatus for Asphalt - Hydraulic (AIM 586)   The permeability apparatus is used to determine the water proofing of the petroleum bitumen felt and the roofing sheet.The apparatus has a main body fitted with hydraulic pressure system, three specimen holder, Pressure gauge and control knobs.     Application To determine the water permeability of the petroleum bitumen Industry Civil Infrastructure Asphalt / Petroleum/ Bitumen Testing Dams & Tunnels Real Estate Roads, Highways & Bridges Traffic Monitoring Education Building Technology Civil Department Geotechnical Science Colleges Traffic & Transportation Roads, Highways & Bridges

• Material: Mild Steel
• Automation Grade: Semi-Automatic
• Country of Origin: Made in India
• Power: single phase
• Brand: Supreme
• Testing Range: 5 cm/min and 1 cm/min

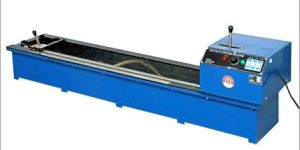

With refrigeration system and micro-processor based digital temperature controller Ductility is defined as distance in cms to which a standard briquette of bitumen can be stretched before the thread breaks. The briquette is stretched at a rate of 50 mm/min.± 2.5mm per minute at a temperature of 27°C ± 0.5°C The Machine is having built in refrigeration system to work a below ambient temperature up to 10°C in tropical conditions. The Machine will operate at 27°C with control accuracy of ± 0.5°C as per the requirement of IS. The apparatus consists of water bath with a heater, and a circulating pump to maintain uiform water tempetature . one half of the briquette moulds is fixed in a fixed plate in the water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating threaded shaft with a clutch, The motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the bath. A pointer fixed to the carrier moves over. a scale graduated from 0-100 cm x 1mm fixed on the bath with "0" (Zero) of the scale towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cm/min.and 1cm/min. selected by a clutch. Water bath inside is of stainless steel with insulation and water drain cock . A heater with is fitted inside the water bath. The Temp. is controlled by dual display Microprocessor based Auto Tuning PID Digital Temp. indicator cum controller. Control switches for motor, stirrer, heater and indicator lamps are fixed at a convenient place on the water bath. Complete with three briqutte moulds and one base plate, All supply single phase. As per IS 1208.

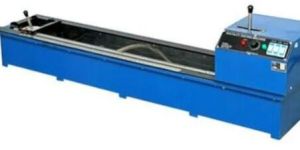

Bituminous surfaces exposed to varying temperature conditions undergo a great deal of expansion and contraction. Therefore, an important characteristic of the binder is its ductility and the degree of ductility has an effect on the cracking of bituminous surfaces caused by traffic stress. The ductility of bitumen is expressed as the distance in centimetres to which a standard briquette can be elongated before the thread thus formed breaks under specified conditions. A molten bitumen sample is poured into a standard mould, allowed to cool to room temperature and then placed in a water bath so that the briquette can be brought to test temperature before mounting in the testing machine. Designed to test three specimens simultaneously. The machine consists of a carriage moving over a lead screw. An electric motor driven reduction gear unit ensures smooth constant speed and continuous operation. The entire assembly is mounted with a stainless steel lined water bath completely encased in metal bound hardwood. It is equipped with an electric pump circulator and heater. The temperature is controlled thermostatically. Two rates of travel i.e. 5 cm/min and 1 cm/min are provided. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply.

With refrigeration system and micro-processor based digital temperature controller Ductility is defined as distance in cms to which a standard briquette of bitumen can be stretched before the thread breaks. The briquette is stretched at a rate of 50 mm/min.± 2.5mm per minute at a temperature of 27°C ± 0.5°C The Machine is having built in refrigeration system to work a below ambient temperature up to 10°C in tropical conditions. The Machine will operate at 27°C with control accuracy of ± 0.5°C as per the requirement of IS. The apparatus consists of water bath with a heater, and a circulating pump to maintain uiform water tempetature . one half of the briquette moulds is fixed in a fixed plate in the water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating threaded shaft with a clutch, The motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the bath. A pointer fixed to the carrier moves over. a scale graduated from 0-100 cm x 1mm fixed on the bath with "0" (Zero) of the scale towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cm/min.and 1cm/min. selected by a clutch. Water bath inside is of stainless steel with insulation and water drain cock . A heater with is fitted inside the water bath. The Temp. is controlled by dual display Microprocessor based Auto Tuning PID Digital Temp. indicator cum controller. Control switches for motor, stirrer, heater and indicator lamps are fixed at a convenient place on the water bath. Complete with three briqutte moulds and one base plate, All supply single phase. As per IS 1208.

Ductility Testing Machine, Accelerated Curing Tank, Vacuum Pump

We are one of the well established supplying a wide range of DUCTILITY TESTING MACHINE

Ductility Testing Machine, Colour Matching Cabinet, Toxicity Tester
