Eagle Scale Mfg. Works Sardarnagar, Ahmedabad, Gujarat

Hydra Crane – Safe Load Limiting – Crane Weighing – Fabricators – Ship Building Industry – Tension Checking

Ball and Cup Load cells surpass Its Competitors in Terms Of Resistance against Side Forces. It Is a Fact That the Major Reason behind Load cell Manufacturing Is the Horizontal Side Forces Created by the Vehicles during Brakes and Sudden Start-Ups. That Is why, Scales with Column Type Load cells require Construction Absorbing Side Forces. However, Such Construction As Rocker Supports, Tensions Rods, Buffers, Etc Need Maintenance And Have An Adverse Impact on Weighing Accuracy.

Easy To Use : Operating the WEIGH-BAR couldn't be simpler. They are factory calibrated for maximum accuracy, so no special setting up is needed. All you have to do is drop them on the floor and plug them in and they are ready to use Flexible : The beams are designed to maintain high level of accuracy on both even and uneven ground Each beam is 1/1.5 (as per Customer required) a meter long and weighs just 25 to 30 Kg. The beams may be set any distance apart for weighing a wide range of commodities such as pallets and boxes of produce When under a cattle crush or simple platform the WEIGH-BAR are suitable for weighing all types of livestock including cattle, deer, horses, pigs and sheep The built-in weight sensors are waterproof and robust Each WEIGH-BAR can take a weight of up to 2000 Kg, or 4000 Kg a pair Up to four beams can be used together If a platform is fitted to the beams, this can be zeroed out so the indicator only shows the load weight Damping can be put into the sensors so that the beams can be put under a cage to weigh animals

The Vehicle weight , not the numbeer of axles,determines wear and tear of roads.Toll authorities now use weight-based tolling,which relies on weigh-in-motion technology to determine the proper toll classification while keeping the traffic moving. Its rigid construction significantly improves scale reliability in heavy-duty operation and helps to archieve precise positioning into the road during installation thus redusing the installation costs.The Weighbridge is connected to traffic lights and signals horn to control vehicle movement.Video camera for vehicle detection and vehicle image capturing can be delivered as optional equipment.

Features  : High Precision Load Cell Large LED Display Front and Rear (Pole) Display (Table Top only) Selectable Auto off Function Selectable Auto Zero Tracking Full Capacity Tare Function Auto Calibration Facility With Standard Weigh Specifications : Capacity Range : 1 Kg to 30 Kg The Ultimate Performance & Price Package. Molded MS Body with MS Bottom. All M.S. Parts with Standard Power Coated. SS Platter with 250 X 300 mm size. Standard Display – Front, Rear or Pole. High Bright RED Led Display (0.56” – 0.75”). Dual / Tripple accuracy is also available. Piece counting, Check weighing & Liter Facility. Backup of 40 hrs supported with a rechargeable battery. Auto off Function for battery backup. Weather & water proof tactile key pad. Over load protection. Auto Zero Tracking. Smart Calibration (thru key pad). Support for thermal and dot matrix printers. (Optional Facility) Operating Temperature: 0° to 50° C. Power Supply: 230 V AC ±10%, 50 Hz.

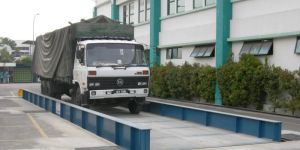

With ever-rising steel prices, it makes great economic sense to install concrete platform weighbridges. Apart from low costs, it offers high strength and is virtually maintenance free – requiring no painting every year. Its life is 100 years as compared to that of 15 years of a typical steel platform. Due to the advantages of concrete platforms, the developed world has been using them for over 30 years. In Europe 95% of electronic weigh bridges are made with concrete platform. As the platform gets longer, cost saving increases. Modern day transportation is moving towards using longer trucks and trailers. MNC truck manufacturers, such as Volvo, who have started manufacturing in India, are introducing longer models which are capable of carrying heavier payloads. The concrete platform weighbridge can bear heavier loads. That is why all modern bridges that one sees on the city roads are either concrete or composite. A heavily loaded truck entering the weigh bridge gives heavy jerks on braking. Vibration thus caused, reduces the life and accuracy of the load cell and thus needs to be reduced to minimum. Vibration is much more in the case of steel as compared to concrete as it absorbs vibration.

All Steel construction with industrial Powder Coating. PIPE, ANGLE or “C” CHANNEL Based Platform Structure. High Precision ADI ARTECH (USA) Make Load Cell. Sturdy MS structure provides equal Load distribution. High Resolution Load Cell with Over Load stoppers and Transport Protection. Large LED Display with a optional of remote display. Counting mode, percentage weighing, Wt accumulation. Platter construction options can be SS/MS Checkered. 220V AC/built-in 6V rechargeable battery 50hrs backup. Available in Single load cell and 4 load cell design. 150% Overload protection. Options: RS-232 interface for computer interfacing. Options: Printer output for direct printing on printer. Options : Wireless Weighing Indicators Options : Attach or Loose Pole for Indicator

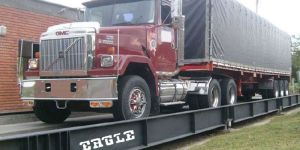

This type of weighbridge Truck scale is most suitable where the excavation work for foundation is difficult or construction of pit is expensive. Since the structure is above ground level, vehicles can approach the weighbridge only from two directions where the ramps are provided. This type of weighbridge requires more space. In Pitless Type Weighbridge RCC ramp work must be required at least 3 meters for both sides for easy movement of vehicle.

This type of weighbridge / Truck scale is most suitable where the excavation work for foundation is difficult or construction of pit is expensive. Since the structure is above ground level, vehicles can approach the weighbridge only from two directions where the ramps are provided. This type of weighbridge requires more space. In Pitless Type Weighbridge RCC ramp work must be required at least 3 meters for both sides for easy movement of vehicle. Costly Pit construction is eliminated. Platform above ground level- No water logging during rainy season Problem of pit maintenance is eliminated. Easy maintenance since all parts accessible above ground level. Robust Load Cells And Digitizers : The most important components of an electronic weighbridge are the load cells and digitizers. EAGLE has made both of them very robust and hence, the best available in the country. Highly Durable Girders And Plates : A truck to be weighed is directly driven to the platform of a weighbridge and hence, the platform is subjected to the entire load and vibrations created by a moving truck. Our weighbridge platforms (made of steel) are designed very carefully to withstand these loads without damage and is highly durable. The girders and plates used in our platform are selected very carefully and undergo stringent quality checks as per ISI & IS 2062 Grade. Reliable Mounting Assembly For Load Cells : The next most important component is the mounting assembly for load cells. This transfers the load from the platform to the load cells. This is a cradle assembly which is free to move in the horizontal axes and hence takes all side loads generated due to the vehicular movements on the platform. The mounting assembly consists of three parts namely, the Bottom Plate, Rocker assembly and Top Bracket. Low Resistance Cables And Weather Proof Junction Box : The signal from the load cells (in milli-volt) is carried to the digitizer, in the control room, through a 4 - core shielded cable. The cable has a very low electrical resistance and hence, no loss of signals. The cables from different load cells, in a weighbridge, meets in weather proof junction box. The junction Box is of fully molded type and houses the necessary terminal blocks for interconnection of load cell out puts. The Junction box also carries a set of surge arrestors, to protect the entire system from lightning and electrical surges. Easy To Use Weighbridge Software : EAGLE Weigh soft - user friendly, windows based software for weighbridges. It is highly secure and customizable - password protected different user levels, allows you to create your own fields, depending on your specific requirement.

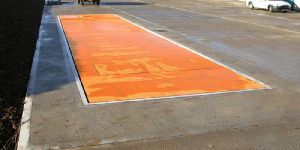

This type of weighbridge is most suitable for places with limited space e.g. non-hilly areas where the construction of pit is not a costly affair. Since the platform is in level with the ground, vehicles can approach the weighbridge from any direction. Most public weighbridges prefer this design. Rickshaws & Tractor Trolleys can also be weighed as platform is in flush with ground Level. No Ramp require for truck movement because it is installed in land surface level, Costly Foundation.

This type of weighbridge is most suitable for places with limited space e.g. non-hilly areas where the construction of pit is not a costly affair. Since the platform is in level with the ground, vehicles can approach the weighbridge from any direction. Most public weighbridges prefer this design. Lesser Space Required (As it has no ramps) Rickshaws & Tractor Trolleys can also be weighed as platform is in flush with ground Level. No Ramp require for truck movement because it is installed in land surface level Costly Foundation Robust Load Cells And Digitizers : The most important components of an electronic weighbridge are the load cells and digitizers. EAGLE has made both of them very robust and hence, the best available in the country. Highly Durable Girders And Plates : A truck to be weighed is directly driven to the platform of a weighbridge and hence, the platform is subjected to the entire load and vibrations created by a moving truck. Our weighbridge platforms (made of steel) are designed very carefully to withstand these loads without damage and is highly durable. The girders and plates used in our platform are selected very carefully and undergo stringent quality checks as per ISI & IS 2062 Grade. Reliable Mounting Assembly For Load Cells : The next most important component is the mounting assembly for load cells. This transfers the load from the platform to the load cells. This is a cradle assembly which is free to move in the horizontal axes and hence takes all side loads generated due to the vehicular movements on the platform. The mounting assembly consists of three parts namely, the Bottom Plate, Rocker assembly and Top Bracket. Low Resistance Cables And Weather Proof Junction Box : The signal from the load cells (in milli-volt) is carried to the digitizer, in the control room, through a 4 - core shielded cable. The cable has a very low electrical resistance and hence, no loss of signals. The cables from different load cells, in a weighbridge, meets in weather proof junction box. The junction Box is of fully molded type and houses the necessary terminal blocks for interconnection of load cell out puts. The Junction box also carries a set of surge arrestors, to protect the entire system from lightning and electrical surges. Easy To Use Weighbridge Software : EAGLE Weigh soft - user friendly, windows based software for weighbridges. It is highly secure and customizable - password protected different user levels, allows you to create your own fields, depending on your specific requirement.

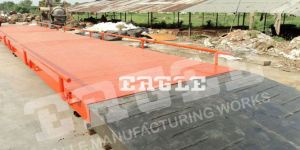

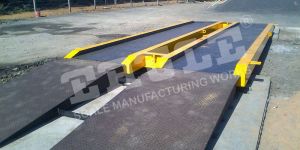

If you opt for our mobile weigh bridge with inbuilt steel foundation plates you don’t require any civil foundation work. For the erection of the weighbridge only a well leveled hard surface is required. The savings accrued because of this are 1.Savings in the cost of civil foundation works is approx. Rs.1,50,000/- in Small Size 2. Savings in time to the tune of 20 days @ Rs.2500/- per day. This savings is recurring for every relocation of the weighbridge.   REDUCTION IN LOAD DISTANCE :As EAGLE weighbridge can be easily dismantled and re erected within a short span of time, it can be constantly relocated near to area of operation. This will help enormously in reducing lead distance, reduction of handling cost, manpower, and appreciable improvement in productivity. ACCURACY :EAGLE is a highly consistent system, as we use state of art electronic and structural design. Consistent accuracy is a basic necessity of any weighbridge. Even little inconsistent measurement will result in loss of several hundred kilograms of materials everyday, which can amount from Rs.1000/- to 10,000/- to any amount depending the value of material. MAINTENANCE :As EAGLE is a rugged design and the system has surprisingly ease of operation under most harsh condition. The down time due to break down is almost nil and hence the loss due to break down is also almost nil. RATTLING :As EAGLE weighbridge is a modular design which comprises of a fully welded modules rattling of the system due to loose fasteners is totally avoided. Such rattling leads to inconsistency and inaccuracy in weighing. WARPING OF PLATES :The top deck plate is fully welded and well supported by longitude beams within a span of 1 meter; hence they are rigid and sturdy avoiding warping or bending of plates. This avoids replacement. Top deck plate, saving lot of time, money and work output. Since it is rugged the life span is also very high. FLEXIBILITY IN OPERATION :Being a modular design the length of the weighbridge can be extended or reduced suiting the site conditions and hence no need to keep separate weighbridges. This flexibility help in reduction of inventories and capital cost. PROTECTION FROM LIGHTENING :As a good quality measure we provide protection device against lightening. Electrical spikes, at no extra cost. Cost of this unit exceeds Rs.50,000/-. This facility increases the longevity of all critical electric components. Scientific minded and forward looking organization like yours invest huge money On capital equipment which though expensive proves beneficial and profitable both in long term and short term perspective In the similar way we hope you would appreciate, the benefit you will reap out of this unit year on year basis FOUNDATIONLESS MODULAR WEIGHBRIDGE WITH STEEL RAMP : SILENT FEATURES OF THE ELECTRONIC MODULAR WEIGHBRIDGE IN COMPARISON WITH THE CONVENTIONAL WEIGHBRIDGES :  Our weighbridges can be easily dismantled and re-erected in a new location in a Short span of time. Transportation of the modules can be arranged through a normal Truck.  Our weighbridges are modular type. Hence they have the advantage of future up-gradations by simply adding a module or two to have a longer platform. This is not possible in conventional type of weighbridges.  Conventional type weighbridge has 2 main longitudinal members. Whereas the modular type weighbridge has 4 main longitudinal members. Structure is more strong, yet sleek.  Our Weighbridges are fitted with load cells which supports the structure through a special arrangement. This ensures the structure swings in order to avoid the shock loading transferred directly to the load cell, on a dynamic force created by a moving truck over the platform and thereby load cell accuracy is sustained for a longer period.  In our weighbridges, the chances of getting rusted is less as the modules are seamlessly welded and rain water and slush cannot find their way to the under chassis of the weighbridge which will definitely reduce the maintenance cost.  Our Weighbridge is modular in structure, fully welded and strong to take care of the designated load. The loose parts such as girders, plates and transoms in a conventional weighbridge and the main girders in a surface mounted type have a relative movement due to cyclic loading of truck weighing, though they are held by fasteners. In the long run, this effect leads to wear and tear of the parts and the same need replacement. Our weighbridge comprises of modules which are fully welded and have no loose parts, hence the effect of cyclic loading does not cause any problem and thereby keeping your maintenance cost to a minimum.  The conventional weighbridge with Girders and Plates or a surface mounted type has a 4 load cells support in its corners and the girder has long span and hence is subject to bending in the middle. This bending tilts the load cells out of its vertical position, resulting in load loss due to angular force over the load cell.  In a typical surface mounted type, the structure is supported with load cells through rocker assembly which holds the structure rigidly and thereby the shock load due to dynamic force created by a moving truck is directly transferred to the load cells which not only reduces the life span of load cell, but also leads to erratic performance of load cells in due course.  This weighbridge does not require an elaborate civil foundation work as in the case of a Conventional weighbridge. Our weighbridge could also be installed permanently on a hard surface with a concrete mat or on M.S. Plates under the load cell points and the ramps.  All the weighbridges available today whether pit or pitless requires civil foundation costing at least Rs. 4 lakhs to Rs.6 Lakhs. This could be minimized to a great extent by installing our weighbridge. Our weighbridge could be installed as a pit mounted or pitless type permanently in a site if need arises. We hope that your choice of adapting a latest technology in weighing solution is much brighter and hence, we kindly request you to consider our offer favorably.

mobile weighbridge needs no foundation, just smooth hard surface on which the load cell plates rest. This saves lots of cost and time. Standard weighbridge foundation and installation takes 2-3 months while mobile weighbridges can be installed in 2 hours. These weighbridges can also be shifted to another site easily. The modular design helps in easy cost effective transportation and re-installation. these are steel fabricated modular platform supplied complete with ramps. The top plate is steel checkered. Machine comes with the bottom frame which is steel fabricated. The load cells are installed between the bottom frame and the top frame. The bottom frame substitutes the traditional foundation. The bottom frame just needs a smooth hard surface on which it rests. Mobile weighbridges we offer clients a wide range of mobile weighbridges. These are fully certified, totally mobile and self-contained unit that can be set up at virtually any location within minutes. benefits modular design- machine supplied complete with platform, bottom frame and ramps needs no foundation installation in hours can be shifted to another site easily keeps vigil on costly materials significantly saves time & construction costs most suited for temporary sites features steel fabricated modular platform support o.i.m.l. Standards/b.i.s. Standards or other standards laid down by department of mass metrology govt. Of india including ip 68 protection standards. Ted by ramps anti skid duly ribbed top plate steel fabricated bottom frame based on evenly placed joists to form grid network as well as support to platform beneath applications construction & infrastructure road construction company/li> forestry/li> rubbish for landfill sites/li> demolition materials ex site/li> agriculture industry/li> quarries/li> military

“eagle” lorry weigh bridges are manufactured according to is: 1436-1960 and other relevant is specifications and weights & measures acts and rules. “eagle” lorry weigh bridges are manufactured according to is: 1436-1960 and other relevant is specifications and weights & measures acts and rules. lever : grey iron castings & m.s. Steels. platform : made of 12 mm steel plates with welded m.s. Strips on the top and it is bolted on girders. knife-edges & bearings : all knife-edges & bearings are made from en-31 alloy steels. steelyard : the notches are machine cut & a notch protection bar is provided as also a looking device. index : the index strip is suitably inclined for easy reading. strength : robust in construction with ample safety margin above weighing capacity. painting : all metals parts have two coats of good bitumen paints. platform size : 1500 x 1800 mm to 18000 x 3000 mm capacity : 1 ton to 120 ton electro mechanical weigh bridge (conversion of mechanical weighbridge to modern electronic weighing system) conversion of mechanical weighbridge to modern electronic weighing system with electronic conversion kit & pc based weigh system is possible in both the models. inserting a single "s" type load cell on connecting rod of transfer lever.

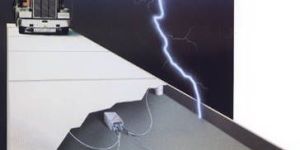

There are various types of lightning strikes, but the one that concern us is the dramatic forked lightning. A weighbridge, by nature, is very unlikely to be the tallest structure in its locality and so will rarely be directly struck by lightning. If it does receive a direct hit then no weighbridge in the world could withstand the electrical energy that would strike it and then pass through its load cells as the easiest route to earth Shering approach the problem of lightning protection from the point of view of preventing damage from this dissipated energy. We do this by using a PATENTED load cell assembly unit which fits an insulating component between the ground and the weighbridge deck. The dielectric properties of this insulator are such that it will restrict the voltage potential across the weighbridge and its load cells to less that 100V, which is the level the load cells cal comfortably withstand without damage.>Over10 years of use on shering weighbridge around the world has proved this insulator to be both electrically durable and structurally strong enough in the most arduous conditions.

Multiple Weighing units & precise counting function Units can be enabled or disabled as per country regulations. Full Tare Rang, Auto Zero mode Price Computing Function. Remote Display suitable for desktop mounting Low Battery Indication, Dummy Zero Facility Draft Shield to reduce errors due to air movement Mains / rechargeable 6VAH battery operated. 50hrs backup RS232 / direct printing option. Continuous / command control

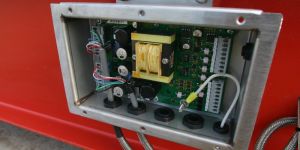

Eagle Junction Box takes the input from multiple load cells and sums them in parallel to form a single output equal to the sum of the forces on the load cells. Summing is a common practice in industry, as most tanks, bins, hoppers and platforms are often supported by 2, 3 or 4 load cells which are used to give the total weight being monitored

EAGLE is launching its ERD Series of easy to read LED remote displays. Available with a choice of 5, 11 or 17 cm digits the high intensity, red LED characters can be seen from up to 325 feet and with a filtered lens are clearly visible both indoors and outside. These easy to read displays mean that operators do not need to walk around a site checking readouts. When integrated to a weighbridge, for example, there is no reason for a driver to leave the safety of his or her cab. The remote displays use auto-learn technology to make installation quick and easy. This can interpret the communication format and data stream of almost any instrument automatically to reduce set up time. There is usually no need to press buttons or set switches to configure the ERD series with its plug and play capability. It can be integrated to virtually any weighing equipment and can be used for a huge range of applications. The remote displays have a wide range of preinstalled programmes for different weighing applications and can display data in either tones or kilograms with the gross and net weight.

Best Quality ADI ARTECH (USA) Make Precision Load Cell. Bright LED Display (RED or ULTRA GREEN). ABS Attractive Body with Windshield. S.S.Weighing Pan. Auto Calibration, External Weights. Multifunction weighing Units. High Resolution, Accurate Result. Full Tare Rang, Auto Zero mode. Remote Display suitable for desktop mounting. Draft Shield to reduce errors due to air movement. Mains / rechargeable 6VAH battery operated. 50hrs backup. RS232 / direct printing option. Continuous / command control.

Capacity : 300gm

Eagle Scale is one of the leading Manufacturer of Hopper Weighing Systems. It is one of the experienced exporters of Hopper Weighing Systems.

Maximum Capacity: 100 Kg to 500 Kg Readability : 10 gm to 100 gm Big easy readable RED LED Display – Height: 0.56 mm Heavy Duty “S” Type or Single Beam Load Cell Accuracy: compatible to OIML class III. Powder Coated Metal or S.S. Body. Accuracy is verified by three bits so, very much reliable. Tare remote controller (Optional) Inbuilt Rechargeable Battery (6V 4.5Ah) RS 232 Comport for Interfacing System (Optional) Handy Thermal Printer Facility (Optional) Wireless Display (Optional)

High resolution upto 15,000 counts. Easy to read (0.8") Bright RED LED display. Built-in rechargeable battery for continues use. Environmentally protected Load Cell. Rugged construction suitable for industrial environment. Stainless Steel Capsulated Loadcell. Complete washdown. All food grade stainless platforms. IP-68 Stainless Steel Loadcells for washdown applications. Auto-off function for power saving.

Latest Micro Controller based design Rugged construction ADI Artech (USA) Make Heavy Duty Load cell for rough handling Stainless Steel Valve with Teflon coating Coarse and fine feed for better accuracy Auto calibration (thru Key Pad) High internal count greater than 2,00,000 counts Data retention in memory even power failure Gross/Net filling. Top Rollers and side roller conveyor for easy handling of drums In-Mouth filling & hence no spillage Local control panel for easy Operation. Fill Accuracy : Better than + / - 0.1% FSR Display : 0.5 mm height (7 segments LED) Load Sensor : Strain Gauge Based Load sensor Fill Mode : Auto/Manual No. of Fillings : 1 fillings per minute (Depends on the flow available) Fill Valve : SS with Teflon Lining Operating Temp : 5-50 degree C Operating Pressure : 6-8 bar Power Supply : 230v Ac, 50 Hz +/- 10% Platform Size (mm) : As per Customer Requirement. Application  : Edible Oils, Lubricants, Paints, Chemicals & Other Liquids Options : Printer interface, Computer interface, Remote Display, Higher Capacity, Flame Proof

Capacity : 100kg, 200kg, 300kg, 500kg
