EIE Instruments Private Limited Paldi, Ahmedabad, Gujarat

ASTM C430 Applications Wet Sieving Apparatus is used for determining the fineness of fly ash. Details The apparatus comprises of following parts and accessories 1) A special stainless steel sieve, 0.045 mm opening, No.325 stainless steel wire cloth. The frame is 2 inches (50.8mm) diameter, and 3 inches (76.2mm) deep from rim to cloth. 2) A spray nozzle Ø 17.5 mm diameter with 17 holes, Ø 0.5 mm oriented and spaced to confirm to the standards. 3) Supplied complete with a pressure gauge of Ø 80 mm diameter and fittings for connection to the water supply

Salient Features   Double walled in construction Inner chamber made of stainless steel material.  Lid made of acrylic material for sealing application. Exterior body is made of Mild steel material, which is powder coated in attractive shades. Bath comprises of essential accessories such as Vacuum pump, Vacuum timer, Inlet water connection, Solenoid valve for automatic inlet of water and alarm to establish vacuum within the chamber to determine porosity, apparent relative density and water absorption of tiles.

We are the main supplier of this product.

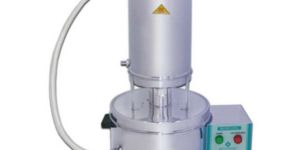

Type : Water Still Compact

Advantages Thermostatic cut-off (Self resetting type) for assured low water detection - with visual indication. Unique water level maintaining device improves operational efficiency Compact & user friendly space saving design - occupies less space & can be table or wall mounted. Easily open able Boiling Chamber as well as Condenser for easy cleaning.   Construction / standard feature Fully stainless steel. Single kettle heater with excessive heat, connect - ejection device. Press fit boiling chamber with internal gasket & condenser capacity : 4 liter per hour approximately Size : 25 cm diameter x 40 cm height supply voltage AC 50 Hz (V) : 220-240 Power consumption, approximately (KW) : 1 KW Housing (Enclosure) : Cylindrical shape Material : Fully Stainless Steel Material Standard Accessories Silicone tubing for distill water output + for flow of water from Condenser to Boiling Chamber. PVC tubing for waste water + raw water with tap adapter and a hose clip. Flow rate meter plus Hoffman clip for raw water flow monitoring. Mounting screws for Water Still and Flow meter. Instruction Manual Power cord (Cable)

Compliance Standards: ASTM C110, ASTM C91, ASTM C1506, ASTM C207 Applications The apparatus is used in specification tests of masonry cement and physical testing of quicklime and hydrated lime. Details Unlike older models, this unit incorporates a vacuum regulator and gauge system in place of the old mercury manometer and relief column. The complete unit consists of following parts and accessories An aspirator pump Vacuum regulator Vacuum gauge Three-way stopcock Flask Rubber gasket Brass funnel Perforated brass dish Filter paper Mild Steel powder coated stand

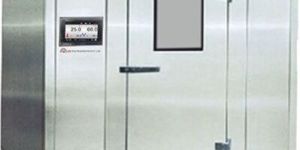

Salient Features CE Certified Light weight Sandwich panel Fulfills storage conditions of 25° C - 60% RH, 40° C - 75% RH, 30° C - 65% RH, 25° C - 40% RH, 30° C - 35% RH Designed for testing product shelf – life, packing and electronic test. Specially designed to meet ICH, WHO & USFDA requirements. Main Door with observation window to inspect samples Electrical wiring as per CE Compliances Illuminated Working area Password protected door access and monitoring U-Shaped tubular heaters as heating element. Non Condensing steam injection type humidity system with standby heater & auto switch over Mains-Fail Detection & Automatic Change Over to Battery/Inverter High speed Ethernet communication Uniformity module with 4 + 4 RH & Temp Sensors Forced air circulation for uniform temperature and RH Distribution Ensures smooth air-flow pattern to improve the Temp & Humidity distribution across the chamber GSM module for SMS Alert (Optional) Serial port for PC interface with 21-CFR Compliant software (Optional software) Standby Humidity control system and Standby refrigeration system (Optional)

We are the main supplier of this product.

Type : Vicat Needle Apparatus

Weight : 0-10kg

Color : Brown, Creamy, Grey, Light White, White

Voltage : 220V

Condition : New

Application : Industrial, Laboratory

Automation : Automatic

Driven Type : Electric

Warranty : 1yrs, 2yrs

Concrete moulds are easily cast by using a tamping bar or a vibrating table. However air tapped in cement mortar paste can not be thus removed while casting cement mortar moulds. Easy method is to impart greater vibration of lesser amplitude to the mould while casting. This is achieved in a vibrating machine. Vibration machine is used for the preparation of mortar cubes for the determination of compression strength of ordinary and rapid hardening Portland cement, low heat Portland cement, Portland blast furnace cement and high alumina cements.

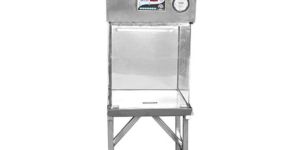

Salient Features Cleanliness : ISO Class 5 as per ISO 14644-1 S.S.304 work table Polycarbonate front door Mini Pleat HEPA Filter- separator less (H-14 rating)   Technical Specifications Direction of flow : Vertical Velocity : 90 FPM ± 20% Particle retention : Above 0.3 micron Blower Assembly : 1/6 HP, 1440 RPM Noise level : 65 decibel ± 5% Rate of air flow : 0.40 to 0.75 M/Seconds (90 FPM) Vibration level :

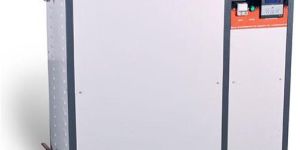

Salient Features Semi Automatic operation; Manual steam exhaust at the end of test cycle Single chamber for steam and water Working chamber fabricated from S.S. – 304 Exterior body is fabricated from MS Material Powder coated in attractive shades Lid, flange & bottom sheet also made of stainless steel. Joint less silicon gasket Heavy duty industrial flange heater (As per selected size) Microprocessor based Digital Temperature Indicator cum Controller PID Controller Controls temperature/pressure precisely at set value User adjustable in-built digital timer Pressure range                   : 15 to 22 PSI, factory set at 15 PSI Temperature Range          : 121°C to 125 °C Temperature Accuracy     : ± 0.5 °C Temperature sensor         : PT-100 Lid fitting pressure gauge : 0-30 PSI Hydraulically tested at      : 60 PSI Safety valves                       : 02 Mechanical Valves, 01 Manual release valve Supplied with Calibration certificate with traceability Provided with DQ, IQ, OQ, PQ documentation Validation ports provided for temperature mapping as standard supply. (On customer request)

Power : Electronic

Type : Pressure Steam Sterilization Equipments

Salient Features   Buttons: on/off, zero, mm/inch Automatic power off, move the digital unit to turn on power High moving speed is allowed Battery CR2032 USB data output Meet DIN862

The Veebe consistometer measures the remolding ability of concrete under vibration. The test results reflect the amount of energy required to remold a quantity of concrete under given vibration conditions. The Veebe consistometer is applicable to concrete with slumps less than 2 inches.The apparatus, consists of a metal cylindrical container mounted on a vibrating table, which produces a sinusoidal vibration, a slump cone is placed in the center of the cylinder and filled in the same manner as in the standard slump test. After the slump cone is removed, a clear plastic disk is set atop the fresh concrete. The Veebe table is started and the time for the concrete to remold from the slump cone shape to the shape of the outer cylindrical container is recorded as a measure of consistency. The sliding clear plastic disk facilitates the determination of the end of the test. GENERAL DESCRIPTION AND SPECIFICATIONS Consists of: A vibrating table, size 380mm long and 260mm wide, resting upon elastic support at a height of about 305mm above the floor, complete with start/stop switch cord and plug A holder is fixed to the base into which a swivel arm is telescoped with funnel and guide sleeve. The swivel arm is also detachable form vibrating Table. A graduated rod is fixed on a swivel arm and at its end a plastic disc is screwed. The divisions of scale on the rod record the slump of the concrete in millimeters. Supplied complete with a sheet metal. Container with lifting handles which can easily be fixed to the vibrating table. A slump cone open at both ends with lifting handles and a Tamping rod of size 16mm dia and 600mm long, rounded at one end. AS PER IS : 1199 OPTIONAL ACCESSORIES CONCRETE SCOOPSTOP WATCH

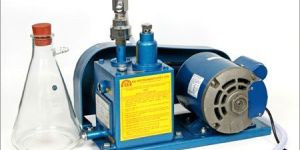

Used for specific gravity test by removing air voids from the Bitumen Mix. Very useful for other general laboratory tests where vacuum is required. General Descriptions And Specifications Complete with base, motor, pulley and belt. The pump mechanism is contained in a metal case with oil level and drain plug at base. Pump speed 450 RPM. Ultimate vacuum 0.01 mm/Hg. (Single stage). Complete with non-return valve, belt gauge and vacuum gauge with regulator. Displacement 50 Ltr./Min, Motor Rating : 0.25 HP Single Phase. To work on 230 V AC, 50 Hz. Single Phase. Supplied complete with filtering flask of 1000 / 2000 ml. Capacity with rubber cork and pressure pipe to carry out the test. Optional Accessories Air Ballast. Moisture Trap Hard Rubber Pipe of Required Length.

  .

Phase : Single phase

Door Type : Single Door

Finishing : Power Coated / Painted / Chrome Plated

Warranty : One Year

Brand Name : EIE

Display Type : Digital

Oven Type : Cabinet Ovens

Voltage : 220/230 Volts

We are the main supplier of this product.

Type : Vacuum Pumps

Power : 3-5kw, 5-7kw

Driven Type : Electric

Pressure : High Pressure

Warranty : 1yr

Complete with base, motor, pulley and belt. The pump mechanism is contained in a metal case with oil level and drain plug at base. Pump speed 450 RPM. Ultimate vacuum 0.01 mm/Hg. ( Single stage). Complete with non-return valve, belt gauge and vacuum gauge with regulator. Electric motor will be of Godrej / AUE / Crompton or equivalent reputed make. Double Stage Complete with base, motor, pulley and belt. The pump mechanism is contained in a metal case with oil level and drain plug at base. Pump speed 450 RPM. Ultimate vacuum 0.005 mm/Hg. (Double stage). Complete with non-return valve, belt gauge and vacuum gauge with regulator.Electric motor will be of Godrej / AUE / Crompton or equivalent reputed make. OIL FREE Light weight portable, die cast aluminum components keep overall minimal oil less construction of diaphragm NEVER REQUIRE LUBRICATION, PERMANENTLY lubricated ball bearings, low noise level. balanced eccentrics provided smooth low vibration free operation, Built in micro air filter. continuously rated with built in rugged motor. Practically Maintenance free.

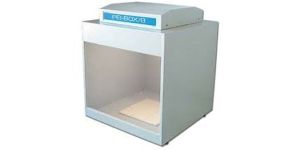

Applications To check the level of abrasion on glazed ceramic tiles. Salient features   Specially designed cabinet in accordance with international standards Aesthetic outer appearance Adjustable feet with hard rubber bases LED Illumination with colour temperature of 6000K Supply : 240 Volts, 60 Hz, single phase AC Supply

For testing metals and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also be conducted. Available Models 200 kn, 400 kn, 600 kn, 1000 kn Computer Controlled Universal Testing Machine Computerized Electronic Universal Testing Machine Microprocessor based control panel Auto ranging Digital display of Load and Elongation Dedicated PC Software Electronic Extensometer (At extra cost) Export worthy colour combinations, Special sheet jaws, Hard chrome plating, Hose pipes, Reputed make Induction/AC Servo motor Standard Accessories 1) Tension test, 2) Compression test 3) Transverse test Optional Accessories At extra cost 1) Shear test attachment for bolt2) Wire rope test attachment3) Rebend test attachment4) Rebend test mandrels

It is a motor driven mechanical compactor useful for soil compaction into 100mm or 150mm dia moulds. Two sets of rammers are provided, one of 2.6kg. And the other of 4.89 kg arranged for 310mm and 450mm fall respectively. For compaction soil into 150mm dia moulds, 100mm face dia rammers having weight of 4.89Kg is used. Where as for 100mm dia moulds, they are of 50mm dia. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the soil layer. When the rammer reaches the required height the pawl release the rammer, which falls freely on soil surface. The release mechanism is connected by an arm moving up and down which is connected to a reduction gear coupled to the motor through another arm. An automatic blow counter fitted to the compactor is used to set the number of blows. The base plate of the specimen mould is to be fitted to the rotating base plate of the instrument which makes 1/5th revolution per operation. Operation on 230 volts, 50 cycles, single phase, A.C. supply, Moulds are to be ordered separately. Moulds for above C.R.B. Mould, 150 mm dia X 175 mm high with extension collar and base plate. made of mild steel. C.R.B. Mould, 150 mm dia X 175 mm high with extension collar and base plate. made of gunmetal. Proctor mould, 100 mm dia X 127.3 mm high X 1000cc volume, with collar & base plate Mild Steel. Proctor mould, 150 mm dia X 127.3 mm high X 2250cc volume with collar & base plate. Mild Steel.

Proving ring type. Comprises of a hand operated load frame, cap. 30KN (3000 kgf.) screw jack for loading, handle and strain dial gauge bracket, adaptor for proving ring, conical seats and male/female coning tools for 38 mm dial samples. Supplied without proving ring and dial gauge. Motorised Cum Hand Operated Comprises a screw operated load frame capacity 50 KN (5000 kgf.) with a gear box and motor drive giving 1.25, 1.5 and 2.5mm/min, rates of strain, pair of cone seating, adaptor for proving ring and strain dial gauge bracket. Supplied with one pair of male/female coning tools for 38 mm dia samples but without proving ring and dial gauge. Suitable for operating on 230 volts, single phase AC Supply. Relevant Standards IS : 2720(Part-X), IS : 4332(Part-V)

We are the main supplier of this product.

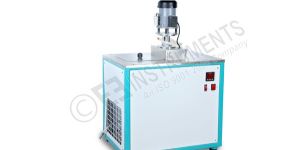

Type : ultra cryostat circulator

Application : Emulsifier

Certification : ISO-9001:2008

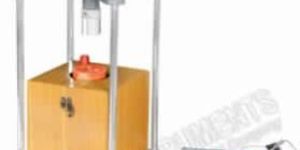

Canon Fenske Direct Flow Type Cannon Fenske Reverse Flow Type Direct Flow Type : Cannon Fenske Direct flow type as per IP-71 IS-1448 (P-25) 1976 & ASTM D 446 specifications (Size No : 25, 50, 75, 100, 150, 200, 300, 350,400, 450, 500 & 600) Reverse Flow Type : Cannon fenske Reverse flow type as per ASTM D 445 & 446 specifications (Size No : 25, 50, 75, 100, 150, 200, 300, 350, 400, 450, 500 & 600)
