WET SIEVING TEST APPARATUS
Compliance Standards ASTM C430 Applications Wet Sieving Apparatus is used for determining the fineness of fly ash. Details The apparatus comprises of following parts and accessories 1) A special stainless steel sieve, 0.045 mm opening, No.325 stainless steel wire cloth. The frame is 2 inches (50.8mm) diameter, and 3 inches (76.2mm) deep from rim to cloth. 2) A spray nozzle Ø 17.5 mm diameter with 17 holes, Ø 0.5 mm oriented and spaced to confirm to the standards. 3) Supplied complete with a pressure gauge of Ø 80 mm diameter and fittings for connection to the water supply
...more
Waterbath For Le Chatlier Flask

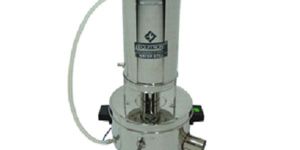

WATER STILL COMPACT
Can be wall mounted or placed on table. Easily openable boiling chamber & condenser for daily cleaning. Construction / Standard Features Fully stainless steel. Single kettle heater with excessive heat, connector - ejection device. Water still is supplied as ready to use with silicone tubing for distillate output + condenser to boiling chamber, PVC tubing for waste water + raw water, with tap adapter and a hose clip, flow rate meter plus hoffman clip for raw water flow monitoring and mounting screws for water still and flow meter. With special water level control & thermostatic cut off. capacity 4 liter per hour approx. size 25 cm dia X 40 cm height. All water stills require regular maintenance and due operating care. No warranty for heater elements is applicable..
...more
WATER RETENTION TEST APPARATUS
Compliance Standards: ASTM C110, ASTM C91, ASTM C1506, ASTM C207 Applications The apparatus is used in specification tests of masonry cement and physical testing of quicklime and hydrated lime. Details Unlike older models, this unit incorporates a vacuum regulator and gauge system in place of the old mercury manometer and relief column. The complete unit consists of following parts and accessories An aspirator pump Vacuum regulator Vacuum gauge Three-way stopcock Flask Rubber gasket Brass funnel Perforated brass dish Filter paper Mild Steel powder coated stand
...more
Volume Change Apparatus
We are offering Volume Change Apparatus

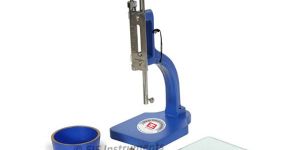

Vicat Needle Apparatus
Used to determine the amount of water required to produce a cement paste of standard consistency and the setting time. The time it takes for a cement to stiffen to a standard value after addition of water is commonly known as the set time. The test involves mixing cement with water and then measuring its resistance to penetration of a standard probe at varying intervals of time, until a certain value is reached.
...more
Vicat Apparatus
Used to determine the amount of water required to produce a cement paste of standard consistency and the setting time. The time it takes for a cement to stiffen to a standard value after addition of water is commonly known as the set time. The test involves mixing cement with water and then measuring its resistance to penetration of a standard probe at varying intervals of time, until a certain value is reached.
...more

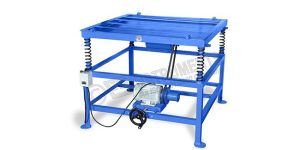

Vibrating table
The Vibrating Table produces better concrete Moulds and cylinders by removing entrapped air. It distribute concrete evenly inside the moulds and nearly eliminate the problems of bug holes and air bubbles. General Description and specifications : The Vibrating table is entirely constructed of thick steel. The table top is made of thick mild steel plate and has stops along its edges to prevent moulds from walking off the table during operation. A cross arm adjustable on a vertical rod at the centre of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the variation of frequency between maximum of 3600 vibrations down to 2600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. The vibrator is mounted on cushioned steel vibrating deck. A switch is provided for starting the motor. Operation on 440 V, three phase, A.C. supply. Table Sizes 50 X 50 CMS 60 x 60 CMS 75 x 75 CMS 100 x 100 CMS
...more
Vibrating Machine
Concrete moulds are easily cast by using a tamping bar or a vibrating table. However air tapped in cement mortar paste can not be thus removed while casting cement mortar moulds. Easy method is to impart greater vibration of lesser amplitude to the mould while casting. This is achieved in a vibrating machine. Vibration machine is used for the preparation of mortar cubes for the determination of compression strength of ordinary and rapid hardening Portland cement, low heat Portland cement, Portland blast furnace cement and high alumina cements.
...more

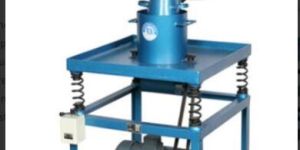

Vee Bee Consistometer
The Veebe consistometer measures the remolding ability of concrete under vibration. The test results reflect the amount of energy required to remold a quantity of concrete under given vibration conditions. The Veebe consistometer is applicable to concrete with slumps less than 2 inches.The apparatus, consists of a metal cylindrical container mounted on a vibrating table, which produces a sinusoidal vibration, a slump cone is placed in the center of the cylinder and filled in the same manner as in the standard slump test. After the slump cone is removed, a clear plastic disk is set atop the fresh concrete. The Veebe table is started and the time for the concrete to remold from the slump cone shape to the shape of the outer cylindrical container is recorded as a measure of consistency. The sliding clear plastic disk facilitates the determination of the end of the test. GENERAL DESCRIPTION AND SPECIFICATIONS Consists of: A vibrating table, size 380mm long and 260mm wide, resting upon elastic support at a height of about 305mm above the floor, complete with start/stop switch cord and plug A holder is fixed to the base into which a swivel arm is telescoped with funnel and guide sleeve. The swivel arm is also detachable form vibrating Table. A graduated rod is fixed on a swivel arm and at its end a plastic disc is screwed. The divisions of scale on the rod record the slump of the concrete in millimeters. Supplied complete with a sheet metal. Container with lifting handles which can easily be fixed to the vibrating table. A slump cone open at both ends with lifting handles and a Tamping rod of size 16mm dia and 600mm long, rounded at one end. AS PER IS : 1199 OPTIONAL ACCESSORIES CONCRETE SCOOP STOP WATCH
Size : 380mm
...more

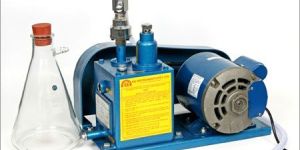

Vacuum Pump
Used for specific gravity test by removing air voids from the Bitumen Mix. Very useful for other general laboratory tests where vacuum is required. General Descriptions And Specifications Complete with base, motor, pulley and belt. The pump mechanism is contained in a metal case with oil level and drain plug at base. Pump speed 450 RPM. Ultimate vacuum 0.01 mm/Hg. (Single stage). Complete with non-return valve, belt gauge and vacuum gauge with regulator. Displacement 50 Ltr./Min, Motor Rating : 0.25 HP Single Phase. To work on 230 V AC, 50 Hz. Single Phase. Supplied complete with filtering flask of 1000 / 2000 ml. Capacity with rubber cork and pressure pipe to carry out the test. Optional Accessories Air Ballast. Moisture Trap Hard Rubber Pipe of Required Length
...more
Vacuum Oven
Optional Fittings For EIE - 104 Dual display microprocessor based DIGITAL temperature indicator cum controller with sensor in place of thermostat and thermometer. Microprocessor based PID Controller with Printer / PC Interface to connect to EPSON DOT Matrix Line Printer. Date, Time & Temperature can be printed whereas print interval can be set between 1 to 99 minutes. 21 CFR Part 11 Compliance Software Chamber Size (mm) Dia x Depth 200 x 250 250 x 250 250 x 300 300 x 300
...more

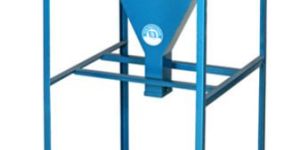

V FUNNEL APPARATUS
UNIVERSAL TESTING MACHINE (COMPUTERIZED)
Applications Available ModelsFor testing metals and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also be conducted. 200 kn, 400 kn, 600 kn, 1000 kn Computer Controlled Universal Testing Machine Computerized Electronic Universal Testing Machine Microprocessor based control panel Auto ranging Digital display of Load and Elongation Dedicated PC Software Electronic Extensometer (At extra cost) Export worthy colour combinations, Special sheet jaws, Hard chrome plating, Hose pipes, Reputed make Induction/AC Servo motor Standard Accessories 1) Tension test, 2) Compression test 3) Transverse test Optional Accessories At extra cost 1) Shear test attachment for bolt2) Wire rope test attachment3) Rebend test attachment4) Rebend test mandrels
...more

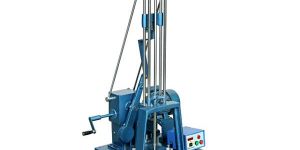

Universal Automatic Compaction Apparatus
It is a motor driven mechanical compactor useful for soil compaction into 100mm or 150mm dia moulds. Two sets of rammers are provided, one of 2.6kg. And the other of 4.89 kg arranged for 310mm and 450mm fall respectively. For compaction soil into 150mm dia moulds, 100mm face dia rammers having weight of 4.89Kg is used. Where as for 100mm dia moulds, they are of 50mm dia. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the soil layer. When the rammer reaches the required height the pawl release the rammer, which falls freely on soil surface. The release mechanism is connected by an arm moving up and down which is connected to a reduction gear coupled to the motor through another arm. An automatic blow counter fitted to the compactor is used to set the number of blows. The base plate of the specimen mould is to be fitted to the rotating base plate of the instrument which makes 1/5th revolution per operation. Operation on 230 volts, 50 cycles, single phase, A.C. supply, Moulds are to be ordered separately. Moulds for above C.R.B. Mould, 150 mm dia X 175 mm high with extension collar and base plate. made of mild steel. C.R.B. Mould, 150 mm dia X 175 mm high with extension collar and base plate. made of gunmetal. Proctor mould, 100 mm dia X 127.3 mm high X 1000cc volume, with collar & base plate Mild Steel. Proctor mould, 150 mm dia X 127.3 mm high X 2250cc volume with collar & base plate. Mild Steel.
...more
Universal adaptor plate
Comprises of a frame designed for screw jack operation, one each of the adaptor plates and plunger adaptors for 38mm, 75mm, diameter, 100mm diameter, 150mm diameter, specimens and a stand to obtain simultaneously three 38mm diameter samples from one 100mm diameter sample. The adaptor plate which slides a long the slotted supports can be clamped at any desired position by means of locking nuts. Beside this, the tube or mould can be held in position by raising the tube guides and held in position with locking screws. the lead screw movement can be stopped at any predetermined position by tightening the lead screw locking collar. Plunger adaptor for 200mm dia samples. Adaptor plate with 200mm dia hole and device to extract 3 number 38mm dia samples.
...more
Unconfined Compression Test Apparatus
Hand Operated Proving ring type. Comprises of a hand operated load frame, cap. 30KN (3000 kgf.) screw jack for loading, handle and strain dial gauge bracket, adaptor for proving ring, conical seats and male/female coning tools for 38 mm dial samples. Supplied without proving ring and dial gauge. Motorised Cum Hand Operated Comprises a screw operated load frame capacity 50 KN (5000 kgf.) with a gear box and motor drive giving 1.25, 1.5 and 2.5mm/min, rates of strain, pair of cone seating, adaptor for proving ring and strain dial gauge bracket. Supplied with one pair of male/female coning tools for 38 mm dia samples but without proving ring and dial gauge. Suitable for operating on 230 volts, single phase AC Supply.
...more

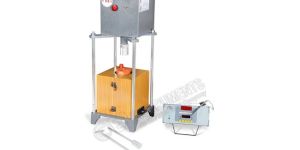

U-TUBE VISCOMETE
Canon Fenske Direct Flow Type Cannon Fenske Reverse Flow Type Direct Flow Type : Cannon Fenske Direct flow type as per IP-71 IS-1448 (P-25) 1976 & ASTM D 446 specifications (Size No : 25, 50, 75, 100, 150, 200, 300, 350,400, 450, 500 & 600) Reverse Flow Type : Cannon fenske Reverse flow type as per ASTM D 445 & 446 specifications (Size No : 25, 50, 75, 100, 150, 200, 300, 350, 400, 450, 500 & 600)
...more
TWIN LOAD CELL TENSILE TESTING MACHINE
Test Types 1. Tensile Test 2. Peel, Adhesion & Bond Test 3. Compression Test 4. Stiffness Test 5. Flexural Bend Test 6. Shear Test 7. Torsion Test 8. Tear And Friction test 9. Fracture And Crack Growth test 10. Modulus of Elasticity test Material testing applications 1. Plastics (Pipes/Films/Laminations) 2. GEOSYNTHETIC / GEOTEXTILE Material 3. Textiles Material 4. Wood and Timber 5. Paper and Paper products 6. Elastomer and rubber 7. Metal Compliance standards ASTM D638, ASTM D790, ASTM D3039, ASTM D882, ASTM D412, ASTM D429, ASTM D624, ASTM D76, ASTM E154, ASTM C836, ASTM D2240, ASTM D3039, ASTM D3786, ASTM D4533, ASTM D4595, ASTM D4632, ASTM D4833, ASTM D6241, EN 12311-1 /ISO R527, DIN 53504, EN 12310 Part 1:2000, EN ISO 12236, ISO 34, ISO 10319, ISO 527, ISO 178, ISO 2062, ISO 604, IS 13360, IS 3400, IS 15477 Mechanical structure High grade steel gives unmatched performance, accuracy and precision Rigid machine frame with high stiffness Equipped with multi-position limit detectors for best protection of operator, test sample and machine Column protection over total traverse stroke Cross head driven Cross head driven by Backlash free ball screw assembly to provide high load capacity Traveling length Maximum travel from grip to grip is 800mm at extension least count of 0.01mm. Higher length is also available on demand (optional). Controlling device PLC (Programmable Logic Controller) and Smart Touch Screen HMI Display. Economy models comprises of Microprocessor based Digital controller in place of PLC & HMI. Computer interfacing facility & software RS-232/RS-485/Ethernet based PLC controller, Profile based software to start the test quicker, Menu driven software parameters, User-friendly and easy to understand, Can provide full control of all parameters, Full test analysis with statistical and graphical print-out, User can export the generated data in Excel, PDF, Word format. Grips Choose from a wide range of grips and fixtures for tension, compression, flexural, shear, peel, puncture and bond testing Result and parameters Max Load, Max Elongation, Yield force, Yield Elongation, Break force, break elongation, GPD, etc test results and parameters can be observed on HMI Screen & In dedicated software. Mode of test Tensile as well as compression test facility available, mode selection via software. No need to change mode every times before starting the new test. Safety features Over load protection, reverse direction load protection, Maximum elongation protection for load cell, Limit switches on either end etc.
...more

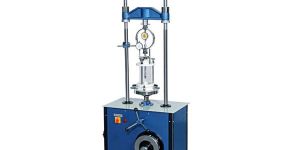

Triaxial Load Frame
Torsion Testing Machine
A system of loading which causes section of a bar or shaft to rotate about its central longitudinal axis relatively to another such section and which thus produces twist or torsion in the bar, constitutes a torsional load. The load may be composed of forces acting in any direction but the twisting or torsional affect is provided by the couples formed by these forces in planes normal to the central axis. The torsional shearing stresses in circular cross section vary from zero at the axis of the section to a maximum value at the extreme fibres. If no bending is present pure shear exists. Torsion Testing machine Consists of two independent chucks. The twist is communicated through the test piece to the other jaw on which a weighted pendulum is attached. The resistance to deflection of pendulum causes a torque to be applied to the test piece and the angles of deflection of pendulum is the measure of torque. The machine is built for maximum twisting moment at about 50 kgm. It is equipped with jaws for accomo- dating test pieces of 10 mm, 15 mm and 20 mm size either square or circular with square shoulder.
...more

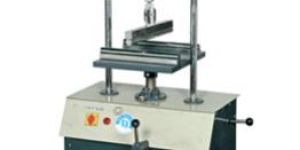

Tile Flexural Testing Machine
Capacity 200 kg. for cement concrete flooring tiles. The specifications are similar to the above machine, but for the bearing rollers of 25 mm dia and spans of 150, 200 and 250 mm. The load is applied at the rate of 200 kg/min/meter. Without lead shots.
...more
Tile Abrasion Testing Machine
The tile sample is pressed under a specified load against a grinding path strewn evenly with an abrasive powder revolving at the rate of 30 + 1 r.p.m. At the end of 100 revolutions of the disc the second parallel side of the tile is subjected to wear for an equal number of revolutions of the disc. The wear of tile is measured using a thickness gauge. The Abrasion testing machine consists of a replaceable grinding path fitting on to a disc rotating its vertical axis. The rotating disc and grinding path are enclosed by a circular tray. A bracket holds the specimen. The loading is by a counter balanced lever. A funnel is provided to facilitate charging the grinding path with abrasive powder. Supplied complete with automatic preset revolution counter and one 7.5 kg weight but without abrasive powder and thickness gauge. Suitable for operation 230 V, single phase, Ac supply.
Rated Power : 230 V
Weight : 7.5 kg
...more

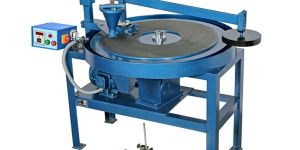

Tile Abrasion Tester
The tile sample is pressed under a specified load against a grinding path strewn evenly with an abrasive powder revolving at the rate of 30 + 1 r.p.m. At the end of 100 revolutions of the disc the second parallel side of the tile is subjected to wear for an equal number of revolutions of the disc. The wear of tile is measured using a thickness gauge. The Abrasion testing machine consists of a replaceable grinding path fitting on to a disc rotating its vertical axis. The rotating disc and grinding path are enclosed by a circular tray. A bracket holds the specimen. The loading is by a counter balanced lever. A funnel is provided to facilitate charging the grinding path with abrasive powder. Supplied complete with automatic preset revolution counter and one 7.5 kg weight but without abrasive powder and thickness gauge. Suitable for operation 230 V, single phase, Ac supply.
...more
