Electronic Switches Dealers in Ahmedabad

• Power Supply: 220-240 V, AC.
• Maximum Rated Current: 10 Amps.
• Starting Pressure Range: 1.5 Bar
• Max. Pressure Rating: 10 Bar

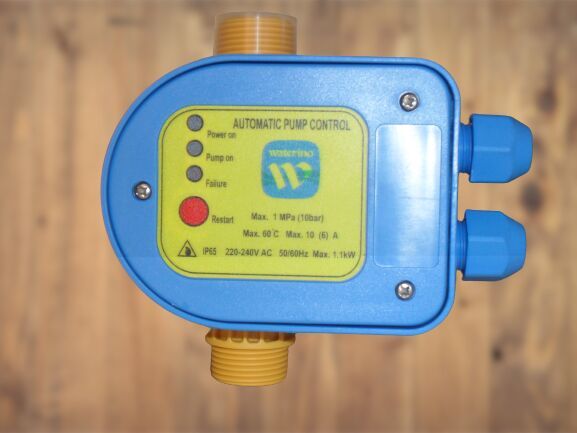

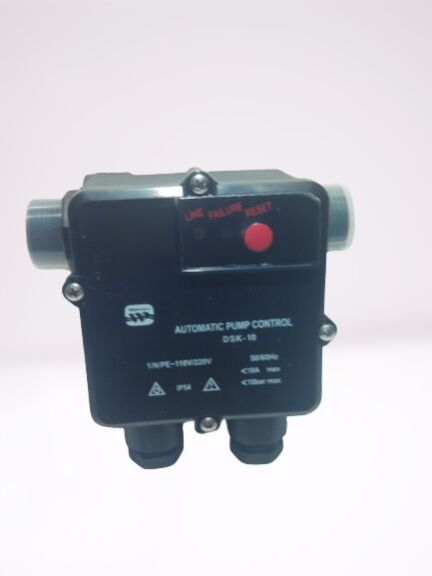

“The simplest, easy and economic way to deliver booster system”The WATERINO pressure controller orders the automatic start and stop of the water pump when opening or closing any tap or valve of the plumbing circuit. The controller can keep a constant pressure and water flow in the system as long as any tap in the system is open during the pump’s operation. It also prevents pump to run on DRY condition without water. Features It starts pump on preset pressure and stops pumps on maximum pressure. Virgin Nylon body for better strength. Built in non return valve to avoid reversal of flow. It stops the pump in “loss of prime” circumstances and restart the system with MANUAL reset. Electronic control panel (Microprocessor based / plc-VFD based)

• Type: Triple Pole Switch
• Country of Origin: India
• No. of Poles: Triple Pole
• Breaking Capacity: 10kA
• Voltage: 415V AC

Micron Moulded Case Circuit Breakers (MCCB) is an electrical protection system that comes with a fixed trip setting.Micron MCCBs have an aesthetic design and are user friendly. It offers safety ,reliability and versatility .In the case of electrical faults, MCCB immediately interrupts the flowing current, which could be too high due to the mainline's issues. When the current present in the circuit is higher than the rated value and lasts longer than the expected time, then MCCB trips to protect the electrical system.   Technical Information Standard Conformity : IS/IEC 60947-2 Rated Current (In) : 63,100,125,160,200,250,400,630 AMP Rated Voltage (Un) : 415V AC Rated Frequency : 50/60 Hz Rated Breaking Capacity : 10KA to 50KA Rated Insulation Voltage (Ui) : 690 V Rated Impulse Voltage (Uimp) : 8 kV Ambient Temperature(˚C ) : 5˚ to 55˚ Mounting : Fixed Frame Size : 1. (63/100A) = 10KA,  2. (100/125A) = 25KA,  3. (160A/200A/250A) = 35KA,  4. (400A/630A) = 50KA   Features» Housing is made of heat resistant insulating material.» Clear indication as “ON” or “OFF” of Trip Protection Device.» Push to trip button, Provision to check tripping of mechanism.» Fixed thermal & Magnetic setting.» Quick make, Quick break & Trip free operating mechanism.» Highly mechanical and electrical life.» Easy installation and can be mounted up to 90° in any direction.» Terminal suitable for both Copper & Aluminium termination.» Finger proof terminals.» Suitable for Residential, Commercial and Industrial use.» Suitable for isolation and use as a disconnection provide overload & short circuit protection
