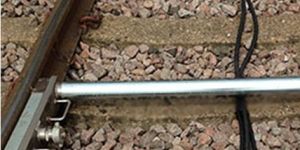

In-motion Weighing System overcomes many of the limitations inherent of conventional static weighing systems by being able to weigh wagons on the move. The state of art highly sophisticated yet simple in-motion weighing system has been designed and developed indigenously. Digital intelligent, innovative system is designed to detect the different type of wagons to initiate the axle or bogie weighing. Also it automatically detects the different type of engines and eliminates its Weighment. The speed of wagon is directly related to the accuracy of weighment. The high speed A/D Micro Controller are having a remarkable compatibility to achieve accurate weighment even up to a speed of *25KM/hr

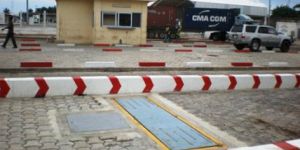

Weigh In-Motion (WIM) system overcome many of the limitations inherent of conventional static weighing systems by being able to weigh the moving vehicle on the move. Having less accuracy compare to convetional static weighing syste of 2to 2.5 %. Weigh in Motion 120MT /150MT with platform size 3200×550mm.

Accuracy : +/-2 TO 2.5 %

Specialized for Metal Industries and foundary. Available from 50kg to 50MT capacity. Big Easy readable red LED display Height : 1.2??? Accuracy : Compatible to OIML class III Rapid Display (within 3 – 5 seconds) Power saving function Auto shut off after 1.5 hrs of non – use Full function remote controller (optional)

Capacity : 1T/2T/3T/5T/10T/15T

Power : Rechargeable Battery + AC Adaptor

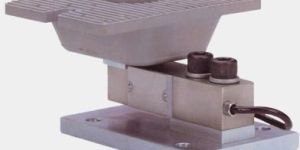

Conversion of existing tanks(Vertical/Horizontal) for measurement of volume by weighnt inside the tank by providing specialized mounting arrangement with loadcell and indicators for getting accurate weight. Also controlling other devices of the plant by providing relay output/ 4-20 mA output for ongoing process. By using this indutries may get high accuracy and quality output in batching and processing.

Manufactured in compliance to IS 3938 to suit Class II, III & IV application.Modular construction & design, each component like Rope Drum, Motor, Brake, Gear Box, Wire Rope, Control Panel etc. are easily accessible for maintenance.The frame is fabricated from steel plates and is of weldedbolted type.The Rope Drum is made of sturdy seamless pipe or fabricated from steel plates and is grooved to take the full lift without over winding. Large drum diameter to rope diameter ratio reduces wear and cable fatigue. The drum shaft revolves in ball bearings, ensuring smooth running.Equipped with Rope Guide to prevent over lapping of the rope on the drum and to extend rope life6 x 37 construction special plough hemp core flexible steel wire rope confirming IS 2266 having factor of safety 6 for class II and 7 for class III duty application. Galvanised and steel core wire rope can be provided for special application.The Bottom Block assembly consisting of drop forged steel hook (IS 3815) mounted on thrust ball bearing, with large diameter sheave and hook plates made out of steel.

In-motion Weighing System overcomes many of the limitations inherent of conventional static weighing systems by being able to weigh wagons on the move. The state of art highly sophisticated yet simple in-motion weighing system has been designed and developed indigenously. Digital intelligent, innovative system is designed to detect the different type of wagons to initiate the axle or bogie weighing. Also it automatically detects the different type of engines and eliminates its Weighment. The speed of wagon is directly related to the accuracy of weighment. The high speed A/D Micro Controller are having a remarkable compatibility to achieve accurate weighment even up to a speed of *25KM/hr

Complete all Steel structure, fabricated to form a box type squarish grid network in semi bolted construction covered with M.S. Plates duly ribbed, a rugged cubical web unique modular design. The modules consists of Steel deep section main “I” Beams, which are placed longitudinally in the direction of the traffic, which take the real weight. The load cells are mounted under these main beams. Cross ‘I’ beam modules are bolted / welded crosswise, carefully fabricated in rigid box type grid work to prevent deflection and distortion, even on overloads. Retrofit cubical web design is symmertrical axle load bearing, where the deck plate acts as a surface skin rather than part of the load bearing structure underneath. The sophisticated design is unmatched performance that others can only hope to emulate. Endeavour has been manufacturing high quality products for over 2 decades having design, development machining, fabrication, assembly, testing & calibration, all in house; allows us to serve our customer’s best requirements. A low profile weighbridge that is versatile and easy to install, the structure is almost identical as the former. But because it is elevated, maintenance works are far easier. However the land required for this is more as the approach ramps on both ends are a must This type of weighbridge is particularly suitable if the site conditions are hazardous ,rocky soil conditions also if relocation of site is anticipated.

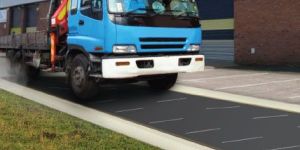

Complete all Steel structure, fabricated to form a box type squarish grid network in semi bolted construction covered with M.S. Plates duly ribbed, a rugged cubical web unique modular design. The modules consists of Steel deep section main “I” Beams, which are placed longitudinally in the direction of the traffic, which take the real weight. The load cells are mounted under these main beams. Cross ‘I’ beam modules are bolted / welded crosswise, carefully fabricated in rigid box type grid work to prevent deflection and distortion, even on overloads. Retrofit cubical web design is symmertrical axle load bearing, where the deck plate acts as a surface skin rather than part of the load bearing structure underneath. The sophisticated design is unmatched performance that others can only hope to emulate.

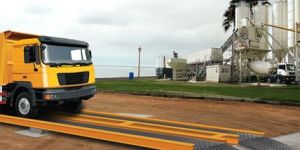

This weighbridges are designed with aview of easily movability & Portability. A second generation of digital Series weighbridges this almost portable weighbridge is constructed from high-strength mild steel structure fabricated in adequate sectional length/s connecting few sections together create different sizes upto 24 m and capacities upto 200 MT on all models. This is a boon to the Road Construction / mining /EPC sector where frequent relocation is a common feature and Foundation costs are minimal in comparison to the conventional Pit types/ surface mounted foundations comprise flat solid raft with concrete approach ramps. The complete weighbridge can be disassembled & re-assembled within few hours making installation a light hearted affair. A low profile weighbridge that is versatile and easy to install, the structure is almost identical as the former. But because it is elevated, maintenance works are far easier. However the land required for this is more as the approach ramps on both ends are a must.

Designed and Manufactured as per IS 3832.Load Chain Wheels are of S.G. Iron Malleable casting with accurate chain sprockets for smooth running and mounted on two nos. ball bearing.Steel forged hooks are confirming to IS 8610 and fitted in upper arm. Bottom block made out of heavy duty S.G. iron malleable casting.Gears are made from alloy steel material, precise machined, gear hobbed & case hardened – duly annealed.Hand Chain Wheel is manufactured from graded casting as per IS-210.Load Chain is of grade 80 confirming IS 6216 alloy steel material uniformly electrically welded from alloy steel duly heat treated for ductility, toughness & wear resistance and accurately calibrated for smooth running in wheels.Screw and Friction type positively self actuating load pressure brake ensures safety at all positions.

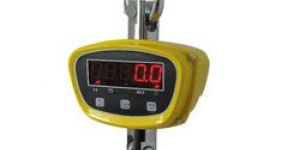

We have a huge selection of crane scales for virtually any use. High capacity electronic digital crane scales for the toughest jobs. Heavy duty crane scales with capacity to 50,000 kilograms or 100,000 pounds, Kg, Lb, N are selectable, generally Kg are default unit.Cast alluminium housing for maximum protection; Large red 5 digit LED display(digit height 58mm); Gravity compensation; Battery indication; Automatic turn off , power-saving function.

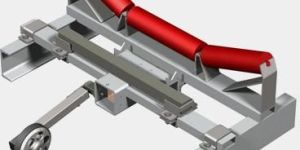

Conversion of existing conveyor belt for weight output of material passed through conveyor in specific time interval by providing suitable loadcell and indicator having Relay output/ 4-20 mA as per requirement to control the function of conveyor on feeding of material.

ib cranes are either Wall mounted or Pillar mounted fully floating on Bearings with swivel facility of 90, 180, 270 & 360 degrees.Jib cranes are available in lifting capacities ranging from 250 Kgs to 7500 Kgs. and arm radius from 1 mtr. to 5 mtrs. to suit the required application.Jib cranes designed conforming to IS 807 & IS 3177.Jib arm shall be fabricated from heavy section I-Beam or of triangular truss construction to keep the deflection in acceptable limits.Self aligned type double roller bearings with thrust & roller bearings take care of horizontal, vertical and radial thrust loads.Jib arm is suitable to accommodate trolley with chain pulley block for manual travel and lifting operations or electric wire rope hoist for electric operations.
