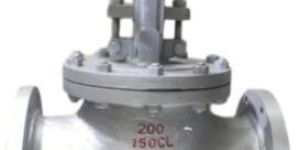

Globe Valve Dealers in Bakrol, Ahmedabad

• CAST STEEL: STAINLESS STEEL

A globe valves is a linear motion valve and are primarily designed to stop, start and regulate flow. The disk of a globe valve can be totally removed from the flow path or it can completely close the flow path. the fundamental principle of the globe valve operation is the perpendicular motion of the disk away from the seat. This ensures that the ring-shaped space between the disk and seat ring gradually close as the valve is closed. this property gives a globe valve reasonably good throttling capability. Therefore, the globe valve can be used for starting and stopping flow and to regulate flow. advantages of using globe valves: good shutoff capability reasonably good throttling capability.

Design Features : Design and Manufacturing : BS 1873 / ASME B 16.34 (2”≤ 24”) & API 602 / ISO 15761 (FOR NPS < 2) Inspection and Testing : API 598, BSEN 12266 Part – 1 & 2 End Flanges Dimension : ASME B 16.5 BW End Dimension : ASME B 16.25 Face to Face & End to End Dimension : ASME 16.10, BS 2080 Gasket Design : ASME B 16.20 Plug Design : Parabolic, Regulating, Soft seated Plug, Guided Plug. Handwheel Construction : Rising & Non rising Handwheel.

• Body/Bonnet: WCB /SS 304/SS 316
• Trims: 18 cr 8ni/CF8/CF8M
• MFG: API 600
• Testing: API 598
• Ends: Flanged to ANSI B 16.5/16.47 150#/300#
• Hyd Body test: 450 psig (32 kg /cm2)
• Hyd Seart test: 315 Psig (22 kg/cm2
• Size: 80mm to 900mm
• Item Code: OFF-HV-019

• Size Range: Class
• 2" - 16": 150
• 2" - 14": 300
• 2" - 14": 600
• 2" - 12": 900
• 2" - 12": 1500

We are manufacturing valves under brand name SABA. We also dealing in ZED make manual valves and Aira, Rotex make Automation products.   We synthesize a wide range of Globe Valves which includes seal globe valves, gate globe valves and cast iron globe valves. These globe valves are made from the finest quality of metal and raw materials. We hold a state of the art infrastructure, where we have all the latest machineries and tools. All are team is specially trained. We have set our own quality control team. The designs are unique and efficient. Its been more than a decade that we are consistently serving our clients. With all this we are the paramount cast iron globe valves manufacturer and supplier from India. SABA make Globe Valves are O.S. & Y Type i.e. Outside screw & yoke, Bolted bonnet, & Rising stem. Globe valves are used where throttling and both throttling and shut-off is required. They can also be used for on-off service, but because of high pressure drop, this is generally confined to applications where the valve is normally closed and drop is not important when the valve is open. Normally globe valves are installed with flow under the disc, but under certain conditions flow over the disc may have the advantages.Design Features : Streamlined shaped body for smooth flow of the working fluid for minimum pressure Drop. Back seating arrangement permits the replacement of packings while the valve is in full open position Standards Applicable : Design Standard : BS 1873 Testing Standard : API 598 / BS EN 12266 -1 Face to Face : ASME B 16.10 End Connection : Flanged End : ASME B 16.5 Butt Weld End : ASME B 16.25 Pressure Temperature : ASME B 16.34 Valve Operation :Operator : Hand wheel Size Range : 2" - 10" – Class 150, 300 2" - 6" – Class 600 2" - 4" – Class 900, 1500 Operator : Gear Operator  Size Range : 12" & above – Class 150, 300 8" & above – Class 600 6" & above – Class 900 & 1500 Material Structure : End Connection : Flanged end raised face, Butt weld end, RTJ, etc. Operation : Hand wheel, Gear operator, Electrical Actuator, Pneumatic, Hydraulic Shell : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastalloy, Inconel, Duplex Stainless Steel. Trim : 13% Cr. Steel, 304, 304L, 316, 316L, 321, 347, Monel, Duplex Stainless steel.

We manufacture Globe Valves in varying specifications and supply them to our clients. Since our client base extends into foreign nations as well, we are into exporting of this product too. We ensure reasonable rates that are lower than most others that are available in the global markets. Our executives in the sales department will be delighted to help you place your order with us.
