Globe Valve Dealers in Dariapur, Ahmedabad

• Weight: 5Kg, 10kg, 15kg
• Packaging Type: Wooden Box, Carton, Pallets
• Certification: ISO 9001:2008 Certified
• Country of Origin: India
• Diameter (mm): 50mm, 60mm
• Overall Length: 6-10 Inch, 20-30 Inch
• Specialities: Investment Casting, Heat Resistance, Durable, Casting Approved
• Diametre (milimetre): 100 To 1000 Mm

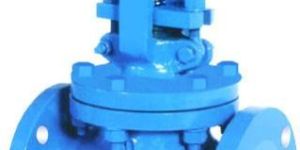

Flanged Type Gun Metal / S.S. 304 Globe Valve

Designed and manufactured to the highest standards of quality, durability, are available in various classes (150, 300, 600, 900, 1500, 2500).

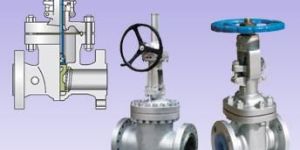

Design NU-TECH cast steel globe valves are designed and manufactured to provide maximum service life and dependability. All gate valves are full ported and meet the design requirements of American Petroleum Institute standard API600 & 6D BS EN 13709 and generally, Conform to American Society of Mechanical Engineers standard ASME B1634. Valves are available in a complete range of body/bonnet materials and trims.   Available Modifications For NU-Tech Cast Globe Valves Trim Changes End Connection Modifications Packing and Gasket Change Operator Mounting Handwheel Extensions Pressure Equalizing By-Pass Customer Specified Coatings Weld End Bore Changes Oxygen & Chlorine Clearing & Packaging   Operation Large hand wheels for easy operation. also available with gearing motor actuators, pneumatic or hydraulic actuators for more difficult services.   Live Load Packing In services requiring frequent cycling or with high pressure/temperature variations, live loading extends the service life between maintenance periods by requiring less statements. Belleville springs are employed to provide constant packing gland stress.   Yoke Sleeve Furnished in aluminum bronze to reduce operating torque. Most size furnished with ball bearing yoke sleeves.   Lantern Ring & Double Packing Set Lantern ring leak-off frtting connection & double packing stack is optionally available for critical services.   Seat Rings Separate heavy duty, full ported rings for easy maintenance. Screwed or welded connection into body.   Range Of Materials Standard body/bonnet materials include nine grades of carbon, low alloy & stainless steels. For special applications they can be supplied in other grades of alloy& stainless steeL Threre's a full range of trim materials to match any service optional packing & gasket materials are available for a full range of service conditions.   OS & Y Outside screw and yoke. Cast steel gate valve yoke integral with bonnet for 1O& smalL   BB Bolted bonnet Welding bonnet and pressure seal bonnet in services requiring frequent cycling or with high pressure/tempareture variations.   End Connections A choice of flanged, RTJ flanged or butt welding end for piping flexibility.   Body To Bonnet Joint A flat face gasket joint is used in the 150lb to 600Lb valves. Ring joint is used in the body to bennet connection in 900lb & higher rated valves.   DISC All Plug disc is stem guided on all size. Disc has a differential angle front the seat to provide a line contact for maximum sealing. The bottom of V-port disc is feuded by the body seat ring for maximum disc stability in throttling applications. the soft teflon ring is excellent for lower temperature service where tight shut off required.

Aided with innovative technology, we are extensively engaged in offering Metal Globe Valve. The offered valve is manufactured by our adept professionals with innovation at our hi-tech manufacturing unit in adherence to the predefined industry standards. Moreover, the provided valve is widely demanded for perfect finish, standard quality and high strength features. Furthermore, we offer this valve to our esteemed clients at industry leading prices. Features: Accurate dimensions Durable Rust-proof Globe Valve: (DIN STD - ND-40 TYPE)Globe Valve is most suitable for high temperature and high pressure applications for a wide range of fluids.Globe Valve is provided with one Graphite ring to restrict gland leakage, supported with numerous Graphited Spiral wound gasket packing, specially for high temperature application.

• Pressure: 900 class/1500 class/2500 class
• Range: 2" to 16" inch

Pressure Seal Valve "HP" make pressure seal type valves offer high performance, reliability and safety. The valves are especially suitable for high pressure and high temperature applications in oil and gas, power, petrochemical, Agriculture and Chemical industries, etc….. "HP" make's High Pressure Line Gate, Globe & Check Valve are the result of development of new technology with mandatory standards of design & product quality.

• Size:
• 15 NB to 80 NB: End Connection
•  : Screwed and Flange End.
• Body & Bonnet:
• ANSI304 / ANSI 316: Gland
•  : Silicon combination (self compration type)
• Seating:

 Mascon make Pneumatic cylinder actuator operated 'Y' Type 2/2 way Globe Valve & same construction is also available with 'T' Type 3/2  way globe valve    Selling Points:  1) Completed valve is made in ANSI304 Invest cast including Actuator and Bonnet.  2) Compact design preferred by OEM when there is lack of space in the equipment.  3) Flow capacity is marginally less than ball valve but largest than conventional globe valve. Fluid: Air, Water, Steam and Chemical  Temperature:- 15 to 180 deg. C.(Temperature above 180 deg. C.  refer  Mascon) pressure: Vacuum to 10 bar.

The Globe Valve offered by us are meticulously designed and provided with threaded replaceable seat having full flow area ensures smooth flow and reduces pressure drop across the valve to minimum. Weld deposited seat, high temperature packing material are provided for superheated steam and high temperature oil &fluids, to ensure trouble free service and longer life. A properly machined and lapped backseat facilitates replacement of gland packing when valve is in full stream. The Globe Valves are available with On-Off disc, control disc and parabolic disc designs. Though normal production restricts up to 400 NB, tailor-made globe valves in larger sizes, higher-pressure ratings, and special material of construction are also entertained.

• Brand Name: Worth
• Surface: Galvanized
• Size: 50 NB to 350 NB
• End: Screwed Ends,Flanged End
• Driving Mode: Manual
• Pressure: High Pressure
• Body Material: Stainless Steel
• Usage/Application: Industrial

MANUFACTURING STANDARDS : BS-1873 FACE TO FACE AS PER ANSI B 16.10 ENDS : FLANGED END AS PER ANSI B 16.5 R.F & BUTTWELD AS PER ASME B 16.25 TESTED AS PER BS 6755 AVAILABLE WITH HAND WHEEL & GEAR OPERATED SIZES AVAILABLE FROM 15mm TO 600mm

In order to ensure the safety of the products, we carefully store the lot under hygienic conditions and safe environment. Moreover, the lot is stringently and regularly checked by the experts. Advanced shipping services, well-planned and organized facilities; we are flexible in presenting the product range with utmost safety.

Designed and manufactured to the highest standards of quality, durability, are available in various classes (150, 300, 600, 900, 1500, 2500). Particularly suitable for steam, water, air, gas and other media. "ZIV" Steel Globe Valves conform to BS 1873 and to German (DIN) standard.

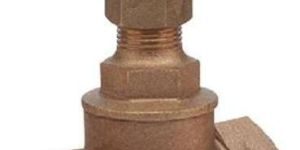

Bronze Globe Valve

• Manufacturing Standard: BS 1873
• Testing & Inspection Std: API 598
• End Connection: Flanged ends as per ANSI B 16.5 & 26” and above ANSI B 16.47 Series A & B
• Butt Weld Ends: As per ANSI B 16.25
• Shell wall Thickness: ANSI B 16.34

Special Features   With Gear Operation if the Torque Exceeds 350N With limit Switch Arrangements for open & Close Position With Electrical Actuator With Stelliting With IBR Certification With Nace MR 0175 With Position Indicators With Locking Arrangement     Design & Testing Standard

We are offering ss globe valve. Acme ss globe valve 15 mm to 600 mm

We are offering globe valve. Nu-tech cast steel globe valves are designed and manufactured to provide maximum service life and dependability. All gate valves are full ported and meet the design requirements of american petroleum institute standard api600 & 6d bs en 13709 and generally, conform to american society of mechanical engineers standard asme b1634.

• Brand Name: PROLINE VALVES
• Material: ALL TYPES OF MATERIAL
• Pressure: PN 05, PN 10, PN 16, 150 #, 300# 600#
• Application: Waster treatment plants, water works, power plants, steel plants, cement plants, agriculture industr
• Place of Origin: AHMEDABAD
• Power: ALL TYPES OF POWER AVAILABLE WITH ELECTRICAL ACTUATOR OPERATION
• Temperature Of Media: UPTO 450 DEGREE
• heavy design: long functional life
• LESS PRICES: quick delivery

roline Industrial Valve Provide Gear Operated, Pneumatic actuator Operated or Electrical Actuator Operated Investment Casting, Sand Casting, Carbon Steel,Cast Iron,Gun Metal Size : 25 mm to 500 mm (150#,300#,600#,900#) Features: Cast Steel Globe Valves have been designed to meet the requirements BS 1873 ASME B 16.34 Face to Face an End to End dimensions confirm to ASME B 16.10 BS 2080 DIN End flange dimensions confirm to ASME B 16.5 API 605 BS 3293 DIN Butt Weld end dimensions conform to ASME B 16.25 Outside screw and Bolted yoke construction design Valves Consists backseat arrangement The Body to Bonnet joint is a male & female in ASME 150# & 300#.

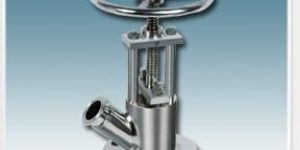

Y Type Flush Bottom Valve, Y Type Control Valve, Ci flanged ball valve

Globe Valve, Ball Valve, Non Return Valve, Butterfly Valve

With the aid of our proficient professionals and their precise designs, we engineer high performance Globe Valves in India. These are broadly applied for controlling the flow of fluids through numerous pipelines which is carried out by the movement of the globe shaped disc in the valve. Our valves offer effective control in a very smooth and reliable manner. Our compact, easy to install valves are manufactured from supreme quality materials procured from the principal vendors of the market. These are meticulously processed with the application of the up-to-date technology accessible in compliance to the international standards of quality. We care for the quality of the products at every stage of the manufacturing process and also test out them very rigidly before delivering them to the clients to ascertain that our clients collect only flawless performance products from us. We offer them at very reasonable rates. We are the leading Globe Valves Exporter and export them to the nations like Oman, Qatar, South Africa, Bahrain and Kenya.
