Globe Valve Dealers in Naroda, Ahmedabad

Ball valves provide tight shut-off and characterizable control. They have high rangeability due to the design of the regulating element, without the complications of side loads typical of butterfly or globe valves. Ball valves are quarter-turn, straight through flow valves that have a round closure element with matching rounded seats that permit uniform sealing stress.

• valves ranges: ½” to 3”

‘Y’ type (Angled) Pneumatic Valves for process control application. These valves are used for on-off application to control steam, water, coolants, air, gas and light oil at line pressure up to 10 bar. Used in textile dyeing machinery’s, textile dyeing mills, air-drying equipment's, autoclaves, pharmaceutical machinery, automobile industry and automatic process control applications.

• Brand Name: SYSCHEM
• Valve Size: Up to 36 Inch
• Color: Painted
• Specialities: Durable,Compact size,High quality
• Model Name/Number: SYSCHEM
• Material Grade: WCB/ CF8/CF8M/ DUPLEX/ ALLOY
• Design: Bolted Bonnet
• Usage/Application: Water, Steam, Oil & Gas
• Pressure: Up to 2500 Class
• Driving Mode: Hydraulic, Manual, Electric
• Test Pressure: API 598
• Valve Design: API 6D/ API 602/ API 600
• Valve Type: Globe Type
• Working Pressure: Up to 2500 Class
• Type: Flanged End, RTJ, Buttweld

• Material: Cast Steel
• Application: Water Fitting
• Feature: Casting Approved, Durable
• Pressure: High, Low, Medium
• Structure: Double Half Shaft
• Port Size: 0.1mm-5cm
• Number Of Way: 2way, 3way, 4way
• Size: 1/4″ To 2″ INCH
• Power: Hydraulic
• Technics: Gear Operated

• Material: Alloy Steel
• Application: General
• Power: Manual
• Structure: Y Type Strainer
• Working Pressure: 1 - 4.2 Mpa
• Working Temperature: 10 - 130 Degree C

Our organization is highly conscious about the product quality and for this; it considers industry-defined parameters for complete quality satisfaction. Our complete range of product is wrapped in strong, nontoxic, and superior-grade packs that protect the contents inside from damage, moisture, logistic movement, etc. Furthermore, the packaging has product details printed on it.

• Valve Size: 1/2 Inch
• Material: Stainless Steel,Cast Steel,Stainless Steel, SS 304, SS 316, Duplex,Brass
• End Connection Type: Flanged
• Color: Silver
• Automation Grade: Manual
• Temperature Pressure: Medium Temperature Pressure
• Media: Oil Fitting
• Brand Name: Zebco
• Finishing: Polished
• Certification: API 623
• Packaging Type: Wooden Box
• Country of Origin: India
• Type: Automation, Manual
• Warranty: 12 months

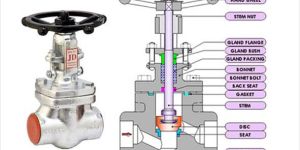

We are offering forged steel globe valve, jupiter controls valves forged steel globe valves are bolted bonnet, outside screw and yoke type, rising spindle construction. Jupiter controls forged valves body and bonnet made from high quality forgings. Jupiter controls offer forged steel globe valves in size 12” (dn15) to 2” (dn50) to suit various critical, non-critical applications and pressure rating in 800 class. Jupiter controls forged steel globe valve manufacturing range covers regular port and standard port both types of valve. Regular port globe valves have fast delivery or ready stock, for standard port globe valve do manufactuing on order basis. Jupiter controls offer forged steel globe valve in wide range of body materials like astm a 105 - forged carbon steel, astm a 182 f 304304l316316l - forgated stainless steel 304304l316316l, astm a 182 f 1122 - alloy steel to suit industrial application. Jupiter controls forged steel globe valves are available under any third party inspection also. For high pressure & temperature application stellited f6 face seat & disc available. Forged globe valve available is threaded end, socket weld end, butt weld end and flanged end connection. For flanged end forged steel globe valve flanges will be a welded with a valve body not integral forged manufacturer & exporter of wide range of industrial forged steel globe valves rising stem forged steel globe valve (regular port) rising hand wheel, bolted bonnet forged globe valve (regular port)

• End Connection Type: Flanged Ends, Screwed Ends, Socket Weld Ends, Butt Weld Ends, Victaulic Ends, etc.
• Sizes: DN15 to DN600 ( NPS 1/2 to NPS 24)
• Pressure Rating: Class 150, 300, 600, 900, 1500 & 2500
• Design & Manufacturing Standard: BS 1873
• Face to Face Std.: ASME B16.10
• End Connection Std.: ASME B16.5
• Testing Standard: API 598
• Type of Bore: Standard (Full Bore)
• Operated Type: Hand Wheel, Gear Box, Electric Actuator, Bare Shaft, etc.

Globe Valves are Outside Screw, Rising Stem, Bolted Bonnet Construction, threads are away from the line fluid and easy to lubricate. Globe Valves are generally available with Plug Type Disc, which is designed to give leak tight seating over a long period of in built wear life. Globe valves body seat ring is shoulder type, threaded body seat ring which has large taper area that is for ample seating. Two nos. slots are provided on body seat ring, which is for easy removal for servicing at site.  Designed for least possible obstruction to free flow by providing curvature turns in the body thereby minimising stresses & turbulence. The plug & seat-ring are machined and lapped very precisely to get a very tight sealing when valve is closed. Designed and manufactured to the highest standards of quality and, durability. DESIGN FEATURES OF CAST STEEL GLOBE VALVES   Stem nut uses aluminum bronze material. Large valve is provided with thrust bearing to make it opened easily and flexibly. Two-piece design of packing gland to avoid stem clogging caused by squishing. Packing uses flexible graphite for dependable sealing performance. If requested by users, packing spacer ring and greasing mechanism can be available. Back seal design to ensure dependable packing and sealing when valve is fully opened. (Replacement of packing under pressure is not recommended). Lift stem, with a piece of hard stainless steel inlaid between stem head and disc to avoid deformation caused by extrusion, and corrosion leading to inflexibility of disc action. TYPES OF DISC   The seal of Globe Valve is mainly designed to the following two types Conical Seal Flat Seal / Sphere Type TYPES OF VALVES   Angle Type Diverting Type DIN Type

• Structure: U Section, Pinless
• Material: Stainless Steel
• Certification: ISI Certified
• Color: Grey
• Finishing: Polished
• Media: Water
• Type: Heav Duty

• Color: Silver
• Application: Gas Fitting, Water Fitting
• Feature: Casting Approved
• Size Range: 1 to 8 Inch
• Pressure Class: 150#, 300#, 600#
• Finish: Polished

• Brand Name: K-TECH
• Material: CI, CS, SS
• Model Number: GLV

Globe valves are linear motion valves with rounded bodies, from which their name is derived. During the opening of the Globe Valve the fluid flows through the space between the Edge of the Disc & the seat. Globe valves are linear motion valves with rounded bodies from which their name is derived. During the opening of the Globe Valve the fluid flows through the space between the Edge of the Disc & the seat. These kind of valves are generally used in industry as fully open or fully closed valve, but they may be used for throttling as long as fine adjustments are not required. Globe valve are ideal choice to control the gases such as steam. A user can use it for throttling with little modification in plug & seat Being a linear operation, and requiring a low operating force to open, globe valves can be readily actuated for remote operation. Globe valves can be straight through, angle or oblique pattern. the oblique pattern increases the flow coefficient to reduce the pressure drop. When selecting a globe valve, it is important to consider operating temperature and pressure, media properties, flow requirements, duty requirements, physical limitations and suitability for the environment. When installing it is vital to ensure that the valve is positioned so that the flow is from the bottom of the valve to the top.

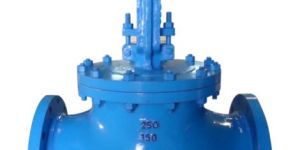

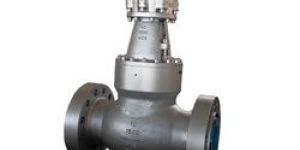

High pressure globe valve is very compact and is well-designed for high-pressure throttling. They are used in pressure as well as flow control functions in harsh conditions such as oil and gas industries, power plants, boiler units etc. They are manufactured with high quality material in a qualitative manner and hence are very sturdy and hard-wearing.

• Size: CLASS
• 1/2"NB to 16" NB: 150#
• 1/2"NB to 14" NB: 300#
• 1" NB to 12" NB: 600#
• 2" NB to 10" NB: 900#
• 2" NB to 8" NB: 1500#
• 2" NB to 8" NB: 2500#
• Shell Matt.: Lower limit
• Upper limit:
• oF: oC
• oF: oC
• Cast Iron (Graded): -20
• -5: 410
• 210: A216 GR WCB
• -20: -10
• 650: 343
• A352 GR LCB: -50
• -46: 800
• 470: A351 GR CF8
• -425: -254
• 850: 454
• A351 GR CF8M: -425
• -254: 1500
• 816: Packing Material
• Service Condition Fo/Co: SS-304 Wire  GraphiteAsbestos
• 850 / 454 High Pressure: Inconel Wire  GraphiteAsbestos
• 1200 / 649 High Pressure: Grafoil
• 1500 / 816 Corrosion Resistant: Graphite Asbestos
• 650 / 343 Medium Pressure: PTFE

* Y Type * T Type * Basket * Duplex * Simplex * Pot Type

Nivz Valves Forged Steel Globe Valves are Bolted Bonnet, outside screw and yoke type, Rising Spindle construction. Nivz Forged Valves Body and bonnet made from high quality forgings. Nivz Valves & Automation manufacturer and exporter Forged Steel Globe Valves in size 1/2” (DN15) to 2” (DN50) to suit various critical, non-critical applications and pressure rating in 800 and 1500 class. Nivz make Forged Steel Globe Valve manufacturing range covers Regular Port and Standard Port both types of Valve. Regular Port globe valves have fast delivery or ready stock, for Standard Port globe valve do manufactuing on order basis. Nivz manufacture Forged Steel Globe Valve in wide range of Body Materials like ASTM A 105 - Forged Carbon Steel, ASTM A 182 F 304/304L/316/316L - Forged Stainless Steel 304/304L/316/316L, ASTM A 182 F 11/22 - Alloy Steel to suit high temperature and pressure industrial application. Forged Steel Globe Valves are available under any Third party inspection also. For High Pressure & Temperature application Stellited F6 Face Seat & Disc available. Forged Globe Valve available in Threaded End (BSP / NPT Female), Socket Weld End, Butt Weld End, Weld Neck End and Flanged End Connection. For flanged end connection Forged Steel Globe Valve flanges will be a fabricated / welded with a valve body, flanges are not integral forged with body. A complete range of Forged Steel Globe Valve Manufacturer, A 105, F11, F22, F304L, F316L Material Forged Valve Exporter, Stockist, Supplier, Importer. Application Generaly fine controlling of flow Power Plants & Process Industries Petrochemical Plants & Refineries Fertilizers Plants Process & General Industries Sugar Industries & Distillery Plants Water, Steam, Gas, Oil & other Non-aggressive media Other application on request Salient Features of Globe Valve Body & Bonnet made from high quality forging. The Forgings are precision machined for high performance Leak Proof Body-Bonnet Joint With Spiral Wound Gasket Ground Finish Stem Self Aligning Two Piece Gland Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position.

Y Type Control Valve, y type valve, Control Valves

We make all varieties of Globe Valves like On-Off Disc, Control Disc and Parabolic Disc under the brand name FLOEC. Hastelloy Globe Valves Globe Valves are produced with materials like C.I, SG IRON, WCB, LCB, WC-1, WC-6, WC-9, CF-8, CF-8M, CF-3, CF-3M, CN-7M, CD4-Cu., Hastelloy etc. The Product range commences from 06 NB to 400 NB and pressure rating from BSASME 150# through 2500# and from PN-10 through PN-250. StelliteHard faced trim are offered in all Valves of 600# and higher ratings as a unique standard of Forged Steel Globe Valves Valves, where as for lower ratings it is offered when demanded.
