Globe Valve Dealers in Satellite, Ahmedabad

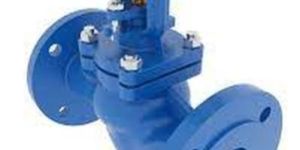

The Globe Valve, which we provide, is available in Bolted bonnet design and Pressure seal design. These Globe Valves are manufactured using the best Forged steel. These Globe Valves are best used where the fluid is corrosive and/or erosive in nature. We are well-known Supplier and Exporter of the Globe Valve in Ahmedabad.

We manufacture Globe Valves in varying specifications and supply them to our clients. Since our client base extends into foreign nations as well, we are into exporting of this product too. We ensure reasonable rates that are lower than most others that are available in the global markets. Our executives in the sales department will be delighted to help you place your order with us.

• Material: Metal
• Finishing: Polished
• Media: Water
• Usage: Water Fitting
• Warranty: 1 Year
• Automatic Grade: Manual

Bronze Valves, Ball Valves, plastic electrical parts, Red Brass

The V5013P is a three-way threaded globe valve that controls hot water, cold water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The valve is used for mixing service to direct flow from one of two inlets to a common outlet in twoposition or modulating control systems. FEATURES• Red brass body with BSPT-threaded connections.• Stainless steel stem and brass plug.• Low seat leakage rate (≤0.05 percent of Cv).• Spring-loaded, self-adjusting packing.• 50:1 rangeability per VDI/VDE 2173.• Constant total flow throughout full stem travel.• Accurate positioning to ensure state of the art temperature control.• Sizes range from 1-1/4 in. to 2 in.• Suitable for pneumatic or electric/electronic actuation.• Repack and rebuild kits available for field servicing. SPECIFICATIONSIMPORTANTThe specifications given in this publication do not include normal manufacturing tolerances. Therefore, an individual unit may not exactly match the listed specifications. Also, this product is tested and calibrated under closely controlled conditions and some minor differences in performance can be expected if those conditions are changed.Models:V5013P Valve: Three-way mixing valve for water or glycol. BSPT-threaded pipe connections. Constant total flow. Push down valve stem to close bottom (B) port.Pipe Connections: Internal BSPT-threaded connections.Seat: 1-1/4 in. to 2 in.: Integral brass (upper), replaceable brass (lower).ANSI Body Class: 300 psi.Stem: Stainless steel.Plug: BrassStroke: 3/4 in. (20 mm).Approximate Leakage Rate: 0.05 percent Cv.Rangeability: 50:1 per VDI/VDE 2173.Body Material: Red brass.Packing: Spring-loaded, carbon fiber reinforced PTFE Vrings. Pressure-Temperature Ratings:Water: 36°F to 248°F, 217 psi (15 bar).248°F to 337°F, 185 psi (12.8 bar).Maximum Water Differential Pressure: 230 psid (15.8 bar).Maximum Differential for Quiet Water Service: 20 psid.Valve Flow Characteristics:Port A-AB: Equal percentage.Port B-AB: Linear.NOTE: Movement of the valve stem at any point of the flowrange does not significantly change the total flowrate at the AB outlet port (constant total flow).Valve Design Life: 250,000 full cycles at maximum rated temperature.

Butterfly Valve, Gate Valve, hardware tools items, Needle Valve

boiler valves, valve flanges, Forged Steel Check Valve

Pipe Fittings And Valves, Globe Valve

Check Valve, Gate Valve

Industrial Valves, Gate Valve, Check Valve, Forged Valve, Fire Hydrants

Check Valve, Pulp Valve, Pinch Valve, Pneumatic Valve, Control Valve
