Grinding Mill Dealers in Ctm, Ahmedabad

• Type: Spice grinding machine
• Brand Name: CRUSHTECH
• Masala mill: Spice grinding mill

We are offering masala grinding mill. Crushtech masala grinding mill is economical unit specially designed mill with cyclone and dust collector suitable for all types of spices for time saving operation. The spices are been feed through a wide feed hopper into the grinding chamber. The swinging hammers in the rotating rotor grind spices at the stationery liners & rotating hammers before passes through a screen. advantages: • interchangeable screens in numerous sizes to produce the exact & different particle size as desired • easy to change screens in a variety of sizes • cold, dust free & silent running. • low specific power consumption, increased production leading to faster return on the investments. • durable long life • low temperature rise for heat sensitive materials • pollution free working due to properly designed cyclone. • no rcc foundation is required if fixed on a specially designed avm pad frame. application: crushtech masala mill can be used for a wide range of application e.g., food products, herbs & spices like red chilies, black pepper, long pepper, white pepper, cinnamon, cardamom, coriander, red pepper, oregano, basil, thyme, dill seed, shell corn, gingko, ginseng, cava, ginger root, yucca root, cassava root, tea, coffee, etc.

• Material: Stainless Steel
• Power: 5 HP
• Voltage: 415 V
• Phase: Three Phase
• Country of Origin: Made in India
• Brand Name: Crown Pharma Machinery
• Hopper Capacity: 15 L
• Output: 1200 L
• Particle Size Reduction: 5 to 10 Microns
• Speed: 2850 RPM
• Model Name/Number: CPM CM
• Supply Ability: 0 Piece Per Week

• Voltage: 110V, 220V
• Automatic Grade: Automatic
• Output *: 150 to 1500 Liters.
• Particle size reduction *: 5 to 15 Microns.
• Hopper capacity: 15 Liters
• Main Electrical Motor: 3 HP / 2850 RPM / 3 Ph.

Silent Features : Coupling provided between motor shaft & rotor shaft for ease in maintenance Three oil seals between the Motor & the processing chamber to prevent liquid going in the motor winding, Resulting in the burning of the motor Modified design of semi concave teeth in rotor & stator reduces the motor HP & gives better performance in size reduction without damaging the product Extended bearing housing specially designed to facilitate fine adjustment of bearing clearances or back lash to avoid metal to metal contact of rotor & stator. This unique design provides smooth & consistence all round performance & long life of rotor & stator Leak proof neoprene sealing device Three way cock system for draining & recirculation of liquids provided as standard. Extra discharge spout provided as standard for viscous products DOL Starter with over load relay for protection against single phasing & low voltage Contact parts can be easily dismantled for cleaning Special design facilitates adjustments of the grinding gap by an exterior screw by means of handle even during operation Flame proof motor & Flame proof rotary switch can be provided on request at extra cost

• Capacity: 15 litre
• Speed: 1440 rpm
• Usage Application: For Grinding
• Voltage: 220V
• Frequency: 50Hz

• Power: 3 Phase
• Material: Stainless Steel
• Capacity: 700 Liter
• Speed: 2800 RPM
• Weight: 160 Kg
• Brand: Venus Machinery

• Main Motor Power (HP): 10
• Max Air Pressure of Pump(Mpa): 0.7MPa

Horizontal bead mill is suitable for all kind of products from low to high viscous pump able products for fine grinding with media. The bead mill sand mills are widely used in pint, ink, chemicals, Agro chemical and coating industries for size reduction and dispersing of pigments in liquid, Particle size reduction up to 2.The Bead Mill is an agitator bead mill with horizontal grinding container for dispersion and finest wet grinding in a completely enclosed system. The working principle of bead mill is feed to be processed is pressurized pumped from the bottom of the mill into the milling chamber which is filled with grinding media. .The grinding media is agitated by number of impellers which are fitted on a lengthy drive shaft. The complete impeller assembly is rotate on high speed and creates pressurized movement of grinding material and on feed. As the material moves upwards it is subjected to high hydraulic & shearing forces between the grinding media which results in fine grinding of the material. This material then passes through the micron gap disc which separates the media from the process material. All mills are provided with a mechanical seal with hydraulic pressure and jacket arrangement for cooling the material in the grinding chamber.

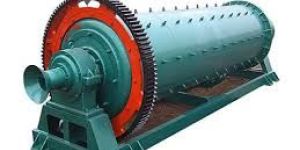

We engaged in manufacturing of Ball Mill which are used in heavy duty, continuous type ball milling in that we have three compartment and screen. Replaceable liners are fixed inside entire mill. Liners material and shape is selected based on material to be grind. Input material is fed in two primary grinding compartments. Large diameter balls for reduce particle size are laying inside first compartment. Material comes into second compartment for further grinding. Small size balls are laying inside second compartment. Material comes into third for fine grinding. Smaller size media are laying inside third compartment for fine grinding. Diaphragms may place to regulate material level and control retention time. Material is feed and discharged through hollow trunnion at opposite end. Accessories like air classifier, cyclone, blower, return air circuit or dust collector can also be placed for close loop system. Two tiers fixed on both end of mill, which are rotate on four rollers. Rollers are fixed on support and oil immersed. Mill rotates on four roller and two tiers. Girth gear is fixed on shell, which driven mating gear, gearbox and motor, which are fixed on heavy drive base. continous ball mill jmef continuous ball mill is useful for grinding coarse feed to get fine powder in single continuous operation. It is for grinding ceramics, cement, pencil, paint, chemical, ink, marble, coal, minerals etc. working process: heavy duty, continuous type ball mill with three compartment and screen replaceable liners are fixed inside entire mill liners material and shape is selected based on material to be ground. Material is fed in two primary grinding compartments large diameter balls for reduce particle size lay inside first compartment material comes into second compartment for further grinding small size balls are lying inside second compartment material comes into third for fine grinding

HP to 100 HP and above { 5 Kg to 10 tons Capacity Continue Ball Mill }, Direct Gear Drive , Counter Gear for load reduction. MS + MS SS Coating + SS + jacketed. Pigment Colors - Minerals & Ores - Chemicals Technical Products Dyestuffs - Fertilizer - Insecticides - Pesticide.

• Country of Origin: India
• Brand Name: PMS
• Material: MS,CASTING,SS 316 AND SS 304
• Certification: ISO 9001:2008 Certified
• Phase: Three Phase
• Voltage: 440V
• Condition: New
• Operating Mode: Automatic
• Packaging Type: Wooden Box
• Specialities: Rust Proof, High Performance, Easy To Operate
• Dimension (LxWxH): 1.5 X 1.5 X2.5 FEET

We are actively engaged in manufacturing and supplying a comprehensive array of disc mill machine. Features: low, medium to high capacity. Two units can be given in one line to increase the output. Comparatively low energy consumption. Complete system i.e. Automatic production. Compact design space saving design. Economical efficient design.

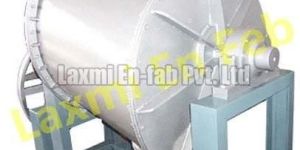

A good range of batch type ball mills to crush even the hardest materials like, quartz, topaz, ceramics, silica, etc. different types & materials of liners and grinding device is used such as hyper steel, stainless steel, mn Steel, ceramic etc., may be selected to suit the requirement.Application In:Where the dusting is not desired and uniform particle size is must. Such as dyes, minerals, etc.

The Disintegrator machine is grinds the material & Discharge at bottom, outlet material is collect in a bag, drum or on Any Conveying System (Material Handling System). - We are providing as an optional in dust collection system For Fine Dust. - We are providing as an optional AVM pad for less vibration & save cost for foundation. - Machine made from mild steel or stainless steel construction - Capacity Range: Up to 10 Ton per Hr.   - Size: 12” to 48 “ - Fineness: Up to 80 mesh • Application of Disintegrator: Coal, Chemical, Mineral, Ayurvedic herbs, hard & soft material as well as other allied industries etc… Features of Disintegrator 1. Hammer, Screen and Liners are available in different shapes and construction like hardened alloy steel, stainless steel etc., to suit the material. 2. We offered different type of material for liners and hammer as per client product for better result and best life of wear & tear part.   " Fab-Tech manufactures Disentrigrator ,Pulvogator , Ayurvedic Pulverizing Machinery ,Mineral Pulverizing Machine , Mineral Grinder , Ayurvedic Herbs Pulverizer , Slag Crushing Machine ,Coconut Shell Crusher , Mineral Grinder , Herbals Crushing Machinery ,Quartz Pulverizing Machine "

• Driven Type: Electric
• Condition: New
• Automatic Grade: Semi Automatic
• Voltage: 220 V
• Warranty: 1 Year

• Power: 1 to 5
• Capacity: 100 to 1000
• Material: Mild Steel
• Rotational Speed: 800-4000
• Fineness: 0-8mm

• Material: Mild Steel
• Power: 11-15 kW
• Voltage: 220 V
• Discharging Size: 0.075 - 0.89 mm
• Surface Finish: Coated
• Frequency: 60 Hz
• Capacity: 5 to 10 Kg

• Country of Origin: India
• Type: Colloid Mill
• Brand Name: ACUMAC
• Corrosion Resistance: Yes
• Phase: 3
• Shape: Rectangular
• Certification: CE Certified
• Voltage: 440
• Color: Metallic
• Machine Structure: Horizontal
• Condition: New
• Operating Type: Automatic
• Power: 1-3kw
• Warranty: 1 Year
• Driven Type: Electric
• Material: SS
• Dimension (LxWxH): 375x190x285mm
• Machine Weight: 100-200kg

Notable name in this field, we successfully cater to the demands of our clientele from Ahmedabad(India) to every nook and corner. We, along with our veteran packaging professionals, ensure that the packaging products commence keeping the packaging guidelines in consideration. We strictly use quality packaging material to evade loss during transit.

• Output *: 150 to 1200.
• Particle size reduction *: 5 to 10 Microns.
• Hopper capacity: 15 to 20 Liters
• Main Electrical Motor: 3 HP / 2850 RPM / 3 Ph.

Unique for small volume micronization. Modified design of stator-rotor assembly. Totally leak proof design. Easy to dismantle for cleaning and maintenance. Available in plain, water jacketed & flame proof options. Special design colloid mill working principle facilitates adjustment of grinding gap by an exterior screw by means of handle even during operation. Extended bearing housing specially designed to facilitate fine adjustments of bearing clearances or backlash to avoid metal to metal contact of rotor and stator. This unique design provides smooth and consistence all round performance and long life of rotor and stator.   Salient Features:- Colloid Mill - Pharmaceutical Milling, Colloid Mill Machine Unique for small volume micronization. Modified design of stator-rotor assembly. Totally leak proof design. Easy to dismantle for cleaning and maintenance. Available in plain, water jacketed & flame proof options. Special design facilitates adjustment of grinding gap by an exterior screw by means of handle even during operation. Extended bearing housing specially designed to facilitate fine adjustments of bearing clearances or backlash to avoid metal to metal contact of rotor and stator. This unique design provides smooth and consistence all round performance and long life of rotor and stator. The colloid mill machine is used as herbal extractor machine, in food processing, and pharmaceutical lab also.

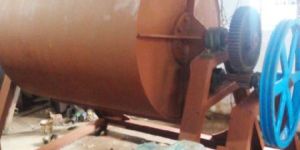

Techno Power engineering is leading manufacturer and exporter of Ball mill in Ahmedabad. Ball mill is suitable to grind various mineral and other materials, which is widely used in various industries such as beneficiation, construction materials, chemical industry, etc. It has two ore grinding ways: dry way and wet way. According to discharge type of finished powder, it can be divided into two kinds: grid type and overflow type. Ball mill is widely used to process cement, silicate product, new building product, new building materials, fireproof materials, fertilizer, ferrous and non-ferrous metal ore beneficiation, glass, ceramics, etc.

We offer ball mill. A good range of batch type ball mills to crush even the hardest materials like, quartz, topaz, ceramics, silica, etc. Different types & materials of liners and grinding device is used such as hyper steel, stainless steel, mn. Steel, ceramic etc., may be selected to suit the requirement. application in: where the dusting is not desired and uniform particle size is must. Such as dyes, minerals, etc.

•  :
• Model: Colloid Mill -200
• Output: 100 to 2000 kgs per hour
•  :
•  :
• Motor: 15HP, 2920 RPM, 415 Volts, 3 Phase, flanged
• Rotor Speeds: 3600/4000 RPM
• Floor Space: 600 * 1200 mm
• Net Weight: 385 kg (apprx)
• Mounting: Anchor Fastener

• Volume in Ltrs.: 100

Linners, Grinding media may be provided of different hard material like Alloy steel, Ceramic, Granule brick etc. Application: - Quartz, Feldspar, Paint, Ceramic etc...

    The Distinctive Principle of ULTRAFINE GRINDER is based on a high Air throughput in the Grinding area. This high Amount of Air is converted in to A Tremendous Turbulence by the Rotating & Stationary parts of the Machine as well as by an appropriate Guidance of the Air stream in the Mill. The numerous Air Whirls in the Grinding chambers accelerate the Product up to the High Velocity of the Air. The Direction & The Speed of the particles is suddenly changed within extremely short periods. As a result of this principle the particles crash against each other so reaching a careful disintegration in high Air stream. A small percentage of grinding taking place by in pact with the rotating or stationary part of the Mill.. The Creation of numerous air whirls in the single grinding chamber their increased turbulence by the inner grooved liner & the pulsation of the high air velocity make it Micronics. Simple adjustment to the machine allow a narrow distribution range of out put particle our wet, Dry, Fibrous or Heat Sensitive materials. Operation (Maintenance - Installation): No Foundation, Mechanically simple & Robust, operation & maintenance, No specialized personnel, Pneumatic Conveying of the Grind Product over 30-40 H height. PRODUCTS CURRENTLY BEING GROUND Grinder for Powders Tyre Rubber Wheat-Whole Atta Grinding Pharmaceuticals Carbon Block Carbonate Wood Flour Grinding Grinding of Cosmetic Sugar Dextrose Polypropylene Bentonite Cocoa Press Pigment Grinding Polyesters Grinder for Guar Gum Adhesives Grinder for Asphalt Tamarind Flour Grinder for Dyes Chemicals Chicory Clays Grinding of Psyllium Cereal & OtherMilling Product Salt Animal Feeding Stuff Grinder Talc Calcium Fish Grinding Standard Models: Vertical Type , Three Part. Model     H.P Cap- Kg/Hour Wheat Guar T-5 5-10 150 10 T-15 15-30 400 40 T-25 50-75 800 80 T-50 75-100 1500 150 T-100 100-120 2000 200 T-110 120-180 2500 250 T-200 200-250 5000 500

COLLOID MILL is suitable for homogenizing emulsifying dispersing, mixing, comminuting of liquids to highly viscous products. It is based on rotor stator principle, It is avail OPERATIONS:- Product is feed to the operating areas of a rotor, having a speed of 3000 R.P.M by specially designed feed device. The product is processed by high sheer, pressure and friction between the stator and rotor , the angular gap becomes narrower towards the discharges section. This processed product continuously leaves the mill through the drain pipe, if required, it can be re circulated SALIENT FEATURES : All contact parts are made out of S.S. 304 (S.S. 316 on demand at extra cost). No castings are used to avoid contamination problems. • 2 Coupling provided between motor shaft and rotor shaft for ease in maintenance. 3 Three leak proof neoprene sealing device between the motor and the processing chamber to prevent liquid going in the motor winding. 4 Modified design of semi concave teeth in rotor and stator reduces motor h.p. and gives better performance in size reduction without damaging the products. 5 Extended bearing housing specially designed to facilitate fine metal contact of rotor and stator. 6 This unique design provides smooth and consistence all around performance and long life of rotor and stator. 7 Three way cock system for draining and recirculation of the liquids provided as standard. 8 Extra discharge sprout provided as a standard for viscous products. 9 DOL starter with overload relay for protection against single phasing and low voltage. 10 Contact parts can be easily dismantled for cleaning.

• Brand Name: Technomart
• Material: MS
• Power: 15 kW
• Weight: Up to 5 Ton
• Capacity: Upto 1000 L
• Voltage (V): 220-380
• Automation Grade: Automatic
• Frequency: 50 - 60 Hz

• Model: Bhagwati -1
• Capacity: 1 kg
• Drum Diameter: 90 mm
• Total Electric Power: 0.18Kw
• Drum Speed: Variable

APPLICATION & PROCESS : The Laboratory scale Ball Mill is mainly used for various grind able materials dry or wet type in Chemical, Pharmaceuticals, Herbals and Catalyst Industries for super fine micron size grinding. Shree Bhagwati Mechtech (India) Pvt. Ltd. Laboratory Scale Ball Mill is made from all the contact parts in S.S.316 & non contact parts in S.S. 304.The Drum Size: Dia 90 x 90 mm length cylinder type made from S.S.304 Quality. The drum is rotate on two nos. drive shaft and the shaft is rubber coated. The drum is having variable speed through Ac frequency drive for up to 60 RPM. The complete drive unit with motor and gear box is enclosed in structure and it is made from S.S.304Q. The Controls panel provided with ON-OFF push button, Speed regulator, RPM Meter and Process Cycle timer. NEW DESIGN FEATURES : Design as per stringent GMP Model. Contact parts of SS 316 and non contact parts of SS 304. Variable speed for drum up to 60 RPM. Drive shaft with rubber coating. RPM Indicator and Cycle Timer.

Ultra Febtech Pvt. Ltd. make a Hammer mill which is used for the materials that are grounded on the impact of the hammer. The feed is at the top and while rotating in the grinding shell; it is often allied beaten by the swing type hammers fixed to the rotor. It is crushed by frequent contact of hammers and wall. A screen is round the rotor, which prevents the bigger particles to escape from the chamber. The mill is made in SS and MS.

• a) Motor:  Crompton / Kirloskar / Hindustan
• b) Gear box: CPEC/RADICON
• c) S.S.Material: 304 physically & chemically tested
• d) Hardware: T.V.S./G.K.W.S. Unbrako
• e) Panel: Electrical control panel with on, off  push buttons and motor safety devices.
• f) Coupling: The motor will be fitted with fluid coupling.

This type of attritor consists of a jacketed vessel with the inner shell made up of S.S.material and the outer Shell made of M.S.Material.The unit will have a discharge at  the bottom. The Base of the shell will be made of S.S.304 plate. The rotating shaft will be made from S.S.material having an appropriate diameter and will also consist of 7 cross bars with welded projections. At the bottom the rotating shaft consists of an impeller. All the contact parts i.e.the rotating shaft, the cross bars, the inner shell and the base of the vessel will be made from S.S.304 material.The drive will consist of a Motor of desired HP coupled to a suitable gear box to give a final output between 100~125 rpm.   Range of Equipments :  * Sigma Kneaders  * Ribbon Blenders  * Hydraulic Dissolvers  * Pug Mixers  * Ball Mills  * Planetary Mixers  * Batch type Sand Mills  * Conical Blenders  * Continuous Sand Mills  * Resin Plants  * Bead Mills  * Turnkey Projects  Applications : * Varnishes & Paints * Resins, Glues, Adhesives * Polyurethanes *  Pharmaceuticals * Colourants * Chemicals * Inks * Lacquers * Foods * Cosmetics

Clit Colloid Mill is suitable for Homogenizing, Emulsifying, Dispersing, Mixing, Comminuting of liquids to highly viscous products. It is based on rotor-stator principle. It is available in plan as well as Water Jacketed model which is suitable for heat sensitive products. Flame Proof electrical can be supplied on demands.
