Grinding Mill Dealers in Rakhial, Ahmedabad

Colloid mill machine is a perfect homogenizer cum emulsifier and can be used for various pharmaceutical applications like homogenizing, emulsifying, dispersing, grinding, mixing and extracting. Since decades, we are catering the needs of various industries by reflecting the quality and workmanship of our professional engineers. Colliod mill is ideal for small, medium and large scale tablet batching systems.

APPLICATION & PROCESS : The disintegrating milling machine (for partition/cutting of dry leaf & stem) is designed for high speed milling, cutting, grinding and pulverizing of hard particles, herbal, dry and wet material milling and especially suitable for herbal products. The product is poured to centre of the blade from the top through in feed hopper and material centrifugal on the rotor blades beater assembly for milling or pulverization. Due to the slotted shearing edges mounted on rotor, the downsizing of particle takes place and through sieve material gets pushed outward from the bottom opening. The disintegrating milling machine is designed and fabricated for tacking heavy load without vibration on high speed there for any type of herbal hard material can be milled on the disintegrator. SALIENT FEATURES : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. High Speed milling on 4500 RPM. Output of the machine 200 to 800 Kg / Hour. The chamber is completely fabricated from 10 mm thick Stainless Steel. Half round toothed plate fitted in side the chamber for more high shearing edges. Dynamic balanced beater assembly bearings are in a separate pillow block at outside chamber. Wide range of sieve of perforated.

• size: 5 to 10 Microns
• Motor: 3 HP / 2850 RPM / 3 Phase

All contact parts are made out of SS 316. No casting is used for avoiding contamination problems.Three oil seals between the motor and the processing chamber to prevent liquid going in the motor winding, resulting in the burning of the motor.Extended bearing housing specially designed to facilitate fine adjustments of bearing clearances or backlash to avoid metal to metal contact of rotor and stator. This unique design provides smooth and consistence all round performance and long life of rotor and stator.

We are backed by a well-structured and capacious storehouse that assists us in furnishing urgent and quick requirements of the clients. Moreover, we ensure complete safety of the stored items. Due to our commitment towards providing quality approved products to the clients, we source the raw materials only from the well-known and trusted vendors of the market. GMP Model Suitable for Homogenizing, Emulsifying Dispensing, Mixing, Commuting of liquids to highly viscous products Jacketed (Optional) It is based on rotor-stator principle Particle size reduction 5 to 10 micron Output-120 to 12000 Kg./shift 3.0 HP 440 volts Motor

We offer customers automatic suction hammer mill that comes in capacity ranging from 6 H.P. To 85 H.P. Available under the brand name 'Techno Wings' these automatic machines maintain due to continuity flow through automatic suction through motor. Further, the ampere of motor does not fluctuate, hence increasing the working capacity of machine. The basic principle is straight forward. A hammer mill is essentially a steel drum containing a horizontal rotating shaft or drum on which hammers / blade are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars / blade and is thereby shredded and expelled through screens in the drum of a selected size. Key features of auto suction hammer mill Less operating cost due to automatic feeding. The size of cyclone body tank is bigger in these hammer mills. Automatic operations less production cost Easy to work & collect ground material without air pressure, due to dust collector. Through rotary suction machine red chili, cumin, coriander, husk of ground nut, rice bran, seeds of aratictrec (batool) soya bean are automatically sucked. Due to availability of beater carbides in automatic machines, it is not necessary to change beater frequently, which also ensures that production is not effected. Separate motor for hammer mill, blower, and rotary feeder, thus ampere of motors does not fluctuate, hence increasing the working capacity of machine. Operating principle of auto suction hammer mill The materials to be ground into the crushing chamber of auto suction hammer mill from feed hopper by gravity or through an automatic rotary feeder the carbides blades inside the crushing chamber accelerate the material to a very high speed to the toothed liner placed at the upper half of the crushing chamber. Shearing pulverises the material. The ground materials are continuously sucked by a centrifugal blower through screens placed at the bottom periphery of the crushing chamber and conveyed through a pipe into the cyclone dust collector for bagging. Excess air filtered through an air classifier. Particle size varied using screens with different size holes. Standard accessories of auto suction hammer mill 3 numbers motor pulley. 2 number cotton balloon. Anti-vibrating foundation stand with adjustable rail for motor. A set of perforated round holes screen are supplied with the machine. Extra accessories of auto suction hammer mill Suitable totally enclosed fan cooled three phases or single phase sq. Cage motor as per is: 325 or 996. {electricity (special power can be accommodated): 220/380/415 volts, 50/60 Hz, 3 phase} Suitable miniature circuit breaker as per is: 8828 with 3 meter cable & 3 pin top as per is: 1293 for single phase electric motors. Starters, main switch, ampere meter, capacitor for single phase electric motor. Foundation bolts V belts Magnetic hopper All contacting parts stainless steel 304 / 316 van be accommodated Application of auto suction hammer mill Hammer mills are exclusively meant for the grinding of turmeric, red chili, cumin, coriander, mango powder, sugar, wheat for ladu, salt, coffee, ayurvedic / homeopathic medicines herbs, roots, leaves, bark, dry fish, cattle and poultry feeds, food colors and so on so forth at large scale basis. Construction of auto suction hammer mill Rotary feeder is supplied with gear box. Hammer mill made from heavy duty mild steel fabricated body. Grinding chamber lined with serrated wear plates, which protects the body from wear and tear. Grinding is done by a set of swinging blades or hammers on a balanced rotor. A screen classifier forms the lower half of the grinding chamber. Blower is driven on a separate shaft with the help of a 'v' belts & separate motor.

• Material: Metal
• Thickness: 5-10mm
• Application: Mining
• Color: Silver
• Feature: Durable
• Finishing: Polished

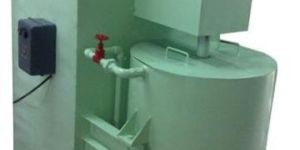

We offer our clients a wide range of Alkyd Resin Plants. Based on our vast experience, we have been able to comprehend the minutest needs of our clients. Our constant endeavors to offer our clients with best services and products have been appreciated by our clients and helped us in building a positive brand image. We provide assistance to our clients in making the correct choice based on their budget and attempt to meet their requirements on time. Our professional attitude and valuable and efficient services have helped us garner a wide client.Bead Mill is batch process equipment designed for optimum efficiency with very low energy requirement. Horizontal bead mills is used for coating, paint, printing, dye & pesticide manufacture. It is suitable for grinding and dispersion of medium viscosity products.

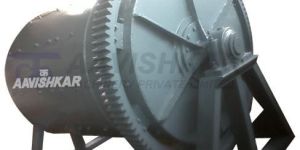

AAVISHKAR batch type ball mill is working as batch type operation. Adequate size, shape and qty Grinding media is placed inside rotary drum from inlet port. Material can be fed from inlet connection provided in shell. All ports need to close before start rotating rotary drum. Fed material rotates with rotary drum. Grinding media rotate and dropped in side and reduce particle size. Mixing and grinding operation being done simultaneously when drum rotates. Mill is to be stop after completion of batch and remove material from outlet port. Batch Type Ball Mill is operated as batch type. It is useful for wet or dry powder grinding as well as homogenously mix more than one material. Additives can be added for homogenously mixed during batch. It is for grinding Dyes, Ceramics, Pigment, minerals etc.

It is called so because the barrel of this machine is octagonal in shape designed so for enhanced efficiency and functionality. This machine is very useful for very hard material that such as quartz. Our octagonal type ball mill is widely demanded in the Industries across the world because they function very efficiently and offer an excellent output as well as are absolutely consistent and reliable. This is because they are designed and made by our expert professionals after far-reaching research as well as keeping in mind the norms of the industry. Their fabrication is done precisely following this design under the guidance of expert professionals. Our ball mill machines are made up of the finest grade of materials and components. We manufacture them with the aid of the latest technology and advanced machines and also thoroughly quality test the final finished product to ensure our clients receive only high performance machines that are totally flawless. They are mainly used by diverse industries to grind and mix chemicals, ores, alloys, minerals and graphite and cement etc. Our products are immensely demanded in the cities of India such as Warangal, Thane, Patna, Nellore and North Dumdum etc.   Salient Features : Enhanced efficiency High functionality Lucrative High Durability Very consistent Light in weight Low power consumption Compact Affordable

We are manufacturers and suppliers of Ball Mill that comply with industry standards. We also offer Ceramic ball mills that are extensively used in various industrial sectors for dispersion of enamels & primers, powder distempers and cement paints. Industrial ball mills made available by us are fabricated using quality-approved mild steel & stainless steel, and are used to grind materials into extremely fine powder. Owing to the quality and efficiency of our equipment, these find widespread demand for processing mineral dressing, paints, pyrotechnics and ceramics, among others. Our ball mills are perfect for dispersion of enamels and primers in the range of 25 kg to 5000 kg batch in both pebble and steel, with or without water cooling. Furthermore, the shrouded ball mills are especially designed & developed for powder distempers and cement paints.

COLLOID MILL is suitable for homogenizing emulsifying dispersing, mixing, comminuting of liquids to highly viscous products. It is based on rotor stator principle, It is avail OPERATIONS:- Product is feed to the operating areas of a rotor, having a speed of 3000 R.P.M by specially designed feed device. The product is processed by high sheer, pressure and friction between the stator and rotor , the angular gap becomes narrower towards the discharges section. This processed product continuously leaves the mill through the drain pipe, if required, it can be re circulated SALIENT FEATURES : All contact parts are made out of S.S. 304 (S.S. 316 on demand at extra cost). No castings are used to avoid contamination problems. • 2 Coupling provided between motor shaft and rotor shaft for ease in maintenance. 3 Three leak proof neoprene sealing device between the motor and the processing chamber to prevent liquid going in the motor winding. 4 Modified design of semi concave teeth in rotor and stator reduces motor h.p. and gives better performance in size reduction without damaging the products. 5 Extended bearing housing specially designed to facilitate fine metal contact of rotor and stator. 6 This unique design provides smooth and consistence all around performance and long life of rotor and stator. 7 Three way cock system for draining and recirculation of the liquids provided as standard. 8 Extra discharge sprout provided as a standard for viscous products. 9 DOL starter with overload relay for protection against single phasing and low voltage. 10 Contact parts can be easily dismantled for cleaning.

• Phase: 3 Phase
• Specialities: Long functional life , High functionality , Excellent operational fluency
• Power:  415 Volts
• Material: Stainless Steel
• Country of Origin: Made in India
• Item Code: TBM8479
• Capacity: 5 liter to 500 liter
• Model Name/Number: ABFTBM

• Brand Name: A+

Use conveyor system

Colloid Mill, rotary tablet, double rotary tablet press, Mixer Machine

Colloid Mill, pharmaceutical machines, filling, Polishing Machine

2 In 1 Out HDMI Splitter, HDMI Lane Extender 30 / 60 Meter

Jet Mill

Colloid Mill, Fluid Bed Dryer, Mass Mixer, Multi Mill

Ball Mill, Vessel, Centrifuge, Condenser, kcb clarifier, Baby Boiler
