Grinding Mill Dealers in Vastral, Ahmedabad

• Driven Type: Electric
• Condition: New
• Automatic Grade: Semi Automatic
• Voltage: 220 V
• Warranty: 1 Year

• After-Sales Service Provided: Engineers available to service machinery overseas
• Brand Name: Adinath
• Application: Granules
• Port: Mumbai
• Model Number: ABM
• Supply Ability: 5 Unit/Units per Month

• Model: BMCM - 15
• Output: 150 to 1500 Liters. 5 to
• Particle size reduction: 15 Microns
• Hopper capacity: 15 Liters
• Main Electrical Motor: 3 HP / 2850 RPM / 3 Ph.

*Depending upon material characteristics viscosity, density & micron size. R&D Model Available on Customer Demand. Totally leak proof design. Unique for small volume micronization. Modified design of stator-rotor assembly. Available in plain, water jacketed & flame proof options. Easy to dismantle for cleaning and maintenance

Our organization is one of the trusted Manufacturers and Suppliers of industrial Ball Mills that comply with international standards. In the range of our Ball Mills, we also offer shrouded Ball Mills that are extensively used for dispersion of enamels & primers, powder distempers and cement paints. Industrial Ball Mills made available by us are fabricated using quality-approved mild steel & stainless steel, and are used to grind materials into extremely fine powder.

Solide carbide ballmill 45hrc taysun make high proformance long life ready stock 1.00mm to 16.0mm 38mm to 200mm long.

• Main Motor Power (HP): 10
• Max Air Pressure of Pump(Mpa): 0.7MPa

Horizontal sand mill is suitable for all kind of products from low to high viscous pump able products for fine grinding with media. The bead mill sand mills are widely used in pint, ink, chemicals, Agro chemical and coating industries for size reduction and dispersing of pigments in liquid, Particle size reduction up to 2.

• Type: Spice grinding machine
• Brand Name: CRUSHTECH
• Masala mill: Spice grinding mill

We are offering masala grinding mill. Crushtech masala grinding mill is economical unit specially designed mill with cyclone and dust collector suitable for all types of spices for time saving operation. The spices are been feed through a wide feed hopper into the grinding chamber. The swinging hammers in the rotating rotor grind spices at the stationery liners & rotating hammers before passes through a screen. advantages: • interchangeable screens in numerous sizes to produce the exact & different particle size as desired • easy to change screens in a variety of sizes • cold, dust free & silent running. • low specific power consumption, increased production leading to faster return on the investments. • durable long life • low temperature rise for heat sensitive materials • pollution free working due to properly designed cyclone. • no rcc foundation is required if fixed on a specially designed avm pad frame. application: crushtech masala mill can be used for a wide range of application e.g., food products, herbs & spices like red chilies, black pepper, long pepper, white pepper, cinnamon, cardamom, coriander, red pepper, oregano, basil, thyme, dill seed, shell corn, gingko, ginseng, cava, ginger root, yucca root, cassava root, tea, coffee, etc.

• Voltage: 110V, 220V
• Automatic Grade: Automatic
• Output *: 150 to 1500 Liters.
• Particle size reduction *: 5 to 15 Microns.
• Hopper capacity: 15 Liters
• Main Electrical Motor: 3 HP / 2850 RPM / 3 Ph.

Silent Features : Coupling provided between motor shaft & rotor shaft for ease in maintenance Three oil seals between the Motor & the processing chamber to prevent liquid going in the motor winding, Resulting in the burning of the motor Modified design of semi concave teeth in rotor & stator reduces the motor HP & gives better performance in size reduction without damaging the product Extended bearing housing specially designed to facilitate fine adjustment of bearing clearances or back lash to avoid metal to metal contact of rotor & stator. This unique design provides smooth & consistence all round performance & long life of rotor & stator Leak proof neoprene sealing device Three way cock system for draining & recirculation of liquids provided as standard. Extra discharge spout provided as standard for viscous products DOL Starter with over load relay for protection against single phasing & low voltage Contact parts can be easily dismantled for cleaning Special design facilitates adjustments of the grinding gap by an exterior screw by means of handle even during operation Flame proof motor & Flame proof rotary switch can be provided on request at extra cost

• Weight: 500 LTR
• Color: Silver
• Condition: New
• Automatic Grade: Automatic
• Driven Type: Electric
• Country of Origin: India
• Warrenty: 1 Year
• Brand Name: Bhakti
• Material: Stainless Steel
• Feature: Good Quality
• Pressure: High

A ball mill is primarily a cylindrical device used for grinding or mixing different material such as chemicals, raw material, ores and paints. It rotates around a horizontal axis that is partly filled with the material to be ground along with the medium of grinding. The ball Mill operates by rotating a cylinder with grinding balls like steel. These Ball Mill shells produce excellent grinding of slag and cement. This product is very easy to operate and gives reliable performance and having a large capacity to do the work perfectly. We export and supply Ball Mills in wide range to clients in reasonable price

We engaged in manufacturing of Ball Mill which are used in heavy duty, continuous type ball milling in that we have three compartment and screen. Replaceable liners are fixed inside entire mill. Liners material and shape is selected based on material to be grind. Input material is fed in two primary grinding compartments. Large diameter balls for reduce particle size are laying inside first compartment. Material comes into second compartment for further grinding. Small size balls are laying inside second compartment. Material comes into third for fine grinding. Smaller size media are laying inside third compartment for fine grinding. Diaphragms may place to regulate material level and control retention time. Material is feed and discharged through hollow trunnion at opposite end. Accessories like air classifier, cyclone, blower, return air circuit or dust collector can also be placed for close loop system. Two tiers fixed on both end of mill, which are rotate on four rollers. Rollers are fixed on support and oil immersed. Mill rotates on four roller and two tiers. Girth gear is fixed on shell, which driven mating gear, gearbox and motor, which are fixed on heavy drive base. continous ball mill jmef continuous ball mill is useful for grinding coarse feed to get fine powder in single continuous operation. It is for grinding ceramics, cement, pencil, paint, chemical, ink, marble, coal, minerals etc. working process: heavy duty, continuous type ball mill with three compartment and screen replaceable liners are fixed inside entire mill liners material and shape is selected based on material to be ground. Material is fed in two primary grinding compartments large diameter balls for reduce particle size lay inside first compartment material comes into second compartment for further grinding small size balls are lying inside second compartment material comes into third for fine grinding

• Model: Bhagwati -1
• Capacity: 1 kg
• Drum Diameter: 90 mm
• Total Electric Power: 0.18Kw
• Drum Speed: Variable

APPLICATION & PROCESS : The Laboratory scale Ball Mill is mainly used for various grind able materials dry or wet type in Chemical, Pharmaceuticals, Herbals and Catalyst Industries for super fine micron size grinding. Shree Bhagwati Mechtech (India) Pvt. Ltd. Laboratory Scale Ball Mill is made from all the contact parts in S.S.316 & non contact parts in S.S. 304.The Drum Size: Dia 90 x 90 mm length cylinder type made from S.S.304 Quality. The drum is rotate on two nos. drive shaft and the shaft is rubber coated. The drum is having variable speed through Ac frequency drive for up to 60 RPM. The complete drive unit with motor and gear box is enclosed in structure and it is made from S.S.304Q. The Controls panel provided with ON-OFF push button, Speed regulator, RPM Meter and Process Cycle timer. NEW DESIGN FEATURES : Design as per stringent GMP Model. Contact parts of SS 316 and non contact parts of SS 304. Variable speed for drum up to 60 RPM. Drive shaft with rubber coating. RPM Indicator and Cycle Timer.

According to customers' requirements, CMMAC success in absorbing foreign experience and world-advanced technology, and in producing our vertical products, with self-owned intellectual property right.

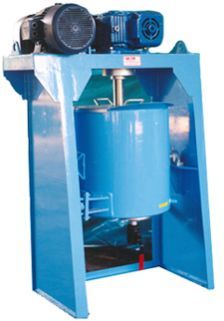

Attritor mill is used for grinding and blending process for wet or dry materials. Attritor mill performance is great and highly efficient. Attritor mill unique design consists of a top cover that can be locked on to the main vessel. It is provided in two halves. It also has mild steel jacket for cooling and an entire m. S inlet, outlet and drain fitting. Attritor mill stainless steel ball valve and strainers are specifically designed for providing corrosion resistant and easy to clean equipments. These attritor mill are used in various applications in the manufacturing of paints, inks, coatings and others.

Clit Colloid Mill is suitable for Homogenizing, Emulsifying, Dispersing, Mixing, Comminuting of liquids to highly viscous products. It is based on rotor-stator principle. It is available in plan as well as Water Jacketed model which is suitable for heat sensitive products. Flame Proof electrical can be supplied on demands.

• Voltage: 380 V
• Dimension(L*W*H): 1000*600*900mm
• Spindle Speed(r/min):: 1440
• Weight:: 330 kg
• Motor:: 7.5 HP

• Features: Aesthetical exterior appearance,Unique and self contained design,Mild steel structure, which is powder coated in attractive shades,Safe, Quiet & smooth operation
• Built in timer: 0 – 100 Minutes
• Rpm: 20- 400 RPM to achieve variable speeds
• RPM Display: Digital RPM Display
• Jar capacity: 300 CC
• No. of Jars: 02 Nos
• Power supply: 230 Volts, 50 Hz, 1ph, AC Supply
• Power consumption: 1/3 Hp
• Weight: 130 Kg

• Item: Ball Mill
• MOC: IS2062
• Capacity: 3KL
• Size: 1650mm ID X 1500mm Long X 25mm Thick

A prominent supplier of huge range of Ball Mill.

Our organization is one of the trusted manufacturers and suppliers of industrial Ball Mills that comply with international standards. Ball mill capacity is 250 kg to 2500 kg.In this product range, we also offer shrouded ball mills that are extensively used in various industrial sectors for dispersion of enamels & primers, powder distempers and cement paints. Industrial ball mills made available by us are fabricated using quality-approved mild steel & stainless steel, and are used to grind materials into extremely fine powder. Owing to the quality and efficiency of our equipment, these find widespread demand for processing mineral dressing, paints, pyrotechnics and ceramics, among others. Our ball mills are perfect for dispersion of enamels and primers in the range of 25 kg to 5000 kg batch in both pebble and steel, with or without water cooling. Furthermore, the shrouded ball mills are especially designed & developed for powder distempers and cement paints. Owing to our expertise, we manufacture and supply a wide assortment of ball mills. Manufactured using high grade raw material as per the industry norms, these are highly admired by our clients. Due to their robust design, high tensile strength, trouble free operation and longer service life, these are widely used for various applications in diversified industrial & commercial sectors. Apart from this, these are available in various sizes and models as per the varied specifications provided by clients. The ball mill is very routinely used in varnish, distemper, paint industries, chemical industries. It is useful in matching colors, distemper paint etc. In bulk production.

• Capacity: 500kg
• Drive Power: 10hp

 Pug mixer inner walls are constructed of SS or MS sheets. The mixer consists of a centre shaft of appropriate diameter and is either made of S.S or M.S materiaI. The centre shaft is fitted with specially designed agitator blades in order to provide contraflow action. Contraflow ensures constant circulation of mix/blend ingredients from one end to another to homogenise the batch.  Both the ends of the vessel are provided with stuffing boxes on the shaft. Blend ingredients are prevented from leaking and entering into bearings by the stuffing box. The shaft is supported by heavy duty pedestals. For models below 300 kgs the unit is provided with a pulley drive system along with tilting arrangement for discharge.    For models above 300 kgs the unit is provided with a gearbox drive coupled to a motor and the discharge valve provided at the bottom

• Capacity: Diameter - 20" Length - 36"
• Parameters: 180 T
• Power: 5 HP / 3PH / 440V
• Output: 7.5 CBM / Hour

Used for plantations, tea-gardens, paper mills, sugar factories, forestry, boiler house, municipalities For 100 time faster splitting of logs Employed German technology Splitting vertically at a very high speed Suitable for splitting logs as fire wood

• Phase: 3 Phase
• Specialities: Long functional life , High functionality , Excellent operational fluency
• Power:  415 Volts
• Material: Stainless Steel
• Country of Origin: Made in India
• Item Code: TBM8479
• Capacity: 5 liter to 500 liter
• Model Name/Number: ABFTBM

Uses for Various type of Mixing and Blending of Powder, Chemical, Paint, Putty and many other chemical, liquid, Solids, Solid liquid. Suitable for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding to blend and mixing of Dry , Wet material, with jacket or without jacket Available Blending Capacity Ranging from 50 litrer to 1000 liters It is available in different sizes and capacity : - Ranging from50 liters capacity to 5000 liters.

This type of ball mill is specially designed for getting batch by batch output. This machine is preferred for both wet & dry (either one at a time) milling. It is also applied for homogenous mixing of the materials. This machine offers high performance and can crush very hard materials consuming very less amount of time. Our clients prefer this machine as it is very robustly constructed utilizing the finest quality materials and the most advanced technology in compliance to the norms of the industry. They are also thoroughly quality tested to ensure their faultlessness and only when they are confirmed for their quality they are supplied to the customers. Our products have excellent features such as they are easy to install and operate, they are resistant to wear and tear as well as corrosion. The cleaning and maintenance of this machine is very easy and it consumes power reasonably and is suitable for grinding dyes and pigments, ceramics, quartz, clay, minerals etc. we are the ball mill supplier at very affordable rates. Batch type ball mill operates by taking in the material to be grinded via the inlet port into the rotary drum. Before the rotary drum begins to rotate the ports are closed. Then the material starts to mix and grind in the drum as it rotates. Once the process is complete the ball mill stops and the processed material is gathered via the outlet port.   Salient Features : Apt for both dry and wet grinding Massive processing volume Ideal for batch by batch output Power-efficient Easy to install and operate Resistant to wear and tear & corrosion Lucrative Incredibly durable

We manufacture and export a wide range of cage mill. These high quality equipment, manufactured using high quality raw materials, are assured of greater longevity and immaculate performance. These are used to bring uniformity in the particles.

Hammer Mill / Hammer Crusher / Lump Crusher;Hammer Mill works on the principle that most materials are crushed, shattered or ground upon heavy impact of hammers/beaters. The material is struck with grouped hammers which are attached to a shaft which rotates at high speed in the chamber. The material is crushed or shattered by the repeated impact of hammers, collisions with the chamber the walls of grinding chamber. Perforated heavy screens and bar grates covering the discharge opening allows the material to exit when it gets desired size, while keeping coarse particles in the chamber for further grinding.Features & Benefits Heavy Screen is attached with it so no further screening/sizing is required Available in MS, SS-304, Ss316 or combination of them material of construction. For Abrasive and Hard materials, High Manganese or any other hardened steel liners and hard faced hammers are provided for longer life of wear spares. Arrangement for easy replacement of Screen. Robust Construction & Lower Power Consumption.

Product is feed to the operating area of a rotor, having a speed of 2800 R.P.M by specially designed feed device. The product is processed by high sheer, pressure and friction between the stator and rotor, the angular gap becomes narrower towards the discharges section. This processed product continuously leaves the mill through the drain pipe, if required, it can be re-circulated. SALIENT FEATURES All contact parts can be easily and quickly dismantled and cleaned. Machine is designed for continuous operation. Cylindrical screen for higher output.   Flame proof electrical can be provided at extra cost.

We offer customers automatic suction hammer mill that comes in capacity ranging from 6 H.P. To 85 H.P. Available under the brand name 'Techno Wings' these automatic machines maintain due to continuity flow through automatic suction through motor. Further, the ampere of motor does not fluctuate, hence increasing the working capacity of machine. The basic principle is straight forward. A hammer mill is essentially a steel drum containing a horizontal rotating shaft or drum on which hammers / blade are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars / blade and is thereby shredded and expelled through screens in the drum of a selected size. Key features of auto suction hammer mill Less operating cost due to automatic feeding. The size of cyclone body tank is bigger in these hammer mills. Automatic operations less production cost Easy to work & collect ground material without air pressure, due to dust collector. Through rotary suction machine red chili, cumin, coriander, husk of ground nut, rice bran, seeds of aratictrec (batool) soya bean are automatically sucked. Due to availability of beater carbides in automatic machines, it is not necessary to change beater frequently, which also ensures that production is not effected. Separate motor for hammer mill, blower, and rotary feeder, thus ampere of motors does not fluctuate, hence increasing the working capacity of machine. Operating principle of auto suction hammer mill The materials to be ground into the crushing chamber of auto suction hammer mill from feed hopper by gravity or through an automatic rotary feeder the carbides blades inside the crushing chamber accelerate the material to a very high speed to the toothed liner placed at the upper half of the crushing chamber. Shearing pulverises the material. The ground materials are continuously sucked by a centrifugal blower through screens placed at the bottom periphery of the crushing chamber and conveyed through a pipe into the cyclone dust collector for bagging. Excess air filtered through an air classifier. Particle size varied using screens with different size holes. Standard accessories of auto suction hammer mill 3 numbers motor pulley. 2 number cotton balloon. Anti-vibrating foundation stand with adjustable rail for motor. A set of perforated round holes screen are supplied with the machine. Extra accessories of auto suction hammer mill Suitable totally enclosed fan cooled three phases or single phase sq. Cage motor as per is: 325 or 996. {electricity (special power can be accommodated): 220/380/415 volts, 50/60 Hz, 3 phase} Suitable miniature circuit breaker as per is: 8828 with 3 meter cable & 3 pin top as per is: 1293 for single phase electric motors. Starters, main switch, ampere meter, capacitor for single phase electric motor. Foundation bolts V belts Magnetic hopper All contacting parts stainless steel 304 / 316 van be accommodated Application of auto suction hammer mill Hammer mills are exclusively meant for the grinding of turmeric, red chili, cumin, coriander, mango powder, sugar, wheat for ladu, salt, coffee, ayurvedic / homeopathic medicines herbs, roots, leaves, bark, dry fish, cattle and poultry feeds, food colors and so on so forth at large scale basis. Construction of auto suction hammer mill Rotary feeder is supplied with gear box. Hammer mill made from heavy duty mild steel fabricated body. Grinding chamber lined with serrated wear plates, which protects the body from wear and tear. Grinding is done by a set of swinging blades or hammers on a balanced rotor. A screen classifier forms the lower half of the grinding chamber. Blower is driven on a separate shaft with the help of a 'v' belts & separate motor.
