Guar Gum Plant Dealers in Ahmedabad

The Guar Powder Plant has a typical role as the raw material of Guar-Gum Powder.It is very important to select guar split in this process. The spilt is screened to clean it and then soaked to pre-hydrate it in a double cone mixer. The Pre-hydrating stage is very important because it determines the rate of hydration of final product. The soaked splits, which have reasonably high moisture content, are passed through a flaker. The flaked guar split is ground and then dried. The powder is screened through rotary screens to deliver required particle size. Oversize particles are either recycled to main Ultra fine or reground in a separate regrind plant, according to the viscosity requirement.This stage helps to reduce the load at the grinder. The soaked splits are difficult to grind. Direct grinding of those generates more heat in the grinder which is not desired in the process as it reduces the hydration of the products. Through the heating, grinding, and polishing process, the husk is separated from the endosperm halves and the refined Guar Gum split is obtained. Through the further grinding process, the refined Guar split is then treated and converted into powder.The split manufacturing process yields husk and germ called "Guar Meal", widely solid in the international market as cattle feed. It is high in protein and contains "Oil and Albuminoids ", about 50%in germ and about 25% in husks. The quality of the food grade guar gum powder is different grades and qualities of guar gum by particle size, the viscosity generated with a given concentration, and the rate at which that viscosity more slowly, They may achieve a reasonably high viscosity, but will take longer to achieve. On the other hand, they will disperse better than fine mesh, all conditions being equal. A finer mesh, like a 200 mesh, requires more effort to dissolve. The plants supplied by us are capable of most of the grades of Guar Gum from split.M. V. Industries can provide the machinery for derivatives and Modified of Guar Gum.

Guar gum plants are used for processing gaur gum to configure and design it in such a way that it requires least work force at minimal heat. Gaur gum is an emulsifier, thickener and stabilizer used in food, cosmetics, pharmaceuticals and other industries. It is generally used for textile sizing, finishing and printing in textile industry. It also has various applications in paper and explosive industry.

Cyamopsis tetragonolobus and psoralioides are the botanical forms of Guar plant whose seeds are processed to separate the endosperm from which Guar gum is obtained. These are leguminous plants and suitable for growing in all seasons including rainy season or in hot summer so, it is called annual plant. It is extracted from the endosperm of these seeds contains carbohydrate with high molecular weight. And this type of crop can be cultivated with good productivity in sandy soils. It is applied for its thickening property and this remains the main application of this product. The presence of edible carbohydrate polymer makes it suitable for adding as a reagent in hydrogen and mineral bonding and even in cellulosic surfaces. Guar gum powder is fine in texture and it stays white in color. Apart from that it is also coarse, ironic and free flowing in nature. This powder contains excellent thickening capacity and can show thickening property eight times higher than that of the thickening capacity of corn starch. For the same reason, it is extensively used in food processing applications. In addition, it is also used as an effective ingredient in milk products, baking mixes, dressings. Commercial and industrial usage includes applications in textile, paper manufacturing, cosmetic, pharmaceutical and printing.

We are offering guar gum powder plants, machinery capacity: as per requirement pneumatic system split cleaning split washer double cone mixer water tank flaker machine flakes dryer ultrafine pulverizer boiler heat exchanger pneumatic flash dryer line blower, cyclone, dust collector with accessory rotary siever nauta mixer (conical blender) misc. Pipe-lines

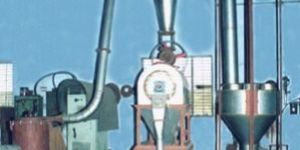

We Ultra Febtech - An ISO 9001:2008 Certified Company Engaged in Manufacturing of guar gum plant to Convey the Material.The plant has been configured and designed in such a way that minimum work force will require. The guar split will be fed in to the pneumatic system to feed in to the turbo screen. The turbo screen is suggested at the high of plant. The screening will be employed for the removal of foreign matter. This screened material will be stored in a storage hopper. The guar splits will fall from the screens by gravity to the storage hopper, which is configured below the screen. From storage hopper material can be taken in to double cone mixer as and when required by gravity for the rehydrating of guar splits. All the rehydrated guar split will be sent to the hopper of Flakers at a time by gravity. Flakers will crush the guar splits and crushed guar splits will go into the ultrafine grinder at the uniform rate. Ultrafine grinder is proposed for the grinding of crushed guar splits. This grinder has ability to grind the material without generating too much heat. Material will be fed into the dryer. Oil will be the media to convey the heat and deliver to the air. This hot air will take the material into the dryer line where actual drying will take place. Attached cyclone system will separate the material and hot air. To heat the oil Thermal boiler will be used. The material will be screened through centrifugal screen. Material passing through the screen will be again screened through turbo screens as additional control. This material will be sold as a premium product. Oversize of the centrifugal screen will be screened through turbo screen to separate another grade in terms of particle size followed by additional screening. The oversize will be screened through another turbo screen to separate another grade. Oversize will be passed through another grinder.

• Color: Pale-white
• Appearance: Bright creamy yellow

Guar Gum Refined Split is refined form of guar gum plant endosperm derived from guar seed or cluster bean. Guar beans are harvested and dried following the growing season. The beans are shelled from the pods, the germ and hull removed. The resulting splits are wet-milled into powder; the powder is graded by granulation and quality. Products are re-blended according to specification, bagged and marked.

Guar Dehusking Plant Consist Following Machinery: Cleaning, Splitter, Elevator, Pneumatic Conveyor, Centrifugal, Roaster, Dehusking, Cooler, Cone Mixer, Bagging, Rotary Siever, Ultrafine Pulverizer, Water Tank, Flaker Machine, pneumatic dryer line, conical blender. Guar Dehusk Split Powder Plant Consist Following Machinery: Mesh “200 ”300. Viscosity 3500 – 8000 cps elevator cleaning, store, double cone mixer, flaker, ultrafine grinder, dryer, siever, cone mixer, pneumatic conveyor, fan, cyclone, airlock, dust collector.Guar Gum Split Plant Process for grinding of guar splits is by ultrafine grinder without generating heat. They will be kept in dryer and will be blended before testing of soaked splits. Ultrafine Pulverizer helps to ground the flaked guar split.Food Feed& Spice Milling for grinding Marize ,Wheat,Besan ,Gralic, Onion, Chilley Sugar,Slot. * We will design, develop, fabricate and install as per customer production capacity and quality requirement.

Guar Gum Plants are highly necessary for processing guar gum process. It is easy to operate at the same time this machinery only needs low maintenance. Even it utilizes low power and fuel that offer ultimate results. We are involved in manufacturing high-quality Guar-gum plant& machinery as well as supplying of guar gum plant across the country. Our machines come with unique qualities that also ensure your comfort zone. Our machines are perfect for a system containing grain handling, washing, grinding, hydration, drying, blending, packing, flaking, refining, etc. Of course; these plants also equipped with most efficient air heating system this factor will reduce operating cost.
