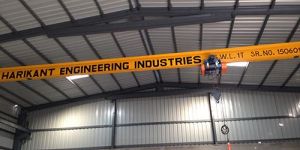

Single Girder E.O.T. Crane
“HARIKANT” Make Single Girder Cranes are designed and manufactured in accordance with IS: 3177 and IS: 4137 considering adequate factor of safety with respect to appropriate duty. The Structure parts of the cranes are designed in accordance with IS: 807. Cranes are manufactured with standard components and controls to ensure reliability. Span: 3 mtrs. to 30 mtrs. S.W.L: 500 kgs. to 20,000 kgs.
...more
Jib Crane
HARIKANT” Make Jib Crane for a lifting option of a smaller space. This crane is an excellent choice, as it is strong and versatile, robust and flexible. The tough construction of the Jib Boom ensures that it will not wear out. These cranes can be used for material and machinery loading – unloading small assembly jobs, localized fitting etc. Pillar mounted Jib Cranes are designed to serve a 360 Degree arc. Boom Length: 2 mtrs. to 6 mtrs. S.W.L: 500 kgs. to 5,000 kgs.
...more
Hydraulic Shearing Machine
Length: 2500 mm – 4000 mm Thickness: 4 mm – 16 mm SALIENT DESIGN FEATURES Mono block of welded steel frame rigid to deflection / tensile movement due to high tensile stress. Easier and accurate adjustment of gap of blades for burr-free cuts. Manual back gauge with 1000 mm range. Electrical adjustment of rake angle as per thickness of material for twist-free cuts. Synchronized beam guided system for constant gap between blades. Extra capacity to cut thicker plate than nominal thickness capacity. Blades produced from high alloy steel with functional four sides. Adjustable cutting and clamping forces for quality cutting and electric power saving. Rapid cutting of short pieces by electrical stroke adjustment system. STANDARD FEATURE ACCESSORIES Moving beam synchronized by differential cylinders. Hardened rollers of guide beam for constant blade gap. Blade gap easily adjustable by calibrated levers. Rake angle adjustable to suit thickness and material. Activation from console and movable foot switch. Clamping of sheet hydraulically before cut starts. Stroke length- position can be set for short jobs. Beam returns by releasing foot switch for smaller cuts. First two hold downs spaced closer at cutting side. Squaring arm 1000 mm at left side. Hardened rods on table for safe and easier feeding. Two front supports for supporting longer plates. Compact, low maintenance of salient hydraulic system. OPTIONAL ACCESSORIES Front operated motorized Back gauge 1000 mm travel with D.R.O. NC back gauge with Ball Screw.
...more
Hydraulic Press Brakes
SALIENT DESIGN FEATURES Mono block of welded steel frame of ultra tested 2062 steel plates rigid to provide accurate bending. All pivots are hardened of ground pin bushes of lubricated by a central hand pump. Repetitive accuracy is within ± 0.03 mm ram travel parallelism without using sensitive and complex servo hydraulics. Most reliable hydraulic components and sealings of international reputed design for 350 bar against operating pressure of 160 bar maximum. Three cycles of operation inch, single cycle and auto for greater operator convenience. Movable operator console is provided with switches for cycle selection, ram up-down travel, emergency stop and motor on / off. Front operated manual back gauge. Electrical panels and components are provided as per international reputed brands. Precisely panels and manufactured cylinders provide unlimited trouble free working life. Seals can be changed quickly without dismantling the ram or need of crane. STANDARD FEATURE ACCESSORIES Main drive motor of standard make. Electrical control panel with three speeds inch, single cycle and auto mode of operation. Two front sheet supports. Front operated manual back gauge. Pair of lifting links. Fine stroke adjustment rod with limit switches. One suitable 5 way die and blade. (Segmented or full length, EN-9, Not covered under warrantee) Movable console with emergency stop. Tonnage indicating adjustment device. Manual centralized lubrication system with a hand pump. Bending Chart. OPTIONAL ACCESSORIES NC Back Gauge Motorized Back Gauge with D.R.O. Finger for standard Back Gauge Automatic Lubrication System.
...more

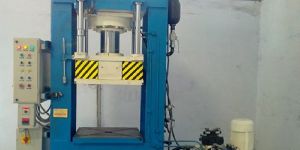

Hydraulic H-Type Press
“HARIKANT” Make Presses are designed for various applications like blanking, trimming & Punching applications. Its unique H Frame design allows to take heavy loads at minimum deformation. SALIENT DESIGN FEATURES H Frame presses are designed to take heavy loads Heavy adjustable dovetail guides are capable of taking axial and side thrusts. Suitable for long forming jobs due to rigid close frame structure The cylinder is self guided and outer cylindrical guide arrangements are specially designed to suit the operation requirement for longer life Optional multiple speed for approach, pressing & return strokes saves cycle time International quality hydraulic & electrical components to ensure long service life Hydraulic cylinders made of seamless hone tubes & hard chrome plated rod. Latest technology PTFE seals with bronze guide tapes in hydraulic cylinders ensure long life. APPLICATIONS Forming of various automobile parts Various embossing shapes in sheet metal Straightening of I-beam and Plates Dish end forming Forming of different shapes in sheets and plates Blanking, Trimming & Punching Applications
...more

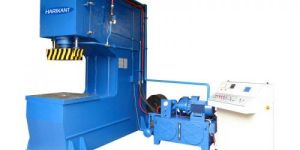

HYDRAULIC C-TYPE PRESS
HARIKANT” Make Presses are designed for various applications like straitening, trimming, punching & stamping applications. Its unique design offers the flexibility & ease of operation as three sides are open. SALIENT DESIGN FEATURES C Frame presses are available in various table sizes and throat depth designs to facilitate the various job requirement. Suitable for jobs which need three side open area accessibility The cylinder is self guided and outer cylindrical guide arrangements are specially designed to suit the operation requirement for longer life Optional multiple speed for approach, pressing & return strokes saves cycle time International quality hydraulic & electrical components to ensure long service life Hydraulic cylinders made of seamless hone tubes & hard chrome plated rod. Latest technology PTFE seals with bronze guide tapes in hydraulic cylinders ensure long life. APPLICATIONS Hole, capsule & Square punching in various sections and plates Various embossing shapes in sheet metal Straightening of round bar, I-beam and plates Punching & cutouts in panel enclosure & busbar Bending of sheet metal plates Forming of different shapes in sheets & plates Blanking, Trimming& Punching Applications Punching & stamping in plates and angle for transmission line structure
...more
Goods Lift
“HARIKANT” Make Goods Lift is having winch instead of balancing lifting machine or Hoist. Winch mounted on a top of supported structure. In the absence of a RCC well inside the building, a fabricated enclosure supporting structure can be erected on site. The Cage is made of rolled Steel sections and sides are covered with bumped sheet or hollow pipes. (as required) Cage top is covered with M.S. Sheets and bottom is covered with chequered plate for antiskid property. Collapsible doors are provided on cage as per entry and exit position if required. The cage is being guided with Guide shoe on ‘T’ Guide rail. Antifriction bearings are provided for smooth and efficient traveling with low friction and longer Life. SPECIAL FEATURES Limit Switches with one gravity switch will be provided to prevent over lifting & below lowering of cage. Limit Switch at each landing level floors and cage door to avoid any accident causality. Electromagnetic door looks at each landing level to ensure:(i) Lift does not work electrically if any door is open.(ii) The Collapsible gate does not open mechanically unless cage is reached corresponding level. Spring buffer on the lift well to cushion the cage. Floor Level: Ground Level + 10 Pay Load Capacity: 500 kgs. to 5,000 kgs.
...more
Goliath Crane
HARIKANT” Make Goliath Cranes are adapted to applications where overhead runways would be not possible, costly to erect and difficult to maintain in alignment. Where the installation is only temporary a gantry crane can be moved to a new location with less trouble or expenses than an overhead crane and its runway. Also it is comparatively easy and inexpensive to extend the length of the runway and thus increases the working area of the crane. Most goliath crane installations are outdoor applications. Features Economical solution to bridge cranes Heavy and Light duty Efficient and safe operation Minimum effective cost & Maintenance Safe Working Load: 5 mtrs. to 50 mtrs. S.W.L: 1000 kgs. to 1,00,000 kgs.
...more

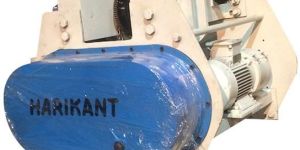

Electric Wire Rope Hoist
“HARIKANT” Electric Wire Rope Hoists are manufactured in Wide Range like lifting capacities between 500 kgs. to 20,000 kgs., Lifting Height up to Customer’s requirement with various types of Cross Travel Trolleys like Power Trolley, Flexible Trolley, Push Pull Trolley, Hand Geared Travel Trolley. SALIENT FEATURES Electric Wire Rope Hoist are designed which greatly simplifies repairs and Cut-down time. The Special Features are low head room, spur and helical gears running on antifriction ball bearings with lubrication including oil and grease. Squirrel Cage Motors confirming to IS 325. Disc type / Shoe type Electromagnetic brakes for hoisting and cross travel motions “fail to safe” brakes which automatically operate in case of any power failure. Rope drums made from seamless pipe. Forged hooks confirming to IS 3815 with supporting on thrust bearings for 360 degree swivel and safety latch. Tested wire rope confirming to IS 2266. Limit switches for upper and lower limits for safe operation. Micro speed for hoisting and cross travel motion shall be provided if required. Push button stations operating from Ground Level. Flame proof Hoist (FLP) also manufactured.
...more

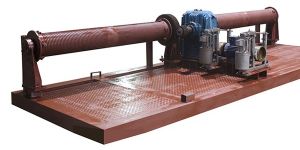

Electric Operated Winch
“HARIKANT” Make Winch is used for pulling heavy loads, erecting pillars and poles, tensioning Electric lines. It is also used for Vertical Lifting loads. S.W.L: 500 kgs. to 30,000 kgs. Lift: 1,000 mtrs.
...more
Double Girder E.O.T. Crane
The Double Girder Cranes are generally used when heavy loads and wide spans are required. Double Girder Cranes consists of two torsion-free box Girders consists and load lifted by Crab which is running on the Top of two Girders. Platform with hand railing for easy, simple and safe maintenance of the crane extended partially or totally along the girder width. Span: 5 mtrs. to 80 mtrs. S.W.L: 500 kgs. to 1,50,000 kgs. Crane Girder: Crane Girders are of plate box type / standard rolled steel / compound beams. All the main butt weld joints of the web are strong and rigid structure thus 100% reliability of welded joints is ensured. The material of conforms to IS: 2062-1992. Motors: The motors are used specially crane duty (S4) Squirrel Cage & Slip Ring Motors suitable for frequent starting, reversing and braking in accordance with IS: 325. Motors are totally enclosed in dust proof & fan cooling (TEFC) construction, insulation class ‘F’, IP54 protection, foot / flange / face mounted. Brakes: Electromagnetic single – dual AC disc type / electromagnetic shoe type / Electro Hydraulic Thruster brakes are provided in all three motions. These brakes are “FAIL TO SAFE” type means automatically release when the motor circuit it on and applied when motor circuit is off. DC brakes are also provided on request. Gear Box: The entire gear boxes are made of accurate hob cut helical spur gears & pinions having hardness 250 to 300 BHN made from carbon-alloy steel. All gears & pinions running on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication. The helical / spur gear designed for adequate strength and optimum wear resistance for smooth operation and long life. Wheel Assembly: Long travel wheels are straight treaded double flanged forged steel wheels. Wheels are supported on antifriction ball or double row self aligned spherical roller bearings in special blocks of ‘L’ type design for easy maintenance. Speed: Selected depending on client specifications / applications / shed dimensions. Crane Control: From floor through pendant push buttons, optionally through radio remote control / cabin with master control (depending on customer’s choice and application) Power Supply System: To Hoist and cross travel through trailing cables / Drag Chain to crane through shrouded bus bars / Trailing cable / M.S. Angle iron Conductors / Bare Copper conductors (depending on customer’s choice and application) Electric Panel: Modular Design ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading. Limit Switch: Safety limit switches for stoppers will be provided to prevent over traveling in all motions. Painting: Two coats of primer before assembly and Two coats of synthetic enamel after testing.
...more
