Hasmukh Engineering Works Vatva, Ahmedabad, Gujarat

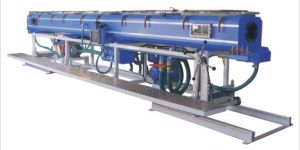

Single Double - Chamber Vacuum spary thanks are used for calibrating and cooling of RPVC and HDPE pipes in vacuum sizing. Tank with Mild Steel construction Mechanical seal spray pump with high head and high flow rate Mechanical seal vacuum pump Manual longitudinal adjustment on rail

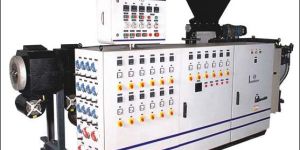

PVC being a heat sensitive material, which requires a high controlled temperature during process. Extrusion of PVC is best possible with twin screw extruder. Hasmukh's parallel twin screw extruders are crucial for the efficient extrusion of high quality PVC pipes.

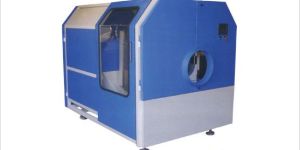

    Threading by removable of Material on both ends (internal thread on one end & external thread on other end) by planetary rotating carbide saw. Standard Features : Trapezoidal thread (as per IS - 12818) Square Thread Optional Features : Simple in Operation (Layman can Operate) Robust and Study design AC Servo and PLC operated Fast threading compared to conventional threading machine No setting is required for different pipe diameter No change of saw for internal and external thread

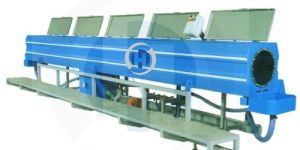

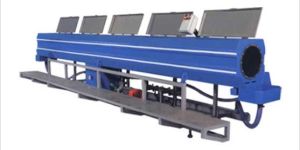

Single Chamber Extra Cooling spray tank is used for an additional cooling of pipes for higher output pipe extrusion line   Standard Features : Tank with Mild Steel construction Mechanical seal spray pump with high head and high flow rate Fixed on jacking screws Appropriate working platform with aluminium chequred plate 1 .5" x 1 nos. Inlet connection Easily cleanable spray nozzles Optional Features : Tank with Stainless Steel construction Precise water level control system with visual manometer Water temperature control with thermostat and solenoid valve All piping Including spray pipe with stainless steel lnsulation on outer side of the tank Pipe support with central height adjustment Dual disc type water filter in spray pumps with 200m mesh (manual back flushing) Glycerine filled pressure gauge on disk type water filter to see blockage of filter

Threading by removable of Material on both ends (internal thread on one end & external thread on other end) by planetary rotating carbide saw.

Specialities : Trapezoidal thread (as per IS - 12818),Square Thread.

Color : Blue

Capacity : 500-1000 L

Type : Cooling Tank

Country of Origin : Made in India

Capacity : 80 kg/Hr

Country of Origin : Made in India

Color : Gray And Black

Country of Origin : Made in India

Automation Grade : Automatic

Capacity : 50 kg/hr

Country of Origin : Made in India

Threading by removable of Material on both ends (internal thread on one end & external thread on other end) by planetary rotating carbide saw. Simple in Operation (Layman can Operate) Robust and Study design

Country of Origin : Made in India

Type : PVC Double Belt Haul Off

Country of Origin : Made in India

Color : Blue

With characteristics like unmatched standard and superior grade, our range of product is the finest one obtainable in Gujarat(India). By guaranteeing complete security of the products, we make sure that our buyers remain satisfied with us. For this, we store the entire lot in our state-of-the-art warehouse.

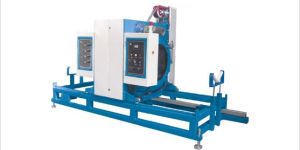

Pipe cutting by carbide tipped saw with planetary motion.   Standard Features : Carbide tipped cutter for longer life. Smooth and clean cut. Movement through pneumatics cylinder for smooth operation. Clamping force adjustable, depending upon wall thickness & diameter of pipe. Saw table movement through pneumatic cylinder can be synchronized with pipe line speed Universal clamping system to accommodate entire range of pipe sizes AC drive for drum rotation Inbuilt pipe cutting counter Optional Features : PLC operated

Cutting cum Chamfering Machine is used to cut & chamfer the pipe in single operation by single point cutting tools   Standard Features : Simple Lathe machine tools Smooth, clean & perpendicular cut Adjustable clamping force , depending upon wall thickness & diameter of pipe Saw table movement through pneumatic cylinder can be synchronized with pipe line speed Universal clamping system to accommodate entire range of pipe sizes on exit side & individual pipe clamps at entry side for smooth & perpendicular cut PLC operated Rapid & single tool setting Proper safety guards Optional Features : AC Variable Frequency Drive for tools rotation

PVC being a heat sensitive material, which requires a high controlled temperature during process. Extrusion of PVC is best possible with twin screw extruder. Hasmukh's parallel twin screw extruders are crucial for the efficient extrusion of high quality PVC pipes.

Material : HDPE

Country of Origin : Made in India

Double belt Haul off for optimum pulling force and to prevent ovality even for large diameter and thin wall pipe.Pneumatic clamping of pipe ensure ease in set up and efficient pulling of pipe.Common drive with AC geared motor.Easily removable rubber pads Poly 'V' belt.Wide range of line speed is available and a required speed is selected very easily through AC frequency drive.

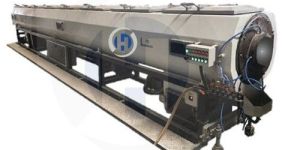

Single Double - Chamber Vacuum spary thanks are used for calibrating and cooling of RPVC and HDPE pipes in vacuum sizing.   Standard Features : Tank with Mild Steel construction Mechanical seal spray pump with high head and high flow rate Mechanical seal vacuum pump Manual longitudinal adjustment on rail Precise Water level control system with visual manometer Water temperature control with thermostat and solenoid valve Dual transparent chilled water inlet filter system for cleaning during operation Height and side manual adjustment Appropriate working platform with aluminium chequred plate Common drain header with 4” x 2nos. Connection 1.5” inlet connedtion Easily cleanable spray nozzles Optional Features : Tank with Stainless Steel contruction Adjustable spray nozzles pipes (above HVT-250 model) Motorized Longitudinal adjustment on rail All piping including spray pipe with stainless steel Insulation on outer side of the tank Special imported spray nozzles Pipe support with central height adjustment Dual disc type water filter in spray pumps with 200m mesh (manual back flushing) Glycerin filled pressure gauge on disc type water filter to see blockage of filter

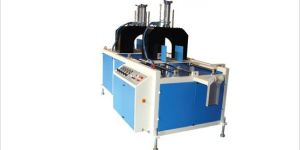

Coupler pipe cutting with adjustable cut length and adjustable diameter by carbide tipped saw with plunger type cutting operation.   Standard Features : Cutting with safety guard Carbide tipped cutter for longer life. Smooth and clean cut. Movement through pneumatics cylinder for smooth operation. Clamping force adjustable, depending upon wall thickness & diameter of pipe. Simple in operation Inbuilt coupler counter Optional Features : PLC operated Pipe linear motion with AC servo & ball screw

Material : HDPE

Phase : 3 Phase

Country of Origin : Made in India

Threading by removable of Material on both ends (internal thread on one end & external thread on other end) by planetary rotating carbide saw.
