Industrial Heavy Duty Drilling Machine Dealers in Ahmedabad

Column, Arm, Work Head & Gears are made out of Closed Grain. Parts Properly Balanced Prior Assembling of Main Gear & Pully Parts Finished on imported Grinding Machine All moving parts Finished to close Tolerance Spindle Ram is made out of Alloy Steel. Main Spindle & Pinon are Made out of EN Forged Steel. Radial Drill Machine(BR-38) This model can make hole a little more than BR 25 and the making hole capacity is 38mm. The column diameter is 170mm and the distance of drilling head from the spindle is 620mm which helps for precise making hole operation. The number of spindle speed that can be obtained in this model is 8. The spindle speed is 110-2125 rotations per minute and the diameter of ram is 78mm. The spindle is made of EN forged steel and all the parts are processed with the help of imported grinding instruments to make it easy to fix. Our manufacturing team checks all the instrument parts before they are sent for main instrument assembly. All Parts Finished  Closed grain Cast Iron Column, Arm, Work Head & Gears EN Forged Steel Main Spindle & Pinion Alloy Steel Spindle Ram Parts Finished on Imported Grinding M/c. All Moving Parts Finished to Close Tolerance. Parts properly balanced prior assembly. Main Gear & Pulley

• Power Consumption: 18.5 KW per hour (Approx.)
• Drilling Capacity in Steel: Up to 132 mm
• Drilling Capacity in Cast Iron: Up to 140 mm
• Tapping Capacity: Up to 56 mm
• Spindle Travel: Up to 560 mm
• Range of Spindle Speed: Up to 1600 RPM
• Arm Length: Up to 4200 mm
• Travel of Drill Head: Up to 3600 mm
• Drilling Radius: Up to 4475 mm

25 mm Heavy Duty Drill Machine No. Of Spindle Speed 115-210-325-520-660-1090-1750-2890 Spindle Nose Taper MT-3 Spindle Center to column 385 MM Spindle Travel 158 MM Maximum Distance Between Spindle to Table 530 MM Maximum Distance Between Spindle To Base 950 MM Working Surface of Table 403 x 406 MM Working surface of Base 443 X 297 MM Column Diameter 87 MM Base Of Machine 652 X 385 MM Overall Dimension of MC. 1600 X 1030 X 520 Motor Speed 1440 RPM Motor 3 Phase Induction A.C. 1 H.P. Weight Of Machine (Approx) 235 Kg.

• Type: Heavy Duty Pillar Type Bench Drilling
• Brand Name: K.R.Panchal
• Condition: New
• Color: SPECIAL GREEN
• Place of Origin: India
• BEARING SET: SKF
• CAST MATERIAL: S.G IRON, C.I, M.S, ALUMINIUM
• PACKING: WOODENCASE, GOONY, PLASTIC BAG

We are offering 13mm bench type pillar drilling machine (new) (13shsr 13ssr) technical specifiactions & general dimensions: model no. 13 shsr 13 ssr drllng capacity in steel 13 13 no. Of spindle speeds 4 4 range of speeds 500-2825 500-2825 spindle taper mt - 1 solid dist. Between spindle center to column 177 177 spindle travel 80 80 size of square table 241x235 241x235 max. Dist. Between spindle nose to working table 356 356 max.distance between spindle nose to base plate 510 510 column diameter 46.1 46.1 size of base plate 406x255 406x255 net weight of machine 58 58 overall dimension of machine 755x410x355 755x410x355 electric motor 0.5 hp1440 rpm 0.5 hp1440 rpm v-belt size 2370 2370 standard accessories motor pulley, drill drift(13shsr) extra accessories drill chuck, rf switch, ‘v’- belt, electric motor, arbour(13shsr) specifiaction may be changed without prior notice in case of the desgin modification

• Material: Mild Steel
• Country of Origin: Made in India
• Machine Type: Automatic
• Power Consumption: 12 KW
• Brand: Black Smith
• Size: 2000 X 3500 mm
• Distance From Spindle To Table: 200 mm
• Weight: 10000 kg
• Cutting Depth Mm: 80
• Model No: KD-2035
• Control Type: CNC
• Controller: Delta or Mitsubishi

The spindle gear box has 8 mechanical speeds from 90 to 885 RPM. The gears are made from steel. The totally enclosed 2 H.P. Motor is direct coupled with gear box. The levers for changing the speed are avoided by means of providing special gear system. The speed can be changed in the running.

• Type: Ox And Tractor Operated
• Material: Mild Steel
• Country of Origin: India
• Brand Name: Oasis
• Usage/Application: Agriculture
• Driven By: Tractor and animal
• Mfg By: Oasis Agri Eqiupment Pvt Ltd

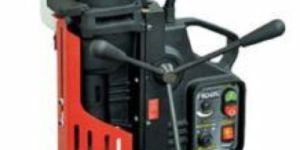

• Type: Magnetic Core Drill Machine
• Certification: ISO 9001:2008
• Weight: 17KGS
• Color: RED
• Voltage: 220V
• Condition: New
• Automatic Grade: Semi Automatic
• Driven Type: Electric
• Warrenty: 6 MONTHS FOR ARMATURE AND FIELD COIL
• Brand Name: HIGHLIFE
• Application: FABRICATION,CONSTRUCTION
• Frequency: ONE HIGH FREQUENCY
• Warranty: 6 MONTHS FOR ARMATURE & FIELD COIL
• After-Sales Service Provided: AHMEDABAD EX FACTORY DELIVERY BASIS
• Color: RED
• Usage: FABRICATION ,CONSTRUCTION
• Product: MAGNETIC CORE DRILL MACHIEN

• Brand Name: Supertech
• Application: Industrial
• Model Name/Number: SID6-13B
• Type Of Power Tool: Drill
• Voltage: 220v
• Phase: Single
• Drill Capacity: 13mm
• Reverse Rotation: Yes

Massive and rigid construction. Ergonomically grouped controls for operating convenience. Light centering of spindle. Precise depth release.Electrohydraulic clamping provided for drill head, arm & sleeve.Shock-free engagement of taps through clutch and spindle reverse for withdrawals.Machine with drilling capacity 80 mm 100 mm also available.

• Warranty: 3 months
• Power Consumption: 550w
• Model Name/Number: Impect Drill
• No Load Speed: 2800 rpm
• Max. Drill Diameter: 0-13
• Drilling Diameter: 13 mm

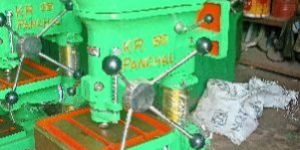

25MM Heavy Duty Type Bench Drilling Machaine Hight 4.5 fit Center between piller to spindle is 9.5 inches SG iron gear ,Solid spindle ,Digree table,Total 8 speed machine Brand name K.R.PANCHAL & CO

• Type: Surgical Equipments
• Color: Black,White metal
• Power: 14.4 v
• Brand: Biotech
• Material: White metal
• Torque: 3 nm
• Sterilization: Yes
• Speed: 1200 rpm
• Battery: Nimh battery

• Material: Mild Steel
• Accuracy: Less Than 0.015 Mm
• Application: Industrial Purpose
• Brand Name: Vasudev Technology
• Working Area: 300 mm x 300 mm
• Working Table: 340 mm x 340 mm x 70 mm
• Repeatability: 0.003 mm
• Drill Per Minute: 90 Drill
• Number of Spindle: 1 Spindle
• Spindle Power: 800 W
• Spindle RPM: 24000 RPM
• Rapid Speed: 15 m/min
• Total Power: 15 kV
• Power Supply Input: 230 V
• Machine Size: 800 x 800 x 900 mm
• Packing Size: 900 x 900 x 1000 mm
• Finish: Color Coated
• Strock: 8 mm

• Country of Origin: India

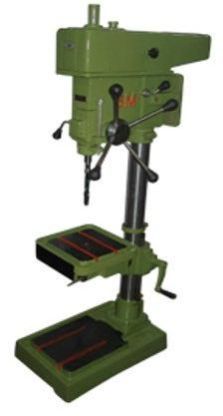

• Type: Pillar Drilling Machine
• Weight: 100-200kg
• SIZE: 13 MM

13 MM | 20 MM | 25 MM | 32 MM | 38 MM | 50 MMPillar drill machine Our extensive supply network consisting of manufacturers, distributors, resellers, valued-added service providers, rejoinders, tool modifiers, and coaters, coupled with one of the industries’ most skilled and experienced sales forces give our customers the competitive edge required in today’s manufacturing environment.

• Power: 33 W
• Automatic Grade: Automatic
• Type: Hydraulic
• Number Of Shaft: 4
• Drill Depth: 20-40m
• Drill Diameter: 76-165mm

• Type: Radial Drilling Machines
• Automatic Grade: Semi Automatic
• Drill Depth: 50 mm
• No Load Speed: 25-2000 RPM
• Frequency: 50 Hz
• Arm Elevating Motor: 0.5 HP

• Type: Radial Drill
• Brand Name: Divine
• Weight: 450Kg Approx

With our quality commitment, we are engaged in offering our clients an optimum range of drilling machine. This bench mounted machine is an integral parts of aerospace, automotive and metal fabrication industry for executing drilling, milling and tapping operations. Designed with utmost precision, this machine is manufactured by our professionals using quality tested material procured from the authentic vendors. We offer this machine at industry leading price to our clients. Features: simple operation, hassle free service life and high durability are some of the salient attributes improved performance with less energy consumption less level of vibration and noise during the operation

Overview We offer a quality centric range of Manual PCB Drilling Machine. Specialy developed for PCB Manufacturing industry.This machine offer Very low noise with ease of opration and low drill breakage.long lasting flat belts. Illumination for inside the machine and maintenance free service life. We are the leading organizations engaged in manufacturing and supplying to our clients excellent quality PCB Drilling Machine.   Features:   Sturdy construction Precisely engineered Long service life

• Brand: Himax
• No Load Speed: 2000 rpm
• Item Weight: 1.5 Kg
• Voltage: 220 V
• Chuck Size: 20 mm
• Packing Type: Box

• Brand Name: Hikoki
• No Load Speed: 0 - 3,000/min.
• Features: Soft grip handle
• Power Input: 450W
• Country of Origin: Made in India
• Model Name/Number: D10VSTA
• Drilling Diameter In Wood: 20mm
• Overall Length: 245mm
• Capacity In Steel: 10mm
• Weight: 1.3kg
• Chuck Capacity: 1.5 - 10mm

All those who are looking for excellent and efficient 20mm Drill Machines can get in touch with us! We are Gujarat, India based Manufacturer & Supplier of Drill Machines and offer them at economical prices. Our Drill Machines are widely demanded owing to their features like strong built, high fluency, low maintenance requirements and longevity.

• Standard Accessories:: Work Table
• Machine Lamp: Coolant Pump & Assembly
• Drill chuck , Arbour & Sleeves: Washers, M24 Nuts (12 Nos)
• 500303 T- Slots Bolts (6 Nos.): Instruction Manual.

Yash Machine presents WM series Radial Drill Machine, a perfect component for piercing large work piece with the specialty of limitless performance in drilling than conventional tools. This boring tool is available in 5 sizes and each model is equipped with different machining capability. All these models are designed by experienced engineering professionals who are assistance with computed aided designing work or CAD design. Our machine designers ensure the quality of materials that are properly tested and well-suited for high speed and long duration performance. Each basic part of the machine is made from finely chosen superior quality material that is also moisture and heat resistant. Each machine model is equipped with both mechanical as well as electrical controls (fixed at the central part of the headstock) for effective and ease of operation.   Radial Drill Machine Qualities:- Optimum design conforming to International standard Flexible reliable; perfect feature High precision; high strength Economical cutting; long life Drilling, counter boring, reaming, boring, spotting, tapping. Main Features:- Main parts and key parts of this radial drilling machine are made by high strength cast and special steel material.. Heat treatment made by first-class equipment, ensuring durability. Machining is made by means of specialized equipment, to ensure basic parts with superior quality. Clamping for assemblies and speed-change of spindle are achieved by hydraulic power, and is sensitive and reliable. Multiple spindle speeds and feed provide economic and high-efficiency machining. Mechanical and electrical controls are centralized in the headstock, with convenient and rapid operation Differentiating Specific Advantages than Conventional Piercing Machine The piercing arm on the drill can be moved till its extent which is not possible in traditional tools. Presence of movable or flexible drill head that can be adjusted both in terms of height and rotation. Multiple operations possible with this equipment apart from making hole, such as countersinking, grinding, boring, etc Easily mountable one the table and obtain convenience of operation It is not needed to turn over the work material or reposition it as the radial arm can be extended to a considerable distance for making holes.   Model No WM 03/D50-Z3050x16 : This model contains 50mm of drilling diameter. The maximum and minimum distance maximum the spindle axis and column is 1600mm and 350mm respectively and the spindle travel is 315mm. The spindle speed range is 25-2000 rotations per minute. Model No WM 03/RD 63-Z3063x20 : It is designed with 63mm of maximum drill diameter and the maximum distance between spindle axis and column is 2000mm and the minimum distance is 450mm. It has 1650mm of maximum working baseplate. The range of spindle speed is 20-1600 rotations per minute. Model No WM 03/RD80-Z3050x25 : This model is equipped with 80mm of drill arm diameter. The maximum distance between spindle axis and column is 2530mm and the minimum is 530mm. The spindle can travel upto 450mm and this model can made 16-1250 spindle speed rotations per minute. Model No WM 03/RD100-Z30100x31 : This design is equipped with 100mm of drill arm diameter. The working surface basplate and spindle distance is 570mm and the spindle can travel up to 500mm of distance. This model is capable of making 8 to 1000 rotations of spindle speed per minute. Model No-WM 03/RD 132-Z30132x42 : This model comes with 132mm of spindle diameter and the distance between spindle axis and column is 4200mm as maximum and 600mm as minimum. The spindle speed is 6.3 to 800 rotations per minute.

• Brand Name: Various
• Max. Drill Diameter: 60 mm
• Warranty: 6 months
• Battery Voltage: 18V/ 5 Ah
• No Load Speed: 0-4000 rpm
