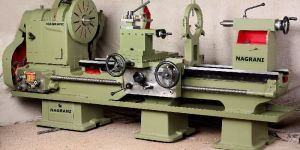

Heavy Duty Lathe Machine Dealers in Sg Highway, Ahmedabad

Lathe bed is of grade 20 castings, duly flame hardened & ground with Brinel hardness over 300 BHN Head stock gears are of special alloy case hardening steel and are duly hardened and profile grounded. Head stock spindle is ground and runs in one anti friction taper roller bearings in front wall of head stock and one taper roller bearing in rear side wall of head stock. Norton gear box and apron gear box are oil bath and gears are splash lubricated. Quick change Norton gear box provides for wide range of British and Metric threads Accuracy tested as per IS : 1878 ( part – 1 ) 1971 Lead screw, starting shafts are different. Control panel for on / off the machine, reverse / off / forward start handle is given along with apron gear box for easy control. Standard Accessories : Chuck Plate Gear Set Centre Adaptor Dead Centres Dial Indicator Square Tool Post Electrical Fittings Tool Post Key Optional Accessories : Steady Rest Follow Rest Face Plate True Chuck & Dog Chuck Rear Tool Post Quick Change Tool Post Tapper Turning Attachment Coolant Pump with Tank & Fittings Machine Lamp Key Way Milling Attachment Tool Post Grinder

These lathe instruments are robust and designed perfectly built for longer life and optimum performance in large scale metal and wood working tasks. These are state-of-art instruments equipped with most advanced technology to ensure maximum and best quality output is generated with less efforts and within shortest time.

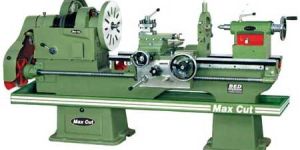

we bring forth heavy duty lathe machine that is known for its high cutting power, precision work and rigidity in the domestic as well as international market. these heavy duty lathe machines are demanded in various industries due to their high performance and low maintenance cost. further, the clients can avail heavy duty lathe machine in different specifications. featureslonger working lifeoptimum performancecorrosion resistantsturdy constructionapplicationssteel industrypaper millsship buildingpower plantsminingoil industrytextile industry technical specifications (max series) modelmaxmax - 1max - 2max - 3max - 4capacityheight of centre250mm300mm300mm375mm450mmwidth of bed325mm325mm375mm375mm450mmmax. swing over bad500mm600mm600mm750mm900mmmax. swing over side300mm400mm400mm550mm700mmmax swing in gap775mm900mm900mm1050mm1200mmspindlespindle bore52mm80mm80mm80mm100mmspindle nose6 tpi6 tpi6 tpi6 tpi6 tpispeed -8 -r.p.m.30 to 50030 to 50030 to 50030 to 50030 to 500travelcross slide270mm335mm335mm380mm460mmtop slide150mm150mm150mm150mm175mmotherlead screw tpi4 tpi4 tpi4 tpi4 tpi4 tpitail stock sleevemt -4mt -4mt -4mt -4mt -5power required3 h.p.3 h.p.3 h.p.5 h.p.5 h.p. admit between centers sizemaxmax - 1max - 2max - 3max - 47’10001000100010008009’1600160016001600140010’1900190019001900170012’2500250025002500230014’3100310031003100290016’3700370037003700350018’4300430043004300410020’--49004900470022’--55005500530024’--610061005900 technical specifications (ybx series) modelybxybx – 1ybx – 2ybx – 3 capacitycentre height240300300375bed width325325375375max. swing    over bed480600600750over slide280400400550in gap7809009001050spindle    bore52808080nose6 tpi6 tpi6 tpi6 tpispeed -8 -30 to 60030 to 60030 to 60030 to 600travel    cross slide270335335380top slide150150150150otherlead screw tpi4 tpi4 tpi4 tpi4 tpitail stock sleevemt -4mt -4mt -4mt -4power required3 h.p.3 h.p.3 h.p.5 h.p. admit between centers sizeybxybx – 1ybx – 2ybx – 37’10001000100010009’160016001600160010’190019001900190012’250025002500250014’310031003100310016’370037003700370018’430043004300430020’--4900490022’--5500550024’--61006100

• Country of Origin: India

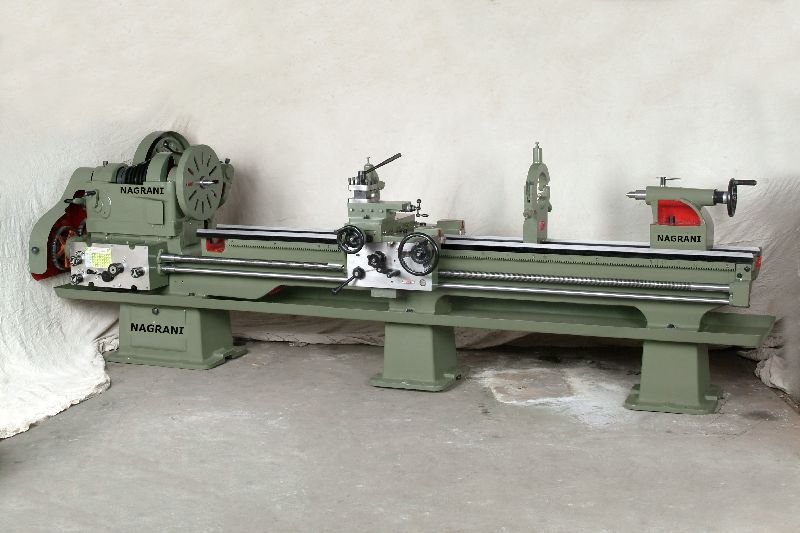

• Brand Name: NAGRANI BRAND LATHE MACHINE
• Material: Cast Iron
• Phase: Three Phase
• Color: Light Green
• Voltage: 440V
• Warranty: 1 Year
• Automation Grade: Semi Automatic
• Usage: Turning, Facing
• Machine Weight: 1000-2000 Kg
• Bed Length: 5'.25" to 40 feet
• Type: Horizontal Lathe
• Condition: New
• Speciality: Easy To Use, High Efficiency
• Hardness: 400 to 425
• After-Sales Service Provided: NO
• Model Number: NH-1
• Place of Origin: RAJKOT

We hold specialization in manufacturing and supplying the highly efficient Heavy Duty Lathe Machines. Our Heavy Duty Lathe Machines principle components (such as saddle, spindle, apron, gears etc.) make the working steady and smooth. The Heavy Duty Lathe Machines, offered by us, are assembled rigidly to ensure high enduring capacity to withstand worst circumstances. These Heavy Duty Lathe Machines are widely used during surfacing, heavy turning, screw cutting etc. We Also Offer : Extra Heavy Duty Lathe Machine (Capacity: 7 Feet to 40 Feet)
