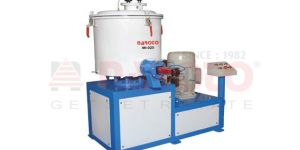

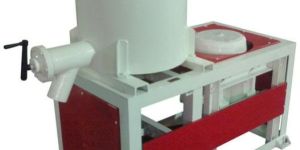

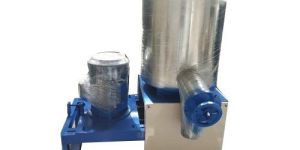

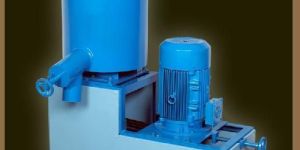

High Speed Mixers Dealers in Ahmedabad

• Warranty: 12 Months
• Power(W): 15-200kw
• Cool mixer total volume: 500-3500L

Feature : High speed compounding mixer is suitable for homogenized and uniform mixing of polymers with other ingredients to prepare a good quality ready formulation which is used for further process.Salient Features : Robust construction, compact & convenient design. Mixing vessel outer jacket is made from 5 mm thick mild steel plate Etinner from Z mm thick S.S plate. Temperature sensor& indicator for precise measuring of material temperature. Faster mixing with excellent homogenization. Powder coated Electrical panel with dust proof construction equipped with Ammeter, Voltmeter, and Temperature Indicator with thermocouple, starter & other necessary electrical equipments. All switch gears & inputs of reputed & reliable make.

High efficient high speed Mixer designed to generate heat due to friction. The high speed Mixers are used to mix granules with pigment paste or pigment powder or different colored granules for uniform blending.The high speed mixer achieves heat while working is important to blend the pigment paste and polymer powder uniformly.

We offer High Speed Heater Mixer. Perfect height to dia ratio of vassel. Precise Peripheral speed of mixing tool. Least down time, so payback period is higher Unmatched Pneuma seal Capsule Technology. Proper design of impeller. Computerized balancing of rotating parts. Best quality material of all key components. Unique design of bottom & discharge valve. Very prompt after sales services. Experience of manufacturing highest number of high speed

High speed dispersion mixer is used to mix, disperse and dissolve materials of different viscosities. The highly rotating disc exerts a strong shear, impact, crush forces to quickly mixer, dissolve, disperse and grind materials. It is widely used in paint, ink, dyestuff, printing ink, color paste, fine chemicals etc. industry.

Moisture free blending and compounding with additives in different controlled temperatures Process control timer switch to set and monitor process Provision for on line additives or pigment adding facility and breather valves on the lid Thermo couple to monitor temperature Optional Pneumatic controlled powder discharge and lid opening arrangement Sturdy construction Stainless steel vessels (corrosion resistant) Twin jacket for heating and cooling Timer control for energy saving, Heavy duty bearing housing for trouble free working

High speed mixers, The Disperser range is designed to disperse , mix and homogenise products of different Technologies Differentversions and accessories are available to accommodate thixotropy,aeration requirements etc of the product: * Automatic speed control system, * Different designs of mixing impellers, * Electrical control panel attached either to the machine or remotely installed.

Plastic high speed mixer is our product line as other products. High speed mixture having wide range of models as per capacity. Our product is suitable for all the types of plastic materials and widely used in plastic process industry. This machine is also used in other applications like material mixing, asphalt mixing, chemical and other industrial substance mixing, construction material mixing, and many more there is small material require to be mixed.

Years of experience have gone into making of our highly efficient High Speed Plastic Mixer Machine. The machine is dust free and generates maximum heat due to friction. The inner part of the machine is of stainless steel and is provided with a water jacket to attain stability in temperature. It works on the principles of aerodynamics that enables it to mix things faster and more efficiently.

From last 15 years spark engineering is in the field of plastic processing machinery and served the industries by supplying more than 800 mixers. Spark R&D team, production, marketing and after sale service team give great support to success the spark to increase the no of machines day by day… “Spark” heater mixer is a simple physical mixer used to mix solid components frictional heat generated during the process is utilized for mixing hence. Known as “Hot Mixing”. Ac induction motor drives the mixer blade by v-belt for efficient power transmission. We can deliver special application mixer as per customer’s requirement. fabricated from $. $. 304 material fully polish for easy flow of material. Bottom in curve position to maximum discharge of material degassing system on LID is provided with the valve. Vessel is jacketed for control the frictional heat if required.

We offer high speed mixer machines with superiorquality at cost effective prices. These machines are manufactured by incorporating latest technology. We specialize in manufacturing and supplying of heavy duty constructed High Speed Mixer. This mixer is appreciated widely among our clients for durability, performance and efficiency. The easy discharging arrangement and easy operation makes it a preferred choice over the available substitutes in the market. Low on maintenance, these mixers are used heavily for color mixing and pre heating all kinds of plastic material. Tabulated below are some of the key specifications of our range of High Speed Mixers:

• MACHINE: WITH 35 KGS SHELL CAPECITY ALONGWITH SENSOR
• MOTOR: 12.5 HP AC 3 PHASE 1440 RPM/440 VOLTS/50 HTZ
• MOTOR PULLEY: 5” X 3 X B (DRIVER)
• DRIVEN PULLEY: 10” X 3 X B
• V-BELTS SIZE: B-68

AMAR MAKE High speed compounding mixer is suitable for homogenized add mixing of polymers with other ingredients to prepare a good quality ready formulation which is used for further process   MIXER VESSEL It is consisting of special mild steel plate wall construction having 10 mm thickness. Top cover is from 6 mm thick mild steel plate. Bottom plate is also 10 mm thick flate bed for easy outlet of the ready polymer from the vessel.   BEARING HOUSING Bearing Housing is from C.I. Casting along with top and bottom cover ball bearings of standard co. make. Main shaft is in the bearing housing fitted at the bottom of the vessel. At the bottom of bearing housing shaft V belt pulley is mounted.   BLADESBL Specially designed four blades made of alloy steel, hardened and hard chrome plated for longer life. These blades mounted at the top of the main shaft driven by 3 phase AC single speed motor. CONTROLING Control Panel with dust proof construction which housed with all controls like Mains Ampere Meter, Supply Volt Meter, Digital Temperature Indicator with Thermo Couple Sensor for vessel, starter for main motor and other elecetricals.

High speed mixers, These high speed mixer are made by using very high grade raw material which ensures hassle free work performance at its user end. These high speed mixer are widely finds its applications in various plastic processing industries.

We are the leading manufacturer and supplier company of High Speed Mixers which are widely used for various applications in the adhesive, battery, chemical, cosmetic, electronics, food, pharmaceutical and plastic (PVC) industries.

• Material: Mild Steel
• Voltage: 240V
• Weight: 450kg
• Color: Red
• Capacity: 1000kg/Per Batch
• Power Consumption: 20kW
• Machine Type: Automatic
• Phase: Single Phase
• Frequency: 50Hz
• Surface Finish: Polished
• Motor Power: 5HP
• Usage: Plastic Processing

• Power Source: Electric
• Brand Name: Rudra Cooling System
• Material: Mild Steel
• Phase: 1 And Also Available in 3phase
• Voltage: 220-440V
• Frequency: 50Hz

We are the foremost manufacturer of high speed Heater Cooler Mixer that is technologically cutting-edge and can be applied for mixing rigid as well as plasticized PVC dry mixtures, of varied capacities. These offer steady and consistent heating and cooling operations.We are the chief Heater Cooler Mixer manufacturer and our machines are preferred because of their potential to generate quick mixing functionality with swift frictional heating. These also offer faster cooling time. Our machines are made with the aid of the most current technology in conformity to the international norms with supreme quality material acquired from the reliable sellers in the market.These High speed mixers are Compact, easy to install and need minimal maintenance. These are quality tested thoroughly by our quality controllers and hence are guaranteed for their flawlessness. We offer them at industry leading rates.

These high speed mixer are made by using very high grade raw material which ensures hassle free work performance at its user end. These high speed mixer are widely finds its applications in various plastic processing industries.

 High speed compounding mixer is suitable for homogenized and uniform mixing of polymers with other ingredients to prepare a good quality ready formulation which is used for further process. ✔ Robust construction, compact & convenient design. ✔ Mixing vessel outer jacket is made from 5 mm thick mild steel plate. ✔ Temperature sensor& indicator for precise measuring of material temperature. ✔ Faster mixing with excellent homogenization. ✔ Powder coated Electrical panel with dust proof construction equipped with Ammeter, Voltmeter, and Temperature Indicator with thermocouple, starter & other necessary electrical equipments.

• Brand Name: REMICA

we are offering high speed mixer. remica mixer machinery for color mixing and crying the granuals.

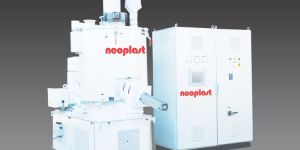

We offer High Speed Heater Cooler Mixer.

• Capacity: 15-35kg/hrs
• Material: Mild Steel
• Voltage: 220 V
• Speed: High speed
• Automatic Grade: Automatic
• Usage: Pipe industry
•  :

We are successfully meeting the varied needs of our patrons by offering a wide gamut of High Speed Plastic Material Mixer as per their precise needs.

Radhekrishna Extrusion holds expertise in manufacturing and exporting of High Speed Mixer in India. The product is made using the best quality Stainless Steel material known for its high operative speed, low maintenance cost and ease-of-use.  Our range of high speed mixer is designed to meet the increasing demands of the customers. This high speed mixer helps in attaining uniform blending and mixing. It monitors the temperature while mixing operation. We are also tagged upon as a suppliers of High Speed Dispersers from Gujarat   Features Of High Speed Mixer : Heavy and Sturdy steel structure For PVC compound mixing inner side Stainless Steel liner coating available Easy to maintain and operate Mainly used for color mixing & granule for moisture remove

• Voltage: 415 V
• Brand Name: Invoit
• Capacity: 100 Kg
• I Deal In: New Only
• Application: Plastic Industry
• Automation Grade: Semi-Automatic
• Design Type: Standard, Customized
• Power: Three Phase
• Type: Mixer Machine
• Country of Origin: Made in India
