Hofmann Engg. and Mktg. Pvt. Ltd. Vastrapur, Ahmedabad, Gujarat

We take pleasure to introduce ourselves as one of the distinguished organizations, manufacturing and supplying a wide range of PTFE Lined Pipe.

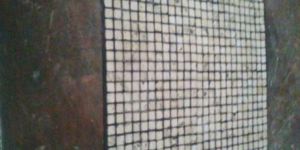

Ceratuff bagging chute ;liners are used in bag loading spiral chute where erosion due to flow of bag with abrasive material is very high. Size of liner 3001x300x5mm thk and flexible in nature. It extends flowability of bag, reduces down time, reduces wastage.

Brand Name : Ceratuff

Certification : ISO

Place of Origin : India

The above problem can be avoided in case of Burner Tip lined with CN-178. SiC has smooth surface and it it design in such way that it remains free float in Steel body and therefore warpage can be avoided at high temperature due to difference in thermal expansion of steel and SiC. CN-178 retains its hardness at very high temperature as encountered in firing zone of boilers and thus it is the best material under such working condition. The Baffle plates made of SiC are excellent in Erosion wear at high temperature and they support in proper distribution of coal for optimum firing for long time. The higher life of the SiC reduces the frequency of shut down and thus production loss in shut down.

We offer Silicon carbide materials exhibit good erosion and abrasive resistance; these properties can be utilized in a variety of applications such as spray nozzles, pump component, and cyclone components. Silicon carbide ceramics for plant components for extreme wear high temperature and thermal shock.

Hofmann microbead coat is trowel able mass formulated with proprietary materials of sapphire hard high alumina beads of specific size and silicon carbied doped in resin matrix with rainforcement. Hofmann microbead coat is a protective coating providing a surface resistance to abrasion and chemical attack. Microbead is an excellent remedy for the preventive maintenance of any plant where erosion and corrosion are chronicle problem. Microbead is a thixotropy formulation which permits both vertical as well as horizontal with application with simple hand tools. Hofmann microbead coat can also be cast and molded in to wide verify to shape and pattern. Microbead consist of sapphire hard beads of 90% alumina having a bead hardness of 9 on moh scale. It can be applied on any surface like metal, ceramic, plastic, concrete etc to convert the soft surface to sapphire hard, chemical and corrosion resistant.

We are offering metal repair products.

Hofmann has designed and developed composite ceramic bagging chute liner which gives the advantages of both the product in combination. I.e. Alumina works against erosion where as rubber on back take the impact load and thus after impact the sliding abrasion will be taken care of by ceratuff

Ceratuff alumina wares is made of 99.7% pure aluminum oxide. Highly resistant to chemical attack, this alumina-ceramic ware is especially useful to chemists, metallurgists and other involved in high temperature work demanding contamination-free results. High alumina ware is highly refractory meant for use in reducing and oxidizing atmosphere. It is inert in hydrogen and carbonaceous atmospheres and high resistance to alkalies and other fluxes. Suitable for glass melting, including borosilicate glass. Recommended for use with refractory metals such as tungsten, tantalum, platinum, molybdenum, rhodium and iridium. High-alumina labware temperature change rate should not exceed 200deg chour.

Country of Origin : India

Type : Alumina Crucibles

Material : Alumina,ALUMINA

Diameter : 20-40mm,40-60mm,60-80mm,80-100mm,ALUMINA

Shape : Rectangular,Round,Square,ALUMINA

Color : Black,Creamy,Grey,White,ALUMINA

Feature : Durable,Fine Finishing,Heating High Capacity,Non Breakable,ALUMINA

Finishing : Non Polished,Polished,ALUMINA

Height : 10inch,2inch,4inch,6inch,8inch,ALUMINA

Storing Capacity : 100-150ml,150-200ml,200-250ml,250-300ml,50-100ml,ALUMINA

Max, Temprature : 1500-2000deg C,ALUMINA

Brand Name : HOFMANN CERATUFF

Application : MELTING PRECIOUS METAL AND CHEMICAL LABORATORY

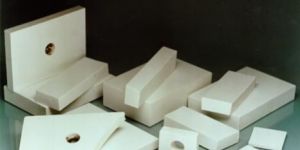

Hofmann is supplying wide range of High Alumina Ceramic Liner having size from 6mm thick to 50 mm thick. We also supply liner in standard sizes and pre-engineered wear resistant tiles in situ as per requirement in pastable and weldable quality. We also supply liner in Hex and square pattern mounted on rubber or Polyester mat to form flexible mats for installing on any shape, contour radius surface to make the surface wear and corrosion resistant. Alumina ceramics resist the effects of radiation that can destroy other materials. Alumina ceramic can have very high dielectric strength, high resistivity and low dielectric loss thus it is also use in insulators and electronic components. High Alumina Ceramics is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance. It has a high melting point, high hardness and high mechanical strength. Our high density alumina ceramic linings and tiles prevent destructive wear in conveying, processing, and storage equipment.

Type : Wear Resistant Liner

Material : Ceramic

Thickness : 3 to 60mm

Length : 10 to 150mm

Application : Bins, Chutes, Hopper, Lining Pipe

Color : Ivory, White

Country of Origin : India

Outer Diameter : Steel, Polymers

Our years of market knowledge and experience have enabled us to establish ourselves as a famous manufacturer and supplier of high alumina ceramic tile. Product details: this product has size from 6mm thick to 50 mm thick. We also supply liner in standard sizes and pre-engineered wear resistant tiles. We also supply liner in hex and square pattern mounted on rubber or polyester mat to form flexible mats for installing on any shape, contour radius surface to make the surface wear and corrosion resistant. Hofmann manufacture high alumina ceramic-lined products made from fine grain, high purity, alpha aluminum oxide, material almost diamond hard can be formed in a variety of pre-engineered standard and custom sizes and shapes. High alumina ceramic exhibits abrasion, corrosion, electrical, chemical, and erosion resistance. Alumina ceramics resist the effects of radiation that can destroy other materials. Alumina ceramic can have very high dielectric strength, high resistivity and low dielectric loss thus it is also use in insulators and electronic components. High alumina ceramics is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance. It has a high melting point, high hardness and high mechanical strength. Our high density alumina ceramic linings and tiles prevent destructive wear in conveying, processing, and storage equipment. Features: precisely designed sturdiness high purity

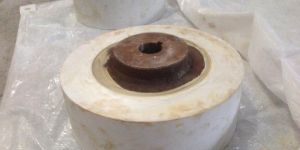

We are offering high alumina ceramic pulley lagging. Hofmann high alumina ceramic pulley lagging provides twice the traction of conventional rubber lagging and virtually eliminate slippage between conveyor belts and drive pulleys, significantly improved conveyor productivity under even the most severe operating conditions. Employing a special ceramic-in-rubber design

Hofmann has designed and developed composite ceramic bagging chute liner which gives the advantages of both the product in combination. i.e. Alumina works against erosion where as rubber on back take the impact load and thus after impact the sliding abrasion will be taken care of by Ceratuff. These rubber back ceramic liner products are more useful in application like Chute, Hoppers where impact and erosion both exist.

We are the leading manufacturers, exporters and supplier of this products.

High Alumina Ceramic Pulley for sand reclaimation in foundry, Other grinding application for foundry recycle sand reclaimation

We offers fabricated steel lined equipments with Ceratuff ceramic lining as per customers requirement. Both steel and ceramics are designed together ensuring proper fitment. The cutting and lining is completed with well trained competent personnel so that best possible lining quality is achieved.

Type : Pipes

Shape : Round

Thickness : 20-30mm

Length : 1000-2000mm

Application : Mineral Conveying

Grade : ASTM

Color : White Inside

Feature : Corrosion Proof

Warranty : 2years

Brand Name : Hofmann Ceratuff

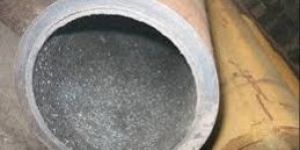

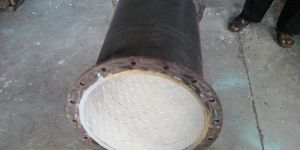

Hofmann high alumina ceramic lined bends, pipes and elbows are reliable, maintaining close manufacturing tolerance, and ready to install and hence facilitate quick replacement and provide long lasting trouble free operations. Ceramic lined equipments consist of ceramic line pipes, ceramic lined elbows, ceramic lined cones, ceramic turrets, ceramic lined hydro cyclones, ceramic lined orifice, ceramic lined valves. Thus it helps user to get maximum efficiency of the equipment. With the use of CAD facility and our continuous efforts enable us to design and supply profiles like square to round transitions, splitter and other surfaces which are not common regular geometric shapes.

We are offering ceramic lined cyclones & hydrocyclones. Cyclone separators are used in cement plant, coal washery and mineral processing industries which are subject to severe abrasion and suffer heavy wear. Hofmann supply cyclones and its component either in ceratuff-92, azs or sic-871 as per criticality of the equipment and its size and shapes

Cyclone separators are used in Cement Plant, Coal Washery and Mineral Processing industries which are subject to severe abrasion and suffer heavy wear. Hofmann supply cyclones and its component either in Ceratuff-92, AZS or SiC-871 as per criticality of the equipment and its size and shapes. Advantages of AZS and SiC-871 is that it can cast to any shape and size just like metal casting and thus can make any intricate and irregular shape which is very difficult to get in Ceratuff-92. Hofmann select suitable material of lining depending upon contour of the work, operation parameter like temperature, pressure, material handled & cost effectiveness. i.e. We shall provide you with a system, which reduces downtime, improves working efficiency & is thus cost effective.

Country of Origin : India

Size : 305ID

Brand Name : Hofmann Ceratuff

Material : SIC Ceramic

Application : Hydrocyclone

Production Capacity : 10 Nos/month

Warranty : 12-18 Months

After-Sales Service Provided : Yes

Alumina works against erosion where as rubber on back take the impact load and thus after impact the sliding abrasion will be taken care of by Ceratuff. These rubber back ceramic liner products are more useful in application like Chute, Hoppers where impact and erosion both exist.

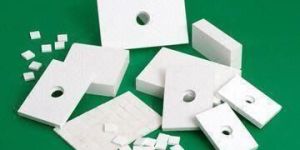

Type : Alumina Ceramic Liners

Material : Alumina Ceramic

Shape : square-rectangle or sleeve

Application : Chemical Factory, Industry, Mining

Color : White

Purity : 90%, 99%

Feature : Prefect Shape

Hardness : >75HRC

Country of Origin : India

High alumina liner for wear resistant application like power plant component, cement plant, steel plant and mineral processing industries.

High alumina ceramic exhibits abrasion, corrosion, electrical, chemical, and erosion resistance. Alumina ceramics resist the effects of radiation that can destroy other materials. Alumina ceramic can have very high dielectric strength, high resistivity and low dielectric loss thus it is also use in insulators and electronic components. High Alumina Ceramics is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance. It has a high melting point, high hardness and high mechanical strength. Our high density alumina ceramic linings and tiles prevent destructive wear in conveying, processing, and storage equipment.

Riding on unfathomable volumes of industrial expertise, we are occupied in manufacturing and supplying excellent quality ceramic coating. Use for coating in bend, ducts, tanks and many complex shapes. Gives protection against rusting as well as normal wearing. Product details: the thickness of coating ranges from 400-500 microns. Coating material is a mixture of high alumina powder (>=92%) and polymers. Features: wear resistance hardness electrical resistivity
