Horizontal Pumps Dealers in Ahmedabad

• Max. capacity: 500 m3/h (2200 GPM) [H]
• Max. head: 100 m (328 ft)
• Max. pressure: 10 bar (145 psi)
• Max. temp: 80 °C (176 °F)
• Max. speed: 3600 rpm

CombiPrime H & V horizontal & vertical (variable position suction bend), hydraulics according to EN733 800 m3/h (3520 GPM) [V] Materials: cast iron, bronze

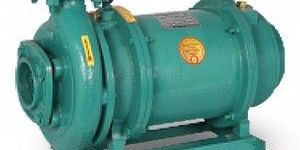

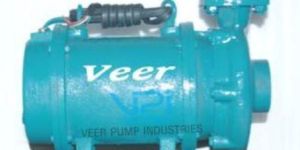

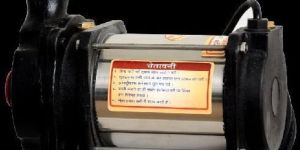

We have designed these horizontal Openwell submersible pumps set with very unique expertise by using latest manufacturing techniques. We have years of experience and we design all the products superiorly. We are known for its quality, reliability and excellence. Horizontal Openwell submersible pump set are manufactured under supervision of highly qualified team which inspect each of the product carefully. As these pumps are designed for underwater applications there is no need of priming and foot valve. Features: High op Longer life Noiseless operations Less maintenance required Smooth running Replaceable wearing parts Convenient to move Application: Irrigation Agriculture Farms Drip irrigation Gardens Bungalows Multistoried building sprinkler

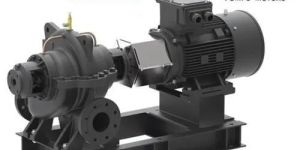

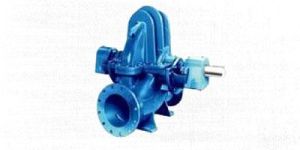

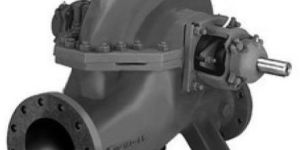

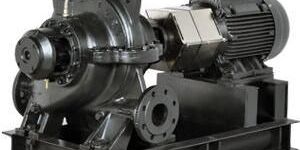

We are a prominent Horizontal Split Casing Pumps Manufacturer and Supplier in India. These Horizontal Split Casing Pumps are horizontal axially split casing, single stage, double suction or single suction, single volute or double volute type pumps with horizontal shaft. The Horizontal Split Casing Pumps can be availed from us at the most competitive prices. These are horizontal axially split casing, single stage, double suction or single suction, single volute or double volute type pumps with horizontal shaft. Special Features : Rotating assembly accessible for inspection or maintenance by removing upper half casing without disturbing suction and delivery piping and motorHorizontal execution ( standard ) or vertical execution ( optional)Vertical pump, direct drive or with universal shaft arrangementHigh hydraulic and overall efficiency due to superior design and manufacturing techniquesGood suction performance and low NPSHStable characteristics, minimum maintenance required, vibration free performanceHigh reliability Pump Casing : Horizontal axially spilt volute type, suction and discharge nozzles and supporting feet are cast integral with lower half casing. Impeller : Double or single suction type accurately balanced. In case of double suction impellers, the hydraulic thrust is balanced automatically because of pressure equalization on both sides of the impeller. Shafts : The high tensile steel shaft accurately machined and ground is supported by antifriction bearings. The shaft is protected by shaft sleeves from wear in stuffing box area. Stuffing Box : Can be sealed by gland packing or by mechanical seal and is suitable for liquids having temperature up to 90oC. Bearings : Grease Lubricated deep groove ball I roller bearings are provided. Large pumps can be provided with Oil Lubricated / Oil ring bearings. Direction Of Rotation : Standard : Anticlockwise ( ACW ) when viewed from driving endOptional : Clockwise ( CW ) when viewed from driving end Drive : Suitable for coupling with electric motors, engines or steam turbines either directly or through belt drives, gear boxes etc. Flanges : Standard : Drilled to BS : 10 Table D/E/F or BS-4504,Table PN16 plain face depending upon modelOptional : DIN / ASA with suitable pressure rating depending upon model

• Brand Name: Horizontal Centrifugal Pumps

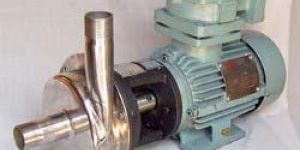

We offer horizontal centrifugal pumps. With the valuable assistance of our skilled team of professionals, we have been able to come up with a wide range of ss centrifugal pumps. We make use of the optimum quality raw material with the latest technology to manufacture these pumps. Due to the remarkable quality of the offered range, we have successfully attained the position of the market leader in this domain. reliable engineers are expertise in manufacturing of centrifugal pumps, design of pump is sturdy and parts are with long life, manufacturers & exporters stainless steel centrifugal pumps, special features: pumps are fabricated type from rolled sheet horizontal centrifugal pumps with close semi- open open type impeller design less maintenance due less rotating parts. safe and quite operation levels. suitable for standard motor or flange type or foot cam flange type motor also available in bare and mono block pump flame proof mono block are also available according to requirement different connection are available like dairy connection, tri clover connection, flange end connection, nipple connection economic, efficient & easy in maintenance moc : ss-304ss316ss316l application: ideal for handling of water, dmdi water, mineral water, hot water, pharmaceuticals liquid drugs & syrups, milk, butter milk, soft drink, beverages, solvents, acids, alkalis, light petroleum products etc. acid and light chemicals, color dyes and pigments booster application water treatment plants, r o plants manufacturer & exporters centrifugal bare pumps

HORIZONTAL SUBMERSIBLE PUMP Written by Administrator    Tuesday, 13 January 2015 10:09   FEATURES :- Horizontal submersible pump set Water filled submersible pump set with copper rotor Available in 1 and 2 stages High efficiency Made pump as per Customers special applications Available in cast iron / stainless steel construction Always remain under water, no need of priming / foot valve No foundation Maintenance free   APPLICATION:- Ideal for fountains, domestic use in buildings, hotels, gardening and irrigation, even in industries for clear water handling and special pumps built for high         pressure and dirty water.

• Brand Name: Radial Pumps,Radial Pumps
• Material: C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc. Duplex stain
• Driven Type: Electric
• Pressure: High Pressure
• Usage: Industrial
• Type Of End Use: Industrial
• Certification: ISO 9001:2008 Certified
• Type: Stainless Steel Horizontal Centrifugal Pump
• Warranty: 1 Year
• Country of Origin: India
• Head: Up to 55 mtr
• Pressure: Up to 5.5 Kg/cm2
• Model: ROP Series
• Capacity: Up to 1200 M3/hr
• Discharge Size: 25 mm to 300 mm
• Temperature: Up to 250°C
• Speed: Up to 3500 rpm

• Type: Horizontal Split Casing Pump
• Weight: 100-150kg, 150-200kg, 200-250kg, 250-300kg, 50-100kg
• Color: Brown, Grey, Light White, White
• Voltage: 110V, 220V, 380V, 440V
• Application: Industry
• Automatic Grade: Manual, Semi Automatic
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Electric
• Pressure: High Pressure, Low Pressure, Middle Pressure
• Structure: Horizontal
• Warranty: 1year, 2years

• Weight: 100-150kg, etc
• Voltage: 220V, 440V, etc
• Condition: New
• Power: 6-9kw, 9-12kw, etc
• Warranty: 1year
• Application: Agriculture

• Type: Horizontal
• Country of Origin: Made in India
• Motor Horsepower: 3HP to 15HP
• Brand: Barelwala
• Motor Phase: Three Phase
• Material: CI
• Rotor Material: Copper
• Warranty: 1 Year

• Power Source: AC Powered
• Usage/Application: Agriculture
• Motor Horsepower: 0.5 HP- 7.5 HP
• Motor Phase: Single Phase
• Brand: Megha Tough
• Sub Section: 65mm, also available in 80mm

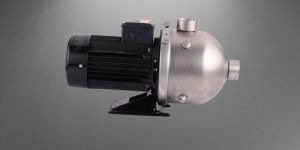

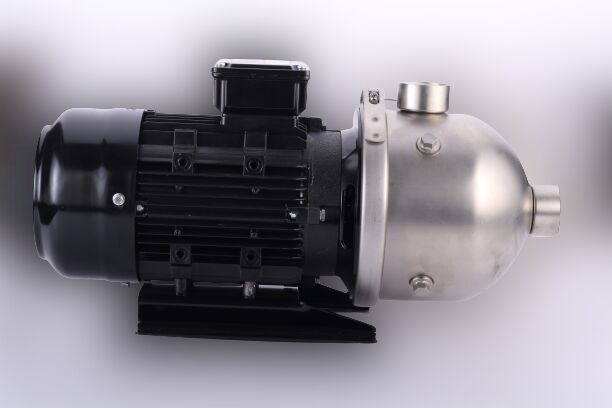

Precision engineered using high-grade basic materials, our Horizontal Multistage Centrifugal Pumps are widely acclaimed for their robust construction, long service life and remarkable performance. Buyers across the world are free to place medium as well as bulk orders with us. Owing to our strong distribution network, the placed orders are delivered within the given time period. Located in Gujarat (India), we are the prominent Manufacturer, Exporter and Supplier of Horizontal Multistage Centrifugal Pump. Specifications : Series : SMCP Series Type : Horizontal Centrifugal Multi Stage Pump Operating Range : Capacity : up to 30 m3/hr Head : up to 325 mtr Pressure : up to 33 kg/cm2 Size : 32 mm to 40 mm Speed : up to 2900 rpm Temp : up to 80 C M.O.C. : CI, CS, Bronze, SS304 / 316, etc. Applications :  Steam Boiler, Water Transfer, Hot & Cold Water,  Heat Exchanger,  Steel Ind.,  Paper Ind., Irrigation, High-rise building &  Hilly area water transfer, High pressure cleaning / washing, Filter press washing, Booster Pump, Fire Fighting etc.

Runwell Rkb4

• Type of Installation: Stationary
• Maximum Flow Rate: 600 m³/h
• Minimum Flow Rate: 5 m³/h
• Maximum Head: 70 m
• Minimum Head: 15 m
• Speed of Rotation: 1450 Revolutions/min
• Maximum Discharge-side Pressure: 7 Bar
• Type of Bearing: Ball Bearings
• Drive Frequency: 50 Hz / 60 Hz
• Type of Drive: Electric Motor
• Type of Installation: Long- Coupled
• Type of Coupling: Direct
• Type of Lubrication: Grease Lubrication
• Pump Set Location: Installed
• Impeller Material: Ci / Ss / Bronze
• Shaft Material: SS 410

• Pressure: High Pressure
• Warranty: 1year
• Advantage: Easy to Operate
• Usage: Industrial
• Performance: Optimum
• Speciality: Rust resistance

• Power Source: 1.5KW
• Brand Name: EJECT SYSTEM
• Application: Industrial
• Material: BRONZE
• Item Code: 150
• Max Flow Rate: 65 LPM
• Motor Phase: 3 PHASE
• Motor Speed: 2880RPM

We are offering horizontal openwell submersible pump. Varuna horizontal monoblock submersible pumps are manufactured as per is: 14220. The high-grade cast iron material with unique hydraulic design gives better performance and efficiency.

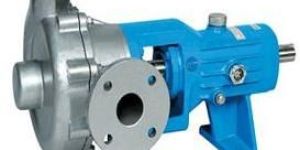

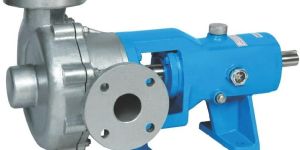

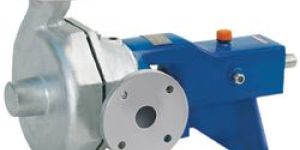

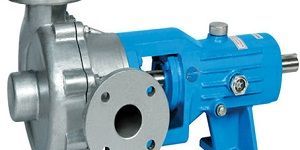

Horizontal back pull out end suction pumps. Details sku sku16874 suction and discharge direction side suction & top discharge ease of maintenance pump can be easily dismantied for repairs maintenance without disturbing suction and discharge lines but only if spacer coupling is used. Pricing cheaper efficiency lower life span short other features

Varuna Horizontal Openwell Submersible Pumps are manufactured as per IS: 14220. The high-grade cast iron material with unique hydraulic design gives better performance and efficiency. Since these pumps are designed for underwater applications, there is no need of priming and foot valve.   Horizontal Openwell Submersible Pump Salient Features   Compactly designed pump set for easy handling and installation. High-grade cast iron for a better life even in heavy and contaminated water. Front side carbon bearing with Stainless Steel Thrust Plate and Backside SG Iron Plate with Gunmetal Bush for longer life under various conditions. Stamping is done with Electrical Grade Silicon Steel for lower power consumption and higher product life. Advanced Hydraulic Design for highest energy efficiency in the pump set. Pinhole on drain plug allows the motor to be filled with water on its own to maintain the water level inside the motor. Dynamically Balancing Rotating part to ensure minimum noise and vibration-free operation.   Application   Irrigation from open wells, specially where there is a wide fluctuation in water levels Civil and industries Community water supply from open wells Canals and rivers Agriculture

Manufacturer and Exporter of Industrial Horizontal Monoset Pump.

an horizontal split casing pump requires less total space than other pumps. If space is critical, an hsc pump can be reversed to reduce the total room required for several pumps. Just because suction and discharge nozzles stick out of the sides of an hsc pump does not mean the total room needed is greater. Most hvac pump manufacturers can provide suction diffusers for their pumps so that the five suction diameters normally recommended are not needed. high efficient, easy maintenance. sturdy construction, trouble free operation

  Noise and maintenance free   High efficiency hydraulic design   Back pull out design   Conform to iso 2858 dimensions   Suitable with V-belt drive or direcct coupled with a motor.   Heavy duty shaft, sleeve and bearings   Low NPSH   Single and double mechanical seal   Steady head and capacity   One roller bearing on pump end, two angular contact ball bearing with oil lubricated.   Serveral flange drilling options according to valid standards.

• Capacity: Up to 5000 M3/hr
• Head: Up to 140 Mtr.
• Discharge Size: 50 mm to 500 mm
• Temperature: Up to 100°C
• Speed: Up to 1800 rpm
• M.O.C.: C.I, C.S., SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc...

Applications:   Suitable for Fire - Fighting. Primary & Secondary HVAC Application. High Pressure Boosting System. Dewatering in Mines. Cooling Tower. Recirculation.   Industrial utility water Application Desalination.   Water Supply. Paper Plant.   Petroleum Refineries Sugar & Steel Plant. Power Plant Air Conditioning & Refrigeration System.   Irrigation.

• Pressure: Up to 10 kg/cm2
• Capacity: Up to 200 m3/hr
• Head: Up to 100 mtr
• Discharge Size: Dn 40 to 100 mm
• Temperature: Up to 140oC
• Speed: Up to 3500 rpm

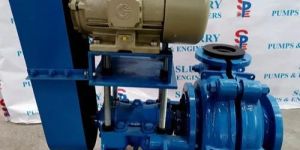

Applications : Filter press feeding. ETP, STP & Waste Water treatment plant. EVA-operator, Scrubber application. Slurry transfer. Dyes & Intermediates, Steel Rolling mills. Pulp & Paper, Sugar, Salt, Starch industries. Zink & Copper plant. Ceramic, General industrial services etc..   Features : Single stage semi open impeller. Special design for filter press application. Reduce gland leakage. Heavy duty shaft, sleeve & bearings. Noise & maintenance free. Long life due to replaceable wearing parts. High efficiency low power consumption. Grease / oil lubricant bearings. Only positive (+V) suction head. Suitable with V-belt drive or direct coupled with a motor.   Materials : SS-316, SS-316 L, SS-304, SS-304L Duplex stainless steel Super duplex stainless steel Cast bronze, cast Steel, cast Iron Hastalloy - B & C, alloy - 20 etc..

Product features    Easy to install  Enhanced efficiency with all the advantages of mounting the prime mover and pump integrally on the same shaft.  The open well submersible monoblock can be placed at the bottom of the well.  This arrangement does not require suction pipe.  Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.  Water can also be drawn from a bore well which is bored at the bottom of the open well by inserting a suction pipe into the bore well and providing a cooling tank arrangement to keep the monoblock submerged in water.   Applications   Irrigation Drinking water supply Industrial water supply Cooling water circulating systems   Technical Data

• MOTOR BODY: Stainless Steel with 1% Nickel / Graded Cast Iron
• STAMPING: Electrical Grade Silicon Steel Sheet with 3.9 to 4.5 Watt loss/hour
• TRUST BEARING: Thrust Plate With Fiber Pad and CT Bearing of Gunmetal
• BUSH BEARING: GM LTB 4
• SEAL: Nitrile Rubber Oil Seal
• ROTOR SHAFT: Stainless Steel 420 H&T
• IMPELLER: Dynamically balanced
• WINDDING WIRE: Poly Wrap Double coated copper wire

Submerge in water permanently, so no need of separate cabin Priming is not require It also works on Low Voltage Noiseless and Vibration free operation Supplied with foot valve

Horizontal Split Case Fire Pumps UL Listed   Lubi offers FLHC series state-of-the-art fire pumps with diesel engine/electric motor driven, horizontal split case pump.These pumps are typically used in fire-fighting applications for supplying water to fire hose reels, fire hydrants or sprinkler systems.50Hz – Pumps have a discharge range from 450 to 1250 USgpm and the head range from 61 to 233 psi. 60Hz – Pumps have a discharge range from 450 to 750 USgpm and the head range from 6.4 to 14.65 bar.These fire pumps meet or exceed the requirements of NFPA20.Installations of these pumps would ensure the safety of human life, buildings, expensive plants and equipments.FLHC fire pumpset shall be used only where a positive suction is provided as specified in NFPA20.The fire pumps typically consists of the following equipments:• Pump• Electric motor/Diesel engine assembled with– cooling system (for Diesel engine only)– fuel system (for Diesel engine only)– battery system (for Diesel engine only)– exhaust system (for Diesel engine only)• Fire pump controller• Suction and discharge gauges• Air relief valve• Common base plateNote: For your jockey pump requirements kindly refer our literature for LCR and/or LES pumps.All above equipments except fuel supply tank and fire pump controller are mounted on a common base frame.Lubi can also supply Packaged fire pumping system with all required accessories ready for site installation.   APPLICATION   The FLHC fire pumps are used in fire-fighting applications for supplying water to fire hose reels, fire hydrants or sprinkler systems in areas which are prone to the hazards of fire.The typical applications are as follow:• Commercial complexes and high rise buildings• Petrochemical industries and Gas plants• Oil and Gas on-shore &off-shore platforms• Oil terminals• Airports and ports• Jetties• Marine applications• Power stations and transformer stations• Chemical industries• Manufacturing plants• Fire-work industries• Warehouses/godowns.   FEATURES FLHC fire pumps offers all features & benefits as mentioned in our LHC standard pump series data booklet. Following are the additional features & benefits offered by these pumps:• State-of-the-art design fire pumping system.• UL listed/FM approved/NFPA-20 design• Diesel engine as well as electric motor driven pump• Rugged construction• Liberal water passages• Automatic air relief valve• Efficient operation• Lower initial cost• Reduced installation time and cost• Simplified piping design• Suitable for space saving installation systems and retrofit applications• Easy access to all working parts• Ease of maintenance• Single source unit responsibility.

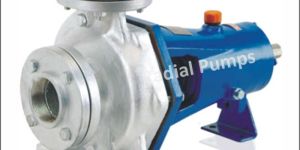

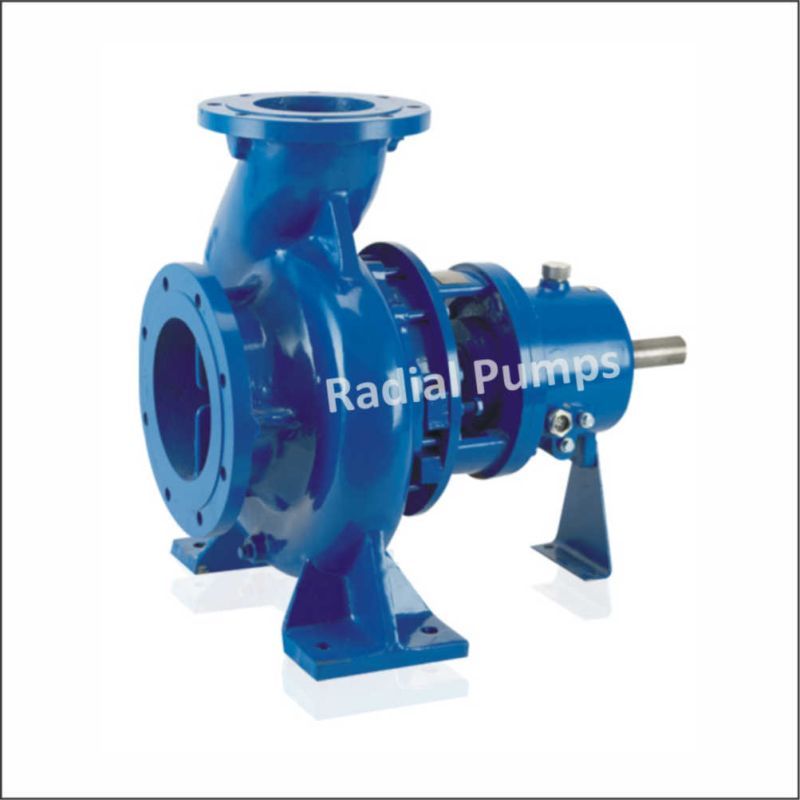

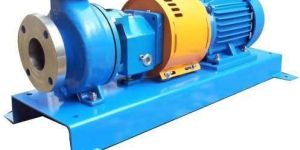

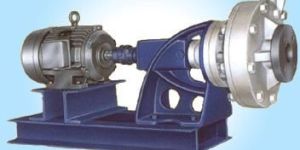

Heavy Duty C.I. / C.S. / S.S. / Alloy 20 Horizontal Centrifugal Process Pumps Shaft with sleeve is designed not to contact pumping liquid and free from crevice corrosion. The pumps are designed in wide range of capacity with high efficiency. Shaft is sealed with gland packing or mechanical seal. Casings are designed as "foot support" and " Back-pull-out " type so that rotating assembly and seal are easily dissembled or assembled without disconnecting main pipings. Standard coupling is star rubber coupling. Mechanical Seal : High Allumina Ceramic v/s Glass Filled Teflon. Sleeve : High Allumina Ceramic or Metallic. Impeller Open, single suction type, casted in one piece. All impellers are statically and hydraulically balanced to ensure smooth operation. Back wall of Impeller is provided with ejector vanes following the same curvature of the main vanes of the Impeller which prevents entrance and jamming of solid materials between Impeller and casting wall. Mechanical Seal In place of the conventional stuffing box pack-ing, pump can be provided, on order, with mechanical seal. Where mechanical seals are wanted, it is necessary to know all the char-acteristics of the liquid to be pumped, together with the temperature. When seals are used, a shaft sleeve of AISI 361 stainless steel is recommended in all con-struction to protect the shaft from corrosion inside the box. :: Horizontal Pump :: P.P. Horizontal Process Pump With Priming Chamber Cum Strainer Cumsightglass Shaft SleeveShaft sleeve is shouldered on shaft behind impeller and cover full length of shaft from impeller to bearing housing. Seals by compression between shaft sleeve and impeller hub. Hook type shaft sleeve is free to expand or contract with temperature fluctuations. 1. Main Body 2. Impeller 3. Key 4. Impeller Nut 5. Back Cover 6. Steel Shaft. 7. Latern Ring 8. Gland Packing 9.Gland Follower 10. Bearing Cover 11. Ball Bearing 12.Bearing Housing. 13. Collar 14. Ball bearing 15. Bearing Cover 16. Key 17. Lov joy Couple. 18. Shaft Sleeve.
