Humidity Oven Dealers in Ahmedabad

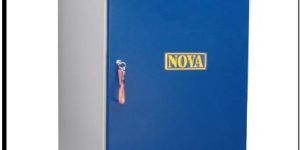

Introduction: "nova" humidity control oven is providing precise combinational control of all required parameters i.e. Heating, cooling and humidity. User can set it as per requirement any of combination as per the iso and other standards. All models can be run day and night and are capable to maintain set values throught the operation. It can generate & maintain above ambient temp.,below ambient temp. ,and humidity. It is specifically designed for application of various testing under low temp.& with control humidity. Features: - fully automatic, temperature control - easy to operate. - digi.temp.indicator & control - sensitive temperature & humidity sensor - castor wheel for easy moveability. - elegant outlook - glass door to see through. - forced air circulation. - humidity control by dry & wet principal. - digital humidity indication - stainless steel steam boiler. - panel meters- volt & ampere. - suitable for climatic & durable tests. - auto water level control.

• Brand Name: EIE

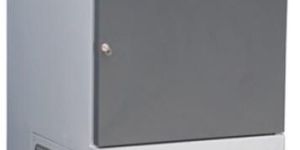

We are offering humidity oven. Construction : double wall construction interior fabricated of stainless steel(s.s.304). Exterior of corrosion resistant galvnised sheet, finished in powder coated epoxy paint. Full size glass inner door to inspect samples without affecting the chamber temp. Outer double walled metal door with magnetic gasket and lock. Unit mounted on castor wheels for easy movement. Insulation : 70mm polyurethene insulation (puf) fibebopard to ensure better insulation and less leakage of temperature or 10% rh from inner body to the surroundings. Air circulation : temperature is maintained by a quiet running blower circulation air through out the chamber. Forced air circulated vertically down and re circulated through out the chamber for uniform temperature and humidity. Humidity : humidity created by steam injection method. The boiler tank is fitted in the back side of the chamber for better servicing, electro magnetic switch for controlling the wet heater from burning off if water level is not adequate. Float valve provided to control water level in the boiler tank. Heating & cooling system : long lasting ss tubular heaters used as heating element. The stainless steel tins provided to ensure better heat transfer. Hermetically sealed compressor cfc free compressor (134 a gas) coupled with evaporation coil and condensor. Trays : removable perforated trays provided made of s.s. Control : microprocessor based temp and direct rh digital pid controller. Humidity directly measured in % rh by electronic sensor. Temp. Range : 10 to 70°c, accuracy +- 0.5°c humidity range : 40% rh to 90% rh accuracy +- 3% rh chamber size cu. Trays h w d ft. 45 x 45 x 45 3 2 70 x 50 x 50 6 3 90 x 60 x 60 12 3 other sizes available. Optional fittings a. Digital controller with standard pc software and connectivity. b. Datalogger : 4 point temp. + 4 point humidity datalogger with sensors placed at specific points in chamber with printer interface and memory of 1200 readings per channel. c. Additional high temperature safety system to cut-off all heaters with audio-visual alarm ensuring temp. within chamber doesn't exceed +70°c e. Voltage stabiliser

• Material: Metal, Plastic
• Application: Temperture Humidity Testing
• Certification: Automatic, Fully Automatic, Manual, Semi Automatic
• Color: Black, Brown, Creamy, Grey
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Electric, Hydraulic, Mechanical, Pneumatic
• Phase: Double Phase, Single Phase, Three Phase
• Warranty: 1year, 2years, 5years

• Features: High accuracy, Compact design, Long service life
• Temperature Range: 50-250 Degree Celsius
• Humidity range: From atmospheric humidity to 95 %
• Temp range from ambient: 5C to 60C
• Accuracy: - 0.5 Degree

• Temperature Range: 15 DEG. C. TO 50 DEG. C – OPERATING 20 DEG.C TO 40 DEG.C.
• Humidity range: 30/35% TO 90/95% RH
• TEMPERATURE RESOLUTION: 0.1 DEG. C.
• TEMPERATURE CONTROL ACCURACY: +/- 1 DEG. C. OR BETTER.
• TEMPERATURE UNIFORMITY: +/- 2 DEG. C. OR BETTER
• RESOLUTION: 1/0.1% RH
• HUMIDITY CONTROL ACCURACY       : +/- 2% OR BETTER
• HUMIDITY UNIFORMITY                   : +/- 5% OR BETTER

introduction: “nova” specially designed microprocessor based pid environmental test chamber can generate & maintain above ambient temperature, below ambient temp. ,and humidity. It is specifically designed for application of various testing under low temp.& with control humidity.   application: these environmental test chambers are used for pharmaceuticals, zoological testing, material & component testing, conditioning of samples, prior to test ,climatic & durable test of electrical & electronic apparatus, control penal, electronic components, chemical testing, as well as tqa requirement test etc. Etc. It can be used as a simulated tropical & extreme tropical conditions. salient features: fully automatic, temperature control - microprocessor pid based. easy to operate. top control penal. obstruction free working space. digital temp. Indicator & control (pid control) sensitive temperature sensor pt-100 type. floor model. castor wheel for easy moveability. elegant outlook, enamel painted/powder coated. glass door/window to see through. forced air circulation. humidity control by humidity sensor. digital humidity indication – direct in % rh. stainless steel steam boiler with solenoid valve. panel meters- volt & ampere. suitable for climatic & durable tests. auto water level control.                                                         environmental test chambers without cooling system can also be supplied. construction: the unit is of double walled construction. The exterior chamber is made of mild steel and finished in non corrosive paint or powder coated and interior chamber is made of heavy gauge polished stainless steel. Between two chamber glass-wool insulation is provided. Glass window is provided to see the operation without disturbing the control condition inside the chamber. An outside metal door with lock is provided. The unit rest on castor wheel.   heating: [a] chamber is heated by long lasting air heater.[b] boiler heater is of immersion type heater.   cooling: using hermatically sealed compressor condensing unit coupled with evaporation coil & fan cooled condensor.   humidity: humidity generated by steam injection near the duck from a boiler connected to water tank fitted with water level controller. Humidity set directly by digital pid controller.   indication & control: digital display indication for temperature & % rh humidity, fully automatic solid state electronic controllers with pt-100 sensors & solid state humidity sensor.   control panel: control panel is provided on the top of the unit consisting of mains switch, mains indicator, ampere meter, pid controller, pilot lamps (for cooling cycle-heating cycles), low water level controller fitted & connected through circuit to boiler heater low level pilot lamp (will not glow if water level is below requirements),   operating voltage: 230 volts single phase, 50hz, ac.

Introduction EIE-106, for curing of cement mortar moulds at 27 degree centigrade and 95% Humidity with Refrigeration System. Double walled, inside chamber stainless steel, outer body made of CRC/G.I. - powder coated, Temperture Range from 10°C to 60°C controlled by Dual display microprocessor based Digital temp. indicator cum controller with ± 0.5°C accuracy or better. Cooling system consist of high efficiency Kirloskar Make compressor with relevant accessories. Humidity range from atmospheric humidity to 95 % controlled by Dual display Microprocessor based Digital Temp. Controller (Dry and Wet bulb method) with accuracy +3 % RH or better. Inner water tank made of stainless steel with ball cock valve. Front door has a full view glass observation window. Chamber Size : 70 X 50 X 50 cm., Cu. ft. : 6, Trays : 3
