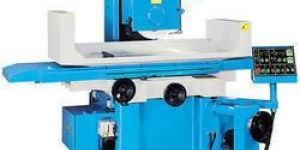

Hydraulic Surface Grinder Machine Dealers in Ahmedabad

• Condition: New
• Brand Name: Bhavya Machine Tools
• Type: Surface Grinding Machine
• Certification: An ISO 9001 2008 Certified Company
• Voltage: As Per Specification
• Place of Origin: Gujarat, India
• CNC or Not: Normal
• Max. Grinding Length: As Per Specification
• Max. Grinding Diameter: As Per Specification
• Packaging Details: Depend on Customer Requirement.
• Model Number: M7125 A+,M3060A +,M7140A-1

We are distinguished in the global market as one of the most prominent Automatic Hydraulic Bore Grinding Machine Manufacturers in the country. Our technically advanced Hydraulic Bore Grinding Machine is uniquely designed for Pharmaceutical Die, Bearings & Sleebes the various models are available with 100 mm centre height to 400 mm centre height and the speeds are available with 4000 rpm to 55000 rpm which make our Bore Grinding Machine unique in the market. Moreover, we offer Grinding Machines at the most reasonable prices.

we are engaged in offering hydraulic surface grinding machine. The working table executes only longitudinal movements. This ensures full contact and support from the machine bed, even int he table limit position. V and flat guide ways are always laminated with turcite 'b' to guarantee smooth table movement regardless of the load on the table. The column carries out only cross feed movement, this guarantees uniform contact between the column between the column slide and machine bed in any column position. The column slide is guided by box type turcite 'b' laminated ways,hand to obtain smooth stick slip free movement. Vertical slide ways and the grinding wheel, creating a perfectly perpendicular movement of the spindle in relation to the working table, the housing construction is also designed for better rigidity. The cartridge type spindle is supported by class 7 super (cp4) precision angular contact ball bearings, preloaded and select fitted into spindle cartridge. This will guarantee a maximum run out of 0.002 mm for stable and accurate grinding.

We are well reckoned as major manufacturer and supplier of jumbo plus surface grinding machine.
