Gyrator screen is useful and impart for solid liquid, screening. The motor rotations vibration to an entire screen assembly mounted on the springs, which gives material desperation, stirring and movement due to rotary multi plane motion given by Heavy duty vibration Motor, Feed material continously moves in horizontal motion on Vibro Screen surface as per Loop pattern. The vibratory screens are used to separate materials by partical size, shapes and small amount of oversize material. We are manufacturing the Machine in Single, Double & Tripple Deck Type with cover to avoid dusting.Flange mounted dust-tight 1440 R.P.M. unbalance vibration elec. motor, Manufactured in mild steelS.S.construction, Replaceable wire mesh screen frame with quick changing of wire mesh screens, Right or Left-hand outlets, Ball tray decks to reduce screen plug blinging

Unbalance Vibrating Motor is used as drive for vibrating Machine for bin discharging product feeding, screening etc. Different type of material can be handle such as Minerals, Refractories, Dyes, Chemicals, Intermediates, Food Product etc. The Vibration Motor are available in 3000, 1440, 980 & 750 RPM and from 1HP to 5HP.

Designed for use in the sizing of Minerals, Ceramics, Refractories and other powders. The principle on which the Jaykrishna Multi-Form grader operates is equally adaptable for the handling of many ceramic products. The Unit is more than "Just a Screen" It is is a precision tool for producing accurate grades, not merely rough groupings of sizes. It is economical of power and space; screen life is long; upkeep low. Flexible in its adaptability to widely different materials and conditions, it is unyielding in the uniformity of grades produced. Available in several models.

The Permanent magnetic trap (filter ) are use for filtration of iron particles from products in liquid form. They are also frequently used in hydraulic circuits in cooling systems. Magnetic system is built up either of anisotropic ceramic or High intensity Rare Earth magnets. The Magnet unit is enclosed in stainless steel or M.S.Housing making it suitable using in chemical , Paper & Ceramic industry.The Magnetic unit is easily removable from the S.S. enclosure by loosening a few quick release fasteners. For the removal of low magnetic particles or oxidized iron is removed, a system with High Intensity Rare Earth Magnets is recommended.   Sailent Features : THE PERMANENT MAGNETIC TRAP CONSISTS OF HIGH COROCIVITY MODERN ANISOTROPIC PERMANENT MAGNET LIKE FERRITE / RARE EARTH MAGNET. STRONG & RUGGED CONSTRUCTION WITH M . S & S . S. 304/316 CONSTRUCTION.

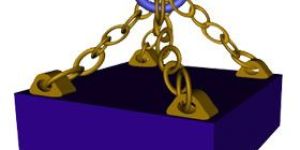

Jaykrishna Suspension Type Magnets are most useful for products carried by the Belt Conveyors. Use of Suspension Type Magnets is recommended for products with low contamination. However if the frequency of the impurities is too high, these will make a layer shunting magnetic field. The equipment will require frequent cleaning. For such applications Over Band type Magnetic Separator is recommanded. The main applications are for the processing of Bulk products such as Sugar, Coal, Minerals, Cereals, Coffee, Glass, Culets etc.

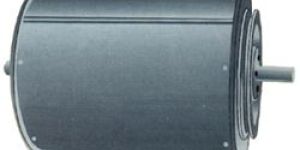

Permanent Drum type Magnetic Separator is most useful for separating tramp iron from non magnetic material processed in bulk quantity, for the purity of end products, recovery of metal having commercial value and protection of processing plant and machinery. These are widely used in all the processing industry for separation of iron contamination from Minerals, Chemicals, Food, Flour, Plastics, Grains, Sand, Cement, Fertilizers, Abrasives, Glass, Slag, Ores, Rock, Refractory and many other products.

Permanent Drum type Magnetic Separator is most useful for separating tramp iron from non magnetic material processed in bulk quantity, for the purity of end products, recovery of metal having commercial value and protection of processing plant and machinery. These are widely used in all the processing industry for separation of iron contamination from Minerals, Chemicals, Food, Flour, Plastics, Grains, Sand, Cement, Fertilizers, Abrasives, Glass, Slag, Ores, Rock, Refractory and many other products.

RE Tube Magnets are used to remove Iron Contamination from liquids or dry Bulk material for quality control check. Magnetic Tubes are available in Standard length of 150, 200 and 300 mm with solid, Threaded or with Studded ends.   Jaykrishna - High Intensity Rare Earth Magnetic Equipments are assembled using Rare Earth Nd-Fe-B Magnets having 4 - 5 times more strength compared to Ceramic / Alnico Magnetic Assemblies. the products are most useful for removing weakly magnetic or fine Iron Contamination from Dry or liquid products. These equipments are most useful for Food, Chemicals, Minerals & Refractories etc.

Rare Earth Magnetic Plates are designed for installation in feed chutes or for suspension over the flow of material for removed of weakly magnetic/fine iron impurities. There are widely used for Food, Chemicals, Minerals or Ceramic Slips and Glazes. Rare Earth Chutes ( Channel Type Magnet ) are also available to custom built requirements.

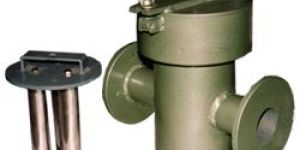

Re Magnetic Traps are available for Pipelines from 15mm to 500mm. They consist of Magnetic Element with Nos. of RE Magnetic Tubes and Filters the liquid passing through Magnetic Field for Optimum Removal of Magnetic Contamination.

RE Magnetic Separators are useful in processing industry for removing weakly magnetic or fine Iron impurities from Minerals, Refractories, Food Products, Glass, Slag, Ores etc.

High Intensity Rare Earth Magnetic Equipments are assembled using Rare Earth Nd-Fe-B Magnets having 4 - 5 times more strength compared to Ceramic Alnico Magnetic Assemblies. the products are most useful for removing weakly magnetic or fine Iron Contamination from Dry or liquid products. These equipments are most useful for Food, Chemicals, Minerals & Refractories etc.RE Tube Magnets are used to remove Iron Contamination from liquids or dry Bulk material for quality control check. Magnetic Tubes are available in Standard length of 150, 200 and 300 mm with solid, Threaded or with Studded ends.

RE Magnetic Grids are designed for installation in Hoppers, Feed Holes and duct etc. The Grids consists of Rare Earth Tubes assembled in Single, Double or Multiple bank as required and can be supplied in square circular or any other size to suit customer requirements.

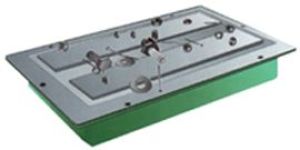

Permanent Magnetic Plates are designed in various sizes & strengths to meet with specific operation & plant conditions. Magnetic Plates are widely used for removing Tramp iron such as Bolts, Nuts, Bits of Wire, Nails and other casual containmination from free flowing materials to protect against occasional damage to the plant caused by bits of iron. Plate Magnets can ideally be used to remove tramp iron from the moving material carried in chutes ducts, spouts or on conveyor belts, screens and feed trays. Whether the material is plastic or paper pulp, food or fertilizer, Oil seeds or gains the result is sure protection of processing machinery and iron free final products.

The magnetic Drum pulley replaces the drive pulley at the end of conveyor belts. In view of the wide variety of conveyor belt types, the drum pulley are supplied made to measure and ready for installation. As the figure clearly show, the magnetic head roller extracts the iron particles from the material flow and carries them to the underside of the belt where they are removed and collected. Head roller magnets for conveyor belt are supplied in permanent magnets. The version with permanent magnets are fitted with powerful and An-Isotropic Hard ferrite Magnets /high intensity Rare Earth Nd-Fe-B Magnets and operate without the need for power supplies. The magnet system is available in two types: with Longitudinal polar field distribution for use with low levels of iron contamination and thin material layers, and with lateral polar field distribution for greater material thickness and larger iron particles.

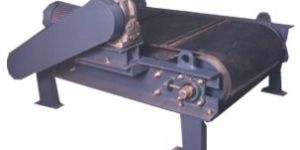

Suspended Permanent Magnetic Overband Separators are designed to eliminate tramp metal from the product carried by belt, vibratory feeders or inclined planes.Over bands are mainly used to protect Machine such as Crushers, Shredders and others, to remove ferrous particles and purify products ( Industries like Foundries, Coal Mines, Cement Works, Food, Sponge Iron, Char coal, Glass, Chemical Industries and Domestic waste recycling Plants.)The permanent Magnetic Overband Separators are used when an automatic Removal of ferrous contamination is necessary. If not, fixed Permanent Suspension Magnets are more suitable. The speed of the belt , the nature of the product, its density, its granulometry and the size of the pieces which have to be extracted are on of the parameters to be taken into consideration when choosing the type of Overband. The Magnet is made of High Intensity Stroncium Ferrite Magnets and is guaranteed for the Magnetic Power through out the life of installation. A Non - Magnetic Stainless steel Plate is provided to cover the poles of Magnet. There is no need for any electrical supply or maintenance.

Suspended Permanent Magnetic Overband Separators are designed to eliminate tramp metal from the product carried by belt, vibratory feeders or inclined planes.Over bands are mainly used to protect Machine such as Crushers, Shredders and others, to remove ferrous particles and purify products ( Industries like Foundries, Coal Mines, Cement Works, Food, Sponge Iron, Char coal, Glass, Chemical Industries and Domestic waste recycling Plants.)The permanent Magnetic Overband Separators are used when an automatic Removal of ferrous contamination is necessary. If not, fixed Permanent Suspension Magnets are more suitable. Applications: Five type of Separators Re designed to operate at  a predetermined working gap over the conveyor : 100, 150, 200, 250 and 300mm. The speed of the belt , the nature of the product, its density, its granulometry and the size of the pieces which have to be extracted are on of the parameters to be taken into consideration when choosing the type of Overband. Construction: Two U-section pieces are fixed on the Magnet by Fastening ears and are supporting bearings of Drums. Drums are equipped with shafts mounted on removable hubs. All bearings equipped with stakes for tightening the belt. The belt is driven by a Reduction Gear Coupled to Electric Motor / Geared Motor by Vee- belts. Magnet Unit: The Magnet is made of High Intensity Stroncium Ferrite Magnets and is guaranteed for the Magnetic Power through out the life of installation. A Non - Magnetic Stainless steel Plate is provided to cover the poles of Magnet. There is no need for any electrical supply or maintenance. Installation : These units can be installed either inline over the terminal head pulley (Fig - 1. ), or transversal to the conveyor (Fig - 2). In both cases, it is necessary to foresee Non- Magnetic products under the Magnetic Field. The most effective position is inline (Fig - 1) over the head pulley. The material being conveyed is in virtual Suspension and Tramp Iron is therefore more readily extracted. Very good results are obtained by combining a Permanent Magnetic Overband with Permanent Magnetic Pulley at discharge end.

High gradient, Permanent Magnetic Roller Separators with the indigenous Technology. Which has been used successfully in Industrial Minerals applications. The Machine incorporates high energy Rare Earth Neodymium Permanent Magnetic Roll Assembly, which is manufactured and assembled under strict quality control and specification to Generate unsurpassed Magnetic Field Gradients. Under this High Intensity Magnetic Field, weekly Magnetic Contamination can be easily removed efficiently. Magnetic Rolls available in 65, 75 & 100mm Dia. & widths up to 1200mm. In three different Magnetic Strengths 8,000 Gauss, 20,000 Gauss and 22,000 Gauss. A 0.5 HP, variable speed DCAC Geared Motor drive adjustable from 0 to 100 RPM Drives the Roll. Vibratory Feeder with Controls provided for Feeding. Abrasion resistant endless conveyor Belts with thickness of 0.8mm is provided for the Machine. Testing facilities are available on Machine at our works. A small sample of around 5-10 Kgs. of Material can be tested free of cost and the performance of our Machine can be demonstrated.

Permanent Magnetic Plates are designed in various sizes & strengths to meet with specific operation & plant conditions. Magnetic Plates are widely used for removing Tramp iron such as Bolts, Nuts, Bits of Wire, Nails and other casual containmination from free flowing materials to protect against occasional damage to the plant caused by bits of iron. Plate Magnets can ideally be used to remove tramp iron from the moving material carried in chutes ducts, spouts or on conveyor belts, screens and feed trays. Whether the material is plastic or paper pulp, food or fertilizer, Oil seeds or gains the result is sure protection of processing machinery and iron free final products.

Magnetic Humps are used where the flow of material is vertical. The material falling strikes directly on the first magnet changes direction and falls over the second magnet, ensuring clean outflow of material. The Magnets are of Hinged type and can be easily opened for periodic cleaning. Hump Magnets can be supplied to suit any size of PipeDuct.

magnetic sweepers clear important traffic areas of dangerous scrap iron and reduce the possibility of costly flat tires or personal injury. We manufacture and distribute magnetic sweepers, without easy load release. Hang type sweepers, This is Ideally used to collect the iron scrap from the workshop floor. Magnetic plate with cover wheels and Handle in three different sizes are available.

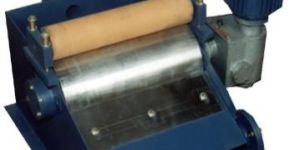

The Coolant Fluid with iron Dust particles Falling by Gravity to the Inlet of the Separator from the Precision Machine Tools such as Grinders, Milling Machines, Automates etc. The Coolant with Iron impurities come in to contact with Magnetic Drum and extracts all Iron particles. The Magnetic drum is kept clean at all times by a Scrapper Blade along the circumference. A rubber Roller Squeezes the sludge gathered to ensure that no coolant is wasted. Features : A sturdy welded M.S. Frame. The Magnets enclosed in Stainless Steel Drum having Powerful An - Isotropic Ferrite Magnets with Uniform Magnetics field all along the Circumference. A Neoprene Rubber Roller with Covered bearings. A Stainless Steel blade with adjustments for efficient scrapping of the sludge. An Elec.Motor working 440 V with Reduction Gear revolving the Drum at about 4 RPM. We are manufacturing Coolant Separators in Standard capacity of 50, 100, 150, & 200 Liters/Min. However custom made Coolant.

Capacity : 50, 100, 150, & 200

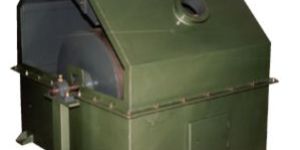

Inline Magnetic Separators are available for installation in the Feed lines such as at the outlet of elevator, screw conveyor etc. Flanged type Inlet and outlet connections are provided. The Magnetic Drum incorporates High Intensity stroncium / Rare Earth Magnets. These are widely used for Cattle Feed Plants, Flour Mills, Rice Mill, Minerals, Refractories, Glass and many other Products.
