JIGER GEARS Tavdipura, Ahmedabad, Gujarat

Material : Cast Iron

Brand Name : Jiger

Power : 3 HP

Type : Worm

Mounting : Foot

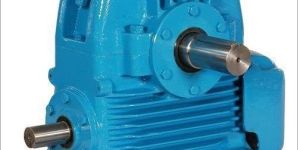

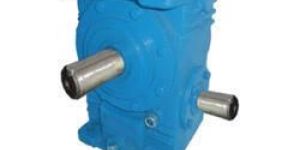

A **Worm Reduction Gearbox** is a type of gearbox used to achieve a significant reduction in speed while increasing torque. This gearbox uses a worm gear (a screw-like component) meshing with a worm wheel (a gear) to transmit motion and power between non-parallel, non-intersecting shafts, typically at right angles.    ### Key Characteristics of Worm Reduction Gearboxes:   1. **High Reduction Ratios**:    - Worm gearboxes can provide very high gear reduction ratios, often from 5:1 to 100:1 or even higher in some cases. This makes them ideal for applications requiring significant speed reduction.   2. **Compact Design**:    - The design of the worm reduction gearbox is very compact compared to other gearboxes with similar reduction ratios. This is due to the way the worm gear wraps around the worm wheel, allowing for efficient use of space.   3. **High Torque Output**:    - By reducing speed, worm gearboxes increase the torque, making them suitable for applications that require substantial force or load-handling capacity.   4. **Self-Locking Capability**:    - One of the unique features of worm gearboxes is their self-locking ability. When the gear ratio is high enough, the worm gear cannot drive the worm wheel backward. This is useful in applications like lifts or conveyors where back-driving (reversing) must be prevented.   5. **Smooth and Quiet Operation**:    - Worm gearboxes are known for their quiet operation because the worm gear’s sliding action against the worm wheel produces less noise than other types of gears that rely on rolling contact.   ### Components of a Worm Reduction Gearbox:   1. **Worm Gear**:    - The worm gear is a screw-like component that meshes with the worm wheel. It is typically made of hardened steel or bronze for durability.   2. **Worm Wheel**:    - The worm wheel is a gear that meshes with the worm gear. It is usually made of a softer material, such as bronze or cast iron, to allow for smooth interaction and to reduce wear.   3. **Housing**:    - The gearbox housing encloses the worm gear and worm wheel, protecting them from dirt and contaminants while keeping lubrication in place.   4. **Bearings**:    - Bearings support the worm and wheel shafts, allowing them to rotate smoothly under load.   5. **Lubrication System**:    - Proper lubrication is critical in a worm gearbox to reduce friction between the sliding surfaces of the worm gear and worm wheel.   ### Applications:   1. **Conveyors**:    - Used in conveyor systems to control the speed and increase the torque, particularly in inclined or vertical conveyors where self-locking is beneficial.   2. **Lifts and Elevators**:    - Worm gearboxes are commonly used in lifts and elevators to prevent back-driving, ensuring that the platform remains stationary when not in use.   3. **Packaging Machinery**:    - In packaging machines, worm gearboxes control the motion of various components, providing the precise speed and torque needed for different operations.   4. **Material Handling Equipment**:    - Utilized in hoists, cranes, and other material handling systems where high torque and controlled speed are required.   5. **Automotive Steering**:    - Worm gearboxes are often used in the steering mechanisms of vehicles to reduce the effort required to turn the wheels.   ### Advantages: - **High Reduction in a Single Stage**: Achieves significant speed reduction in a compact form. - **Smooth Operation**: Provides quiet and smooth performance, which is ideal for noise-sensitive environments. - **Self-Locking**: Prevents reverse motion, enhancing safety in applications like lifts and conveyors. - **Durable**: Designed to handle high loads with minimal wear.   ### Disadvantages: - **Efficiency**: Worm gearboxes tend to be less efficient than other types of gearboxes because of the sliding contact between the worm and the worm wheel, which generates more heat. - **Heat Generation**: High friction can cause excessive heat, requiring effective cooling or lub

Mounting : Foot

Power : 5 HP

Material : Cast Iron

Brand Name : Jiger,JIGER

Finishing : Polished

Driven Type : Electric

Gear Type : Worm

Color : Blue

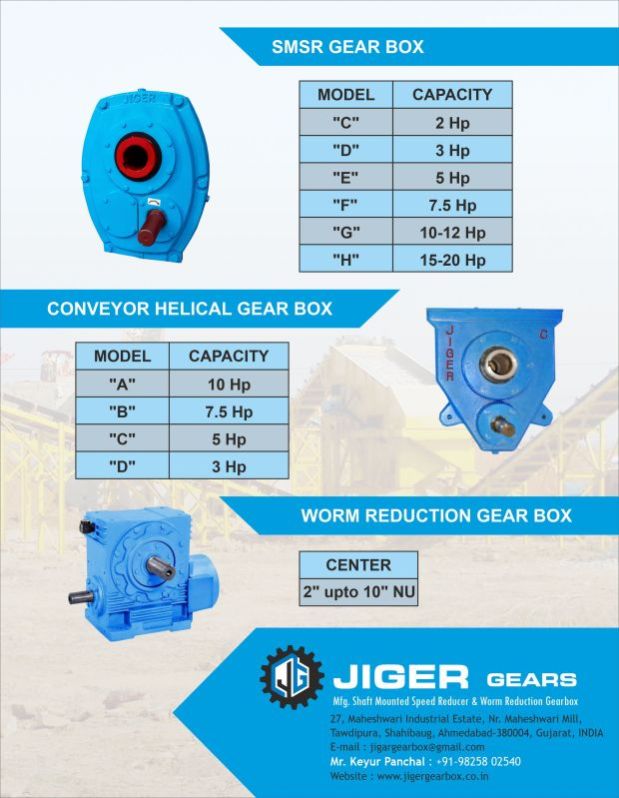

we are manufacturing SMSR GEARBOX as as per requirment all range avilble 2hp up to 20 hp c,d,e,f,g,h ratio asme 20:1 we have advance mfg technology on gearbox mfg.. jiger industries

Brand Name : JIGER GEARS

Type : Stone Crusher Spare Parts

A stone crusher conveyor is an essential component in the stone crushing process. It is used to transport crushed stone from the crusher to different stages of the crushing or screening process or to a storage area. The conveyor consists of a series of pulleys and a belt that continuously moves to carry the material.   ### Key Components: 1. **Belt**: The belt is usually made of rubber or other durable material that can handle the weight and abrasiveness of the crushed stone. 2. **Pulleys**: These are used to drive the belt and guide it along its path. They can be motor-driven or gravity-assisted. 3. **Motor**: Powers the conveyor system, moving the belt and thus transporting the stone. 4. **Rollers**: Support the belt and reduce friction, making the conveyor system more efficient. 5. **Frames**: The structure that supports the entire conveyor system.   ### Applications: - **Quarries**: To move raw stones from the quarry to crushers. - **Construction Sites**: To transport crushed stone to different construction areas. - **Mining**: To move crushed rock and ore for further processing.   ### Advantages: - **Efficiency**: Automates the transport of materials, reducing manual labor. - **Scalability**: Can be adjusted to handle different loads and materials. - **Durability**: Designed to withstand harsh environments and heavy loads.   ### Maintenance Tips: - Regularly check for wear and tear on the belt. - Ensure the motor and pulleys are functioning smoothly. - Lubricate moving parts to reduce friction and wear. - Inspect and tighten any loose components.   Would you like more detailed information on a specific part or function of a stone crusher conveyor?

Country of Origin : India

Type : Stone Crusher Machine, JAW CRUSHER

Certification : ISO 9001:2008

Weight : 100-1000kg

Color : Grey

Voltage : 20 HP

Condition : New

Rated Power : 9-12kw

Automatic Grade : Automatic

Driven Type : Elecric

Warranty : 1year

Application : STONE CRUSHER MACHINE

Production Capacity : 20 HP

After-Sales Service Provided : YES

Capacity(t/h) : MODEL H

Motor Type : FLANGE MOTOR

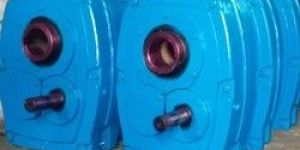

JIGER GEARS **belt conveyor gearbox** is a critical component used in belt conveyor systems to manage the speed and torque required to move the conveyor belt, carrying materials from one point to another in various industries such as mining, quarrying, stone crushing, and material handling.   ### Key Functions of a Belt Conveyor Gearbox:   1. **Speed Reduction**:    - The gearbox reduces the high input speed from the motor to a lower output speed that is suitable for the conveyor belt. This reduction is necessary to achieve the desired belt speed, which is typically lower than the motor’s speed.   2. **Torque Increase**:    - As the speed is reduced, the gearbox increases the torque, which is essential for driving the conveyor belt, especially when handling heavy materials.   3. **Direction Control**:    - Some gearboxes can reverse the direction of the conveyor belt when needed. This is particularly useful in applications where materials need to be transported back and forth.   ### Types of Belt Conveyor Gearboxes:   1. **Helical Gearbox**:    - **Description**: Known for its high efficiency and smooth operation, the helical gearbox is commonly used in belt conveyor systems. The angled teeth of the gears provide continuous contact, resulting in quiet and efficient power transmission.    - **Applications**: Suitable for medium to large conveyor systems, often used in industries like mining and bulk material handling.   2. **Worm Gearbox**:    - **Description**: A worm gearbox has a screw-like gear (worm) that meshes with a worm wheel. This type of gearbox offers high torque output and is often used in applications where space is limited due to its compact design.    - **Applications**: Ideal for conveyors with lower speed and high torque requirements, such as in stone crushing plants.   3. **Planetary Gearbox**:    - **Description**: Planetary gearboxes consist of a central sun gear, ring gear, and planet gears. This configuration offers high torque output in a compact design and is very efficient in power transmission.    - **Applications**: Used in heavy-duty conveyor systems that require high torque in a small footprint, like in mining operations.   4. **Bevel Helical Gearbox**:    - **Description**: Combines the benefits of bevel gears and helical gears, offering high torque, efficiency, and flexibility in installation. Bevel gears change the direction of the drive in a compact form, making them ideal for conveyors that need to change direction.    - **Applications**: Commonly used in large conveyors that require significant power transmission and directional changes.   5. **Shaft Mounted Speed Reducer (SMSR)**:    - **Description**: The SMSR gearbox is mounted directly on the conveyor shaft, simplifying installation and reducing alignment issues. It is a popular choice for belt conveyors due to its ease of maintenance.    - **Applications**: Widely used in quarrying and stone crushing plants where space is at a premium and ease of installation is important.   ### Features to Look for in a Conveyor Gearbox: - **Durability**: Gearboxes must be built from high-quality materials to withstand harsh operating conditions. - **Efficiency**: High-efficiency gearboxes reduce energy consumption and improve the overall performance of the conveyor system. - **Compact Design**: Especially important in space-constrained environments. - **Easy Maintenance**: Gearboxes with accessible components and clear maintenance procedures help minimize downtime. - **Torque Rating**: Ensure the gearbox can handle the torque requirements of the conveyor, especially under heavy loads.   ### Maintenance Tips: - **Lubrication**: Regular lubrication is critical to prevent wear and overheating. Use the recommended type and amount of lubricant. - **Inspection**: Periodically check for signs of wear or damage on gears, shafts, and seals.  - **Alignment**: Ensure the gearbox is correctly aligned with the motor and conveyor shaft to prevent excessive wear. - *

Brand Name : JIGER GEARS

Material : Casting & 8620 Gear

Roller Materials : Heavy

Bearing : V2 Quality

Country of Origin : India

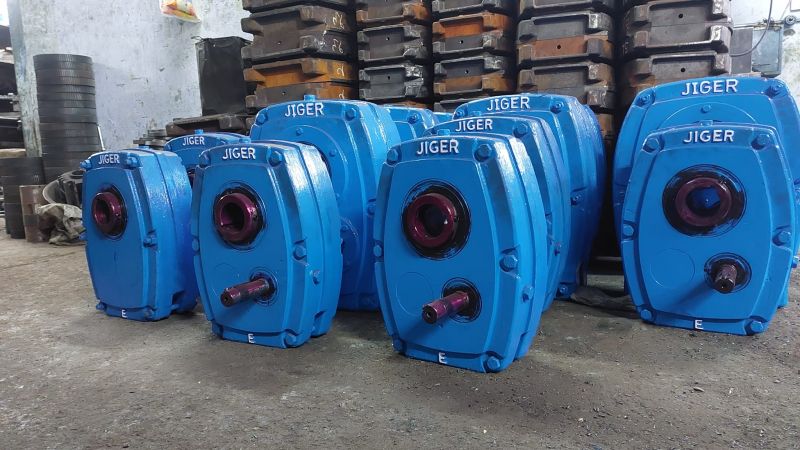

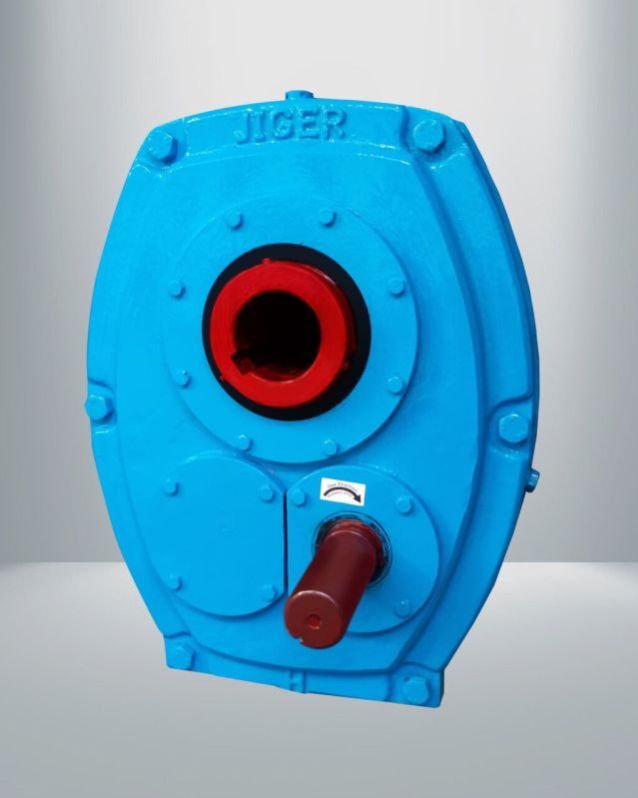

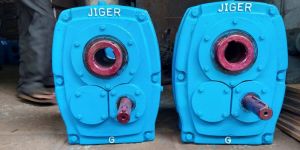

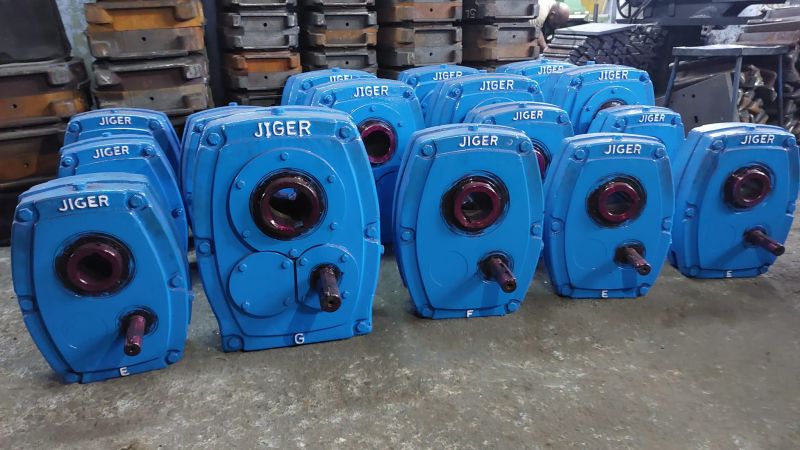

**SMSR Gearboxes**, or **Shaft Mounted Speed Reducers**, are a popular type of gearbox designed for use in various industrial applications. They are known for their simplicity, ease of installation, and maintenance. Here’s a detailed overview of SMSR gearboxes:   ### Key Features of SMSR Gearboxes:   1. **Direct Mounting**:    - **Design**: SMSR gearboxes are mounted directly on the driven shaft, which eliminates the need for a separate baseplate or coupling. This reduces the complexity of installation and helps in saving space.    - **Advantage**: Simplifies alignment and reduces the number of components, which can lower installation and maintenance costs.   2. **Reduction Ratio**:    - **Range**: SMSR gearboxes are available in a variety of reduction ratios, typically ranging from 5:1 to 20:1, although some models can offer ratios beyond this range.    - **Purpose**: The reduction ratio determines how much the gearbox reduces the input speed to achieve a slower output speed, while simultaneously increasing the torque.   3. **Backstop Device**:    - **Function**: Many SMSR gearboxes come with a built-in backstop device to prevent the driven equipment from reversing. This is useful in applications like conveyors and elevators, where reverse motion could be problematic.    - **Benefit**: Enhances safety and prevents potential damage from unintended reverse movement.   4. **Efficiency**:    - **Performance**: SMSR gearboxes are designed to be efficient, providing smooth and reliable power transmission with minimal power loss.    - **Operation**: They typically operate quietly, making them suitable for noise-sensitive environments.   5. **Durability**:    - **Construction**: Built with robust materials to handle heavy loads and harsh operating conditions.    - **Maintenance**: The design allows for easy maintenance, with accessible components for lubrication and inspection.   ### Applications:   1. **Conveyors**:    - **Usage**: Commonly used in conveyor systems for material handling in industries like mining, quarrying, and manufacturing.    - **Function**: Provides reliable and smooth operation for transporting materials over various distances and inclines.   2. **Stone Crushers**:    - **Usage**: Employed in stone crushing plants to drive the crushers and provide the necessary speed reduction and torque.    - **Function**: Ensures efficient operation and handling of heavy, abrasive materials.   3. **Mixers**:    - **Usage**: Used in industrial mixers where high torque and precise speed control are required.    - **Function**: Facilitates the mixing of materials with varying consistencies and weights.   4. **Elevators and Lifts**:    - **Usage**: Suitable for use in elevators and lifts, where smooth and controlled movement is essential.    - **Function**: Provides reliable lifting power and helps prevent back-driving.   ### Advantages:   - **Ease of Installation**: Direct mounting on the shaft reduces the need for additional components and simplifies setup. - **Space-Saving Design**: Compact design allows for use in space-constrained environments. - **Reduced Maintenance**: Fewer components mean less maintenance and easier access for servicing. - **Versatility**: Suitable for a wide range of applications due to its ability to handle varying loads and speeds.   ### Maintenance Tips:   - **Lubrication**: Regularly check and replenish lubricant according to the manufacturer’s specifications to ensure smooth operation and prevent wear. - **Inspection**: Periodically inspect for signs of wear or damage on the gearbox and driven components. - **Alignment**: Ensure proper alignment of the gearbox with the motor and driven shaft to prevent undue stress and prolong lifespan. - **Temperature Monitoring**: Monitor operating temperature to prevent overheating, which can lead to premature failure.   ### Summary:   The SMSR gearbox is a versatile and reliable choice for many industrial applications. Its design simplifies installation and mai

Brand Name : Jiger

Type : Helical,SMSR JIGER

Color : Red

Driven Type : Electric

Condition : New

Mounting : Foot

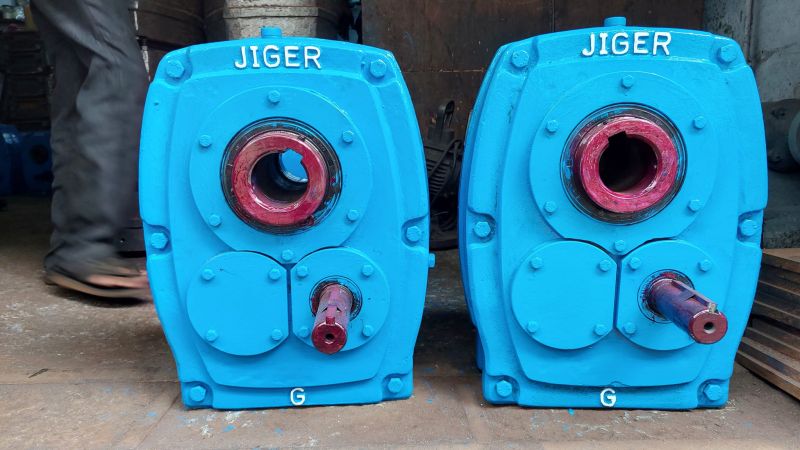

🔧 Upgrade Your Machinery with Fenner Type SMSR Gearboxes! 🔧 Looking for a reliable and high-performance Fenner Type SMSR (Shaft Mounted Speed Reducer) Gearbox? Engineered for efficiency and durability, our Fenner Type SMSR gearboxes are the perfect choice for heavy-duty industrial applications. Key Features of Fenner Type SMSR Gearboxes: ✅ Heavy-Duty Construction: Designed to endure the toughest conditions and high-impact loads.✅ High Torque Transmission: Delivers excellent torque and performance for demanding machinery.✅ Low Maintenance: Built with durable materials for minimal upkeep and longer service life.✅ Easy Installation: Shaft-mounted design ensures quick and hassle-free setup.✅ Versatile Applications: Ideal for conveyor systems, crushers, and other industrial equipment. Why Choose Fenner Type SMSR Gearboxes? 🌟 Reliability: Known for exceptional reliability and robust performance in various industries.🌟 Efficiency: Reduces operational costs with high efficiency and low maintenance needs.🌟 Adaptability: Suitable for a wide range of applications, from mining to construction. Transform your operations with top-quality Fenner Type SMSR Gearboxes!

Brand Name : JIGER GEARS,JIGER

Material : Mild Steel

Finishing : Chrome Finish

Driven Type : Electric

Gear Type : Helical

Color : Blue,BLUE

Condition : New

Pressure : Low Pressure

Type : SMSR

Salient Features: Quick & easy installation and adjustment of gearbox and motor (elimination of foundations) Various ranges of output RPM and power requirements with durability Low power consumption and provide high range of torque Flexible motor mounted in a convenient position High efficiency and low maintenance

Brand Name : Jiger

Power(HP) : 3 HP

Gear Type : Helical

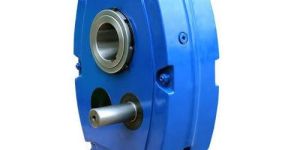

Jiger Gears is a reputed manufacturer, exporter and supplier of an assorted range of products. The range of products that we bring to our clients includes Industrial Gearboxes (Conveyor Gearbox , Roller Conveyor Gearbox , Roller Conveyor Gearbox , SMSR Type Belt Conveyor Gearbox , Non Reversible SMSR Gearbox , SMSR Gearbox, Worm Gearbox, Shaft Mounted Speed Reducer Gearbox, Shaft Mounted Speed Reducer Gearbox, Hold Back SMSR Gearbox, Worm Reduction Gearbox, Fenner Shaft Mounted Speed Reducer Gear Box, Shaft Mounted Gearbox and Planetary Backstop SMSR Gearbox )

Brand Name : JIGER GEARS

Material : Metal, Cast Iron

Country of Origin : India

A **stone crusher** is a machine designed to reduce large rocks into smaller rocks, gravel, or rock dust. Stone crushers are used in various industries like construction, mining, and aggregate production to process raw materials and prepare them for further processing or direct use.   ### Types of Stone Crushers:   1. **Jaw Crusher**:    - **Description**: A jaw crusher uses compressive force to break down large rocks into smaller pieces. It has two plates, one fixed and one moving, that move in a "V" shape to crush materials.    - **Applications**: Ideal for primary crushing of large, hard materials such as granite, basalt, and limestone.   2. **Cone Crusher**:    - **Description**: A cone crusher crushes material by squeezing it between an eccentrically gyrating spindle (the mantle) and a concave hopper. The crushing action is continuous, producing a more uniform product size.    - **Applications**: Suitable for secondary, tertiary, and quaternary crushing stages, often used in mining and aggregate production.   3. **Impact Crusher**:    - **Description**: Impact crushers involve the use of impact rather than pressure to crush material. The material is contained within a cage, with openings on the bottom, end, or side to allow crushed material to escape.    - **Applications**: Used for softer materials like limestone, gypsum, and sometimes in recycling applications like concrete.   4. **Hammer Crusher**:    - **Description**: This crusher employs a rain of hammer blows to shatter and disintegrate the material. The material is fed into a chamber and is crushed by high-speed rotating hammers.    - **Applications**: Ideal for crushing medium-hard materials, often used in cement plants and coal mines.   5. **VSI Crusher (Vertical Shaft Impact Crusher)**:    - **Description**: VSI crushers use a high-speed rotor and anvils for impact crushing rather than compression force. They are particularly effective for making sand and fines.    - **Applications**: Used in the production of high-quality sand and aggregate, in the shaping of aggregates, and in various industrial minerals.   6. **Gyratory Crusher**:    - **Description**: A gyratory crusher is similar to a jaw crusher but has a circular gap between a concave surface and a conical head. The material is continuously crushed and released to the bottom of the machine.    - **Applications**: Used mainly in large-scale mining operations for primary crushing of hard materials.   7. **Roll Crusher**:    - **Description**: Roll crushers consist of two or more adjacent rolls placed parallel to each other. As the material passes through the rolls, it is crushed by compression and shear forces.    - **Applications**: Commonly used for crushing friable materials like coal, salt, and clay.   ### Key Components: - **Feeder**: Feeds the raw material into the crusher at a controlled rate. - **Crusher Chamber**: The area where the crushing process takes place. - **Conveyor**: Transports the crushed material to different stages of the process or to storage areas. - **Screen**: Separates crushed material into different size fractions. - **Motor**: Powers the crusher, typically using a gearbox to reduce the speed and increase torque.   ### Applications: - **Construction**: Producing aggregates for concrete, road base, and asphalt. - **Mining**: Crushing ore and minerals to extract valuable metals. - **Recycling**: Crushing concrete, asphalt, and other demolition debris for reuse. - **Quarries**: Producing crushed stone for various construction uses.   ### Advantages: - **High Efficiency**: Modern stone crushers are designed to maximize efficiency and productivity. - **Versatility**: Capable of handling a wide range of materials, from soft to very hard. - **Durability**: Built to withstand harsh operating conditions. - **Safety**: Equipped with features like automatic overload protection and emergency stops.   ### Maintenance Tips: - **Regular Inspection**: Check for wear and tear on key components

After-Sales Service Provided : YES

Weight : AS PER VARIOUS MODEL

Type : HELICAL GEARBOX

Production Capacity : 25 HP,7.5 HP

Certification : ISO 9001:2015

Application : Conveyor,Industrial

Color : Grey

Feature : HELICAL GEAR,Rust Proof, Long Life, High Performance, Easy To Operate

Country of Origin : India

Brand Name : JIGER

Detail: Applications of Planetary Gearbox. Planetary Gearbox has its application in machine tools, plastic machinery, goods & personnel lifts, derrick & dockyard cranes, material handling equipments, truck mounted mobile cranes etc. Dredging equipments, road making machinery sugar crystallizers and mill drives.

Brand Name : Jiger

Color : Blue

Finishing : Coated

Driven Type : Electric

Motor Power : 3-5hp

Stone crusher gearboxes are essential components that provide the necessary torque and speed reduction for the operation of stone crushers. These gearboxes are designed to handle the heavy loads and high impact conditions typically found in stone crushing plants. They are used to transmit power from the motor to the crusher, allowing for efficient and controlled crushing of materials.   ### Common Models of Stone Crusher Gearboxes:   1. **SMSR Gearbox (Shaft Mounted Speed Reducer)**    - **Description**: A shaft-mounted gearbox that is widely used in stone crusher applications due to its simple design, easy installation, and maintenance. It comes with a taper lock system that allows easy mounting on the shaft.    - **Variants**: Available in different output ratios like 5:1, 13:1, and 20:1, depending on the required speed reduction and torque.    - **Applications**: Ideal for belt-driven stone crushers where compact design and reliability are essential.   2. **Helical Gearbox**    - **Description**: Helical gearboxes are known for their high efficiency and long life due to the angular gear teeth, which offer smoother and quieter operation compared to other types.    - **Variants**: Typically available in single, double, and triple reduction variants, depending on the level of speed reduction required.    - **Applications**: Used in larger stone crushers that require significant torque and smooth operation.   3. **Bevel Helical Gearbox**    - **Description**: Combines bevel and helical gears to offer high torque transmission and efficiency. These gearboxes are compact and robust, designed to handle heavy-duty applications.    - **Variants**: Available in different configurations, such as horizontal and vertical mounting, to suit various crusher designs.    - **Applications**: Suitable for cone crushers and jaw crushers where high torque and compact design are crucial.   4. **Worm Gearbox**    - **Description**: Worm gearboxes offer a high torque output and are known for their compact design. The worm gear reduces speed and increases torque through a screw-like mechanism.    - **Variants**: Available in various output torque ratings and gear ratios, typically from 5:1 to 60:1.    - **Applications**: Commonly used in stone crushers with lower power requirements or where space is limited.   5. **Planetary Gearbox**    - **Description**: Planetary gearboxes are highly efficient and compact, offering high torque in a small footprint. They consist of multiple gears (planet gears) revolving around a central sun gear.    - **Variants**: Available in single, double, and triple stage configurations to provide a wide range of speed reductions and torque levels.    - **Applications**: Ideal for high-torque applications like vertical shaft impact (VSI) crushers.   ### Features and Benefits: - **High Durability**: Designed to withstand the harsh operating conditions typical of stone crushing plants. - **Easy Maintenance**: Many models come with features that allow for easy access to components, making maintenance straightforward. - **Wide Range of Ratios**: Available in a variety of gear ratios to meet different operational requirements. - **Compact Design**: Many models are designed to be space-saving, which is essential in tightly packed crushing plants. - **Cost-Effective**: Provides a balance between cost and performance, ensuring reliable operation at a reasonable price.   ### Maintenance Tips: - **Regular Inspection**: Check for wear and tear on gears and other components regularly. - **Lubrication**: Keep the gearbox properly lubricated to minimize friction and prevent overheating. - **Temperature Monitoring**: Regularly monitor the operating temperature to ensure it remains within the manufacturer’s recommended range. - **Alignment Check**: Ensure that the gearbox is properly aligned with the motor and the crusher to avoid undue stress on components.   Choosing the right gearbox model for your stone crusher depends on the specific ap

Gear Type : Helical

Orientation : Horizontal

Type : Helical

Material : Cast Iron

Brand Name : JIGER

Finishing : Polished

Driven Type : Electric

Color : Blue

Brand Name :     JIGERWe are manufacturing Jacketed Bitumen Pump.This product is used in hot mix plant , quarry , crusher , mining , stone crusher , crushing , wet mix , asphalt drum mix plant , road construction , drum mix plant , wetmix macadam plant , asphalt plant , dm plant , pugmill , asphalt mixing plant , fourbin feeder

Weight : 100-300kg, 700-1000kg

Condition : New

Rated Voltage : 230V, 380V, 450V

Rated Power : 1-5kw, 20-25kw, 5-10kw

Feature : Cost Effective, Durable, Heavy Power, Low Fuel Consumption

Warranty : 5 Years

Automation Grade : Automatic

Material : Cast Iron

Gear Type : Helical

Brand Name : Jiger

JIGER GEARS IS REPUTED MFG COMPANY IN GEARBOX INDUSTRY LAST 3 DACADE. WE HAVE EXPERINCE STAFF LIKE DESIGN DEPARTMENT , HIGH QUALIFY ENGINEERS , LATEST TECHNOLOGY PRODUCTION MACHINARY. **Fenner gearboxes** are well-known in the industry for their reliability, durability, and efficiency. They are manufactured by Fenner, a brand that is part of the larger Michelin Group, and are widely used in various industrial applications, including material handling, conveyors, stone crushers, mixers, and more. Fenner gearboxes are available in several types, each designed to meet specific needs for speed reduction, torque transmission, and operational efficiency.   ### Common Types of Fenner Gearboxes:   1. **Fenner Shaft Mounted Speed Reducer (SMSR)**    - **Description**: The SMSR is a type of shaft-mounted gearbox that is designed for ease of installation and maintenance. It is mounted directly onto the driven shaft, eliminating the need for a baseplate and couplings.    - **Applications**: Widely used in conveyor systems, particularly in industries like quarrying, mining, and material handling. It’s also common in stone crushers.    - **Features**:      - Taper bush for quick installation and removal.      - Available in various ratios from 5:1 to 20:1.      - Optional backstop device to prevent reverse movement.   2. **Fenner Worm Gearbox**    - **Description**: Fenner worm gearboxes offer high torque output with compact design and are typically used where space is limited. The worm gear design also provides a self-locking feature, which can prevent reverse motion.    - **Applications**: Ideal for use in elevators, conveyors, mixers, and material handling systems.    - **Features**:      - High reduction ratios in a single stage.      - Quiet and smooth operation.      - Suitable for applications requiring self-locking.   3. **Fenner Helical Gearbox**    - **Description**: Helical gearboxes by Fenner are known for their efficiency and long service life. The helical teeth provide a smoother and quieter operation compared to spur gears.    - **Applications**: Used in heavy-duty applications like mixers, crushers, and conveyor systems.    - **Features**:      - High efficiency due to the continuous engagement of gears.      - Capable of handling high radial and axial loads.      - Available in single, double, and triple reduction stages.   4. **Fenner Bevel Helical Gearbox**    - **Description**: These gearboxes combine bevel and helical gears to transmit power between perpendicular shafts. They offer high torque and efficiency, with the flexibility of installation in various orientations.    - **Applications**: Used in high-torque applications such as heavy machinery, industrial conveyors, and mining equipment.    - **Features**:      - Compact design with high torque transmission.      - Available in various configurations for different applications.      - Durable construction for harsh industrial environments.   5. **Fenner Planetary Gearbox**    - **Description**: Planetary gearboxes offer a high power density in a compact size. They are designed for applications requiring high torque, precise control, and reliability.    - **Applications**: Commonly used in cranes, hoists, wind turbines, and heavy-duty machinery.    - **Features**:      - High torque output with a small footprint.      - Multiple gear stages available for various speed reduction requirements.      - Excellent load distribution and efficiency.   ### Features and Benefits of Fenner Gearboxes: - **High Reliability**: Built to last, Fenner gearboxes are made from high-quality materials, ensuring long service life even in demanding conditions. - **Efficiency**: Designed for optimal performance, these gearboxes provide high efficiency, reducing energy consumption and operational costs. - **Versatility**: Available in various configurations and sizes to meet a wide range of industrial needs. - **Easy Maintenance**: Fenner gearboxes are designed for easy access and maintenan

Input Speed : 80

Country of Origin : India

After-Sales Service Provided : YES

Weight : AS PER VARIOUS MODEL

Thickness : AS PER DEMAND

Type : HELICAL GEARBOX

Specialities : Long Life, High Performance, Easy To Operate

Hardness : 60-65

Packaging Type : Wooden Box

Capacity : 25 HP

Certification : ISO 9001:2015

Style : Horizontal

Usage : Conveyor

Color : Green, Blue

Gear Type : Helical

Material : Cast Iron

Brand Name : JIGER GEARS

Mounting : Foot

JIGER GEARBOX SINCE 1984 .

Color : SKY BLUE

Certification : ISO 9001:2008

Type : Shaft Mounted Speed Reducer

Weight : 50-60kg

Country of Origin : India

Brand Name : JIGER

Material : Cast Iron

Gear Type : Helical

**Crusher Helical Gearboxes** are specialized gearboxes used in stone crushers and other heavy-duty crushing equipment. They are manufactured to provide high torque and reliability in harsh conditions. In India, several companies manufacture helical gearboxes specifically for crushers, known for their robust design and durability.   ### Key Features of Helical Gearboxes for Crushers:   1. **High Torque Capacity**:    - Designed to handle the high torque loads required in crushing operations, ensuring effective power transmission and operation.   2. **Smooth Operation**:    - Helical gears provide smooth and quiet operation due to their angled teeth, which offer continuous contact and reduced noise.   3. **Durability**:    - Built with high-quality materials to withstand the demanding conditions in stone crushing, including heavy loads, dust, and vibrations.   4. **Efficient Speed Reduction**:    - Offers efficient speed reduction with minimal energy loss, which is crucial for maintaining the operational efficiency of crushers.   5. **Compact Design**:    - The compact and robust design helps in saving space and integrating easily with crushing machinery.   ### Leading Manufacturers in India:   1. **Bharat Bijlee Limited (BBL)**:    - **Overview**: Known for producing high-quality helical gearboxes used in various industrial applications, including crushers.    - **Products**: Offers a range of helical gearboxes designed to meet the needs of crushing and other heavy-duty applications.   2. **Elecon Engineering Company Limited**:    - **Overview**: One of India’s leading manufacturers of industrial gearboxes, including those for crushers.    - **Products**: Provides robust helical gearboxes with high torque capacity and reliability for harsh environments.   3. **Gearbox India**:    - **Overview**: Specializes in manufacturing a wide range of gearboxes, including helical gearboxes suitable for crushers.    - **Products**: Offers customized solutions for various crushing applications, focusing on durability and performance.   4. **Nishi Enterprise**:    - **Overview**: Provides high-quality helical gearboxes designed for different industrial sectors, including mining and stone crushing.    - **Products**: Known for reliable and efficient gearboxes with good performance in crushing operations.   5. **S. K. Industries**:    - **Overview**: Offers a variety of gearboxes, including helical types, tailored for use in crushers and other heavy-duty applications.    - **Products**: Focuses on producing durable and efficient gearboxes for the mining and construction industries.   ### Applications of Helical Gearboxes in Crushers:   - **Stone Crushers**: Provides the necessary torque and speed reduction for crushing stones and rocks into various sizes. - **Aggregate Production**: Used in aggregate processing to handle and crush materials for construction and infrastructure projects. - **Mining**: Suitable for crushing ore and other materials in mining operations, ensuring efficient and reliable performance.   ### Maintenance Tips:   - **Regular Lubrication**: Ensure proper and regular lubrication of the gearbox to reduce wear and prevent overheating. - **Inspection**: Regularly inspect the gearbox for signs of wear or damage, and address any issues promptly. - **Cooling**: Monitor and manage operating temperatures to prevent overheating, which can affect performance and lifespan. - **Alignment**: Check and maintain proper alignment between the gearbox and the driven equipment to avoid undue stress and potential damage.   ### Conclusion:   Helical gearboxes manufactured in India for crushers are designed to provide high torque, smooth operation, and durability in demanding environments. Leading Indian manufacturers offer a range of helical gearboxes that cater to the needs of various industrial applications, including stone crushing and mining. Proper maintenance and selection of the right gearbox are crucial for ensuring reliable and effici

Type : Helical

Power : 7.5 HP

Material : Cast Iron

Brand Name : Jiger

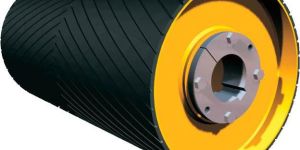

JIGER GEARS Mfg.  conveyor drum pulley is a critical component in conveyor systems, including those used in stone crushers. The drum pulley is the cylindrical component around which the conveyor belt is wrapped, helping to drive or change the direction of the belt as it moves material.   ### Types of Conveyor Drum Pulleys:   1. **Drive Pulley**:    - **Function**: This is the primary pulley that powers the conveyor belt. It is connected to the motor and is responsible for moving the belt.    - **Position**: Typically located at the discharge end of the conveyor.   2. **Tail Pulley**:    - **Function**: Provides tension to the conveyor belt, ensuring it stays taut and aligned. It does not drive the belt but helps in guiding it.    - **Position**: Found at the opposite end of the conveyor from the drive pulley.   3. **Snub Pulley**:    - **Function**: Increases the belt's wrap angle around the drive pulley, enhancing traction.    - **Position**: Located close to the drive pulley.   4. **Bend Pulley**:    - **Function**: Used to change the direction of the conveyor belt.    - **Position**: Placed at the point where the belt direction needs to change.   5. **Take-Up Pulley**:    - **Function**: Adjusts the belt tension as it stretches or contracts during operation.    - **Position**: Typically located near the tail end or midway along the conveyor.   ### Key Features: - **Diameter and Length**: These vary depending on the conveyor system's size and capacity. - **Lagging**: A coating applied to the pulley surface to increase traction and reduce wear on the belt. It can be made of rubber or ceramic. - **Material**: Drum pulleys are usually made from steel to withstand heavy loads and abrasive conditions. - **Shaft**: The central axis around which the pulley rotates, connected to bearings that ensure smooth operation.   ### Maintenance Tips: - **Regular Inspection**: Check for signs of wear on the lagging and shaft. - **Alignment**: Ensure the pulley is correctly aligned with the conveyor system to prevent belt slippage. - **Lubrication**: Bearings should be lubricated regularly to minimize friction and wear. - **Balance**: The pulley should be balanced to avoid vibrations that could damage the system.   Proper maintenance and selection of conveyor drum pulleys are crucial for the efficient operation of any conveyor system, especially in demanding environments like stone crushing plants.

Country of Origin : India

Type : JAW CRUSHER

Grade : ASME

Certification : ISO 9001:2008 Certified, ISO 9001:2008

Size : 0-15Inch, 60-75Inch, 90-105Inch

Application : Conveyor Use, Construction

Color : Black, Brown

Shape : Round

Surface Finishing : Polished

Material : MS

Situated in Ahmedabad Gujrat in India JIGER GEARS is Manufacturer of Conveyor Idler diameters shaft sizes as well as options for polyurethane and vinyl coating for select models. Roller brackets are also available for custom installation Features: HDPE pipe with Reinforced Skeleton 1.     Light Weight for Power Saving and Worker Safety 2.     Smooth, Noiseless operation 3.     Anti-Alkaline/Anti-Acidic/Anti-Static Formulation 4.     Suitable for Corrosion Environment 5.     Recyclable Application Field : 1.     Chemical Industry Fertilizer, Salt, Sugar, Pulp Paper, Acid and Alkaline, etc. 2.     General Industry Coal Mining, Cement, Concrete, Limestone and Quarry, etc. Operating Condition

After-Sales Service Provided : YES

Voltage : 15

Brand Name : JIGER

Loading Capacity : 10-15kg

Certificate : ISO 9001:2008

Condition : New

Feature : Excellent Quality

Color : Black

Application : Moving Goods

Thickness : 0-10mm

Material : Metal

Type : Conveyor Idler Roller

Country of Origin : India

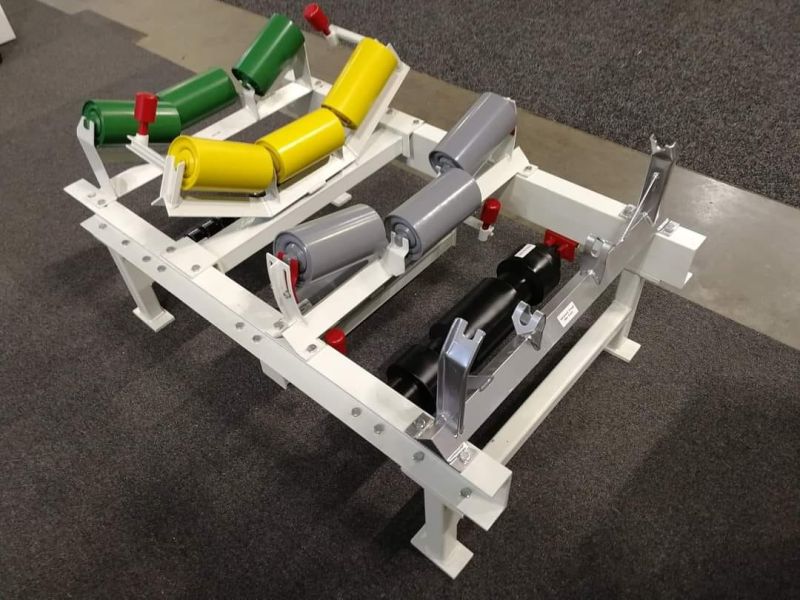

 Reliable Conveyor Idler Frames for Your Industrial Needs! 🚧 Looking for durable and high-quality conveyor idler frames? Our conveyor idler frames are engineered to provide superior performance, ensuring your conveyor systems operate smoothly and efficiently! ✅ Robust Construction: Built to withstand heavy loads and harsh conditions✅ Enhanced Durability: Designed for long-lasting performance with minimal maintenance✅ Versatile Design: Suitable for various conveyor applications, from mining to manufacturing✅ Easy Installation: Quick and hassle-free setup to keep your operations running seamlessly Whether you’re in mining, construction, or logistics, our conveyor idler frames are the perfect choice to ensure reliable and efficient material handling. 🚛💨 🌟 Upgrade your conveyor system with the best in idler frame technology! 🌟 📞 Contact us today for more information and quotes: [+91-9825802540]💻 Learn more: [www.jigergearbox.co.in] #ConveyorIdlerFrame #IndustrialConveyor #MaterialHandling #HeavyDutyIdlerFrames #EfficientConveyors #EngineeringExcellence #Mining #Construction

Roller Shape : Cylindrical

Trough angles : 45-90 Degree, 0-45 Degree

daimeter : 100-200mm, 0-100mm

Belt Width : 500-1000mm, 1000-2000mm, 0-500mm

Appplication : Industrial Use

Surface Treatment : Color Coated

Condition : New

Color : Brown

Grade : CE EN 1337-3

Application : Conveyor Use,STONE CRUHSER

Thickness : 0-10mm

Material : Mild Steel

Type : Conveyor Idler Frame

Country of Origin : India

Material : Cast Iron

Brand Name : JIGER

Material : Gear material 8620

When marketing SMSR (Shaft Mounted Speed Reducer) Gearboxes, it’s crucial to highlight their key features and benefits effectively. Here’s a detailed overview you can use for various marketing channels: 1. Product Overview SMSR Gearbox - Shaft Mounted Speed Reducer The SMSR Gearbox is a high-performance speed reducer designed for heavy-duty industrial applications. Engineered to deliver exceptional torque and reliability, it is ideal for various machinery, including conveyors, crushers, and other equipment that requires precise speed control and durability. 2. Key Features Robust Design: Built to handle demanding environments and tough operational conditions. High Torque Transmission: Efficiently reduces speed while providing high torque output. Low Maintenance: Designed with durable materials and components to minimize maintenance needs. Easy Installation: Shaft-mounted design simplifies installation and alignment. Versatile Applications: Suitable for conveyors, crushers, and other industrial machinery. Cost-Effective: Provides excellent performance at a competitive price. 3. Benefits Enhanced Performance: Improves the efficiency and productivity of your machinery. Durability: Long-lasting construction ensures reliability and reduces downtime. Reduced Operating Costs: Low maintenance and efficient design help lower overall operating costs. Flexibility: Adaptable to various applications and industries, including mining, construction, and manufacturing. 4. Target Applications Conveyor Systems: Ensures smooth and efficient material handling. Crushing Equipment: Provides reliable speed reduction and torque for crushers. Mining Machinery: Enhances the performance and durability of mining equipment. Construction Equipment: Supports heavy-duty machinery in construction projects. 5. Marketing Messaging Unlock the Power of Precision with Our SMSR Gearboxes! Upgrade your machinery with our top-of-the-line SMSR Gearboxes designed for heavy-duty industrial applications. Experience unmatched reliability, high torque, and minimal maintenance with our robust speed reducers. #SMSRGearbox #IndustrialGearbox #SpeedReducer #HeavyDutyGearbox #ConveyorSystems #MiningEquipment #ConstructionMachinery #EngineeringExcellence

Gear Type : Helical

Color : BLUE

Condition : New

JIGER GEARS A **Backstop SMSR Gearbox** (Shaft Mounted Speed Reducer Gearbox) is an important component used in conveyor systems, particularly in industries like mining, stone crushing, and cement production. The gearbox reduces the speed from the motor to the conveyor belt, providing the necessary torque for moving heavy loads. The backstop mechanism integrated into the SMSR gearbox prevents reverse motion, ensuring safety and preventing potential damage.   ### Key Features of Backstop SMSR Gearbox:   1. **Shaft-Mounted Design**:    - **Function**: The gearbox is mounted directly on the driven shaft of the conveyor, eliminating the need for foundations and alignment. This design simplifies installation and maintenance.   2. **Backstop Mechanism**:    - **Function**: The backstop is a mechanical device that allows the shaft to rotate in one direction only, preventing the conveyor from running backward when the motor is turned off or during a power failure.    - **Application**: This is particularly important in incline conveyors, where the material could slide back and cause jams or equipment damage.   3. **Speed Reduction**:    - **Function**: The gearbox reduces the input speed from the motor to a suitable level for the conveyor, increasing torque and making it easier to move heavy loads.   4. **Construction**:    - **Material**: Typically constructed from high-grade cast iron or steel for durability and resistance to harsh conditions.    - **Bearings**: Equipped with heavy-duty bearings that support the shaft and absorb radial and axial loads.   5. **Taper Bush System**:    - **Function**: Allows easy mounting and dismounting of the gearbox on the shaft, offering flexibility in installation and maintenance.   6. **Lubrication**:    - **Function**: The gearbox is usually filled with oil or grease to reduce friction between moving parts, ensuring smooth operation and extending the life of the components.   ### Applications: - **Conveyors**: Widely used in belt conveyors in stone crushers, mines, and material handling plants. - **Cranes and Hoists**: To control the lifting and lowering speeds. - **Agitators and Mixers**: Where speed reduction and torque increase are required.   ### Advantages: - **Compact Design**: Saves space and simplifies the conveyor system layout. - **High Efficiency**: Provides optimal speed reduction with minimal power loss. - **Easy Installation**: The shaft-mounted design simplifies the installation process. - **Safety**: The backstop mechanism prevents accidents caused by reverse motion.   ### Maintenance Tips: - **Regular Lubrication**: Ensure the gearbox is adequately lubricated to prevent wear and tear. - **Inspect Backstop**: Regularly check the backstop mechanism for proper function. - **Check Alignment**: Ensure the gearbox is correctly aligned with the conveyor shaft to avoid undue stress on the components. - **Monitor Temperature**: Overheating can indicate issues with lubrication or excessive load.   Using a Backstop SMSR Gearbox in a conveyor system enhances safety and operational efficiency, particularly in applications where there is a risk of rollback or where high torque is required for moving heavy materials.Jiger GEARS is a reputed manufacturer, exporter and supplier of an assorted range of products. The range of products that we bring to our clients includes Industrial Gearboxes (Conveyor Gearbox , Roller Conveyor Gearbox , Roller Conveyor Gearbox , SMSR Type Belt Conveyor Gearbox , Non Reversible SMSR Gearbox , SMSR Gearbox, Worm Gearbox, Shaft Mounted Speed Reducer Gearbox, Shaft Mounted Speed Reducer Gearbox, Hold Back SMSR Gearbox, Worm Reduction Gearbox, Fenner Shaft Mounted Speed Reducer Gear Box, Shaft Mounted Gearbox and Planetary Backstop SMSR Gearbox ) and Jacketed Bitumen Pump.

Hardness : 58

Country of Origin : India

Type : Jaw Crusher

Brand Name : JIGER,JIGER

Material : Mild Steel

Certification : ISO 9001:2008

Power : 1-3 Kw

Corrosion Resistance : Yes

Warranty : 1 Year

Phase : Three Phase

Motor Power : 10HP

Driven Type : Electric

Finishing : Powder Coated

Condition : New

Voltage : 110V

Color : Grey

Application : Stone Crusher, Construction Industry, Industrial

Specialities : Rust Proof

Packaging Type : Carton Box

Pressure : Low Pressure

Capacity : 7.5 HP
