VFD Control Panel
8,000 Per unit
Voltage : 380-400 V
Material : Mild sheet
Variable Frequency Drive Panel
8,000 Per unit
Material : Mild Sheet
Frequency : 50 - 60 Hz
Sx2000 Smart Series AC Drive
Product Range: Single-Phase 230V - 0.75 to 3.7kW. Three-Phase 230V - 0.75 to 18.5kW. Three-Phase 415V - 0.75 to 90kW. IP66 Three-Phase 415V - 0.75 to 22kW. Features: V/F, Sensorless Vector Control, Slip compensation. Conformal Coating complying to IEC 60721-3-3 class 3C2. Built-in RS485 Modbus. Peer to Peer Communication to share I/O’s. Built-in Brake Control. Inbuilt PLC functionality. Component Life Monitor. Inbuilt PID. Multi Keypad. No Motor Detection. Built-in DC Reactor from 37kW to 90kW. Built-in Braking Chopper till 30kW. Applications : OEM Machines. Elevators Plastic & Textile Machinery. Compressors Extruders Conveyors Fan and Pump. Crane Control LT / CT. Overload capacity: Heavy duty operation: 150% of rated current for 60 sec. Normal duty operation: 120% of rated current for 60 sec. Safety Disable function (Safety Stop): Sx2000 is compliant to the EU Machinery Directive without the additional of previously required external devices. Through this compliance, Sx2000 reduces the number of peripheral devices needed to satisfy safety regulation. It results in cost, space, and maintenance reduction. Enhanced Brake control: Ideal for Crane & Lifts: Brake release with Delay. Brake Close frequency different settings possible for Hoisting & Lowering Motion. Brake opening command by Drive under following conditions: Inverter Output Frequency > Brake Release Frequency AND Inverter Output Current > Brake Release Current Multi-Keypad: Optional LCD keypad of Master drive enables to access every drive (Slave) connected via inbuilt RS485 communication so that the users adjust and monitor parameters easily. P2P communication: Peer to peer communication among the drives allows sharing any I/O via inbuilt RS485 communication. It might be useful in case of limited number of I/O points for a certain system. User Sequence : Built-in PLC Functionality: User sequence creates a simple sequence from a combination of different function blocks with direct access to Drive parameters. No Software required to create logic The sequence can comprise of a maximum of 18 steps using 28 functions blocks. Function blocks: AND, NOR, ADD, SUB, MIN, MAX, COMPARE, TIMER, XOR, SWITCH, UP/DWN COUNT...etc Component Life Monitoring : Sx2000 monitors both main capacitor’s lifecycle and Fan. When the life span of Fan is near, Sx2000 outputs via Relay or Digital output as a alarm sign. Smart Copier : It allows users to download & upload the parameters from/to Sx2000 without AC input power. Easy download of Customized firmware from copy unit to drive Copy paste of parameters Flange option: Sx2000 allows its heatsink to be installed outside of panel for better cooling system with this option.
...more
Power Factor Improvement Panel
Automatic power factor correction with microprocessor Based APFC relay used. Salient Features : Spacious capacitor mounting on base plate. APFC relay with 2 mode selection PF or VAR. APFC Relay's display scroll to indicate PF, Ampere, Volt. APFC relay with function of auto sensing. APFC relay is easy to set all parameter. Wiring diagram fixing at panel's Door.
Type : Microprocessor Based
...more
Power Distribution Panel
Product Details Up to 4000 Amp. Incoming power distribution, with single/multiple incomings with Copper/aluminum bus bar with insulation of PVC Shrinkage sleeve Single/Double door (Dust & Water free with degree of protection IP55/IP65) As per IS:8623. Salient Features : Proper selection of Bus bar & wires. Available with Single / Double door design. Connection details fixing at panel's Door. Cable entry up/down as per requirement. Tinning to bus bar for prevent corrosion. Made from 14 / 16 gauge MS sheet. MS Sheet with PU Paint / Powedercoat. Easy to Cable laying & Termination design. Copper Bus bar with P.V.C shrinkage sleeve. Available protection IP54, IP55 / IP64, IP65.
...more

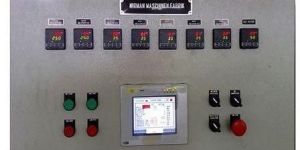

Plc Control Panel
20,000 Per unit
Material : Mild Steel

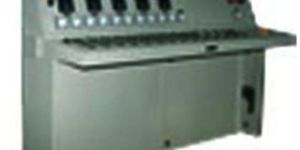

Motor Control Center Panel
Product Details : Modular and Compartmentalized for 0.25 HP to 200 HP for DOL Star-Delta Auto- Transformer Switch VFD and Soft starters AS per IS: 8623. Salient Features: MS Sheet with PU Paint / Powedercoat. Easy to Cable laying & Termination design. Connection details fixing at panel's Door. Fix / Draw out both type Starters. Copper / Aluminum busbar with P.V.C shrinkage sleeve. Tinning to copper busbar for prevent corrosion. Separate door for each section. Design of panel is practically work use to human operation.
...more
Mitsubishi VFD
37,420 Per Set
Brand Name : Mitsubishi
Input Voltage : 200-240 V

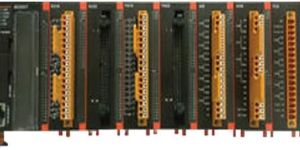

LX8 Programmable Logic Controller
Programmable Logic Controller Feature Small but Strong 2,560 points on Small PLC Feel Powerful Communication Support 4 x Comm. Port EtherNet , USB, 2 x RS232/485 Built-in 10/100Mbps EtherNet Port Built-in USB Port Built-in 2 channels high speed serial port EtherNet Based Protocol : EtherNet/IP , Modbus/TCP, NX-Protocol/TCP, Xnet/TCP, Bootp/DHCP Server, SNMP Server, HTTP (Web) Server Serial Protocol : Xnet Master/Slave, Modbus/RTU, NX-Protocol, DFI-Full Duplex, ASCII(User Defined Protocol) Supports 4G SD Memory Card : Backup to SD Card (Data Log, Program), Recipe Data log, Recipe Expandable IO module like Remote I/O 3 Step Powerful Password LXGPC – Programming Software : Online Editing. Support Multi-Languages Support Win XP/Vista/7(32/64bit) Best Solution for Network Based Applications (Semi/FPD, Communication, SCADA, etc.
...more

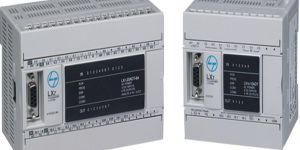

LX7 and LX7s Programmable Logic Controller
Features : Control 10, 14, 20, 28, 40, 48 digital I/O ports. 2 serial ports (1 RS-232C, 1 50485 with module RTU). Program memory size up to 2K words. Built-in backup flash memory. Built-in HSC, pulse output (for TR output module only). Attributes : Basic control to 28,48 points and up to 104 digital I/O points. Expansion up-to two modules each of 28 points. 2 serial ports (2 RS232C/RS485 with modbus RTU). Program memory size up 9K words. Built-in HSC, pulse catch, pulse output (for 'TR output module). Built-in real-time clock, PID function.
Application : Ideal for simple applications
...more

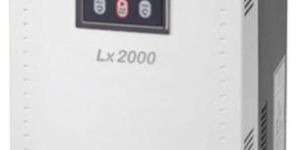

Lx2000 Lift Series AC Drive
Features : Ideal for High Speed Elevator Control. Suitable for geared / gearless machines. Starting Torque 200% at 0Hz for Closed Loop & 200% at 0.5Hz for Open Loop Control. Compatibility with various types of encoders. Built-in Line driver & open collector (Incremental) encoder feedback card. Anti-roll-back algorithm. Distance Control through ELIO card. Built-in ARD function. Built-in Braking chopper till 22kW. Conformal Coating complying to IEC 60721-3-3 class 3C2. Control method : Sensorless vector control. Closed Loop Vector Control. Overload capacity : Designed to be used for heavy duty applications. Overload capacity:Heavy duty operation: 150% of rated current 60 sec. Built-in brake control for safe vertical loading : To minimize risk of the elevator’s giving in to the gravitational pull of the earth, brake-control is built in. Extreme precise control. ELIO Option on board (Distance learning) : Accepts position sensor input ( rid switches etc ). Measures height & stores floor count. Displays floor number, speed in elevator units. Reduces creep time. Controls position. Advance door opening Handshaking with elevator controller
...more
Fx2000 Flexi Series AC Drive
Features : V/F, Sensorless Vector Control, Slip compensation. Conformal Coating complying to IEC 60721-3-3 class 3C2. Built-in RS485 Modbus. Peer to Peer Communication to share I/O’s. Built-in Brake Control. Inbuilt PLC functionality. Component Life Monitor. Inbuilt PID. Multi Keypad. No Motor Detection. Built-in DC Reactor from 37kW to 90kW. Built-in Braking Chopper till 30kW. Applications: OEM Machines. Elevators Plastic & Textile Machinery. Compressors Extruders Conveyors Fan and Pump. Crane Control LT / CT. Overload capacity: Heavy duty operation: 150% of rated current for 60 sec. Normal duty operation: 120% of rated current for 60 sec. Safety Disable function (Safety Stop): Sx2000 is compliant to the EU Machinery Directive without the additional of previously required external devices. Through this compliance, Sx2000 reduces the number of peripheral devices needed to satisfy safety regulation. It results in cost, space, and maintenance reduction. Enhanced Brake control: Ideal for Crane & Lifts: Brake release with Delay. Brake Close frequency different settings possible for Hoisting & Lowering Motion. Brake opening command by Drive under following conditions: Inverter Output Frequency > Brake Release Frequency AND Inverter Output Current > Brake Release Current Multi-Keypad: Optional LCD keypad of Master drive enables to access every drive (Slave) connected via inbuilt RS485 communication so that the users adjust and monitor parameters easily. P2P communication: Peer to peer communication among the drives allows sharing any I/O via inbuilt RS485 communication. It might be useful in case of limited number of I/O points for a certain system. User Sequence: Built-in PLC Functionality: User sequence creates a simple sequence from a combination of different function blocks with direct access to Drive parameters. No Software required to create logic The sequence can comprise of a maximum of 18 steps using 28 functions blocks. Function blocks: AND, NOR, ADD, SUB, MIN, MAX, COMPARE, TIMER, XOR, SWITCH, UP/DWN COUNT...etc Component Life Monitoring : Sx2000 monitors both main capacitor’s lifecycle and Fan. When the life span of Fan is near, Sx2000 outputs via Relay or Digital output as a alarm sign. Smart Copier : It allows users to download & upload the parameters from/to Sx2000 without AC input power. Easy download of Customized firmware from copy unit to drive Copy paste of parameters Optional Communication Cards : CANopen. Profibus DP Modbus TCP /Ethernet I/P) Flange option: Sx2000 allows its heatsink to be installed outside of panel for better cooling system with this option.
...more

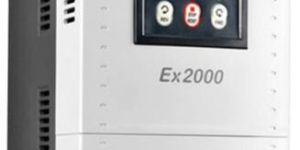

Ex2000 Energy Saver Series AC Drive
Features: V/F, Sensorless Vector Control, Slip Compensation Starting Torque: 200% at 0.5Hz for Sensorless Control. Conformal Coating complying to IEC 60721-3-3 class 3C2. Built-in RS485 Modbus. Built-in Booster pump control. Dual PID. Pre-heat Function. Reverse Rotation Prevention. Component Life Monitoring. Built-in DC Reactor from 22kW to 280kW. Overload capacity : Heavy duty operation: 150% of rated current for 60 sec. Normal duty operation: 110% of rated current for 60 sec Booster Pump: : It is used when a single drive is used to control multiple motors in pump systems, by default 4 Pumps can be controlled & Max upto 8 pumps can be controlled. Precise Control of pressure. Ideal cost effective solution for constant pressure / constant flow pumping application. PID & Dual PID : In the centrifugal fan and pump, PID control is provided as a standard function in order to maintain a constant pressure, flow or level. Where external or cascaded PID control is required, the built-in dual PID algorithm of the Ex2000 can be utilised to satisfy various system requirements. Sleep & Wake Function : It automatically switches OFF Drive during user-programmed low- load conditions and then to start-up again when process demand increases. It helps eliminate unnecessary operation at idle speeds, thus saving wear and tear, as well as energy. PID Control KEB : During power dips or momentary power outage, the drive’s output can be maintained by utilising the residual mechanical energy in the load as a regenerative source. The duration of the power-dip ride-through depends on the load characteristics. Pre Heat Function : It allows the drive to maintain residual heat in the motor, which helps eliminate condensation in damp conditions when the motor is not in use. In the drive, an adjustable, low-level DC current is applied to the stator windings either continuously or on a duty cycle basis. Automatic Energy Saving : Load change may incur energy losses. But the optimised flux control of the Ex2000 results in more outstanding energy-saving. Removable Terminal Block : In case of AC Drive failure, control card of the existing drive can be replaced to new drive with wiring. Reduces the downtime of AC Drive replacement
...more
EMX3 Soft Starter
Features : Specially used in heavy duty applications. XLR8 Adaptive Acceleration feature. Comprehensive motor protection. Built-in RTD and thermistor inputs. 99 event logs with time stamping. Power through operation to run soft starter even if 1 SCR is shorted. 5 digital inputs, 4 digital outputs, 1 analog output. Fully programmable overload trip. Real time metering and monitoring. CSX : Compact design, small footprint. Built-in bypass contactor. Easy installation and operation. Complements existing motor protection. Plug & Play. CSXi : Compact design, with built-in bypass contactor. Essential motor protection. Selectable soft starting profiles. Flexible communication options. Excess start time settling. Range : EMX3 : 23A to 1600 A. 7.5 kW to 800 kW (Inline connection). 7.5 kW to 1200 kW (Inside deltaconnection) CSX : 7.5 kW to 110 kW CSXi : 7.5 kW to 110 kW
Material : Metal
...more
Delta VFD-F AC Drive
22,000 Per Number
1 Number (MOQ)
Brand Name : Delta
Model Number : VFD-F Series
Motor Power : 1 HP to 300 HP
Input Voltage : 380-480 V
Input Phase : 3 - Phase
...more
Cx2000 Compact Series AC Drive
Applications: OEM Machines. Plastic & Textile Machines . Food & Packaging Machines . Conveyors n AHU Control n . Fan n Pump . Crane Control LT / CT. Features: V/F, sensorless vector control, slip compensation . Starting Torque 150% at 3 Hz. Built-in Potentiometer. Conformal Coated PCB. Draw mode. Brake Control. Compact, Lightweight,Easy to install Operate and service. Auto Tuning. Built-in PID. 2nd Motor Operation. Built-in Safety circuit. Built-in Braking Chopper up to 11kW. Overload capacity: Heavy duty operation: 150% of rated current for 60 sec. Normal duty operation: 110% of rated current for 60 sec. Built-in Potentiometer: Possible to add reference from keypad and external signal. Provides external potentiometer for easier frequency control. 2nd Motor Operation: Single AC Drive can maintain 2 motor parameters connected to 2 different loads with different Accel / Deccl parameter setting. For isolated operation of motors one VFD can be used in place of 2
...more

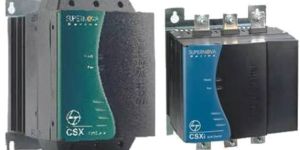

CSX & CSXi Soft Starter
Attributes : Compact design, small footprint. Built-in bypass contractor. Easy installation and operation. Complements existing motor protection. Options & accessories : Remote operator PC software. Modbus RTU. Profibus Device net Finger guard kit Ratings : Current range: 18A ~ 200A, AC53b. Supply voltage: 200 ~ 440VAC or 200 ~ 575VAC. Supply frequency: 45/66Hz Control voltage: 110 ~ 220VAC, 230 ~ 440VAC, 24VAC/VDC (+20%) Enclosure: IP00 for 75kW and above
...more
Control Desk Panel
Details : For any industries where distance of operation & machinery is placed at long distance Through communication with RS485/SCADA as per requirement. Salient Features : Control desk is use where operation is different side from panel. Suitable height for human operation. Spacious operation desk, easy to operate by hand. Made from quality base Pushbutton & Indicators. Connection details fixing at panel's Door. Available protection IP54, IP55 / IP64, IP65 (For Small Panel).
...more

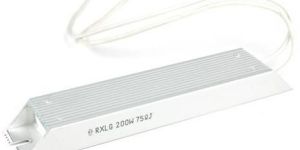

Braking Resistors
5,000 Per Piece
1 Piece (MOQ)
Brand Name : KCS
Voltage : 220 to 380 V
Type : Fixed Resistor
...more
braking resistor
500 Per Piece
The property of resistors to dissipate heat can be used to slow down a mechanical system. This process is called braking and such a resistor is called a braking resistor. Features : Lower wear of components. Control motor voltage within safe levels. Faster braking of AC and DC motors. Less service required and higher reliability.
Type : Fixed Resistor
...more
APFC Panel
10,000 Per Piece
Material : Mild Steel sheet
AMF Control Panel
Details Auto-mains failure DG starting panels up to 2MW Engines PLC/Microprocessor/Relay Based as per requirement. Salient Features : Generator start/stop. Monitoring and protection facilities. Monitors availability of power and automatically starts the DG. With fault in DG it trips the DG and indicates via LEDs/LCD. Continuously monitors the status of mains supply. Configurable via front panel feather touch push buttons. Configurable solid state outputs. Large number of configurable timers. Continuous monitoring of three-phase voltage/current/frequency of mains and DG Along with battery voltage of DG Continuous monitoring of power supplies status from Electricity Board and DG
Phase : Three-phase
Application : Industrial
...more
AC Servo System
20,000 Per Set

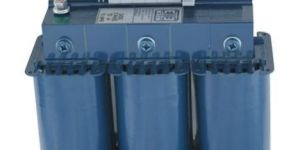

AC Line Choke
1,200 Per Piece
1 Piece (MOQ)
Frequency : 50 Hz
Human Machine Interface
Features : Built-in memory of 26 MB. High Image quality. Clear Screen Without Grid. Supports various Fonts and Graphics. Pass Through. Communication with barcode reader and serial printer. Various Built in Interfaces. Multi-language Powerful Recipe Handling. Extended Alarm Functions. Data Logging and Recorder Function. PDF file Converter. Data Management by File List. Effective use of CF card, USB memory. Security enhanced with password protection. Supports various drivers. HMI connectivity with serial communication using RS232/422/485. HMI connectivity with Field Network & Ethernet. Advanced HMI programming software with valuable features. Range : 4” and 7” : Serial communication with RS-232 & RS-485. 5”, 8”, 10”, 12” and 15” : Serial, Ethernet and field network communication
...more

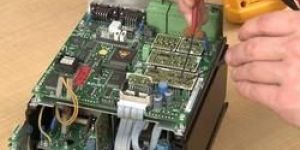

Ac Drives Repairing Service
In order to maintain our goodwill among the clients, we are offering them AC Drive Repairing Services. We have highly experienced and well-trained team of professionals who use the ultra-modern tools and machines while offering these services to our valuable patrons. Our offered services are getting vast appreciation by our valuable clients due to their cost-effectiveness, promptness and reliability. Apart from this, we offer these services at affordable charges. Location - Ahmedabad Drive we repair - AC Drive, DC Drive Warranty -1 Months Service Location - All India Approx. Price- Rs 1,700 / Unit
...more
Installation services
Installation and Technical Support : Years of working closely with customers has created a knowledge bank containing detailed information of the applications, expectations and operational systems of each individual client. It has become important in today’s market to not just be able to supply a product, but offer a backup with a comprehensive support package, which is offered by Khushi Control System’s Technical Support team. Clients can avail full consultation and design specifications for site work. Other solutions in the offering are : Application Survey Trial Arrangements Commissioning Services Service Contracts / Preventive Maintenance Repair Services Application Survey : If industrial Automation is a new subject for you, Khushi Control System engineers will visit the site to look at the application, and tell you more about what to expect and how to optimize the output of your operation. They will assess the suitability of the correct product and offer an ideal cost-effective solution as per the application. Any limitations in the existing system shall be identified and modified to make your system smooth and efficient. Trial Arrangements : Khushi Control System Sales and Application team offers short or long term trials to assess the suitability of products and service a customer intends to buy so that correct selection of models can be made.
...more
Repair and Maintenance Services
Khushi Control System can offer the services of a fully, qualified, experience engineer to visit site and commission the Automation equipment, whether it is AC Drive, PLC, AC Servo or a complete control panel. Our engineers can visit site for general services, preventive or any emergency support is required.
...more
electrical commissioning services
Khushi Control System offers the services of a qualified and experienced engineer who visits the site and commissions the Automation equipment, whether it is an AC Drive, PLC, AC Servo or a Complete Control Panel. The site visit can be for general services or when any preventive or emergency support is required.
...more
