Lab coating pan
Get Price Quote
Pan SS 316 semi ellipsoidal size pan with a circular mouth for charging & discharging of tablets Pan mounted at an inclination of 45 degrees to the horizontal.Drive Assembly: Consists of a suitable 1 HP 3 Phase, 440 V, and 1440-RPM TEFC motor with suitable worm reduction gearbox and cone pulley arrangement to give three-speed output. Hot Air Blower: The unit is provided with a hot air blower consisting of suitable HP 3 Phase 440 V, 2880-RPM TEFC electric motor & centrifugal blower with damper delivering required CFM. The air is heated by means of suitable electric heater to give air at 30 to 90 degrees Heater with thermostat control and flexible hose pipe.Control Panel: Unit provided with suitable control panel with starters and push button to actuate the drive and for blower The circuits consists of MCCBs, relays and contractors in series Ample overload protection is provided by the MCCB and the relay Wires coming out of the connections are numbered for easy recognition Mounting: The motor and gearbox is mounted inside sturdy MS frame and the pan mounted on the Gearing housing fitted in the stand. Blower mounted by the side of the stand or placed in remote location if required.Finish: All joints argon Arc welded and all SS Parts polished to suitable finished required of pharmaceutical equipment MS parts painted to smooth finish.

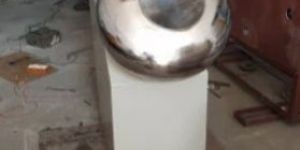

Lab Tablet Coating Machine
320,000 Per Piece
1 Piece (MOQ)
Best Deals from Lab Coating PAN

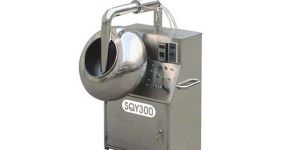

Lab coating pan
Get Price Quote
The prism compact NewLABOcoata- Lab Automatic tablet coating is high efficiency and intelligent automated film & sugar coating advance technology is mainly used in pharmaceutical and food industries. Featuring mechatronis and confirming to the requirement of cGMP. It is a high efficiency, energy saving, safe and clean equipment for film & sugar coating of tablets, Pills and candies with film - organic solvent and aqueous coating.
Lab coating pan
Get Price Quote
This is a Portable self-contained laboratory Coating system suitable for sugar or film coating of Tablets, Pallets, and Granules etc. It consists of following parts:Main Body It consists of Coating Pan, Spray Gun, Drive Unit, Control panel box & Hot Air Blower. Stainless steel Table top body mounted on castor wheels for Mobility.
Lab coating pan
Get Price Quote
In compliance with cGMP guidelines. Also available with Standard Painted Model & for small scale laboratory purpose. Conventional Coating Pan with very sturdy M.S structure made of angles & channels which are covered from all the sides by covers & doors. The Coating Pan drive is through standard make heavy duty worm reduction gear box & electrical motor by means of belt and pulley drive fitted on a rigid structure. Coating Pan Speed can be changed through variable speed pulley mounted on the shaft of electric motor (AC Variable Frequency Drive – Optional with extra cost). Coating Pan made of SS 304 SS 316 or SS 316L material and mirror polished from inside & outside. Baffels either welded or detachable (welded are the standard supply if not specified) provided inside the pan considering production requirements. Easy mounting arrangement considering changeover of coating polishing pan.
Lab coating pan
Get Price Quote
The Laboratory scale conventional costing machine is ideal for film and sugar coating. The machine is available with 12”, 14”,16”, 18” and 20” size of stainless steel coating pan. The machine is designed with fabricated structure fitted with SS enclosure and drive unit of motor and reduction gear box. Machine has variable speed drive to achieve 5 to 15 RPM by variable speed pulley. The machine is mounted on anti vibration pads which avoids foundation and vibration.
Laboratory Coating Pan
Get Price Quote
Laboratory Coating Pan, glass adapter
