It is a motor driven mechanical compactor useful for soil compaction into 100mm or 150mm dia moulds. Two sets of rammers are provided, one of 2.6kg. And the other of 4.89 kg arranged for 310mm and 450mm fall respectively. For compaction soil into 150mm dia moulds, 100mm face dia rammers having weight of 4.89Kg is used. Where as for 100mm dia moulds, they are of 50mm dia. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the soil layer. When the rammer reaches the required height the pawl release the rammer, which falls freely on soil surface. The release mechanism is connected by an arm moving up and down which is connected to a reduction gear coupled to the motor through another arm. An automatic blow counter fitted to the compactor is used to set the number of blows. The base plate of the specimen mould is to be fitted to the rotating base plate of the instrument which makes 1/5th revolution per operation. Operation on 230 volts, 50 cycles, single phase, A.C. supply, Moulds are to be ordered separately. Moulds for above C.R.B. Mould, 150 mm dia X 175 mm high with extension collar and base plate. made of mild steel. C.R.B. Mould, 150 mm dia X 175 mm high with extension collar and base plate. made of gunmetal. Proctor mould, 100 mm dia X 127.3 mm high X 1000cc volume, with collar & base plate Mild Steel. Proctor mould, 150 mm dia X 127.3 mm high X 2250cc volume with collar & base plate. Mild Steel.

It is a motor driven mechanical compactor useful for soil compaction into 100mm or 150mm dia moulds. Two sets of rammers are provided, one of 2.6kg. And the other of 4.89 kg arranged for 310mm and 450mm fall respectively. For compaction soil into 150mm dia moulds, 100mm face dia rammers having weight of 4.89Kg is used. Where as for 100mm dia moulds, they are of 50mm dia. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the soil layer. When the rammer reaches the required height the pawl release the rammer, which falls freely on soil surface. The release mechanism is connected by an arm moving up and down which is connected to a reduction gear coupled to the motor through another arm. An automatic blow counter fitted to the compactor is used to set the number of blows. The base plate of the specimen mould is to be fitted to the rotating base plate of the instrument which makes 1/5th revolution per operation. Operation on 230 volts, 50 cycles, single phase, A.C. supply, Moulds are to be ordered separately. Moulds for above C.R.B. Mould, 150 mm dia X 175 mm high with extension collar and base plate. made of mild steel. C.R.B. Mould, 150 mm dia X 175 mm high with extension collar and base plate. made of gunmetal. Proctor mould, 100 mm dia X 127.3 mm high X 1000cc volume, with collar & base plate Mild Steel. Proctor mould, 150 mm dia X 127.3 mm high X 2250cc volume with collar & base plate. Mild Steel.

• Material: AS PER REQUIREMENT
• Filtration: AS PER REQUIREMENT
• Surface Finishing: Polished
• Shape: Round
• Power: AS PER REQUIREMENT
• Pressure: AS PER REQUIREMENT

Made under the guidance of Engineers and experienced Quality Analysts, the Suction Strainers, which we offer, are produced using the best quality materials. We offer these Suction Strainers at economical rates to the clients. These Suction Strainers are used in protecting Valves and Pumps. Availability : 100, 149Micron S.S. mesh or as per clients requirement for different flow rates Minimum Order Quantity : 100 pieces

• Brand Name: EIE

We are offering This heat flow meter is a commercial apparatus for thermal conductivity (or thermal resistance) of insulation materials by guarded hot-plate. Specification GUARDED HOT PLATE :- Size : Metering area :- 150 x 150 mm Guard : 75 mm all around with a gap of 3mm between guard and central. Overall size : 310 mm Plate thickness : 4 mm (approx). Material : brass Max. Working temperature: 150°C No. of thermocouples : 2 each in central & Guard plate. (One for control & 3 for monitoring) Central plate: 4 thermocouples are mounted on Central Plate (two at upper and lower side at the center) i.e. total 4 thermocouples. Guard plate: 4 thermocouples are mounted on Central Plate (two at upper and lower side at the center) i.e. total 4 thermocouples. COLD PLATES :- Overall Size : 310 x 310 mm Thickness : 1 mm (approx) Material : copper. No. of thermocouples : 4 in plate.(One for control & another for monitoring) Maximum working temperature : -20°C. Specimen dimensions A single specimen is required. Thickness: 30 mm to 75 mm(The thickness is within 2% of its mean thickness over its whole area) Note: Thinner specimens can be measured, if it is the thickness that they will be supplied to the end user Length and breadth: 310*310 mm (Within range 305 mm to 311 mm) Flatness: The 310 mm square faces are flat to better than 0.2 mm (Flatness criteria do not apply to compressible or fibrous insulations) Thermal conductivity range: up to 0.5 Wm·K Mean specimen temperature range: -20 to 150 c Confirms as per IS:3346

• Material: Steel
• Automation Grade: Manual
• Weight (kg): 25 Kg
• Surface Treatment: Polished

Swell Test Apparatus (AIM 132)   It is designed to determine the swelling pressure developed by soil specimens moulded to desired densities at known moisture contents, when soaked in water. The load applied to restrain the swelling is transferred on to a load measuring proving ring through a perforated swell plate and a load transfer bar. The proving ring is attached to the lead screw of hand operated load frame. A soaking tank is provided for saturating the specimen and the base of the mould provided has channels and radial grooves with connecting holes.     Application Measurement of Swell pressure. Industry Chemical/Process Agricultural Civil Infrastructure Dams & Tunnels Geophysical/ Seismology Testing Geotechnical (soil/ rock) Testing Irrigation Mining Real Estate Roads, Highways & Bridges Education Architecture Building Technology Civil Department Geotechnical Mining Engineering Science Colleges Traffic & Transportation Railways Roads, Highways & Bridges

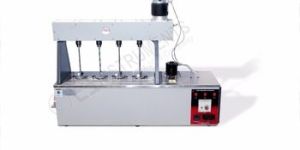

Features: Hassle free functioning Corrosion resistance Accurate outcome Easy to use  Compliance with following International Standards IP 124, ASTM D665, ASTM D3603   Brief construction details Rectangular reservoir (Inner chamber) constructed of 16 SWG, stainless steel with drain cock. Outer body made of 20 SWG, CRCA sheet duly powder coated. Thermal insulation provided in between the walls to prevent loss of temperature. Constant temperature oil bath is fitted with motorized stirrer  to maintain temperature at 60 °C ± 0.5 °C Oil immersion heaters are fitted to dissipate uniform heating. Temperature, speed and time are digitally indicated. Microprocessor based PID temperature controller with two  displays for set and process value. PT-100 sensor with 0.1 °C resolution on digital display. The bath can accommodate at least four test samples at a time with combined motor for each position Motor is mounted on ball bearing, driven by belts and pulleys. Supplied complete with 4 Nos test Beaker (400 ml) of Borosilicate glass with dimension as per ASTM standard. The test beakers are securely held in the bath by spring clips and are fitted with acrylic covers, dimension as per ASTM standard.   Details about Timer & Stirrer The unit is having motorized stirrer with digital RPM meter with proximity sensor to monitor the stirring speed. Stirrer rotates on its longitudinal axis at 1000 ± 50 rpm. Stirrer will be made of stainless steel as pr standard dimension given in the method. Test rod is also made of steel conforming to grade 10180 of specs A 108 BS 970 Part 1:1983-070M20 with dimension as per standard. In-built timer is provided in apparatus which stops the stirrer at pre-set time.   Technical Specifications Temperature range    : Ambient to 100 °C  ± 0.5 °C Stirrer Speed            : Up to 1000 rpm, ± 50 revolution/minute Power supply           : 230 Volt + 10 %, 1 phase, 50 Hz   Following accessories are supplied along with the equipment 1)    Thermometer ASTM 9C, ASTM 20C & ASTM 21C (1 each)  :  3 numbers 2)    Steel Test Specimen                                  : 4 numbers 3)    Test Beakers (400ml) with covers           :4 numbers 4)    Beaker cover (PTFE) for ASTM D665      : 4 Numbers 5)    Teflon holder (PTFE) for D665                 :4Numbers 6)    Auxiliary Stirrer Blade for ASTM D665 Procedure C (heavier than water fluids)  : 1 Number

• Material: Steel
• Automation Grade: Manual
• Weight (kg): 25
• Surface Treatment: Polished

We are the leading manufacturers, exporters and supplier of this products.

A perfect organization always make sure for the all the product to be manufactured under all the possible atomization which in result can give the perfect shape as the requirement or the need of the market. Following the same rule since more then 5 decades we are trusted manufacturer and supplier of “MARSHAL STABILITY TESTING APPARATUS” to the industry. Having a wast workshops equipped with all the necessary machinery our team used the raw material which are high grade in quality. They also follow all the parameters and norms set by the industry. Our Marshal Stability Testing Machine is used in evaluation & designing paving mass of Bituminous. We provide 2 different type of machine. “Marshal Stability Test Apparatus” & “Modified Marshal Stability Test Apparatus”.

• Type: Ecg Machine
• Application: Medical Use

◆4.3" LCD,touch screen(ECG300GTonly) ◆High resolution thermal-array output system(8 dots/mm), no adjustment required. Frequency Response is up to 150Hz. ◆ Sync collection for 12-lead ECG, support routine 12-lead and Cabrera-lead waveform display. Get high-quality ECG waveform via AC filter, DFT filter, EMG filter and Low-pass Filter of ECG signal. ◆Display 3/6/12-lead ECG waveform, print mode,sensitivity,paperspeed,filter status, etc. on one screen, convenient for contrastively diagnosing. ◆Support forauto 1×12,auto 1×12+1,auto 2×6,auto2×6+1.auto3×4.auto3×4+1.auto 4×3.auto 3-2+l, auto 3-2. rhythm4.rhythm3. rhythm2and manual.The printed content contains time,paper speed,sensitivity,calibrationsignal,name of lead.filter state and patient's information.Informationincluding printed waveform length, output measure-ment parameter, diagnostic conclusion, superpositionQRS waveform, histogram, trend chart and interval list,can be set,and with time print function,which meets different requirements. ◆With the functions of auto-measurement and auto-interpretation for routine ECG parameters,providemeasurementresults for HR, PR interval, P Duration. ORS Duration. TDura-tion,QT/QTc interval,P/QRS/TAxis,RV5),S(Vl)and R(V5)+S(V1),etc.andauto- diagnosis conclusion, which reduces the doctor's burden. ◆Rhythm lead can be selected freely, convenient to observe abnormal heart rhythm. ◆ The subject's clinical information (such as, ID,Name,Age,Sex, Height,Weight,etc.)can be entered. ◆1000 cases can be stored by the built-in memory, convenient for case review and statistic. Multi- language(Chinese,English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Russian, Ukrainian, Serbian, Vietnamese,Slovenian, Slovak, Bulgarian and Nigerian language) interface and report ◆Package size:40.5*30*20(cm) 3.5kg/carton.
